Valve Body & Oil Strainer (ATM)

190 part groups · 12 illustrations

Illustrations

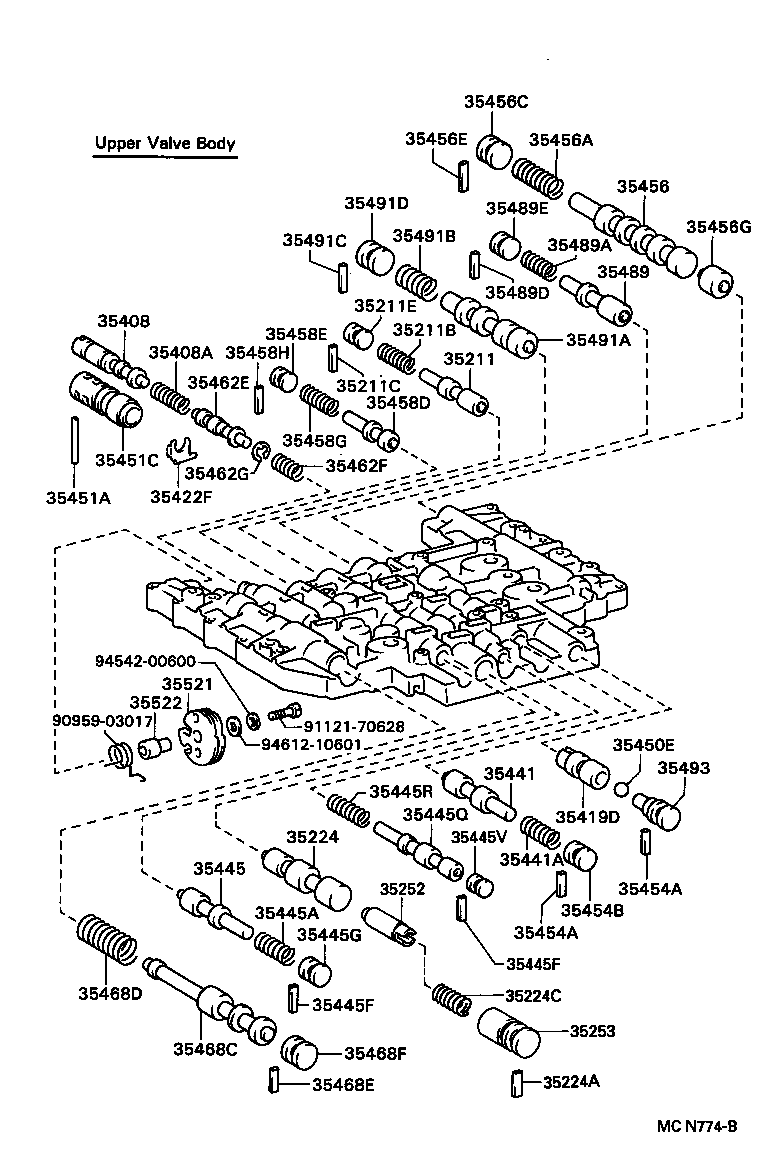

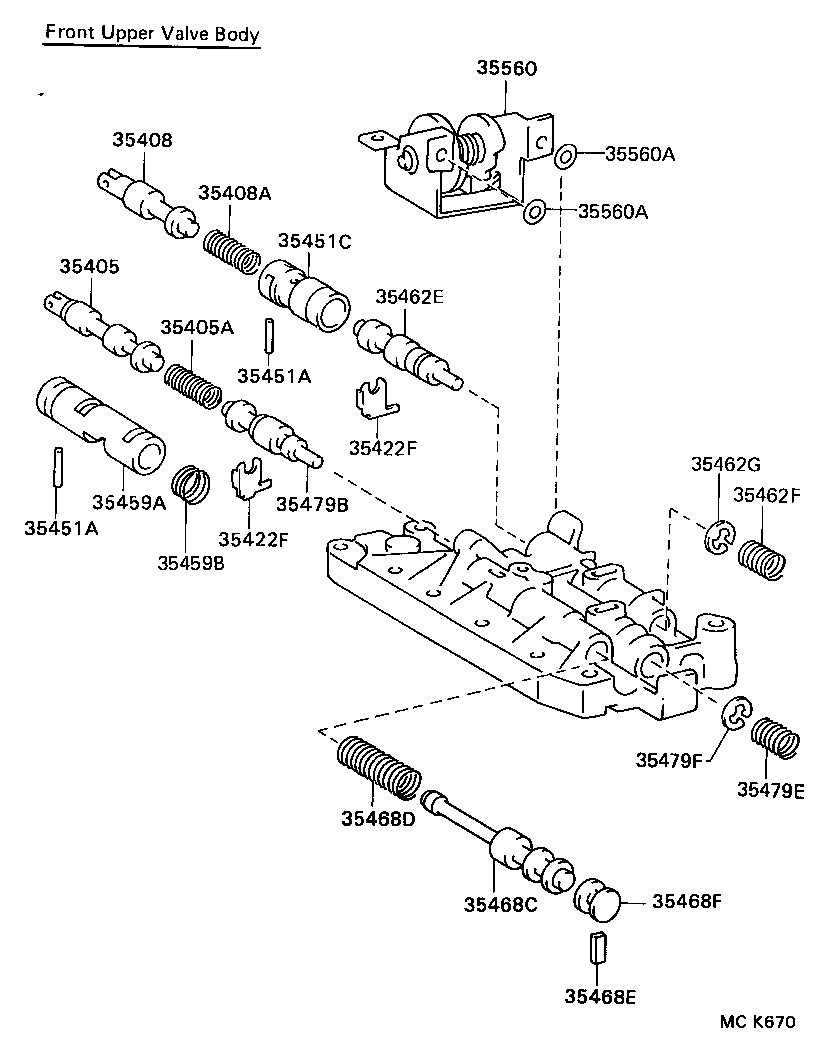

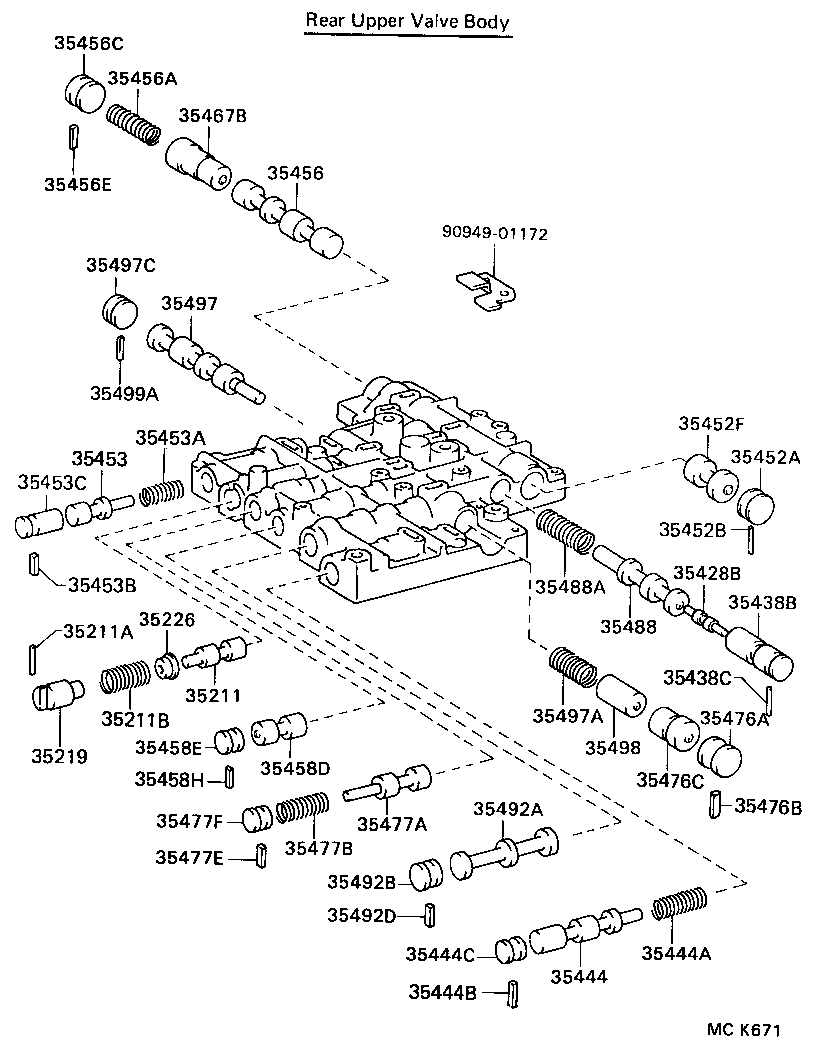

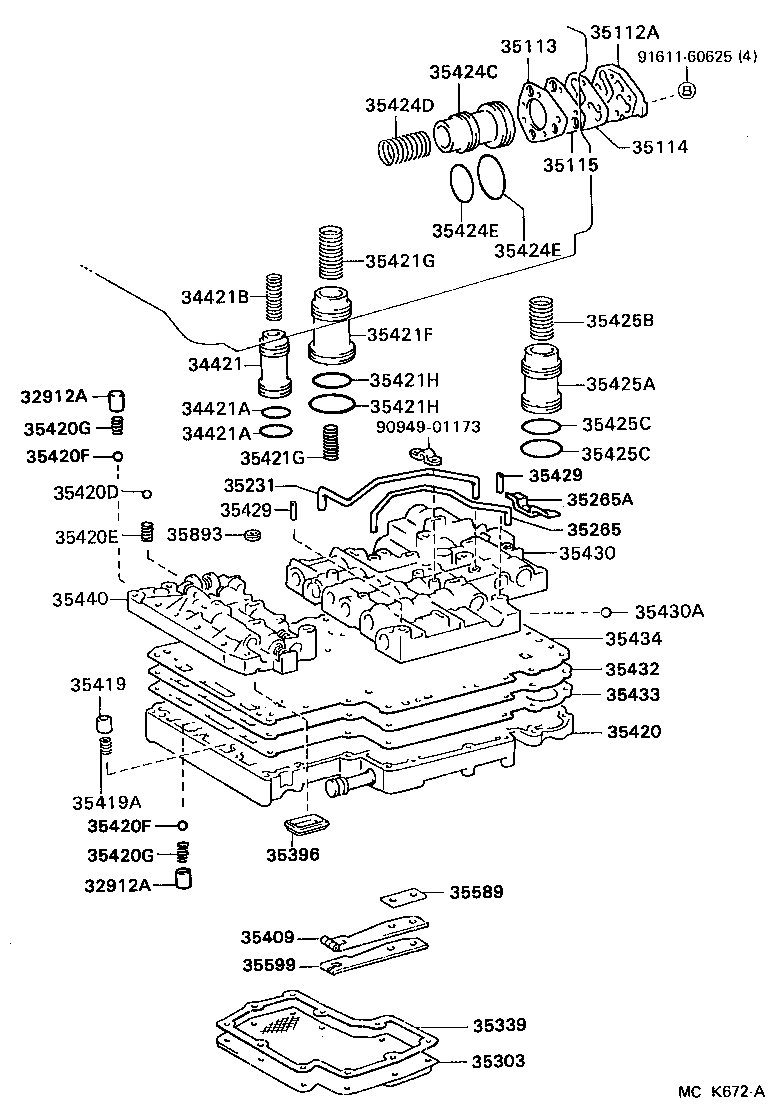

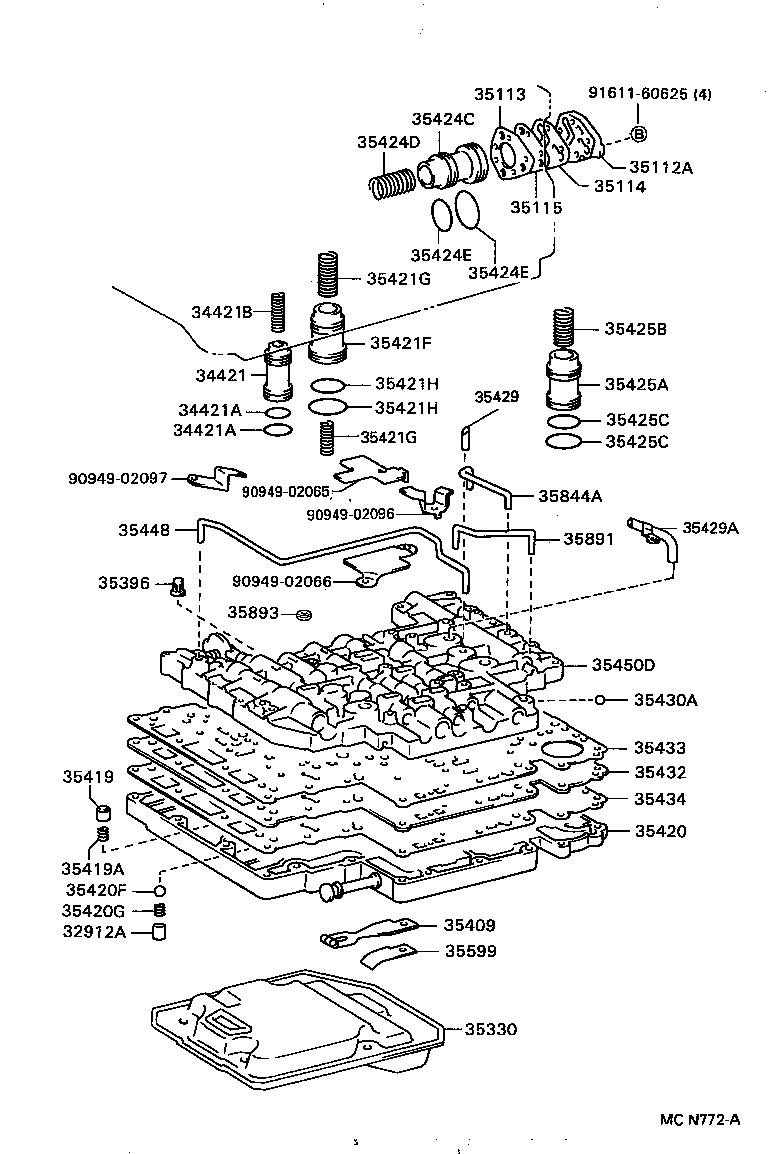

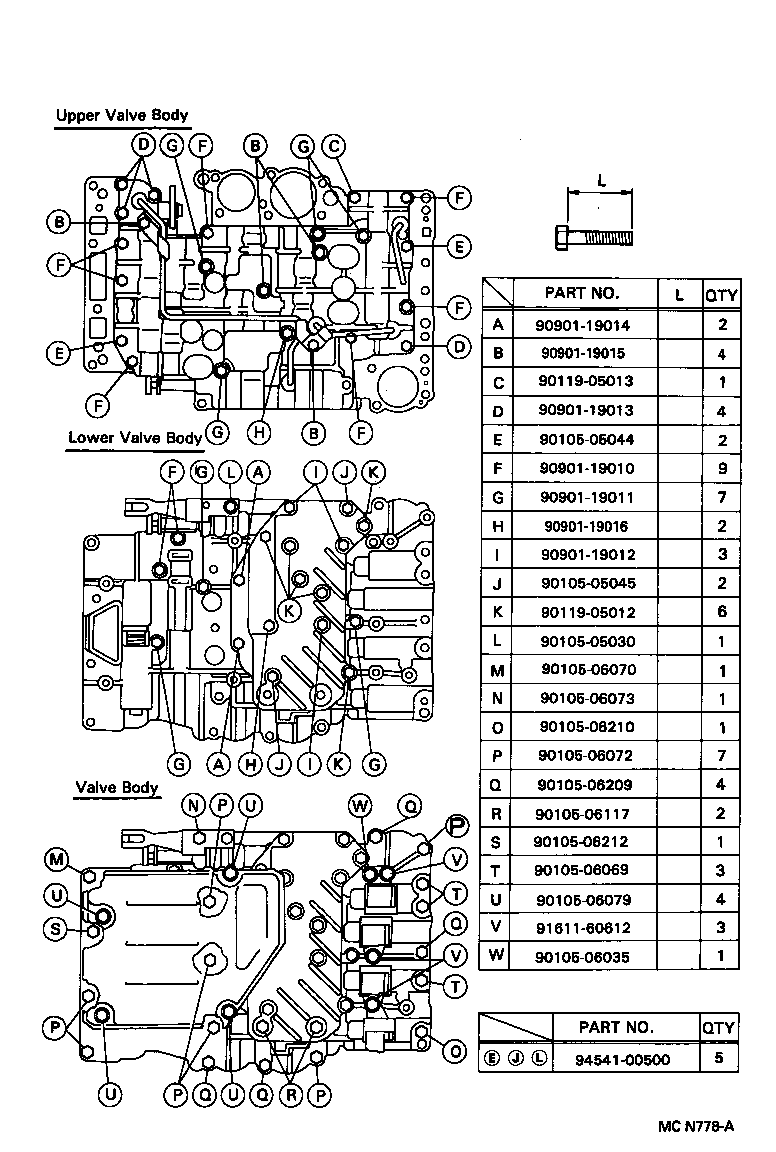

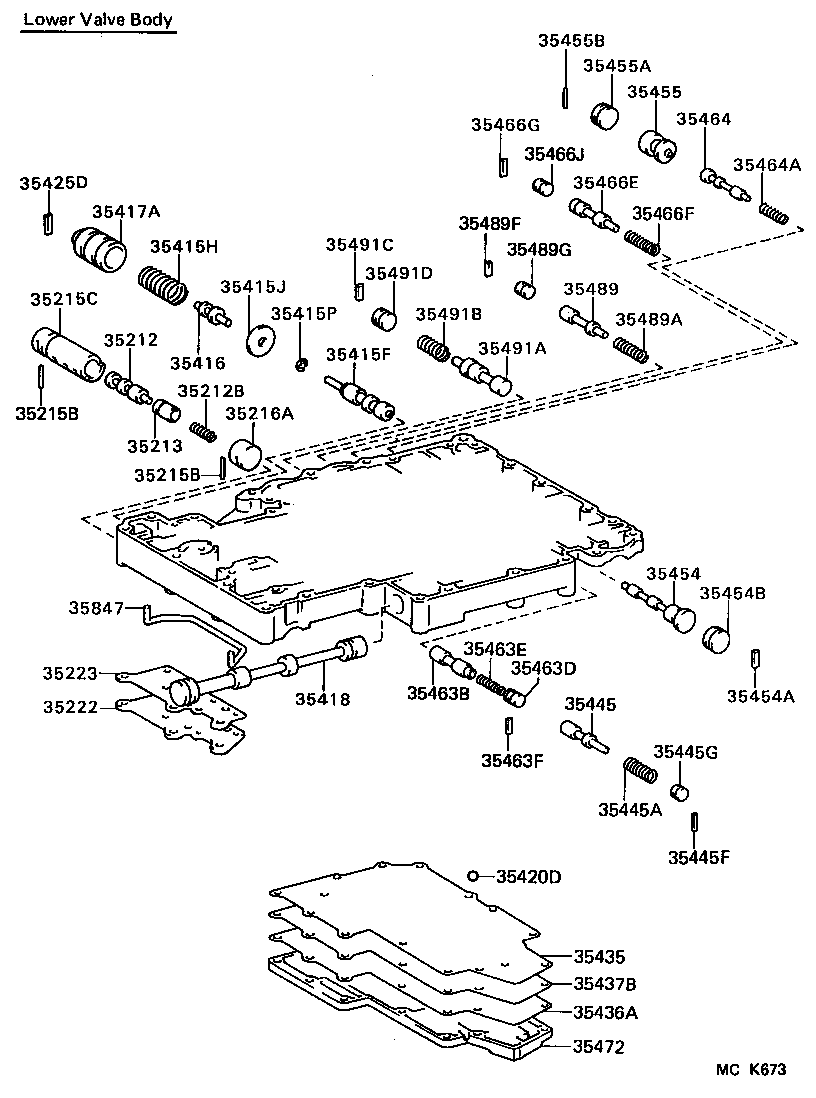

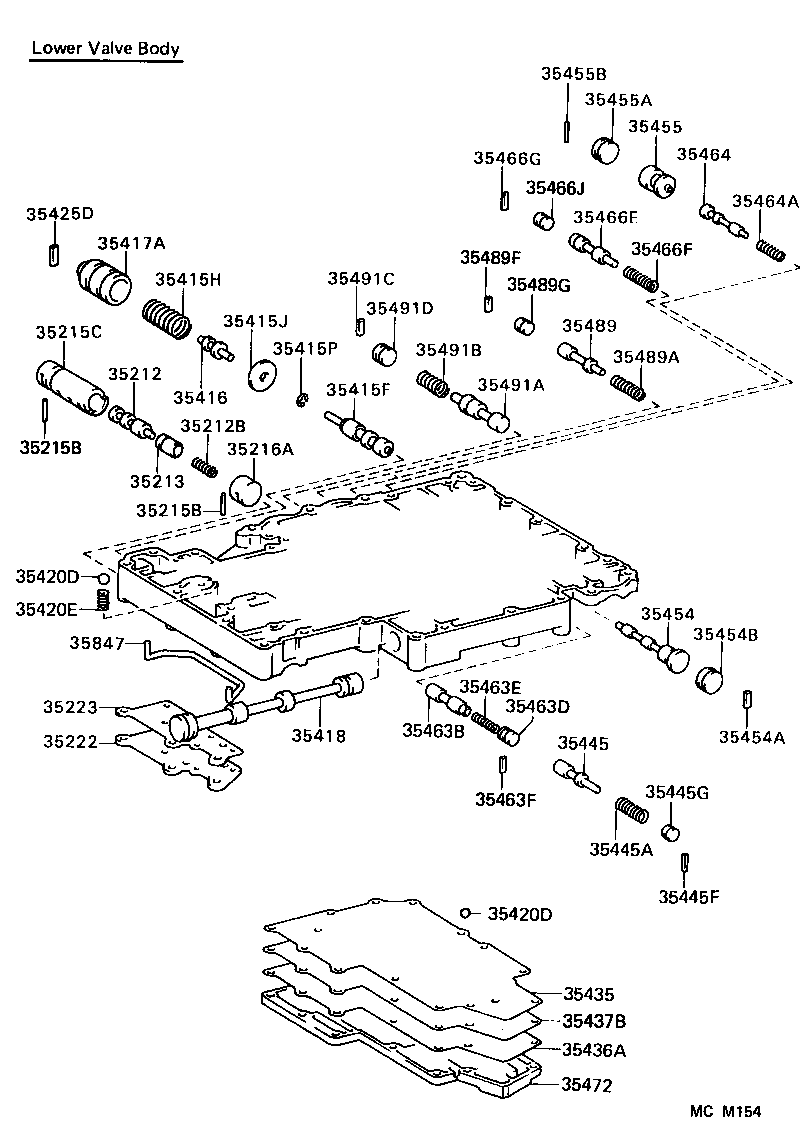

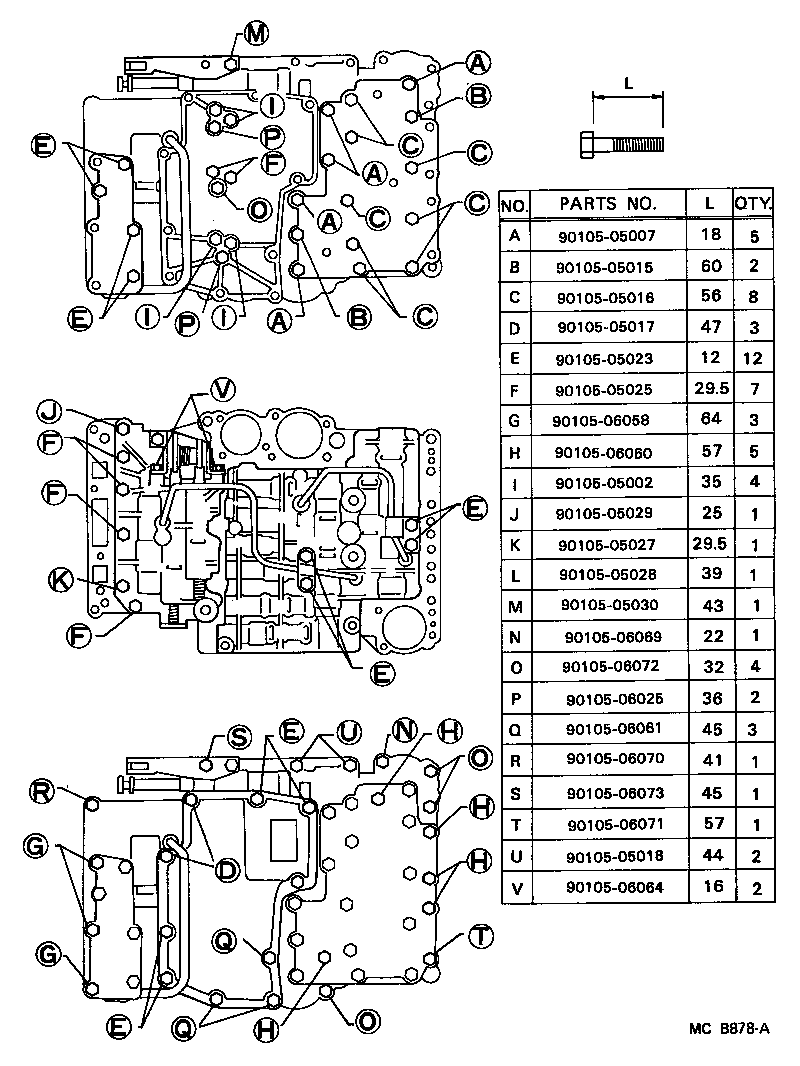

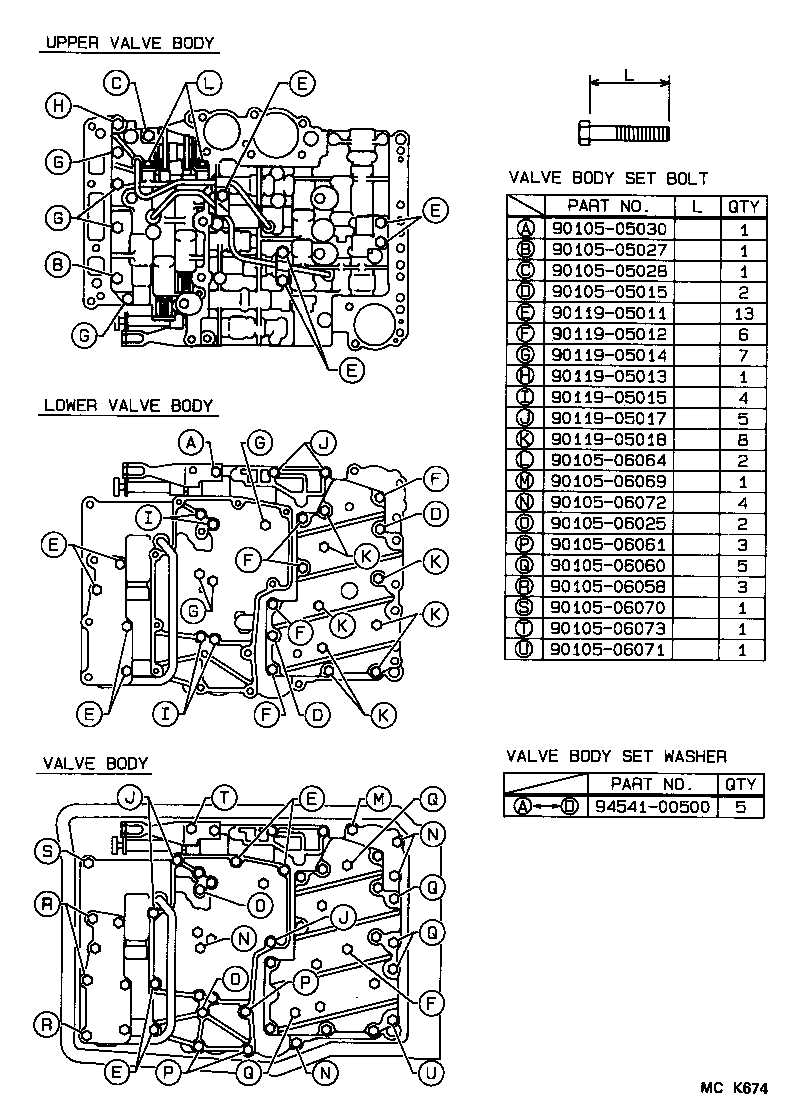

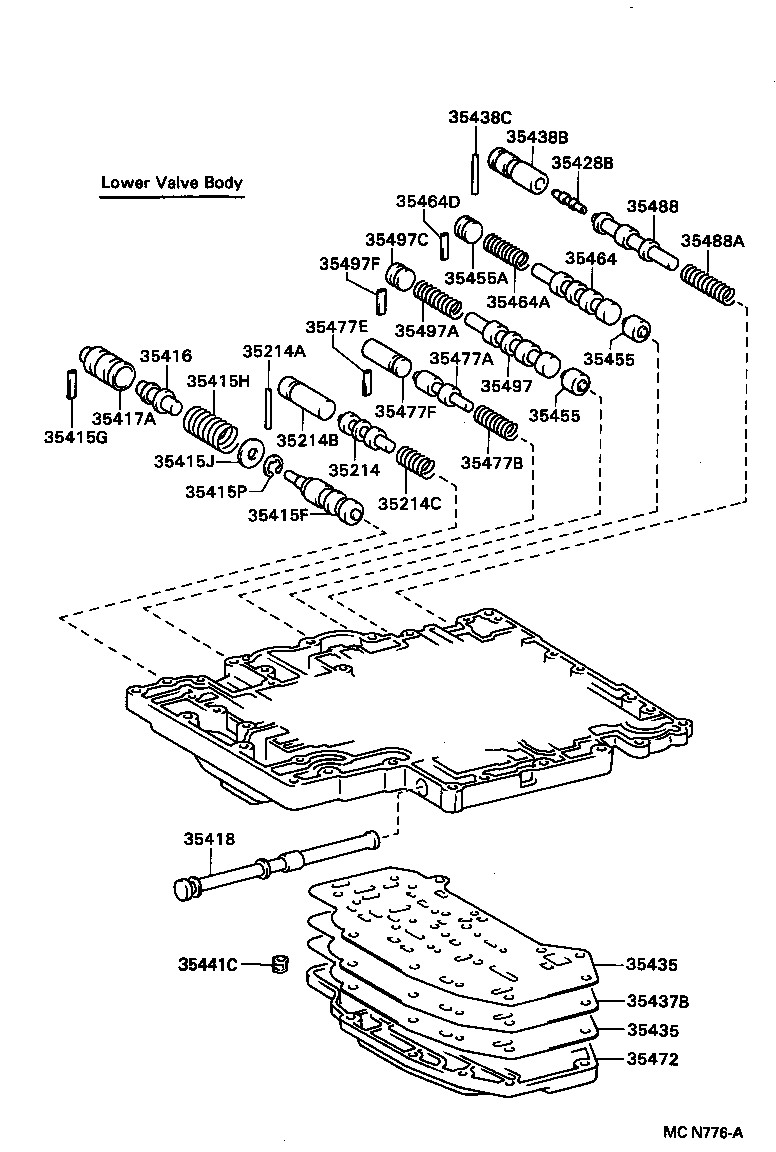

Figure MCM155 MCM155 1990-01 → 1992-08 Figure MCN772A MCN772A 1992-08 → — Figure MCK672A MCK672A 1990-01 → 1992-08 Figure MCK670 MCK670 1990-01 → 1992-08 Figure MCN774B MCN774B 1992-08 → — Figure MCK671 MCK671 1990-01 → 1992-08 Figure MCK673 MCK673 1990-01 → 1992-08 Figure MCN776A MCN776A 1992-08 → — Figure MCM154 MCM154 1990-01 → 1992-08 Figure MCB878A MCB878A 1990-01 → 1992-08 Figure MCN778A MCN778A 1992-08 → — Figure MCK674 MCK674 1990-01 → —

Part groups

PNCDescription
32912A Cage, Check Valve(FOR VALVE BODY)
34421 Piston, Overdrive Brake Accumulator
34421A Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
34421B Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
35112A Cover, Front Clutch Accumulator
35113 Gasket, Front Clutch Accumlator, NO.2
35114 Gasket, Front Clutch Accumlator, NO.1
35115 Plate, Front Clutch Accumulator
35211 Valve, Lock UP Signal
35211A Pin, Straight (FOR LOCK UP SIGNAL VALVE)
35211B Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211C Key, Straight (FOR LOCK UP SIGNAL VALVE)
35211E Plug (FOR LOCK UP SIGNAL VALVE)
35212 Valve, Lock UP Relay
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213 Valve, Lock UP Relay Control
35214 Valve, Lock UP Control
35214A Key, Straight (FOR LOCK UP CONTROL VALVE)
35214B Plug (FOR LOCK UP CONTROL VALVE)
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215B Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE)
35215C Sleeve, Lock UP Relay Valve, NO.1
35216A Sleeve, Lock UP Relay Valve, NO.2
35219 Plug, Lock UP Signal Valve
35222 Plate, Lock UP Relay Valve Body
35223 Gasket, Lock UP Relay Valve Body
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35226 Seat, Lock UP Signal Valve Spring
35231 Tube, Lock UP Signal Valve Apply
35252 Plunger, Reverse Control Valve
35253 Sleeve, Reverse Control Valve Plunger
35265 Tube, Clutch Pressure Apply
35265A Bracket (FOR CLUTCH PRESSURE APPLY TUBE)
35303 Strainer Sub-assy, Oil
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35396 Strainer, Throttle Oil
35405 Plug Sub-assy, Secondary Down Shift
35405A Spring, Compression(FOR SECONDARY DOWN SHIFT PLUG)
35408 Plug Sub-assy, Primary Down Shift
35408A Spring, Compression (FOR PRIMARY DOWN SHIFT PLUG)
35409 Spring Sub-assy, Manual Detent
35415F Valve, Primary Regulator
35415G Key, Straight (FOR PRIMARY REGULATOR VALVE)
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35415P Ring, E (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419D Valve, Check, NO.2
35420 Body Assy, Lower Valve
35420D Ball (FOR LOWER VALVE BODY)
35420E Spring (FOR LOWER VALVE BODY)
35420F Ball, Check, NO.1
35420G Spring, Barrel Shaped
35421F Piston, Accumulator, NO.2
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421H Ring (FOR ACCUMULATOR PISTON NO.2)
35422F Stopper, Valve Vibrating
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35425D Seat, Primary Regulator Valve Sleeve
35428B Plug, 2-3 Shift Timing Valve
35429 Tube, Line Pressure
35429A Tube, Line Pressure
35430 Body Assy, Rear Upper Valve
35430A Ball (FOR REAR UPPER VALVE BODY)
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35435 Gasket, Valve Body Plate, NO.3
35436A Gasket, Valve Body Plate, NO.4
35437B Plate, Valve Body Cover
35438B Sleeve, 2-3 Shift Timing Valve Plug
35438C Pin, Straight (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE)
35440 Body Assy, Front Upper Valve
35441 Valve, Low Coast Shift Control
35441A Spring, Compression (FOR LOW COAST SHIFT CONTROL VALVE)
35441C Strainer, Solenoid Oil
35444 Valve, Intermediate Modulator
35444A Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE)
35444B Key, Straight (FOR INTERMEDIATE MODULATOR VALVE)
35444C Plug (FOR INTERMEDIATE MODULATOR VALVE)
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35445F Key, Straight (FOR LOW MODULATOR VALVE)
35445G Plug (FOR LOW MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445V Plug (FOR LOW COAST MODULATOR VALVE)
35448 Tube, 2-3 Shift Valve Apply
35450D Body Assy, Upper Valve
35450E Ball (FOR UPPER VALVE BODY)
35451A Pin, Straight (FOR THROTTLE VALVE SLEEVE)
35451C Sleeve, Throttle Valve, NO.1
35452A Plug (FOR 2-3 SHIFT VALVE PLUG)
35452B Pin, Straight (FOR 2-3 SHIFT VALVE PLUG)
35452F Plug, 2-3 Shift Valve
35453 Valve, Detent Regulator
35453A Spring, Compression (FOR DETENT REGULATOR VALVE)
35453B Key, Straight (FOR DETENT REGULATOR VALVE)
35453C Plug (FOR DETENT REGULATOR VALVE)
35454 Valve, Low Coast Shift
35454A Key, Straight (FOR LOW COAST SHIFT VALVE)
35454B Plug (FOR LOW COAST SHIFT VALVE)
35455 Plug, 1-2 Shift Valve Low
35455A Plug (FOR 1-2 SHIFT VALVE LOW PLUG)
35455B Pin, Straight (FOR 1-2 SHIFT VALVE LOW PLUG)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456E Pin, Straight (FOR 2-3 SHIFT VALVE)
35456G Plug (FOR 2-3 SHIFT VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35458H Key, Straight (FOR CUT BACK VALVE)
35459A Sleeve, Throttle Valve, NO.2
35459B Spring (FOR THROTTLE VALVE SLEEVE)
35462E Valve, Primary Throttle
35462F Spring, Compression (FOR PRIMARY THROTTLE VALVE)
35462G Ring, E (FOR PRIMARY THROTTLE VALVE)
35463B Valve, 1-2 Relay
35463D Plug (FOR 1-2 RELAY VALVE)
35463E Spring, Compression (FOR 1-2 RELAY VALVE)
35463F Pin, Straight (FOR 1-2 SHIFT VALVE)
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464D Key, Straight (FOR 1-2 SHIFT VALVE)
35466E Valve, 2ND Lock
35466F Spring, Compression (FOR 2ND LOCK VALVE)
35466G Key, Straight (FOR 2ND LOCK VALVE)
35466J Plug (FOR 2ND LOCK VALVE)
35467B Valve, Intermediate Coast Shift
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35472 Cover, Valve Body, NO.2
35476A Plug, Straight (FOR 3RD COAST SHIFT)
35476B Pin, Locating (FOR 3RD COAST SHIFT)
35476C Valve, 3RD Coast
35477A Valve, Overdrive Clutch Exhaust
35477B Spring, Compression (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477E Key, Straight (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477F Plug (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35479B Valve, Secondary Throttle
35479E Spring, Compression (FOR SECONDARY THROTTLE VALVE)
35479F Ring, E (FOR SECONDARY THROTTLE VALVE)
35488 Valve, 2-3 Shift Timing
35488A Spring, Compression (FOR 2-3 SHIFT TIMING VALVE)
35489 Valve, 3-2 Kick Down Orifice Control
35489A Spring (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489D Key, Straight (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489E Plug (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489F Key, Straight (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489G Plug (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492A Valve, Manual Down Timing
35492B Plug (FOR MANUAL DOWN TIMING VALVE)
35492D Key, Straight (FOR MANUAL DOWN TIMING VALVE)
35493 Seat, Shift Valve Spring
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35498 Valve, 3-4 Coast Shift
35499A Pin, Straight (FOR 3-4 SHIFT VALVE)
35521 Cam, Throttle Valve
35522 Pin, Throttle Valve Cam
35560 Cam Assy, Throttle Valve
35560A Shim (FOR THROTTLE VALVE CAM)
35589 Spacer, Manual Detent Spring
35599 Cover, Manual Detent Spring
35844A Tube, Accumulator Back Pressure, NO.1
35847 Tube, Transmission Lube Apply
35891 Tube, Overdrive Direct Clutch
35893 Gasket, Center Support Apply
