Vane Pump & Reservoir (POWER STEERING)

40 part groups · 5 illustrations

Illustrations

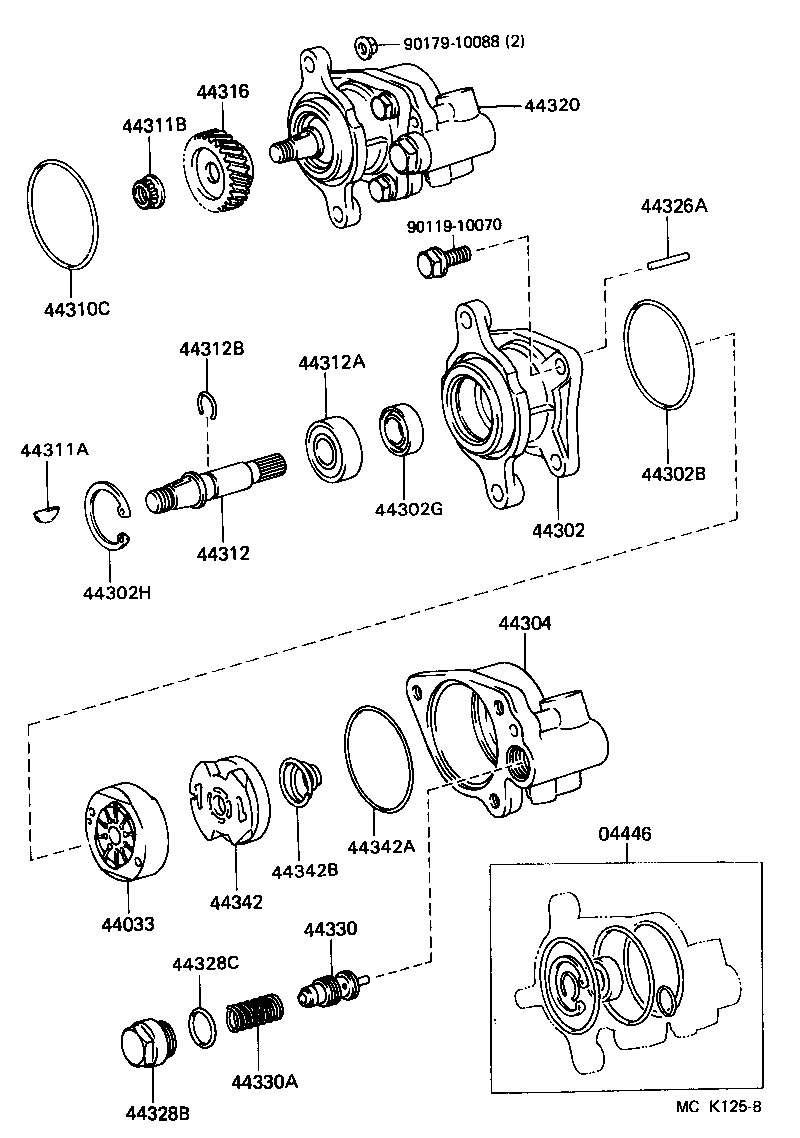

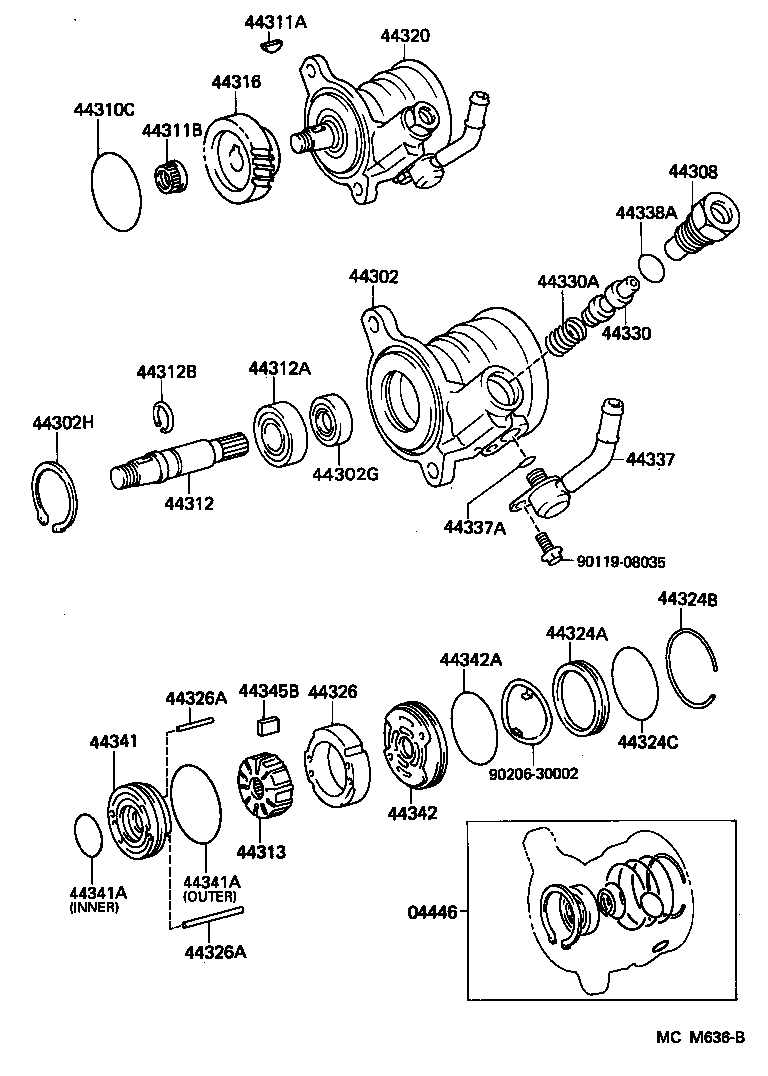

Figure MCK124C MCK124C 1990-01 → 1992-08 Figure MCK125B MCK125B 1990-01 → — Figure MCK207B MCK207B 1990-01 → — Figure MCM636B MCM636B 1992-08 → — Figure MCM732 MCM732 1992-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44033 Rotor Sub-assy, W/Cam & Vane
44302 Housing Sub-assy, Vane Pump, Front
44302B Ring, O, NO.1(FOR VANE PUMP HOUSING)
44302G Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
44302H Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
44304 Housing Sub-assy, Vane Pump, Rear
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44306 Reservoir Sub-assy, Vane Pump Oil
44308 Union Sub-assy, Pressure Port
44310C Ring, O(FOR VANE PUMP)
44311 Pulley, Vane Pump
44311A Key, Vane Pump Pulley
44311B Nut(FOR VANE PUMP PULLEY)
44312 Shaft, Vane Pump
44312A Bearing(FOR VANE PUMP SHAFT)
44312B Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
44313 Rotor, Vane Pump
44316 Gear, Vane Pump
44320 Pump Assy, Vane
44324A Housing, Pump, Rear
44324B Ring, Hole Snap(FOR PUMP HOUSING REAR)
44324C Ring, O(FOR PUMP HOUSING REAR)
44326 Ring, Cam(FOR VANE PUMP)
44326A Pin, Straight(FOR VANE PUMP CAM RING)
44328B End, Vane Pump Housing
44328C Ring, O(FOR PUMP HOUSING END)
44330 Valve Assy, Flow Control
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44341 Plate, Vane Pump Side, Front
44341A Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
44342 Plate, Vane Pump Side, Rear
44342A Ring, O(FOR VANE PUMP SIDE PLATE REAR)
44342B Spring, Compression(FOR VANE PUMP SIDE PLATE REAR)
44345B Plate, Vane Pump
44360 Reservoir Assy, Vane Pump Oil
44362A Ring, O(FOR VANE PUMP OIL RESERVOIR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
