Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

12 part groups · 8 illustrations

Illustrations

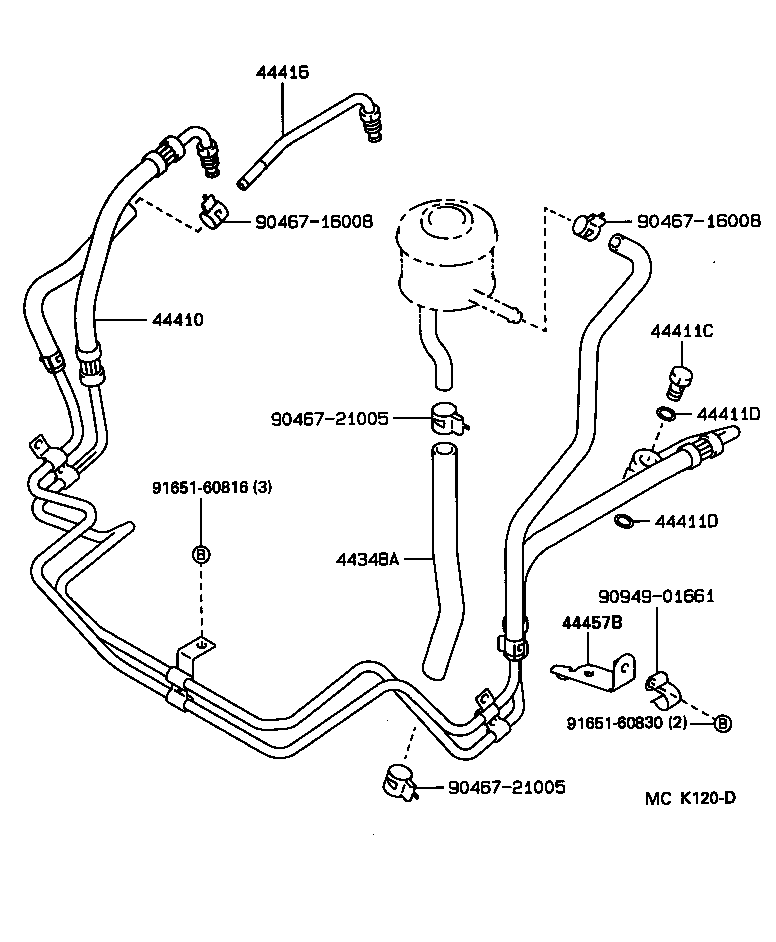

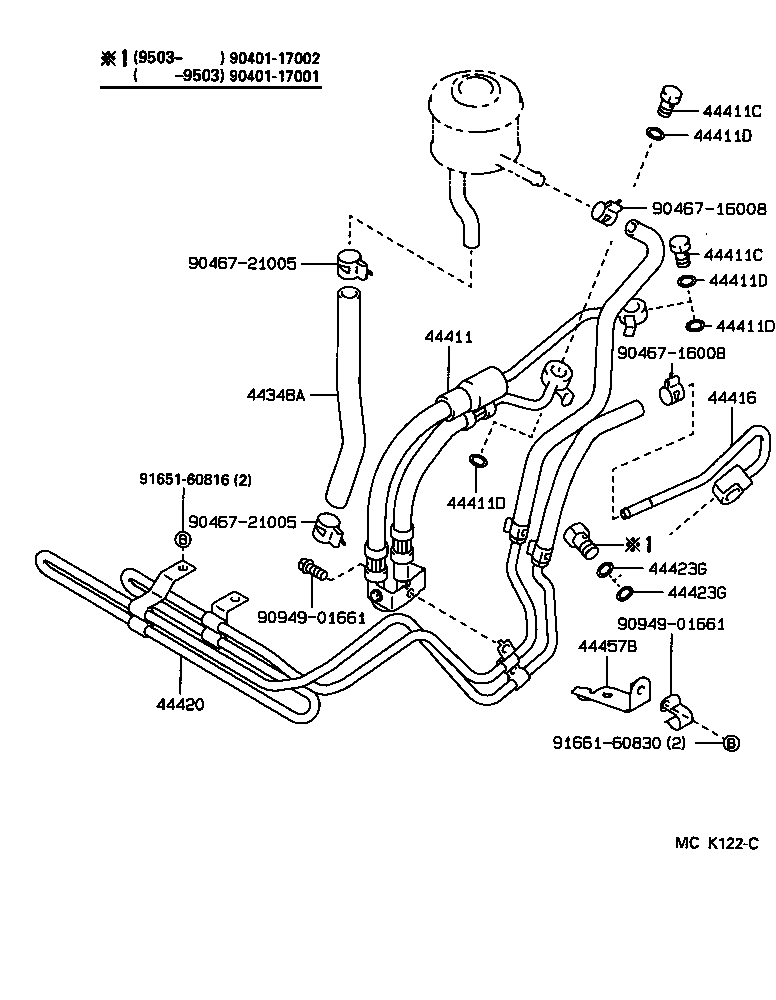

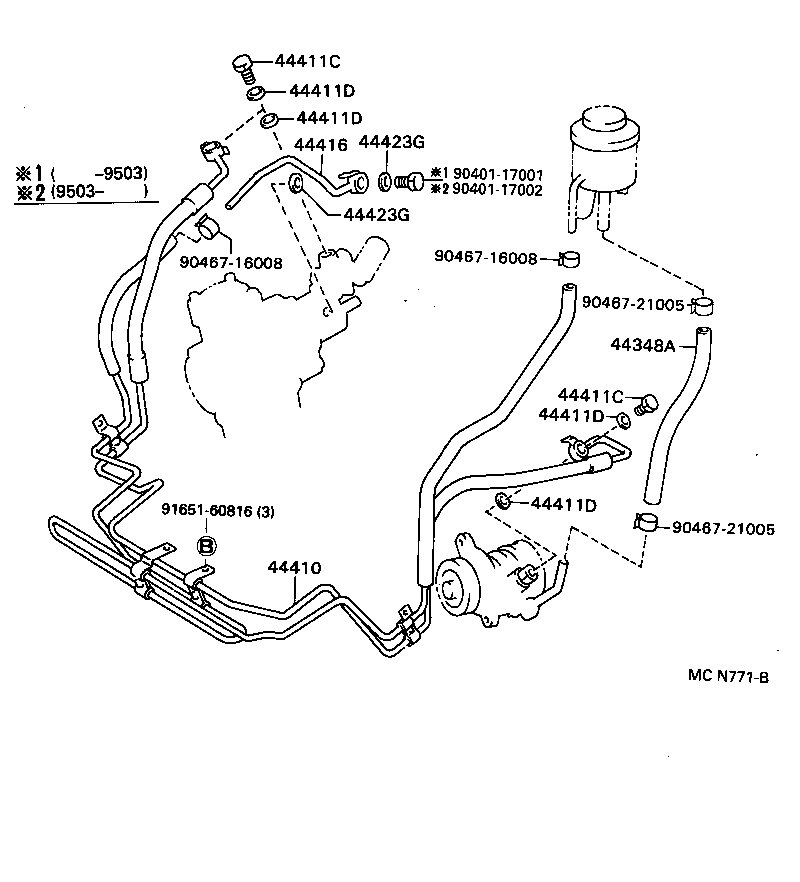

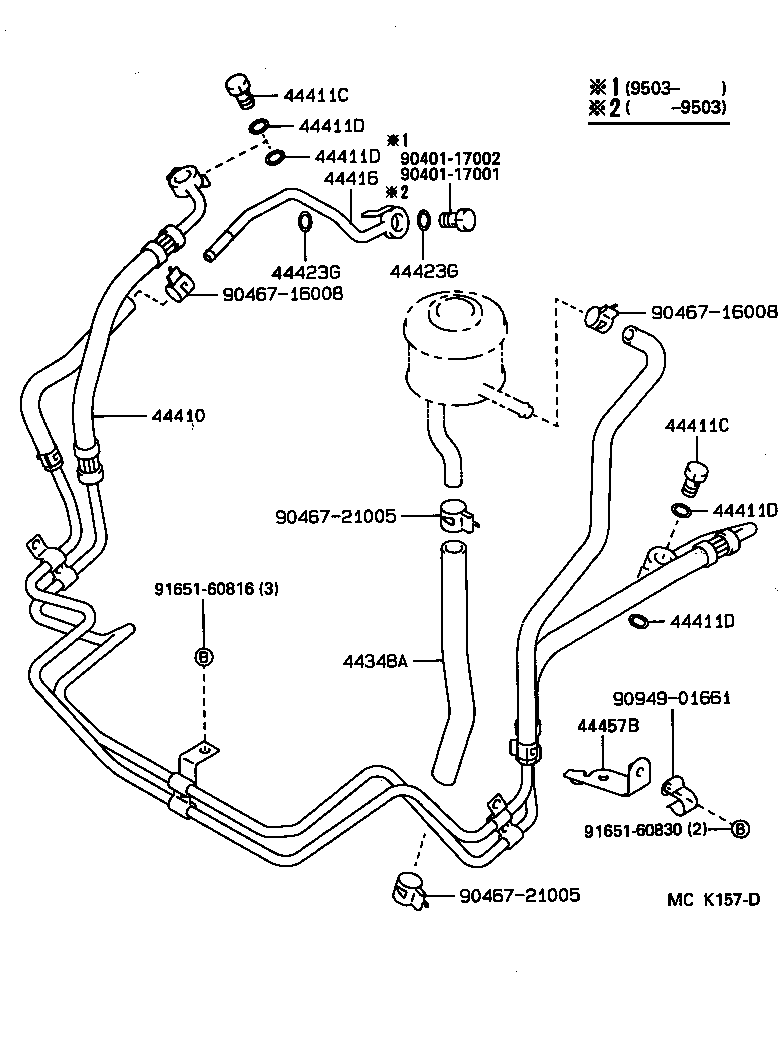

Figure MCK119B MCK119B 1990-01 → 1992-08 Figure MCM736B MCM736B 1992-08 → — Figure MCN771B MCN771B 1995-01 → — Figure MCK120D MCK120D 1990-01 → — Figure MCK157D MCK157D 1990-01 → — Figure MCK121D MCK121D 1990-01 → 1992-08 Figure MCN769B MCN769B 1992-08 → — Figure MCK122C MCK122C 1990-01 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
44423G Gasket, Union Bolt
44443 Bracket, Pump
44446 Strut, Adjusting
44457B Bracket, Power Steering Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
