Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01
Parking Brake & Cable

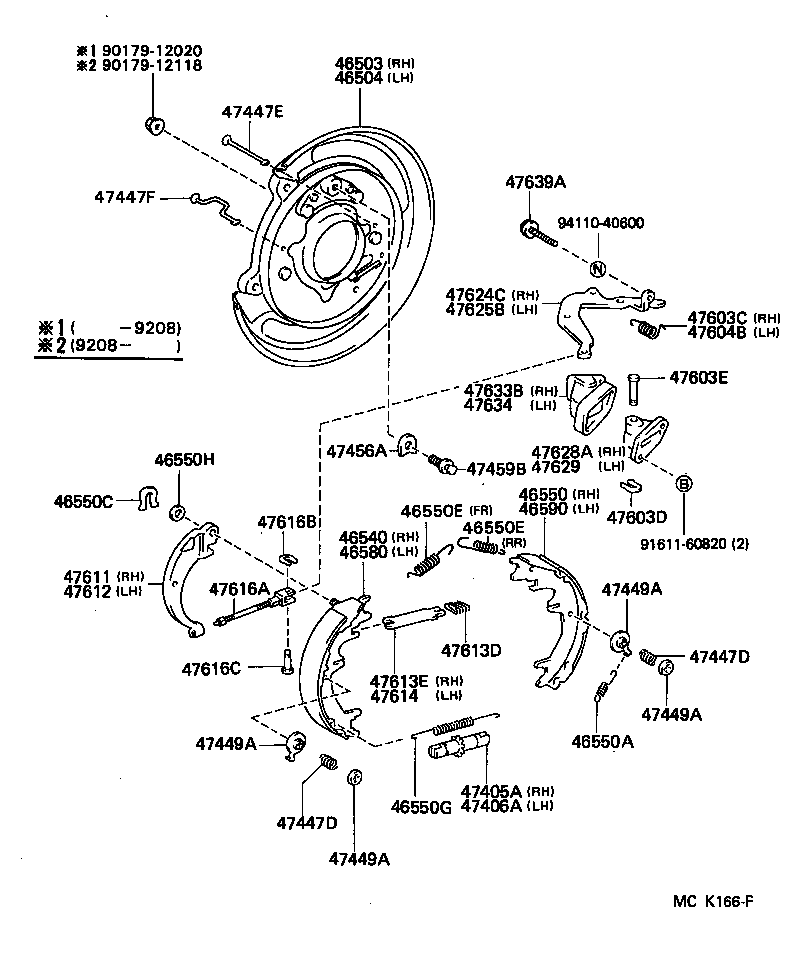

48 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 46210 | Lever Assy, Parking Brake |
| 46217 | Knob, Parking Brake Release Rod |
| 46225A | Spring, Compression(FOR PARKING BRAKE PAWL ROD) |
| 46243 | Cover, Parking Brake Lever |
| 46304B | Bush(FOR PARKING BRAKE EQUALIZER) |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420C | Pin, W/Hole(FOR PARKING BRAKE CABLE) |
| 46451 | Bracket, Cable Support |
| 46469 | Lever, Cable Guide Support |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 46550H | Shim(FOR PARKING BRAKE SHOE) |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447D | Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47447E | Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47447F | Pin, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE) |
| 47449A | Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47456A | Plate, Shoe Guide(FOR PARKING BRAKE) |
| 47459B | Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) |
| 47603C | Spring, Tension(FOR PARKING BRAKE BELL CRANK RH) |
| 47603D | Washer, Type C(FOR PARKING BRAKE BELL CRANK) |
| 47603E | Pin(FOR PARKING BRAKE BELL CRANK) |
| 47604B | Spring, Tension(FOR PARKING BRAKE BELL CRANK LH) |
| 47611 | Lever, Parking Brake Shoe, RH |
| 47612 | Lever, Parking Brake Shoe, LH |
| 47613D | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47613E | Strut, Parking Brake Shoe, RH |
| 47614 | Strut, Parking Brake Shoe, LH |
| 47616A | Wire, Parking Brake |
| 47616B | Washer, Type C(FOR PARKING BRAKE WIRE) |
| 47616C | Pin(FOR PARKING BRAKE WIRE) |
| 47624C | Crank, Parking Brake Bell, RH |
| 47625B | Crank, Parking Brake Bell, LH |
| 47628A | Bracket, Bellcrank, RH(FOR PARKING BRAKE) |
| 47629 | Bracket, Bellcrank, LH(FOR PARKING BRAKE) |
| 47633B | Boot, Bellcrank, RH(FOR PARKING BRAKE) |
| 47634 | Boot, Bellcrank, LH(FOR PARKING BRAKE) |
| 47639A | Bolt, Bellcrank Stopper(FOR PARKING BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
