Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

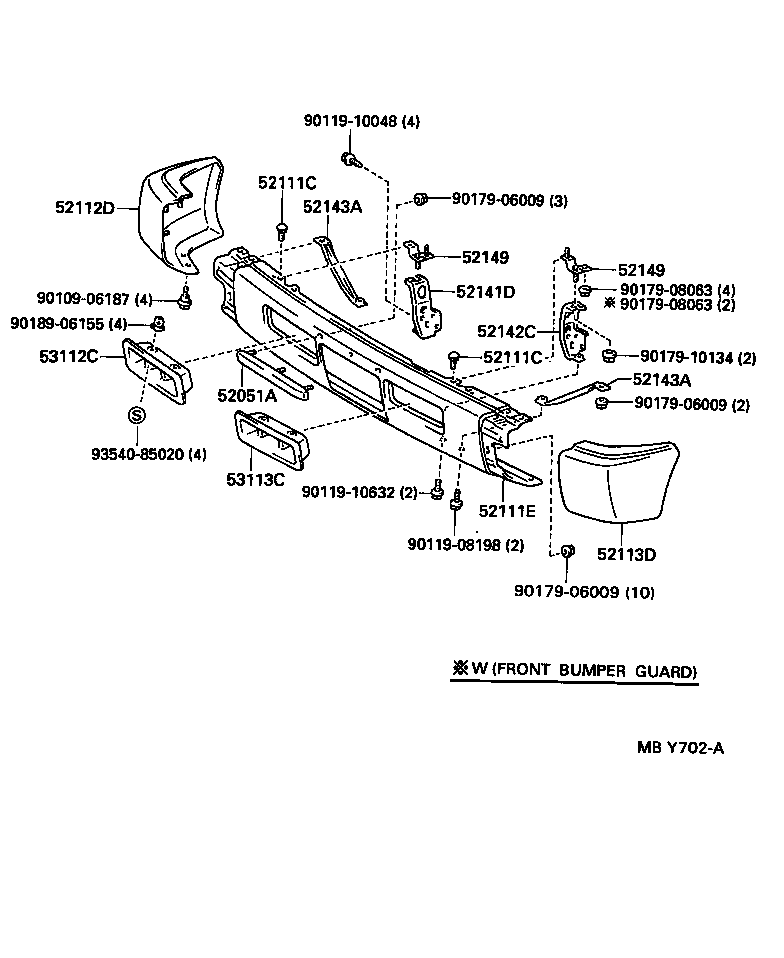

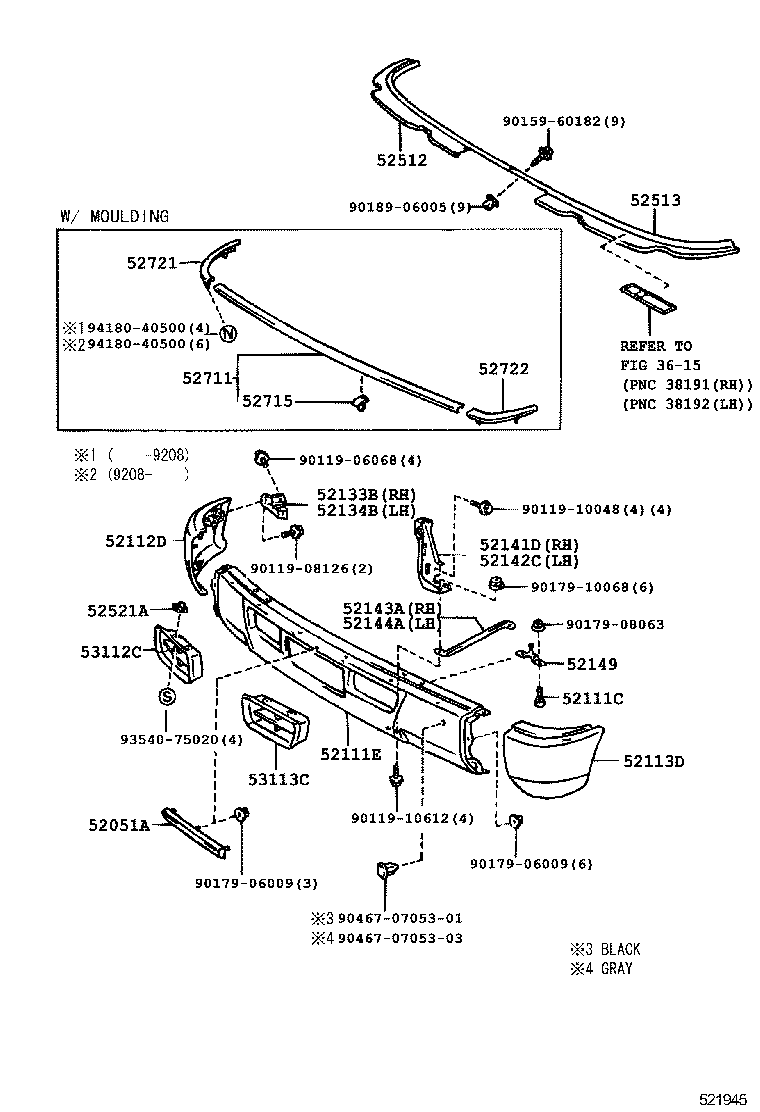

Front Bumper & Bumper Stay
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52051A | Pad Sub-assy, Front Bumper |
| 52111C | Bolt, Round Head Square Neck(FOR FRONT BUMPER) |
| 52111E | Bar, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52133B | Bracket, Front Bumper Extension Mounting, RH |
| 52134B | Bracket, Front Bumper Extension Mounting, LH |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52143A | Arm, Front Bumper, Inner RH |
| 52144A | Arm, Front Bumper, Inner LH |
| 52149 | Bracket, Front Bumper, Inner |
| 52512 | Filler, Front Bumper, RH |
| 52513 | Filler, Front Bumper, LH |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52711 | Moulding, Front Bumper |
| 52715 | Retainer, Front Bumper Moulding, NO.1 |
| 52721 | Moulding, Front Bumper Extension, RH |
| 52722 | Moulding, Front Bumper Extension, LH |
| 53112C | Grille, Radiator, Lower RH |
| 53113C | Grille, Radiator, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
