Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

11 part groups · 2 illustrations

Illustrations

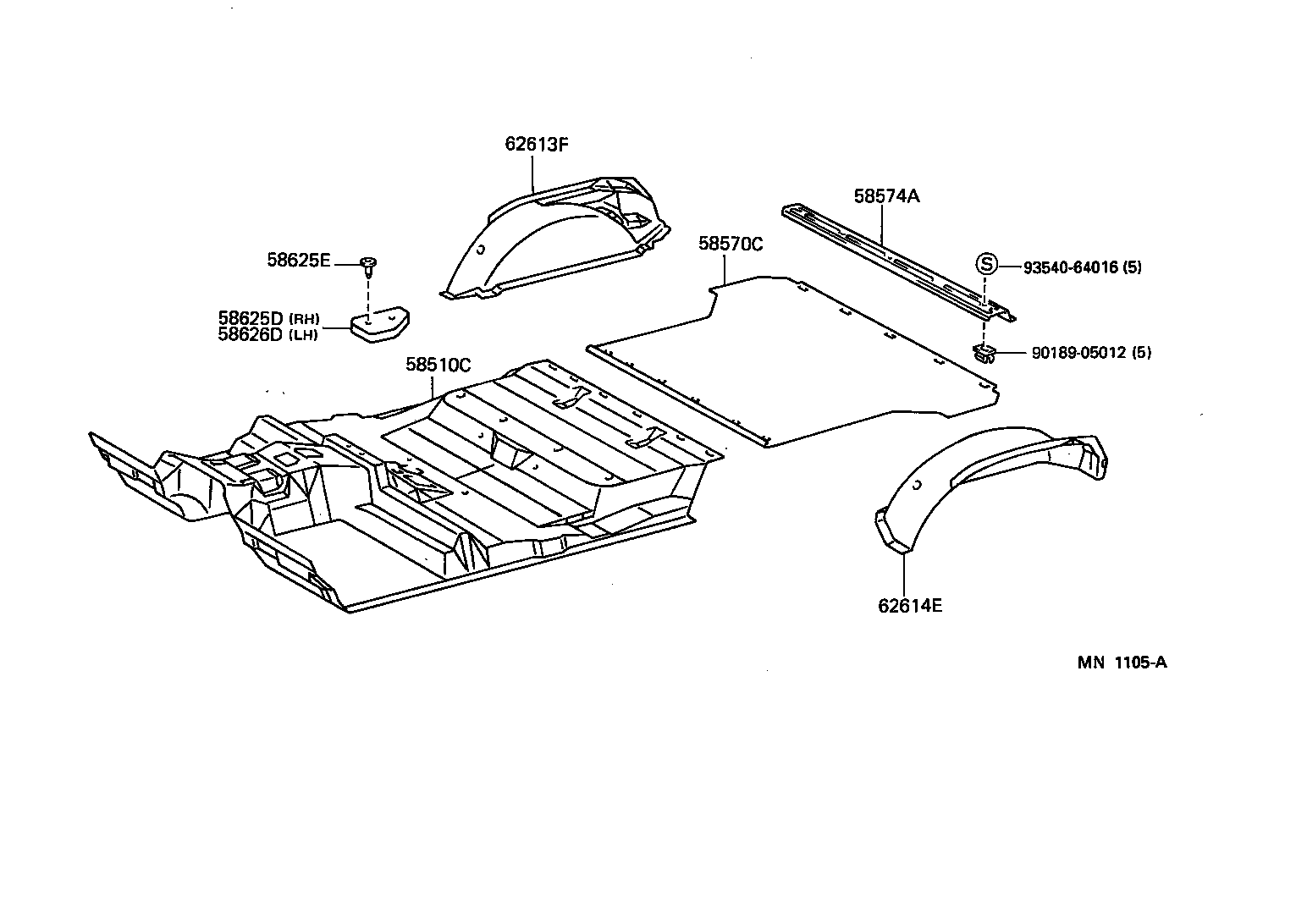

Figure MN2940 MN2940 1990-01 → — Figure MN1105A MN1105A 1990-01 → —

Part groups

PNCDescription
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58540C Mat Assy, Floor, Rear
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58574A Plate, Rear Floor Mat Support, Rear
58625D Plate, Rear Floor Mat, NO.1
58625E Clip(FOR REAR FLOOR MAT PLATE)
58626D Plate, Rear Floor Mat, NO.2
62613F Cover, Quarter Wheel House, RH
62614E Cover, Quarter Wheel House, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
