Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

25 part groups · 4 illustrations

Illustrations

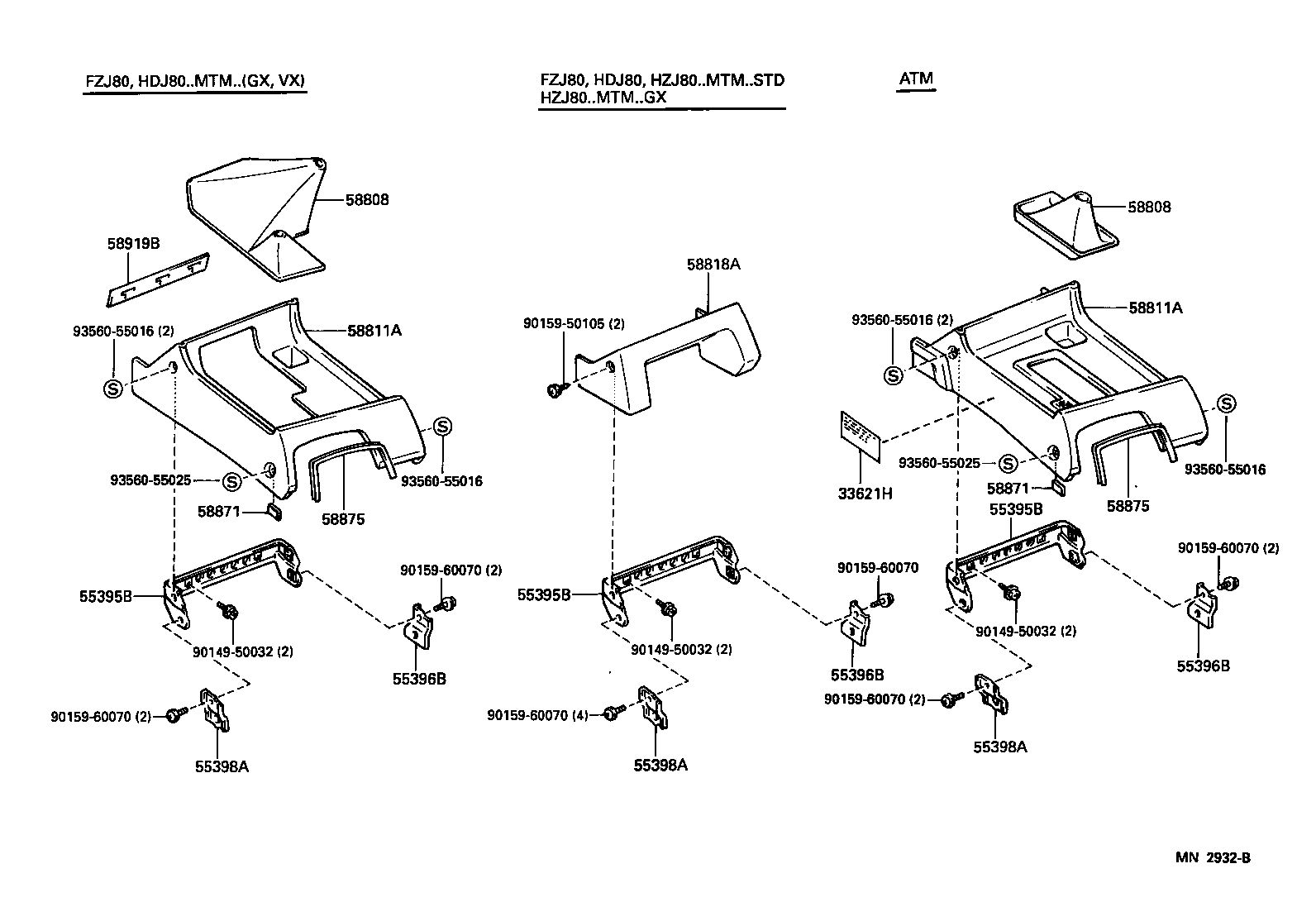

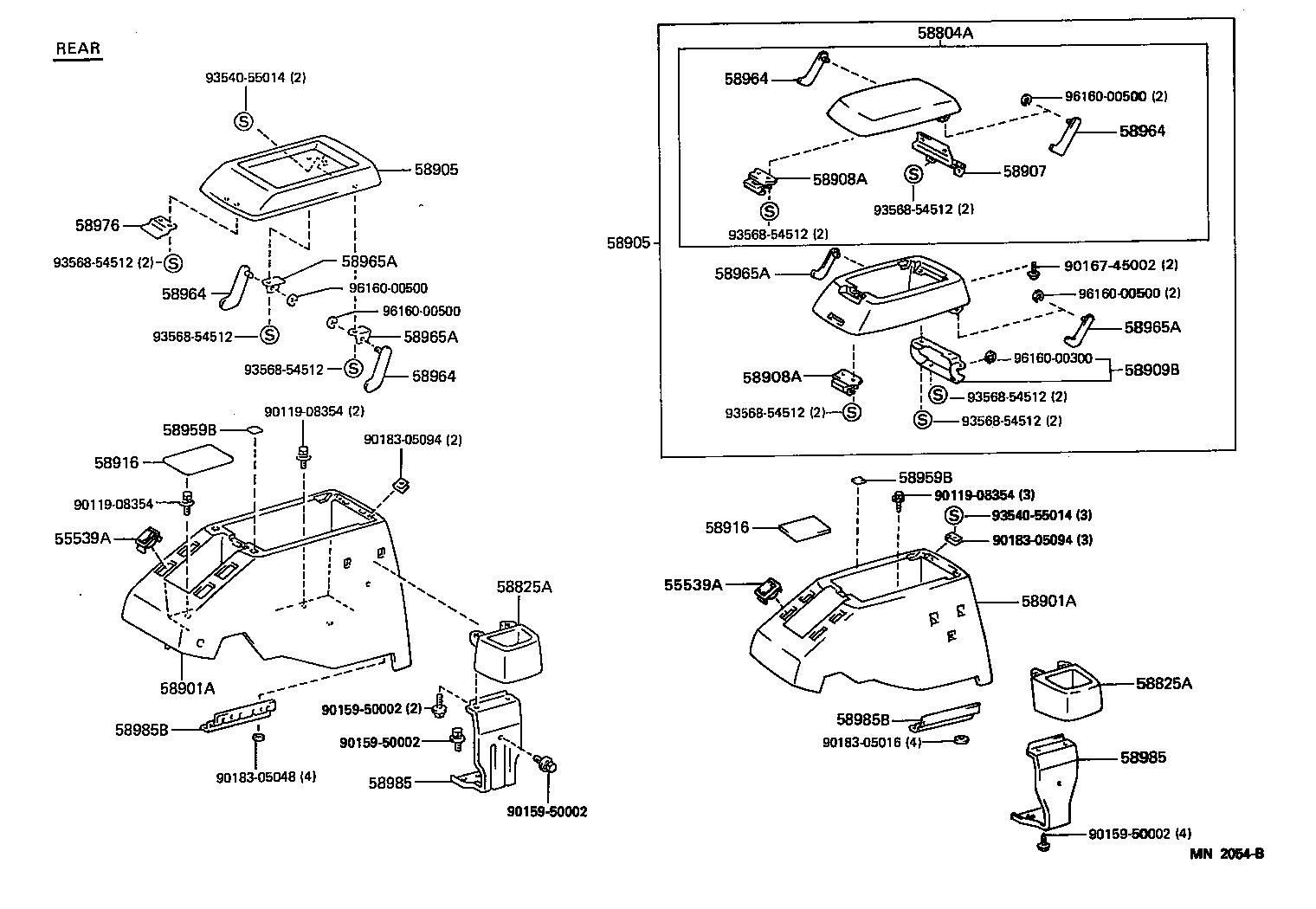

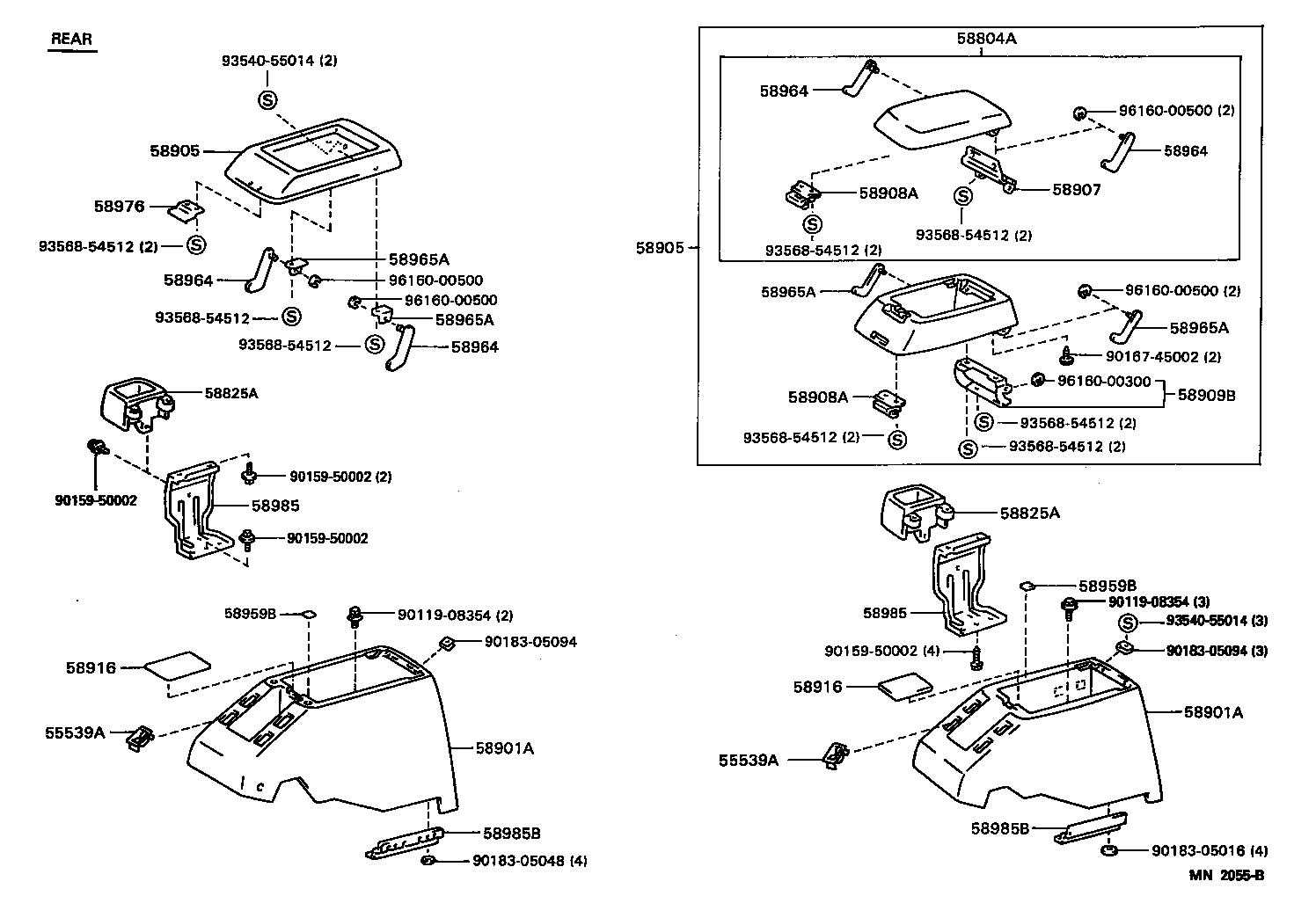

Figure MN1282C MN1282C 1990-01 → 1995-01 Figure MN2932B MN2932B 1995-01 → — Figure MN2055B MN2055B 1990-01 → — Figure MN2054B MN2054B 1990-01 → —

Part groups

PNCDescription
33621H Plate, Wintch Caution
55395B Bracket, Console Mounting, NO.3
55396B Bracket, Console Mounting, NO.4
55398A Bracket, Console Mounting, NO.6
55539A Cover, Spare Switch Hole
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58818A Cover, Console Box, FR
58825A Pocket, Console Box
58871 Cushion, Console Box
58875 Spacer, Console Box
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58909B Retainer Sub-assy, Console Compartment
58916 Mat, Box Bottom
58919B Plate, Console Box
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58976 Striker, Console Compartment Door Lock
58985 Retainer, Console Box
58985B Retainer, Console Box, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
