Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

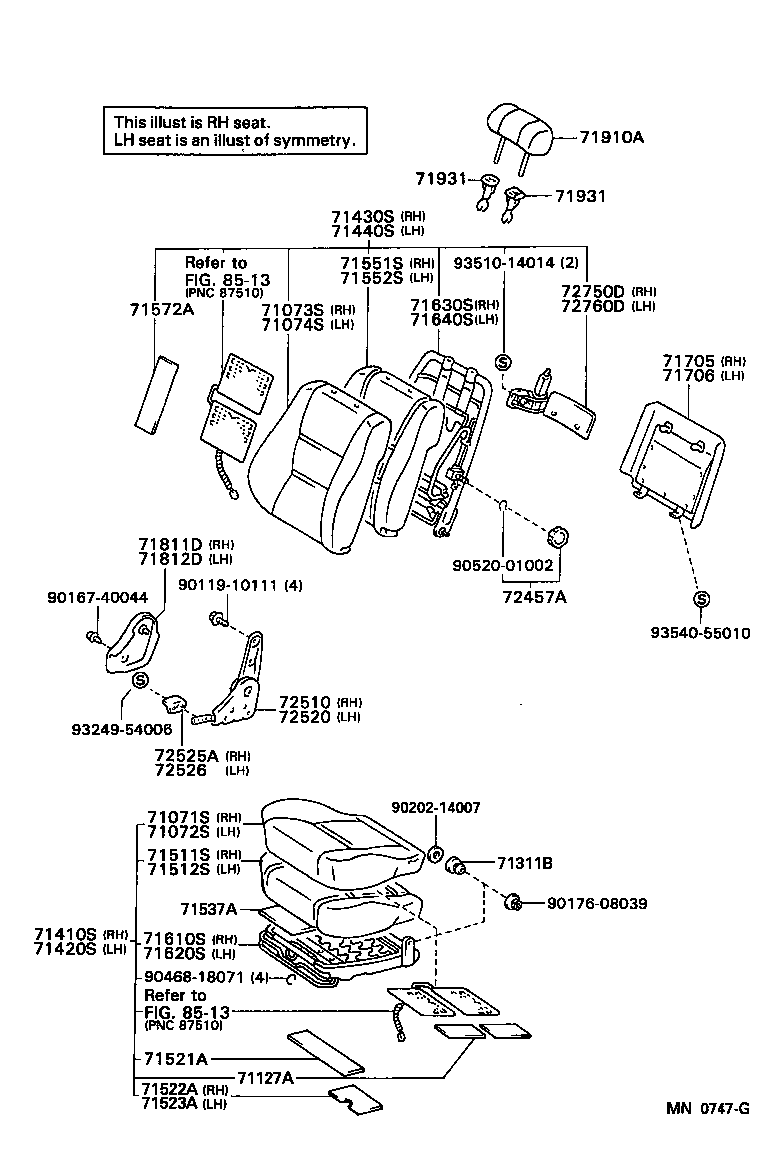

Seat & Seat Track
237 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015 | Frame Sub-assy, Rear Seat Cushion |
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71017A | Frame Sub-assy, Rear Seatback |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033B | Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH |
| 71034A | Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH |
| 71063 | Cover Sub-assy, Front Seatback, Rear |
| 71063A | Clip, Front Seatback Cover, Rear |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71085B | Cover Sub-assy, Rear Side Seat Cushion, RH |
| 71086B | Cover Sub-assy, Rear Side Seat Cushion, LH |
| 71088B | Cover Sub-assy, Rear Side Seatback, RH |
| 71089B | Cover Sub-assy, Rear Side Seatback, LH |
| 71127A | Plate, FR0NT Seat Cushion Cover Set |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71321B | Hinge, Rear Seat Cushion, RH |
| 71322C | Hinge, Rear Seat Cushion, LH |
| 71324A | Cushion, Rear Seat |
| 71324B | Cushion, Rear Seat |
| 71324D | Cushion, Rear Seat, RH |
| 71324E | Cushion, Rear Seat, LH |
| 71325A | Hinge, Rear Seat Cushion Leg |
| 71325B | Hinge, Rear Seat Cushion Leg, RH |
| 71325C | Hinge, Rear Seat Cushion Leg, LH |
| 71329A | Reinforcement, Rear Seat Cushion Support, RH |
| 71329B | Reinforcement, Rear Seat Cushion Support, LH |
| 71331A | Pin, Rear Seat Hinge |
| 71331B | Pin, Rear Seat Hinge, RH |
| 71331C | Pin, Rear Seat Hinge, LH |
| 71334A | Stopper, Rear Seat Leg |
| 71334B | Stopper, Rear Seat Leg, RH |
| 71334C | Stopper, Rear Seat Leg, LH |
| 71335C | Stay, Rear Seat Cushion Link, RH |
| 71336A | Stay, Rear Seat Cushion Link, LH |
| 71345C | Hinge, Rear Seatback, RH |
| 71346C | Hinge, Rear Seatback, LH |
| 71398D | Guide, Rear Seat Cushion Support |
| 71398E | Guide, Rear Seat Cushion Support, RH |
| 71398F | Guide, Rear Seat Cushion Support, LH |

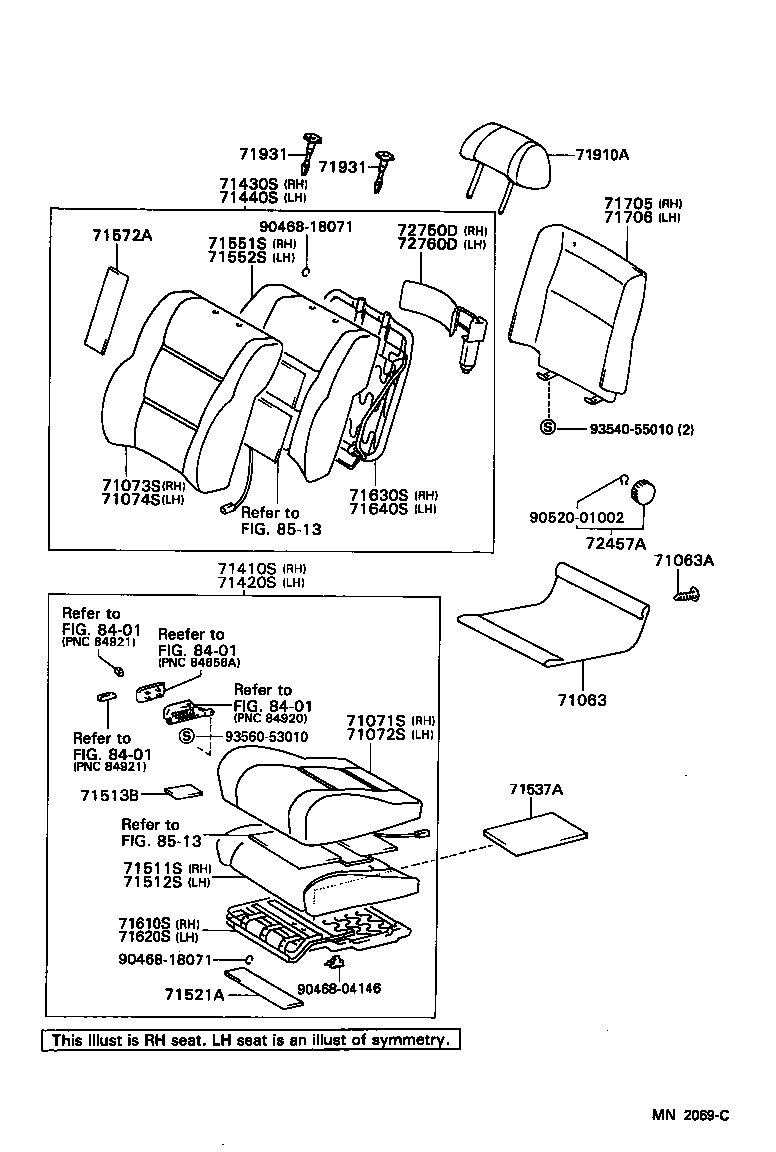

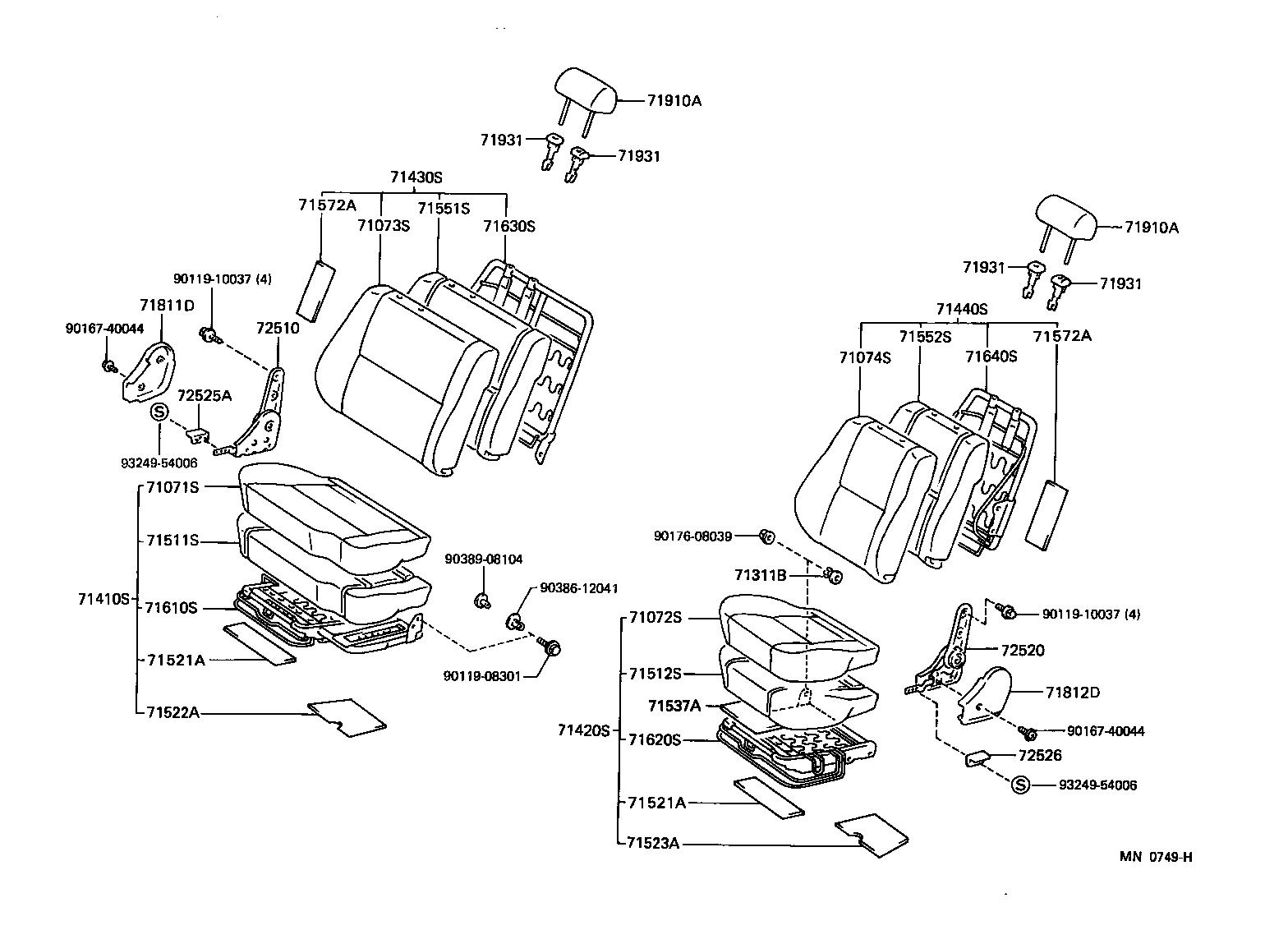

| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71460S | Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE) |
| 71470S | Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE) |

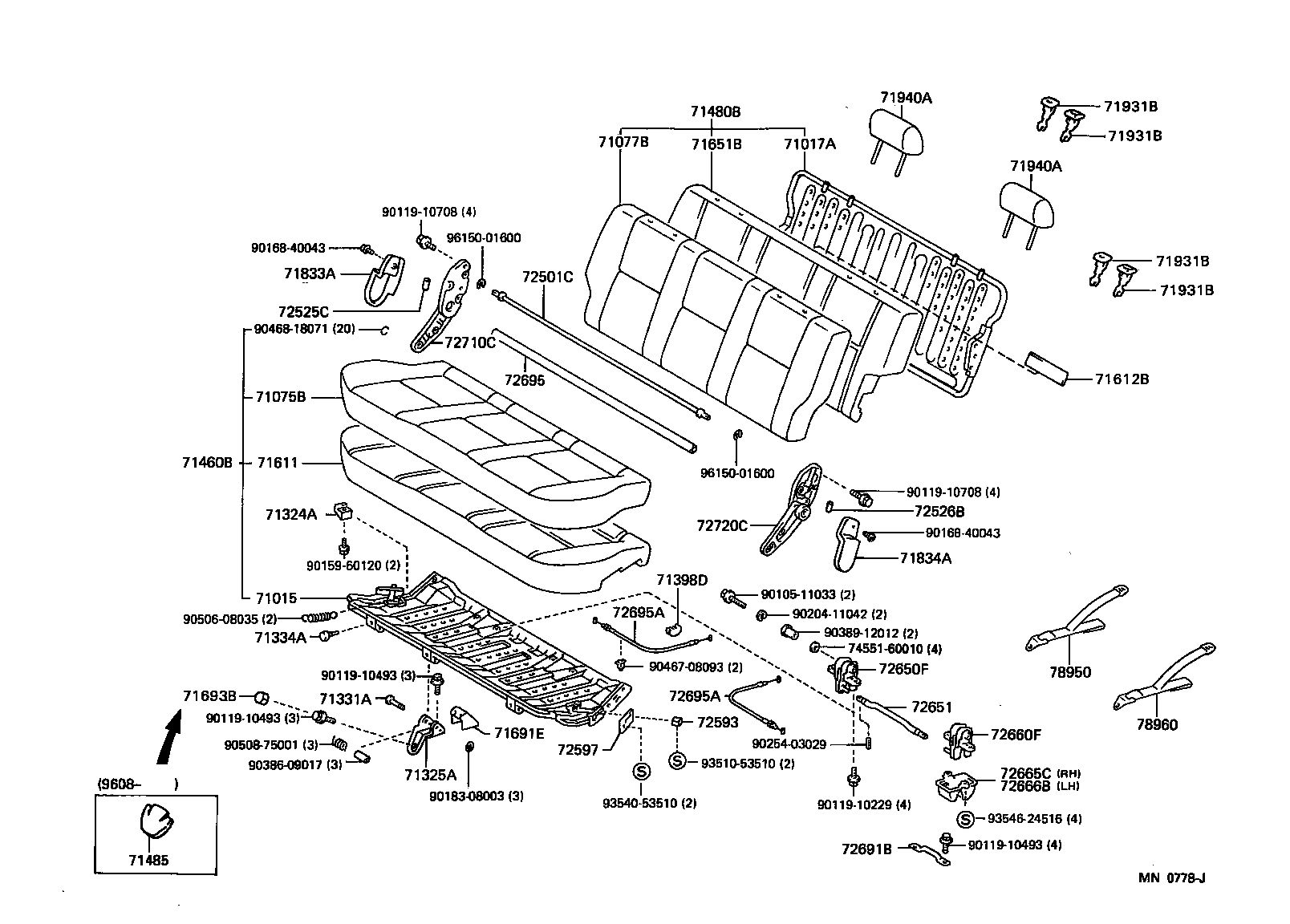

| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |

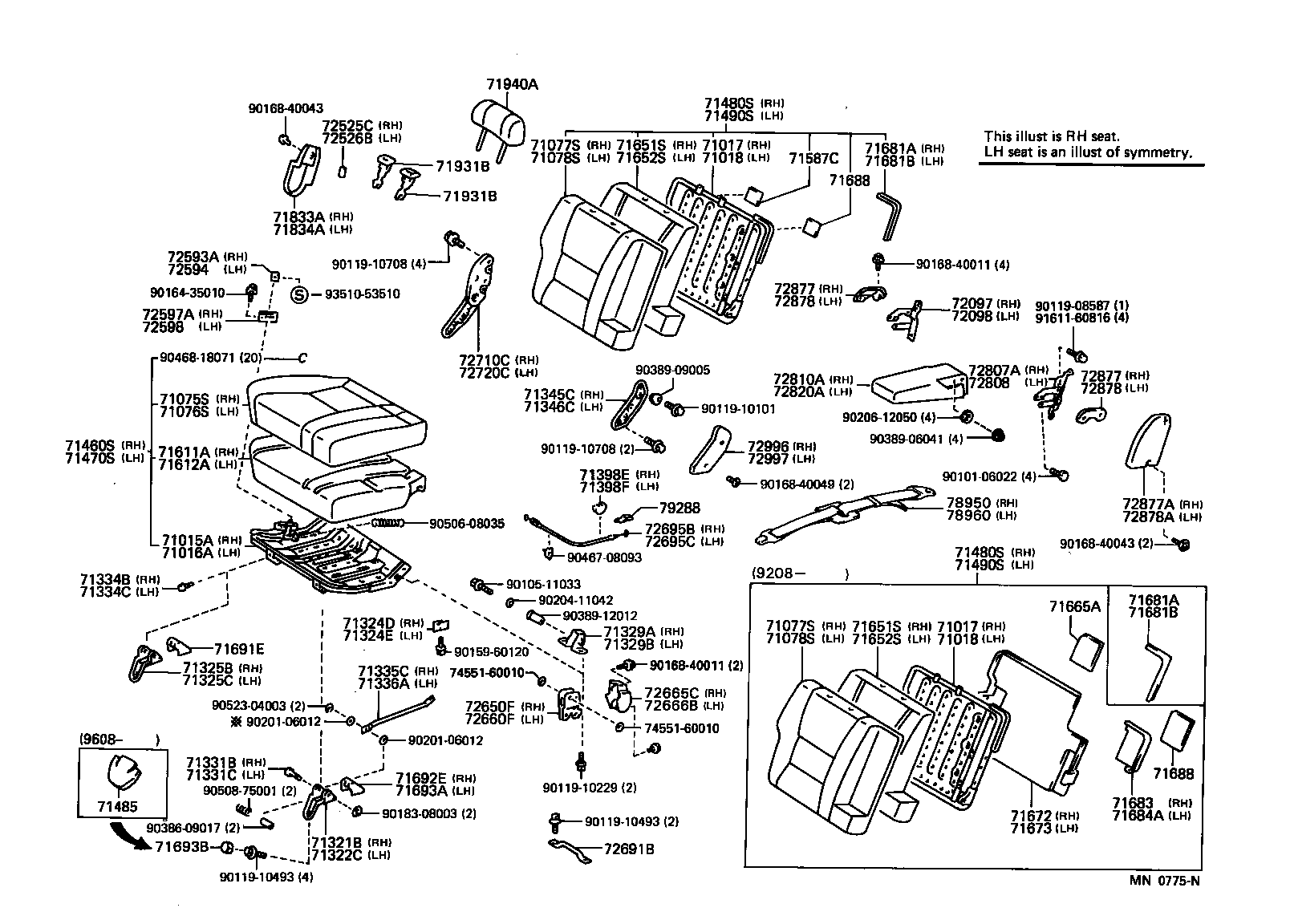

| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71485 | Cover, Rear Seat Hinge |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71513B | Pad, Front Seat Cushion, B |
| 71521A | Pad,Front Seat Cushion Silencer |
| 71522A | Pad, Front Seat Cushion Silencer, B |
| 71523A | Pad, Front Seat Cushion Silencer, C |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71572A | Pad, Front Seatback Silencer, B |
| 71587C | Protector, Rear Seatback Edge NO.2 |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71612B | Pad, Rear Seat Cushion, B |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71621A | Pad, Rear Seat Cushion Silencer, A |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71665A | Pad, Rear Seatback, Side A |
| 71665B | Pad, Rear Seatback, Side B |
| 71667A | Pad, Rear Seatback, Center A |
| 71672 | Pad, Rear Seatback Silencer, B |
| 71673 | Pad, Rear Seatback Silencer, C |
| 71681A | Pad, Rear Seatback Corner, RH |
| 71681B | Pad, Rear Seatback Corner, LH |
| 71683 | Pad, Rear Seatback Corner, C |
| 71684A | Pad, Rear Seatback Corner, D |
| 71688 | Pad, Rear Seatback Corner, H |
| 71691E | Cover, Rear Seat Cushion Hinge, NO.1 |
| 71692E | Cover, Rear Seat Cushion Hinge, NO.2 |
| 71693A | Cover, Rear Seat Cushion Hinge, NO.3 |
| 71693B | Cap, Rear Seat Cushion Hinge |
| 71697 | Protector, Rear Seatback Edge |

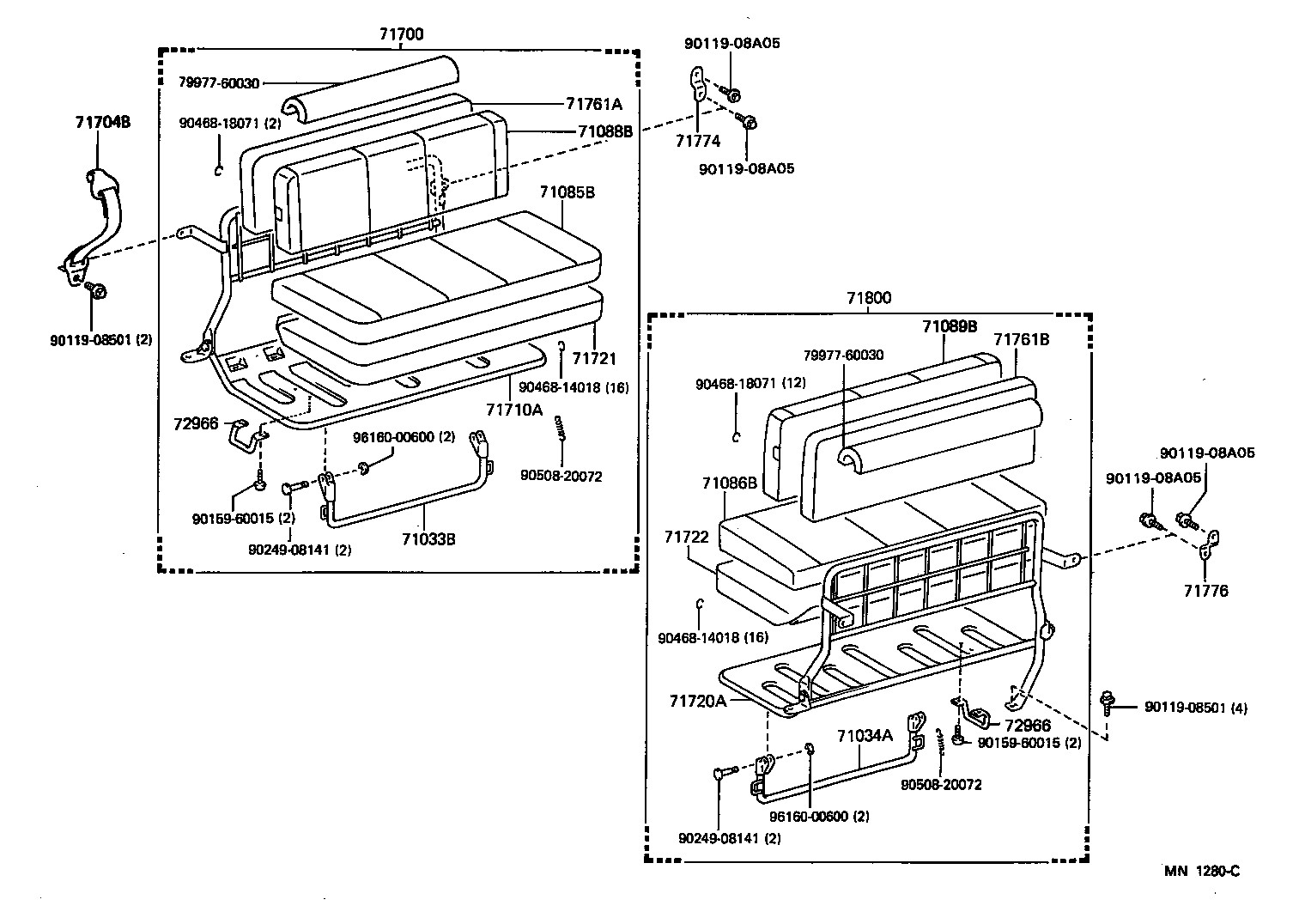

| 71700 | Seat Assy, Rear Side, RH |
| 71704B | Band Sub-assy, Rear Side Seat, NO.2 |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71710A | Frame Assy, Rear Side Seat, RH |
| 71720A | Frame Assy, Rear Side Seat, LH |
| 71721 | Pad, Rear Side Seat Cushion, RH |
| 71722 | Pad, Rear Side Seat Cushion, LH |
| 71761A | Pad, Rear Side Seatback, RH |
| 71761B | Pad, Rear Side Seatback, LH |
| 71774 | Plate, Rear Side Seat Hinge |
| 71776 | Cover, Front Seatback Board, NO.1 |
| 71800 | Seat Assy, Rear Side, LH |

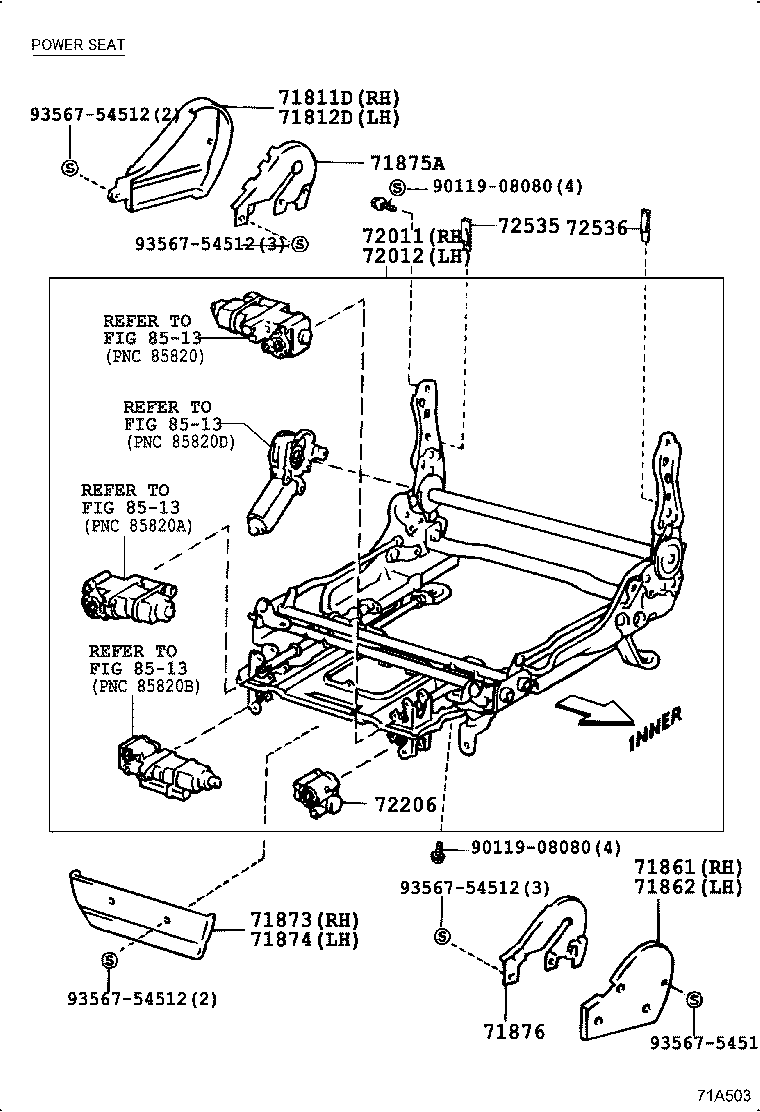

| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833C | Cover, Rear Seat Reclining, NO.2 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834B | Cover, Rear Seat Reclining, NO.2 LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71931C | Support Assy, Rear NO.2 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71970 | Headrest Assy, Rear Seat |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72019 | Retainer Sub-assy, Seat Track, Rear RH |
| 72097 | Link Sub-assy, Rear Seat Center Armrest, Inner RH |
| 72098 | Link Sub-assy, Rear Seat Center Armrest, Inner LH |

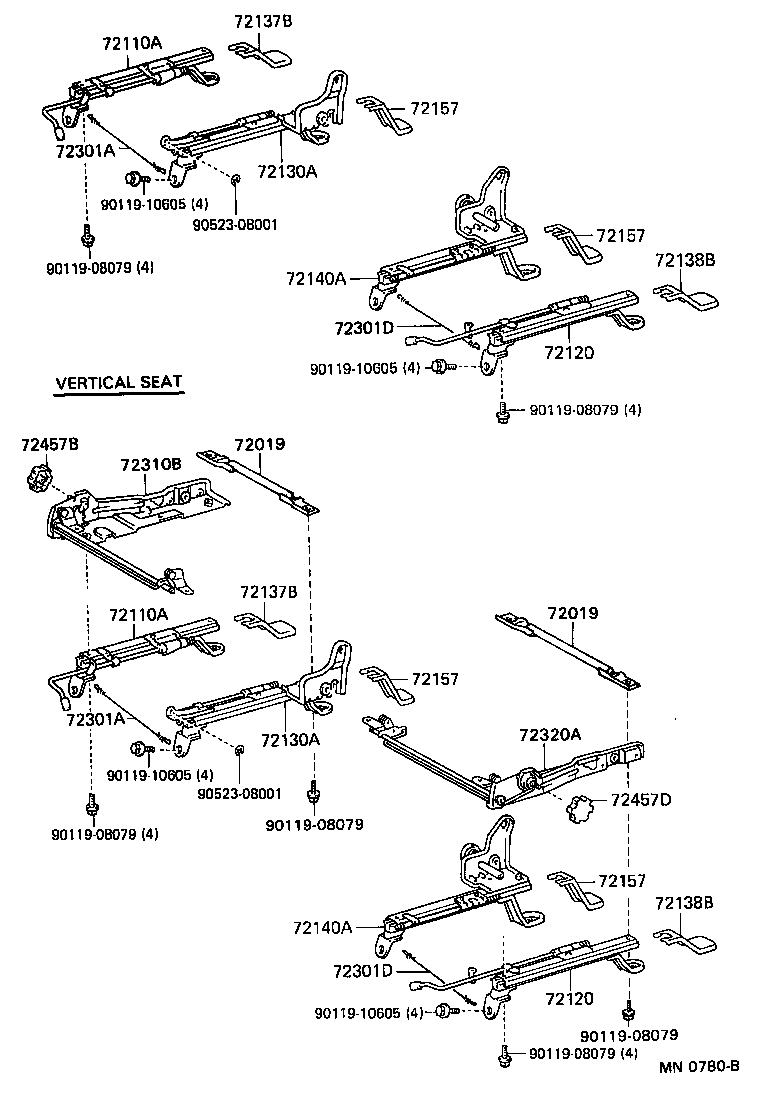

| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137B | Cover, Seat Track, RH |
| 72138B | Cover, Seat Track, LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72206 | Housing Sub-assy, Power Seat, NO.2 |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72310B | Adjuster Assy, Front Seat Vertical, RH |
| 72320A | Adjuster Assy, Front Seat Vertical, LH |
| 72457A | Knob, Seat Adjuster |
| 72457B | Knob, Vertical Seat Adjuster, RH |
| 72457D | Knob, Vertical Seat Adjuster, LH |
| 72501C | Pipe Sub-assy, Reclining Connecting |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525C | Handle, Reclining Adjuster Release, NO.1 RH |
| 72525D | Handle, Reclining Adjuster Release, NO.2 RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72526B | Handle, Reclining Adjuster Release, NO.1 LH |
| 72526C | Handle, Reclining Adjuster Release, NO.2 LH |
| 72535 | Guide, Reclining Pawl, RH |
| 72536 | Guide, Reclining Pawl, LH |
| 72593 | Knob, Reclining Remote Control Lever |
| 72593A | Knob, Remote Control Lever, RH |
| 72594 | Knob, Remote Control Lever, LH |
| 72597 | Bezel, Reclining Remote Control |
| 72597A | Bezel, Reclining Remote Control Lever, RH |
| 72598 | Bezel, Reclining Remote Control Lever, LH |
| 72607 | Striker Sub-assy, Rear Seat Cushion Lock |
| 72650F | Lock Assy, Rear Seat, RH |
| 72651 | Rod, Rear Seatback Lock |
| 72660F | Lock Assy, Rear Seat, LH |
| 72665C | Cover, Rear Seat Lock, RH |
| 72666B | Cover, Rear Seat Lock, LH |
| 72670B | Lock Assy, Rear Seat Cushion, RH |
| 72680B | Lock Assy, Rear Seat Cushion, LH |
| 72691B | Striker, Rear Seat Cushion Lock |
| 72695 | Silencer, Rear Seatback Lock Control Rod |
| 72695A | Cable, Rear Seat Lock Control |
| 72695B | Cable, Rear Seat Lock Control, RH |
| 72695C | Cable, Rear Seat Lock Control, LH |
| 72710C | Adjuster Assy, NO.1 Seat Reclining, RH |
| 72720C | Adjuster Assy, NO.1 Seat Reclining, LH |
| 72730C | Adjuster Assy, NO.2 Seat Reclining, RH |
| 72740C | Adjuster Assy, NO.2 Seat Reclining, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 72807A | Link Sub-assy, Rear Seat Center Armrest, RH |
| 72808 | Link Sub-assy, Rear Seat Center Armrest, LH |
| 72810A | Armrest Assy, Seat, RH |
| 72820A | Armrest Assy, Seat, LH |
| 72877 | Cover, Seat Armrest, RH |
| 72877A | Cover, Seat Armrest, NO.2 RH |
| 72878 | Cover, Seat Armrest, LH |
| 72878A | Cover, Seat Armrest, NO.2 LH |
| 72966 | Bracket, Rear Seat Turn Lock |
| 72969A | Pin, Seat Turn Lock Guide |
| 72996 | Cover, Rear Seatback, RH |
| 72997 | Cover, Rear Seatback, LH |
| 78903 | Striker Sub-assy, Fold Seat Leg Lock |
| 78904 | Striker Sub-assy, Fold Seat Lock, NO.2 |
| 78910A | Lock Assy, Fold Seat, RH |
| 78920A | Lock Assy, Fold Seat, LH |
| 78950 | Band Assy, Fold Seat Stopper, NO.1 |
| 78950A | Band Assy, NO.2 Fold Seat Stopper, NO.1 |
| 78960 | Band Assy, Fold Seat Stopper, NO.2 |
| 78960A | Band Assy, NO.2 Fold Seat Stopper, NO.2 |
| 78970 | Band Assy, Seat Lock |
| 79021B | Cover Sub-assy, NO.2 Seat Cushion, RH A |
| 79022A | Cover Sub-assy, NO.2 Seat Cushion, LH A |

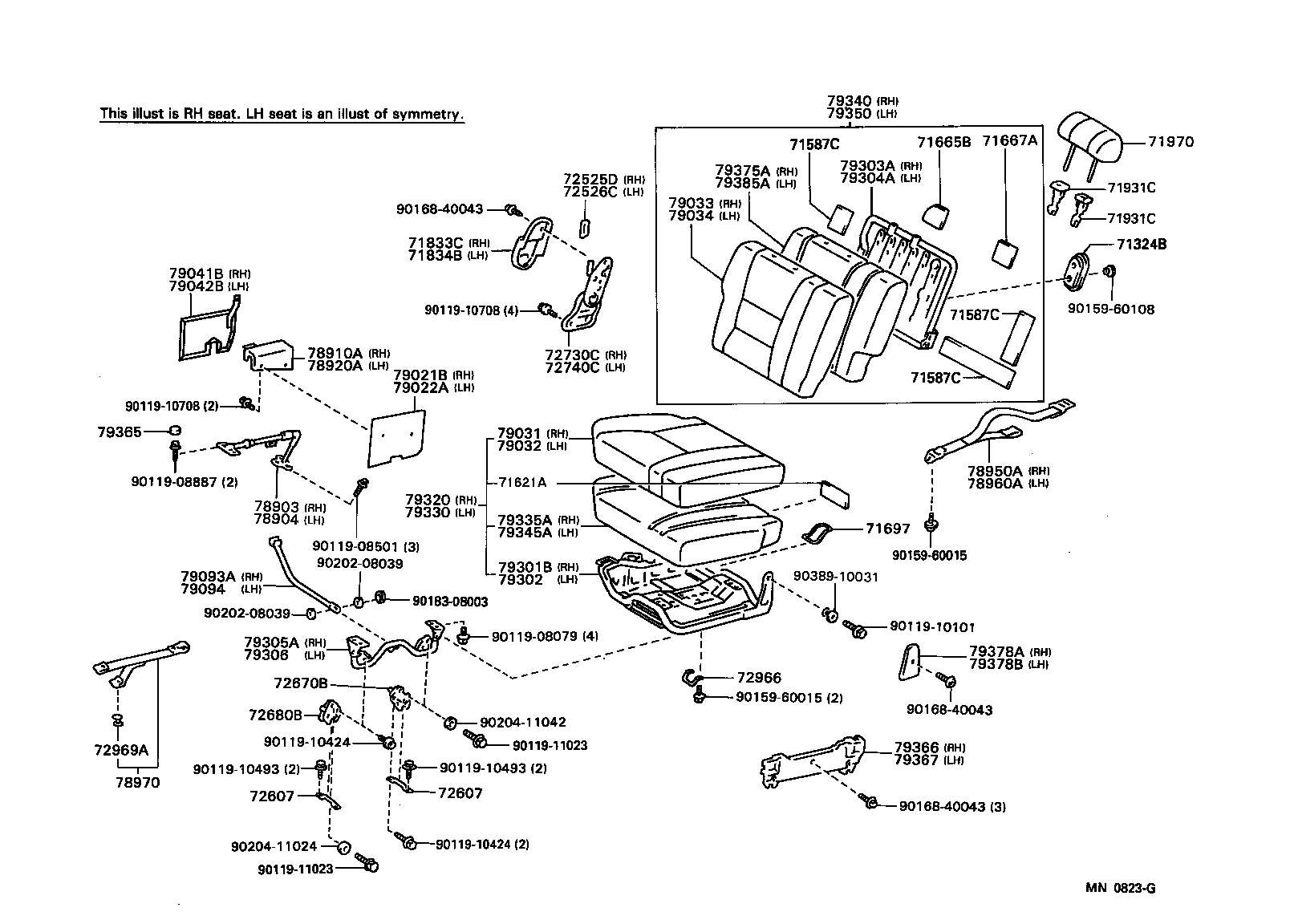

| 79031 | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79032 | Cover Sub-assy, NO.3 Seat Cushion, LH |
| 79033 | Cover Sub-assy, NO.3 Seatback, RH |
| 79034 | Cover Sub-assy, NO.3 Seatback, LH |
| 79041B | Cover Sub Assy, NO.3 Seat Cushion, RH B |
| 79042B | Cover Sub Assy, NO.3 Seat Cushion, LH B |
| 79093A | Stay Sub-assy, Seat Leg, NO.1 |
| 79094 | Stay Sub-assy, Seat Leg, NO.2 |
| 79288 | Stopper, NO.2 Seat Cushion |
| 79301B | Frame Sub-assy, NO.3 Seat Cushion, RH |
| 79302 | Frame Sub-assy, NO.3 Seat Cushion, LH |
| 79303A | Frame Sub-assy, NO.3 Seatback, RH |
| 79304A | Frame Sub-assy, NO.3 Seatback, LH |
| 79305A | Leg Sub-assy, NO.3 Seat, RH |
| 79306 | Leg Sub Assy, NO.3 Seat, LH |
| 79320 | Cushion Assy, NO.3 Seat, RH |
| 79330 | Cushion Assy, NO.3 Seat, LH |
| 79335A | Pad, NO.3 Seat Cushion, RH |
| 79340 | Back Assy, NO.3 Seat, RH |
| 79345A | Pad, NO.3 Seat Cushion, LH |
| 79350 | Back Assy, NO.3 Seat, LH |
| 79365 | Cover, NO.3 Seat Leg Bracket |
| 79366 | Cover, NO.3 Seat Leg, NO.1 |
| 79367 | Cover, NO.3 Seat Leg, NO.2 |
| 79375A | Pad, NO.3 Seatback, RH |
| 79378A | Cover, NO.3 Seat Cushion Hinge, RH |
| 79378B | Cover, NO.3 Seat Cushion Hinge, LH |
| 79385A | Pad, NO.3 Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
