Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

10 part groups · 4 illustrations

Illustrations

Figure MBY694

MBY694 1990-01 → —

Figure MBX769

MBX769 1993-08 → 1995-01

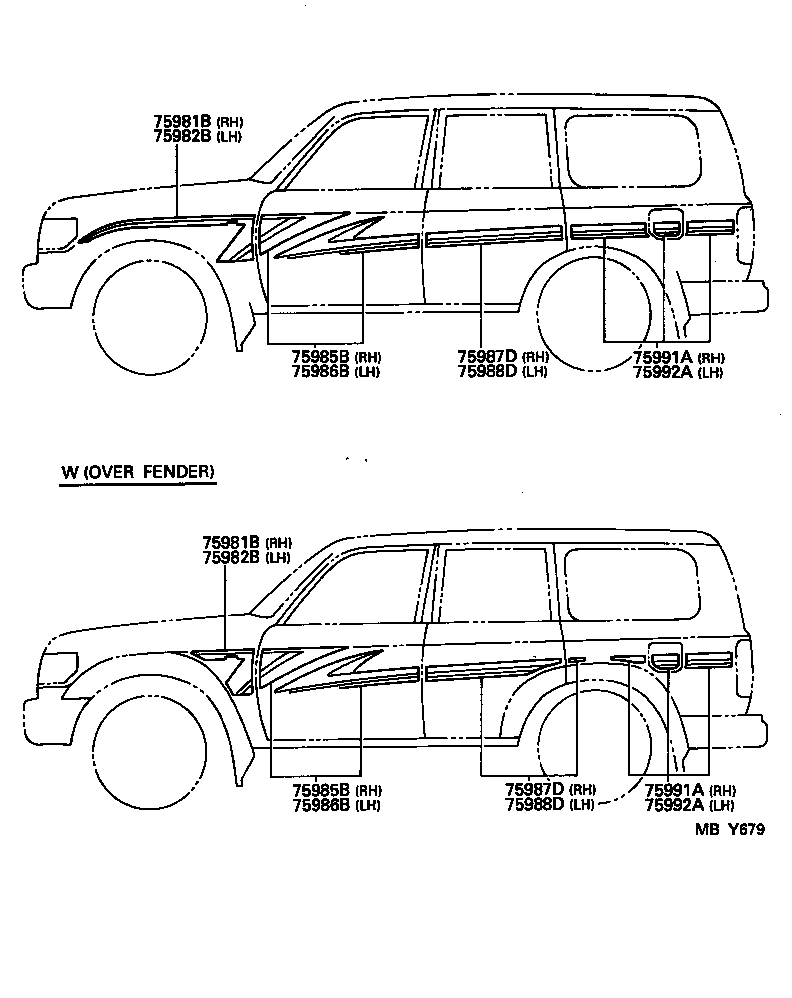

Figure MBY679

MBY679 1995-01 → 1996-08

Figure NB1141

NB1141 1996-08 → —

Part groups

PNC	Description
75981B	Stripe, Fender, RH
75982B	Stripe, Fender, LH
75985B	Stripe, Front Door, NO.3 RH
75986B	Stripe, Front Door, NO.3 LH
75987D	Stripe, Rear Door, Outside, RH
75988D	Stripe, Rear Door Outside, LH
75991A	Stripe, Quarter, RH
75992A	Stripe, Quarter, LH
75993A	Stripe, Quarter, Rear RH
75994B	Strip, Quarter, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
