Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

23 part groups · 9 illustrations

Illustrations

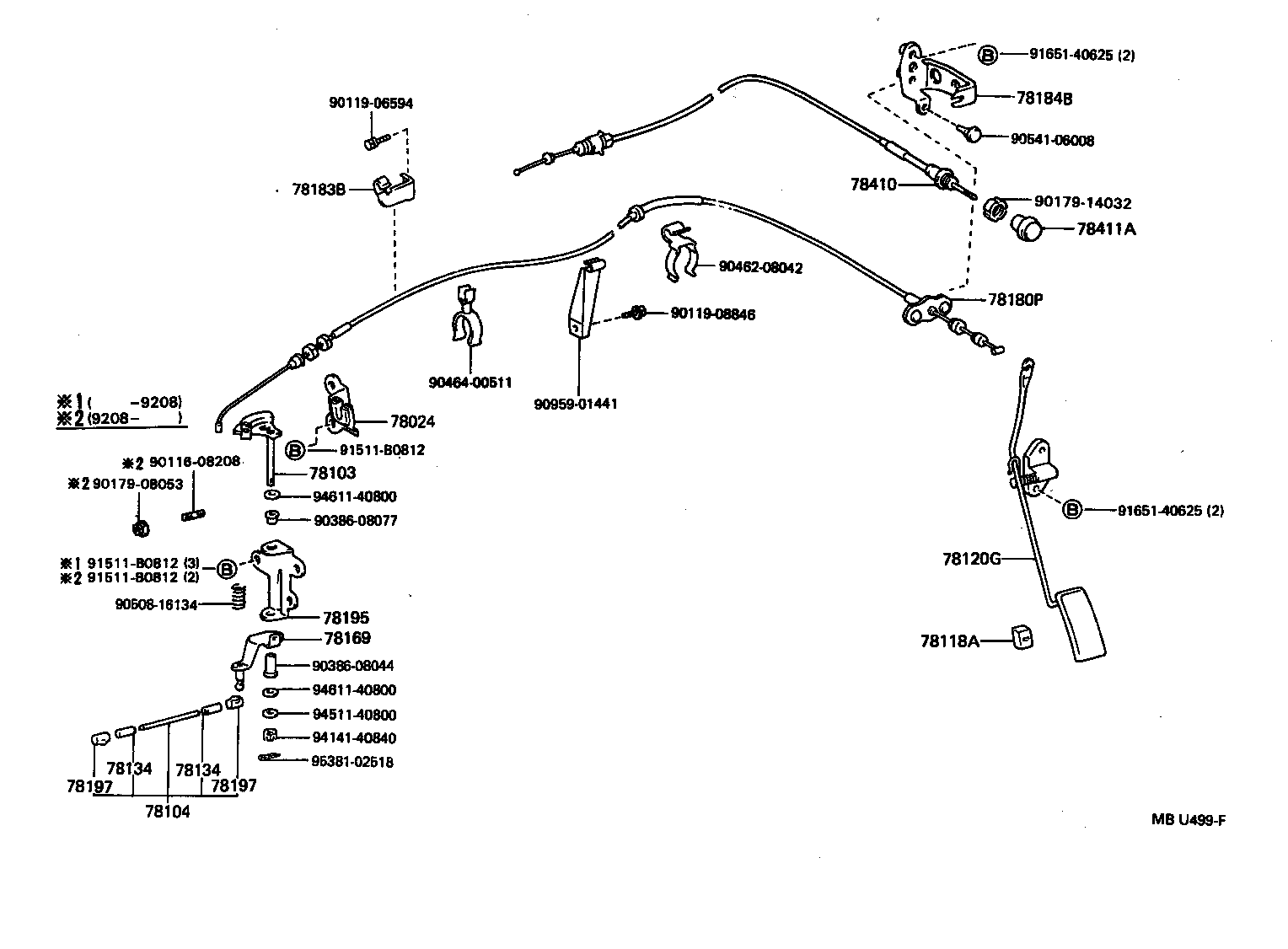

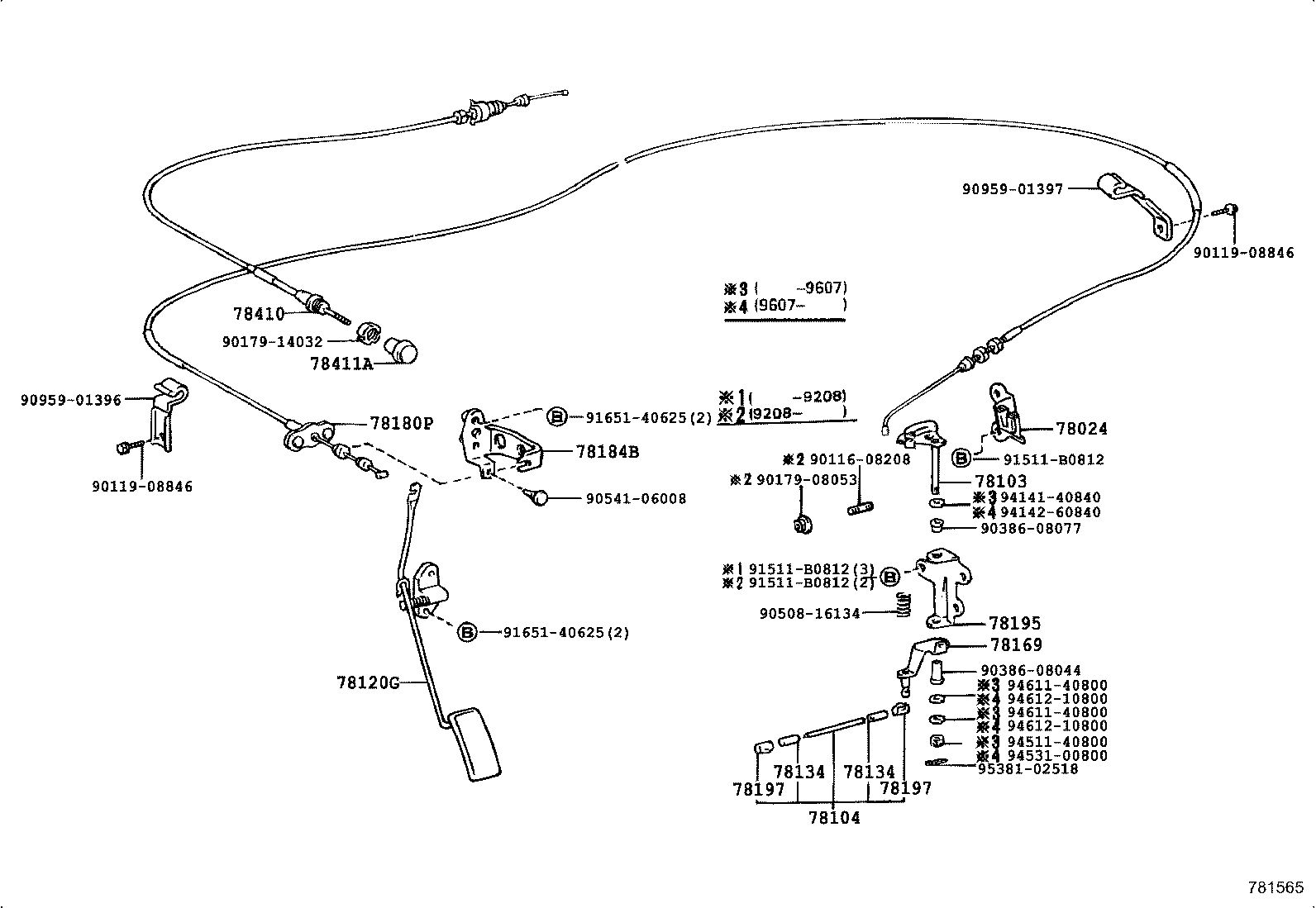

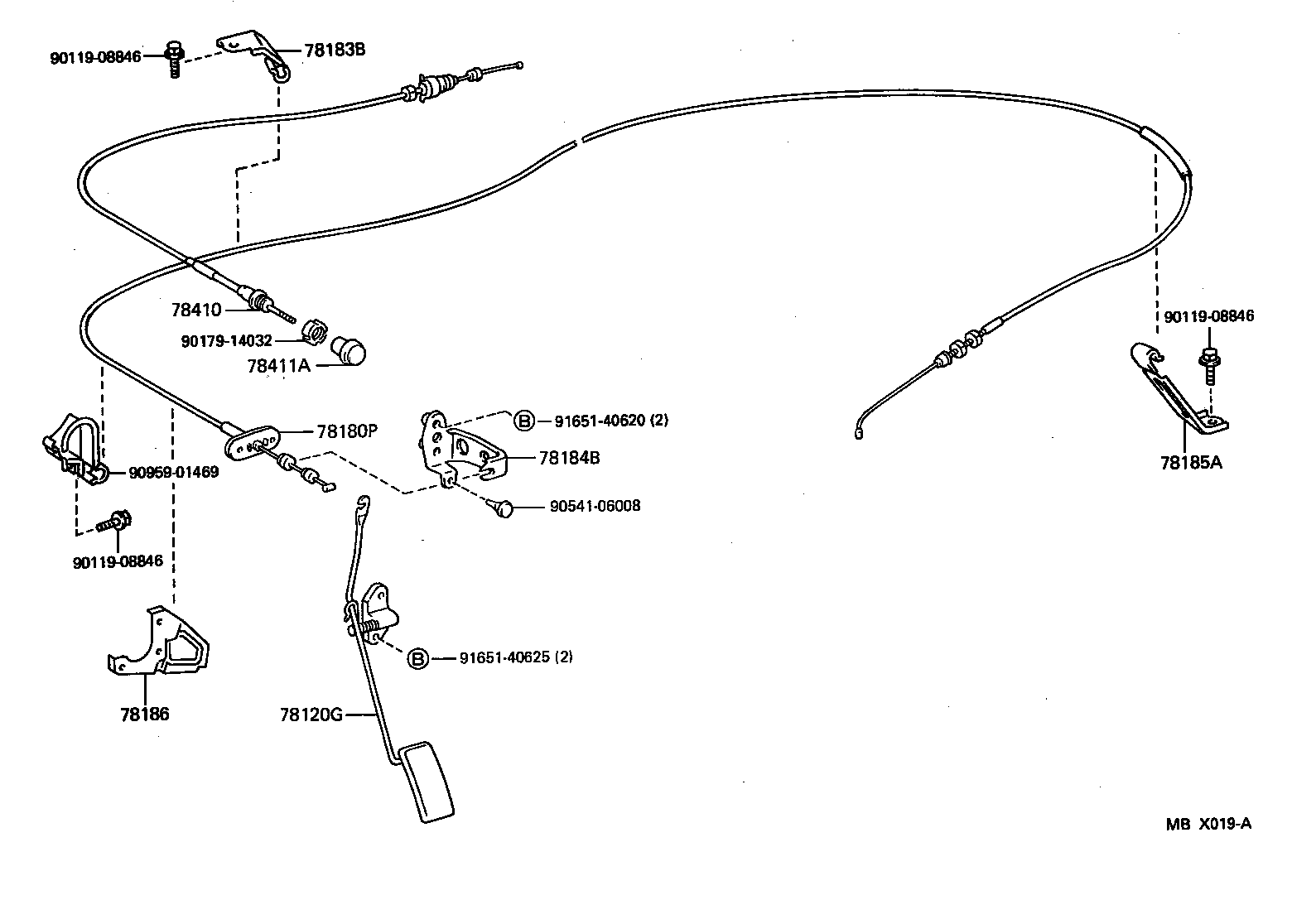

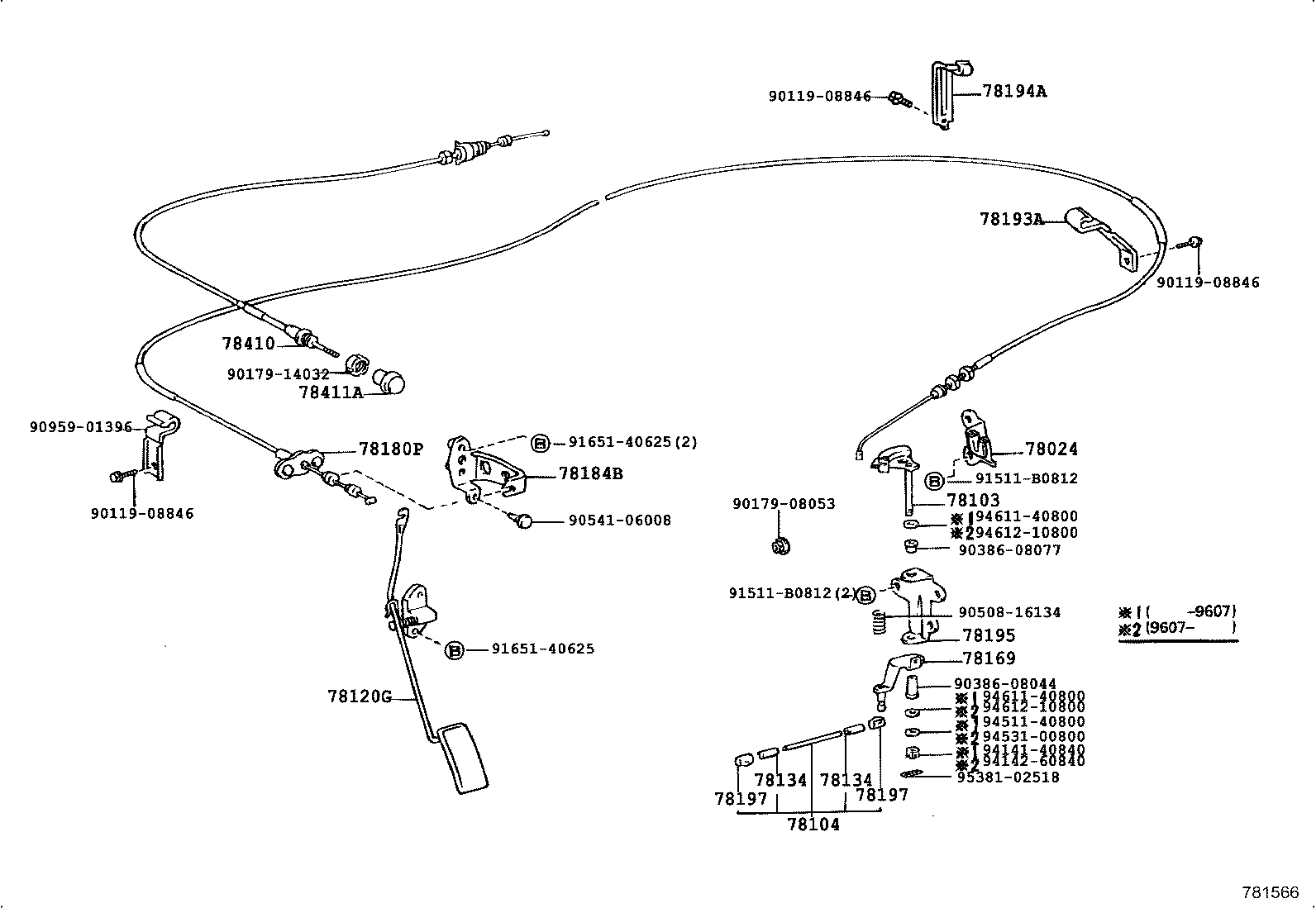

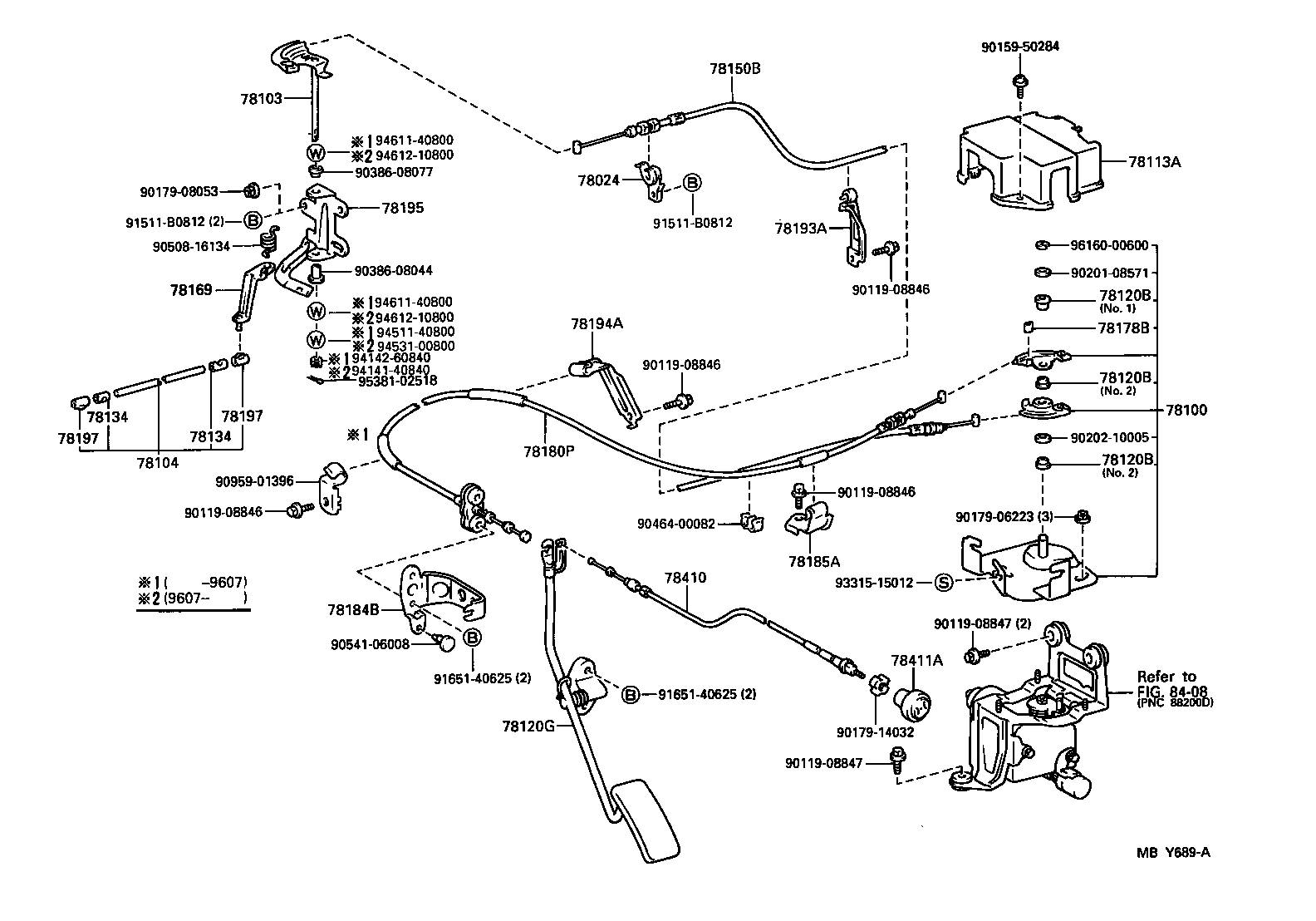

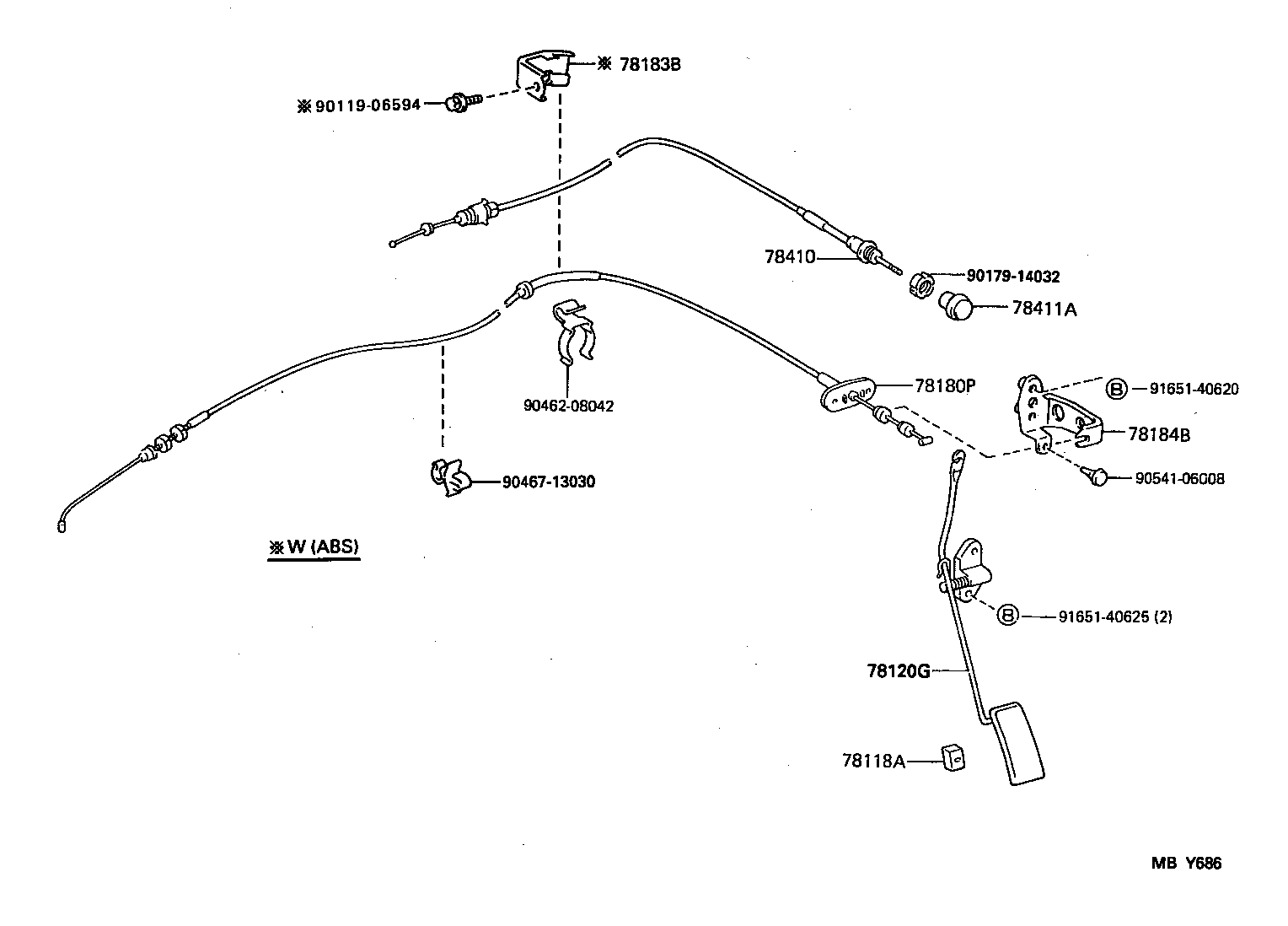

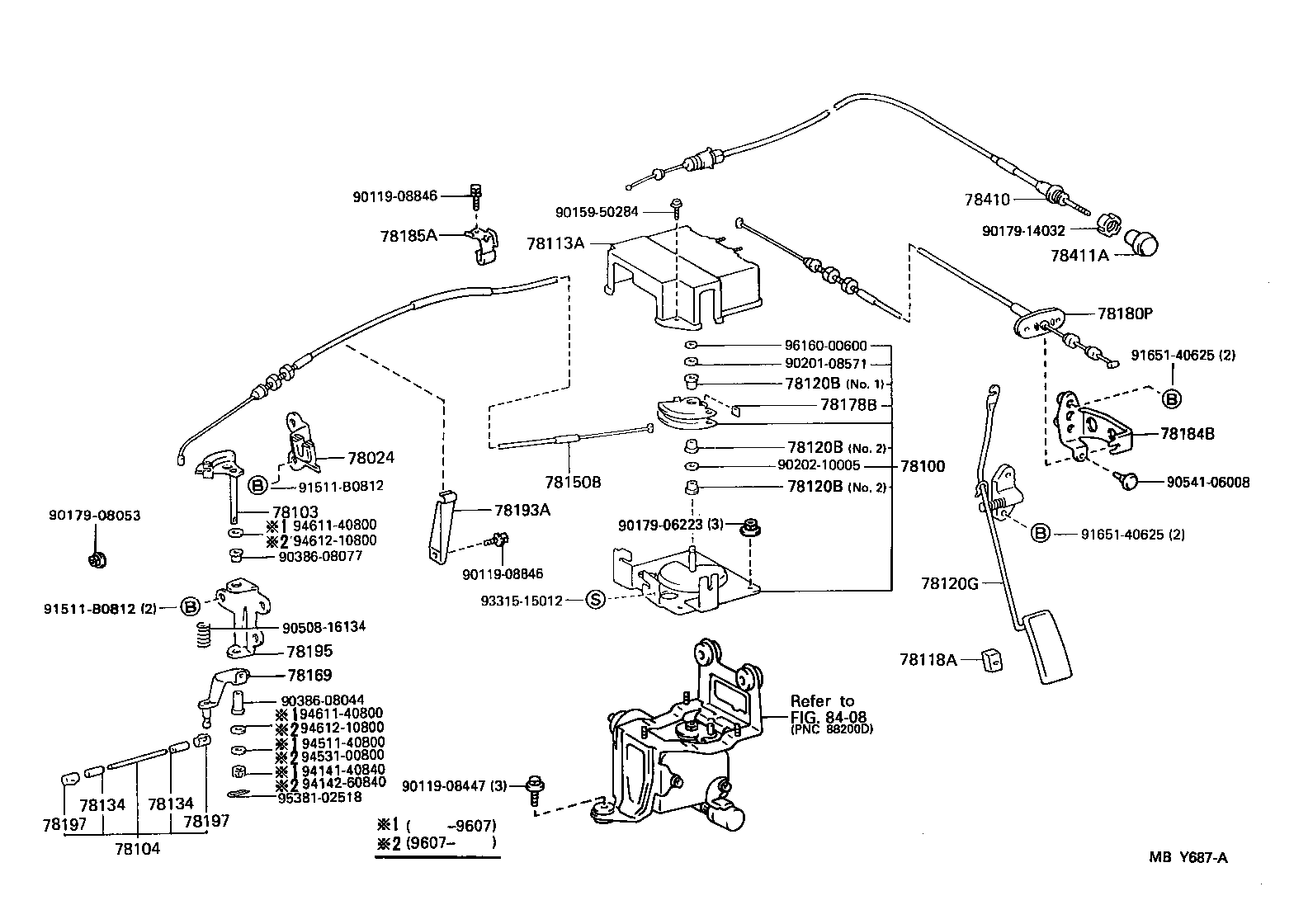

Figure MBU509A MBU509A 1990-01 → 1992-08 Figure MBX019A MBX019A 1992-08 → — Figure MBY686 MBY686 1995-01 → — Figure MBU499F MBU499F 1990-01 → 1995-01 Figure 781565 781565 1990-01 → 1995-01 Figure 781565 781565 1995-01 → — Figure MBY687A MBY687A 1995-01 → — Figure 781566 781566 1995-01 → — Figure MBY689A MBY689A 1995-01 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78113A Cover, Auto Drive Accelerator Link
78118A Stopper, Accelerator Pedal
78120B Bush (FOR ACCELERATOR LINK ROD)
78120G Rod Assy, Accelerator Pedal
78134 End, Accelerator Connecting Rod
78150B Cable Assy, Accelerator Auto Drive
78169 Hanger, Accelerator Spring
78178B Damper, Accel Control NO.4 Rod Bracket
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
78193A Support, Accelerator Control Cable, NO.3
78194A Support, Accelerator Control Cable, NO.4
78195 Bracket, Accelerator Link
78197 Clip, Accelerator Joint Ball
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
