Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

47 part groups · 17 illustrations

Illustrations

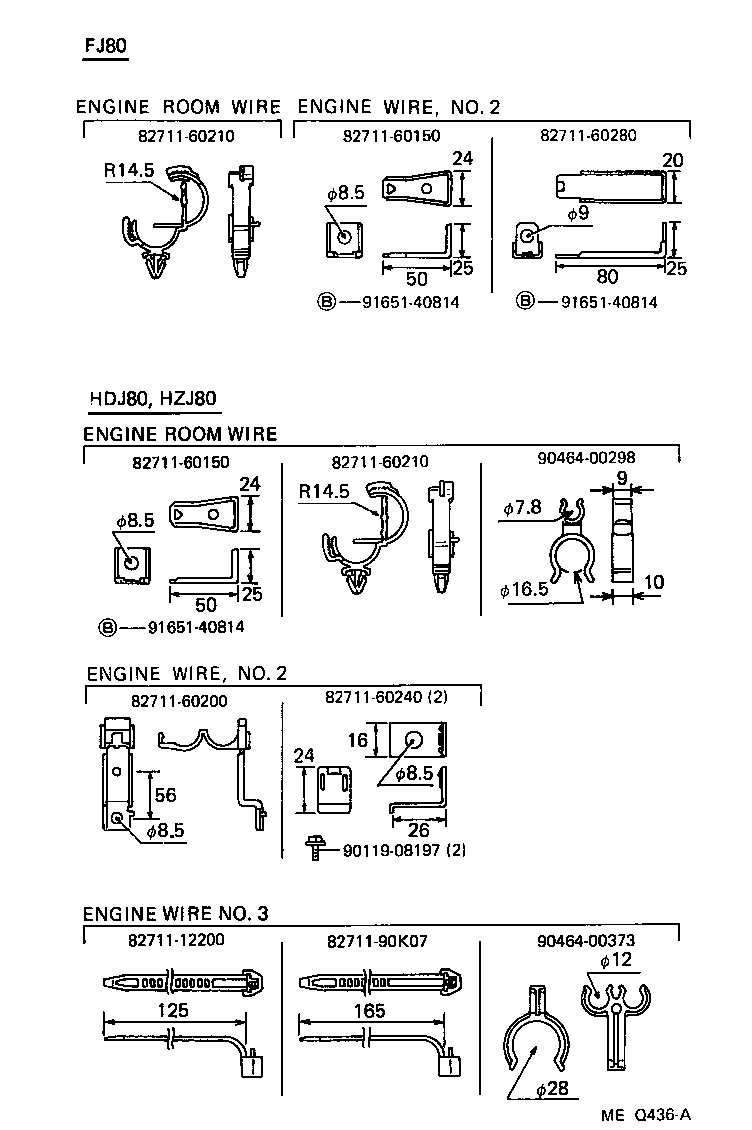

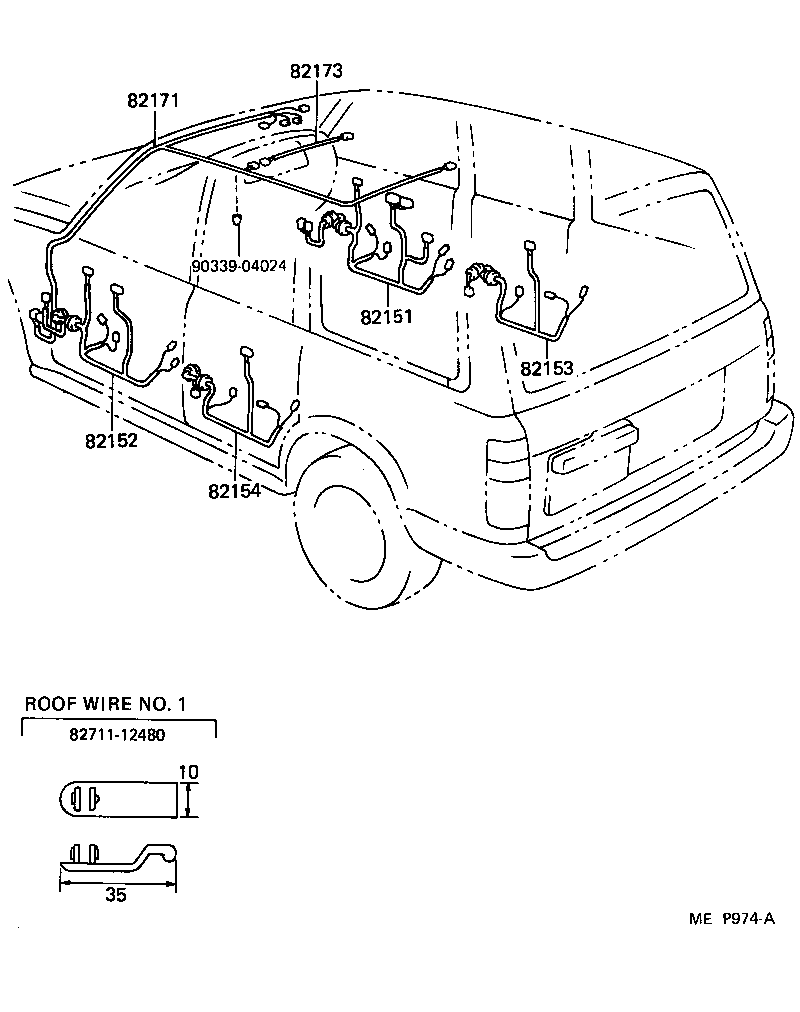

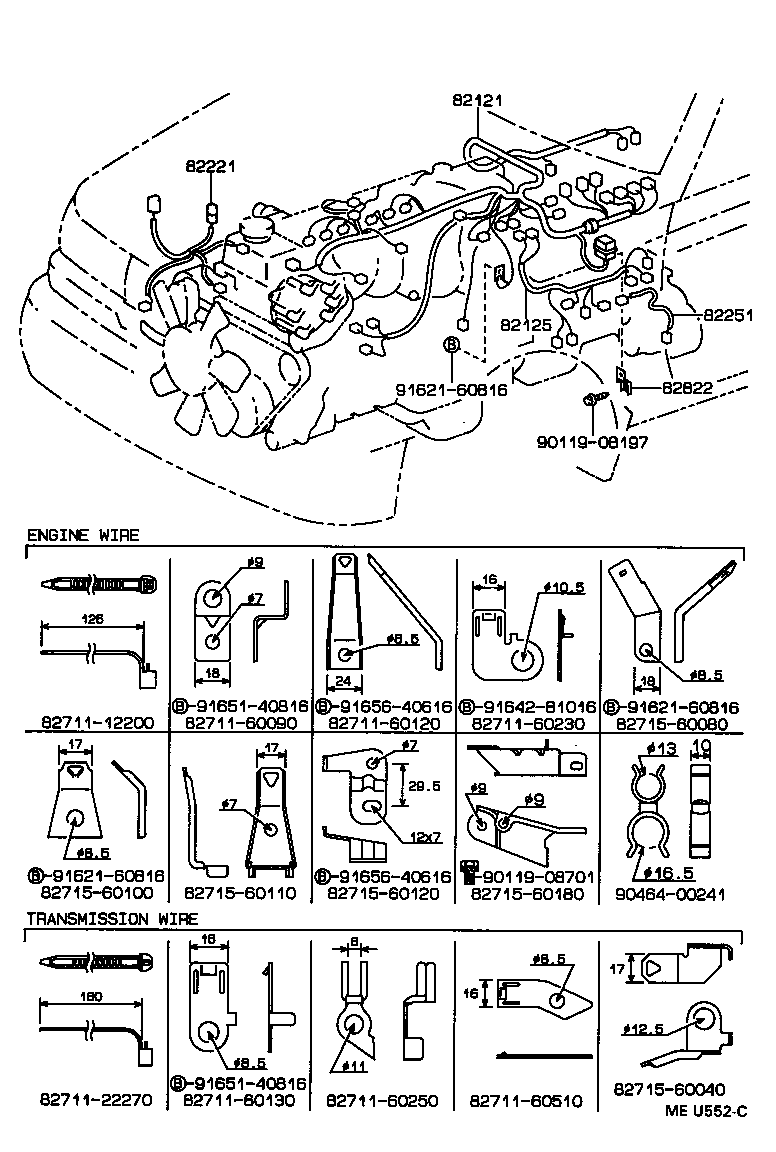

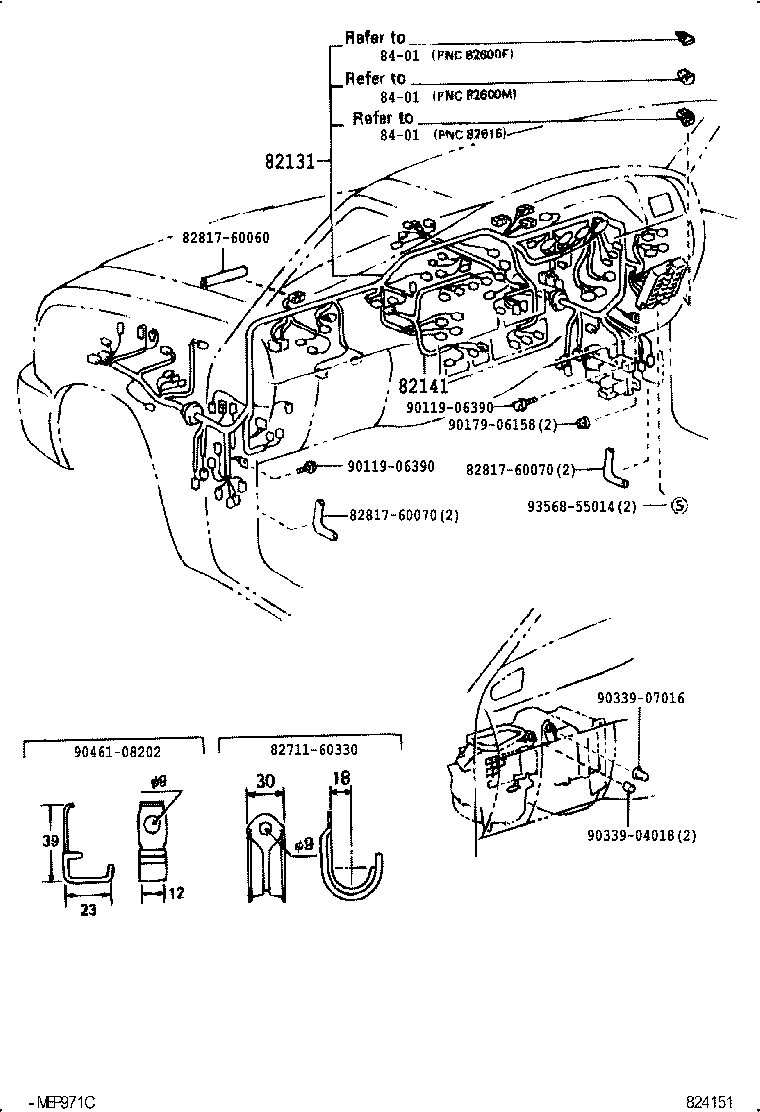

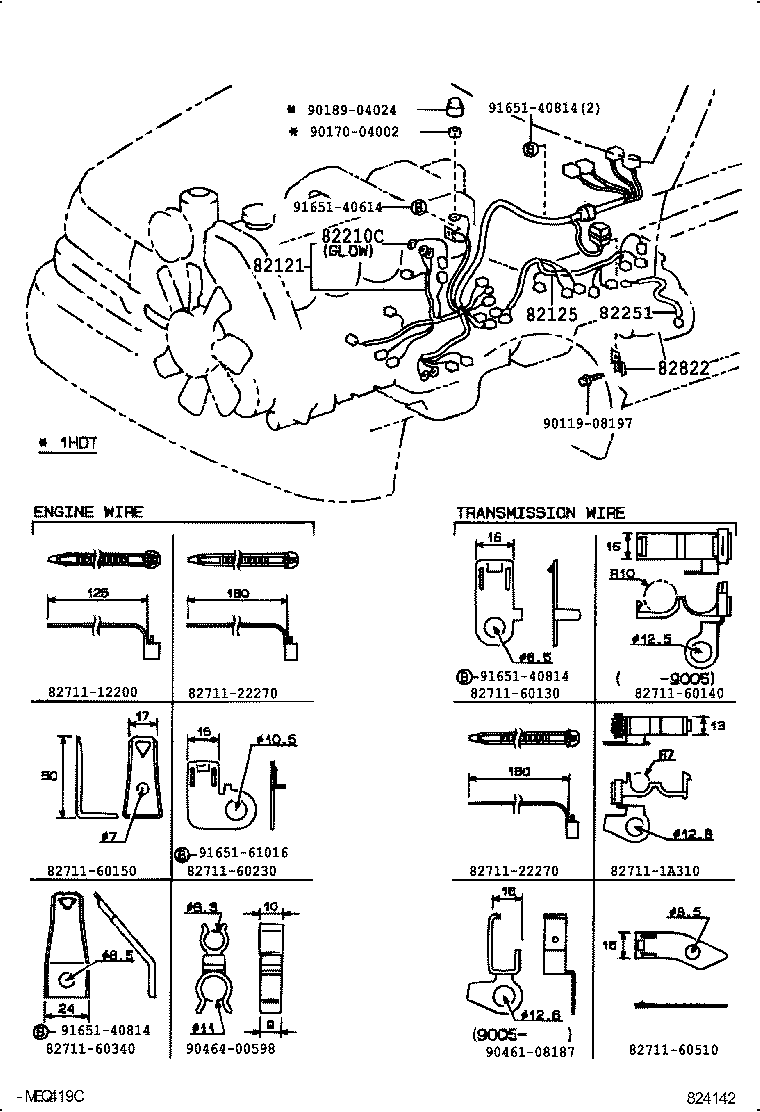

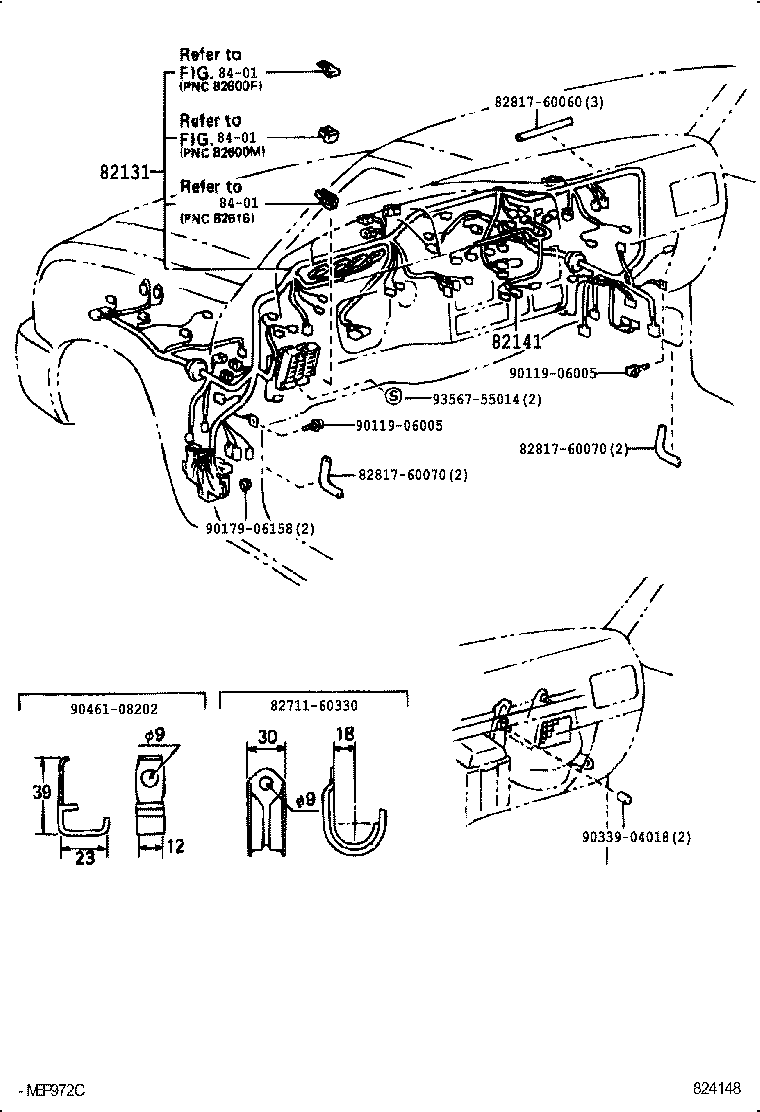

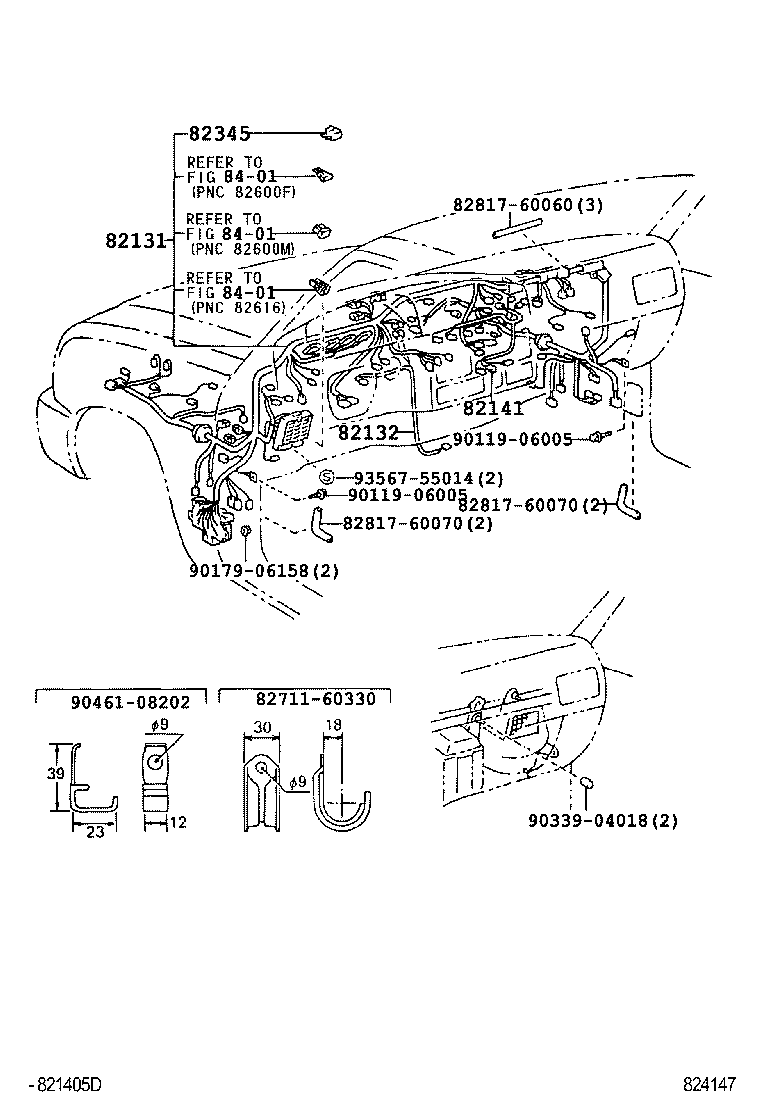

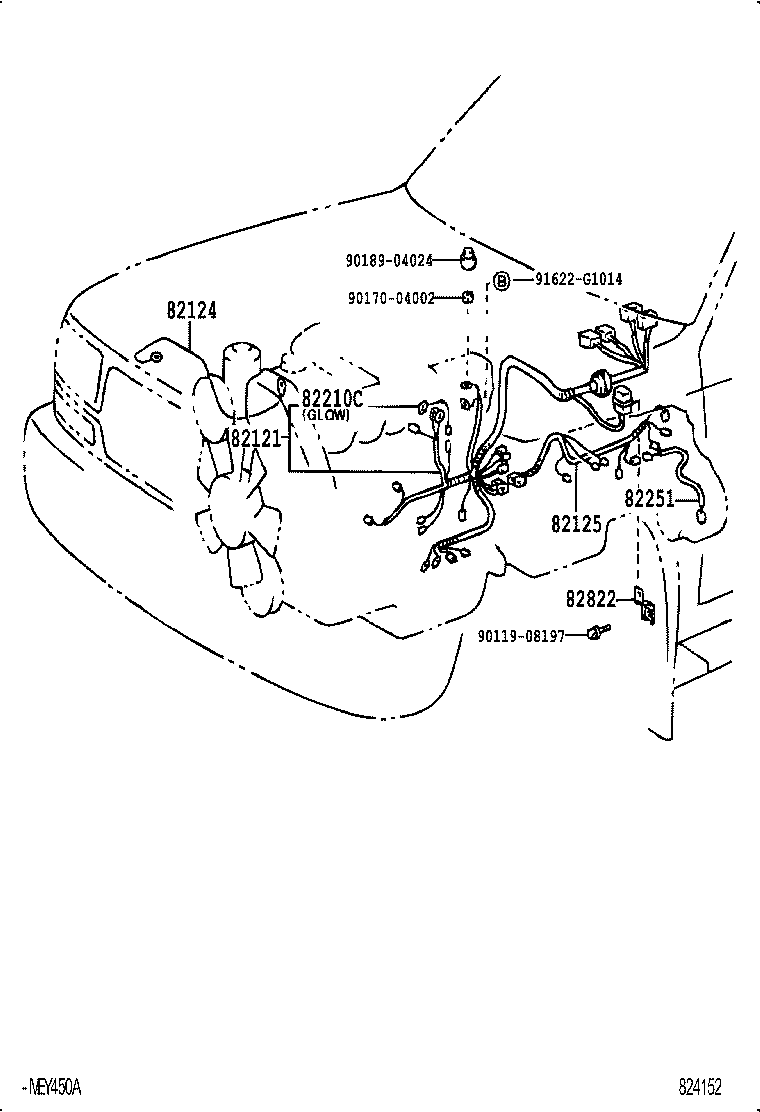

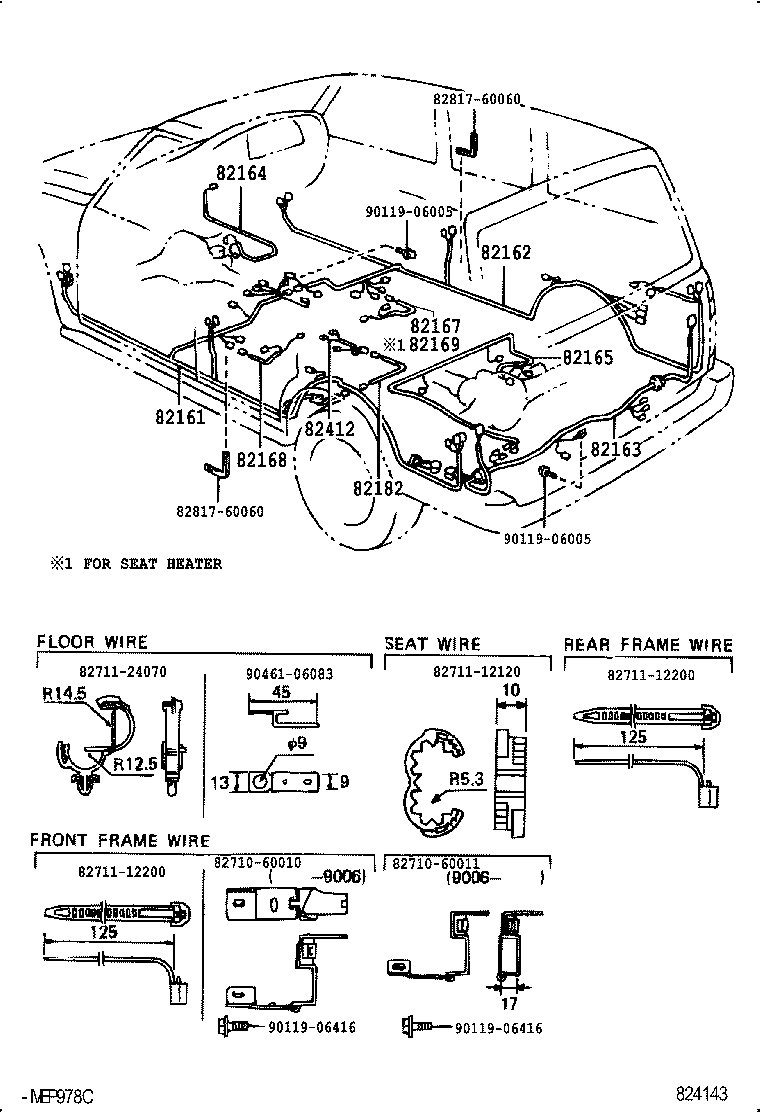

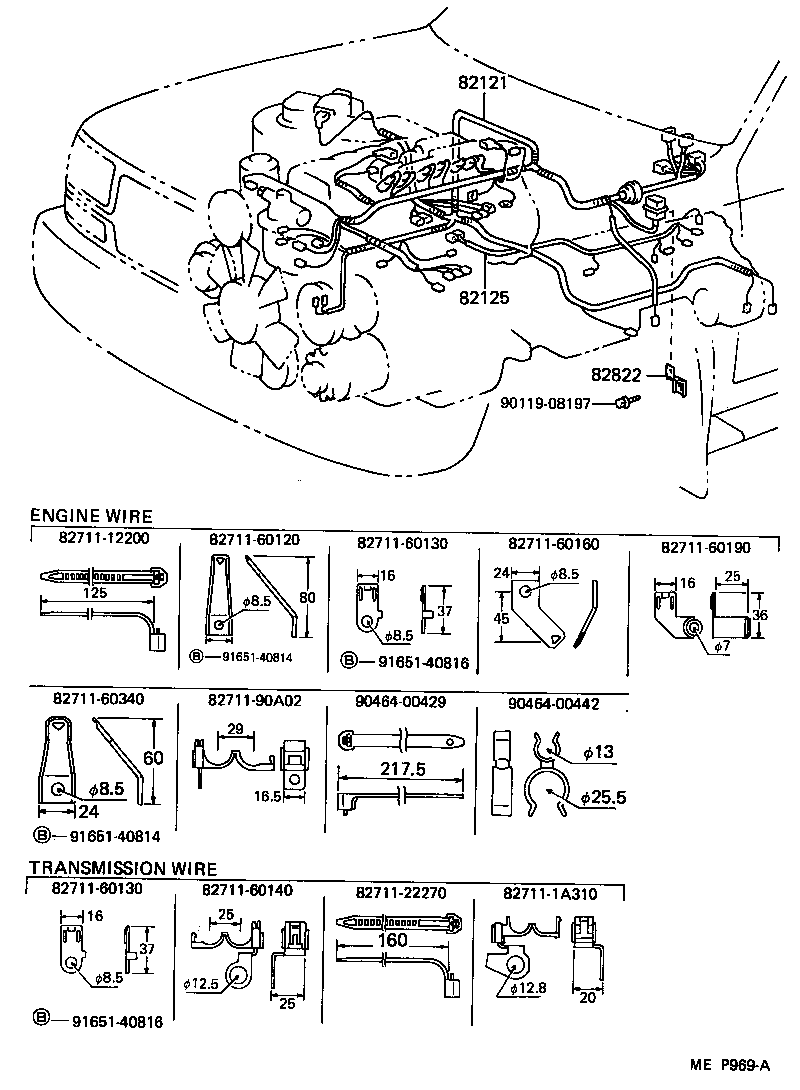

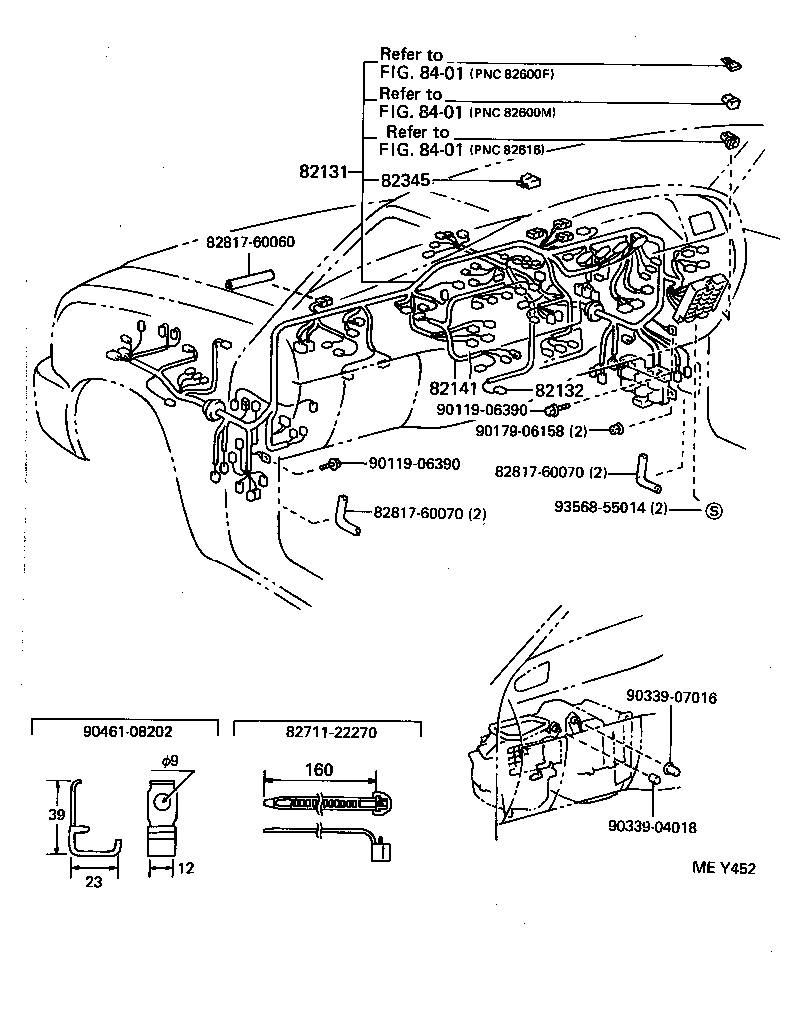

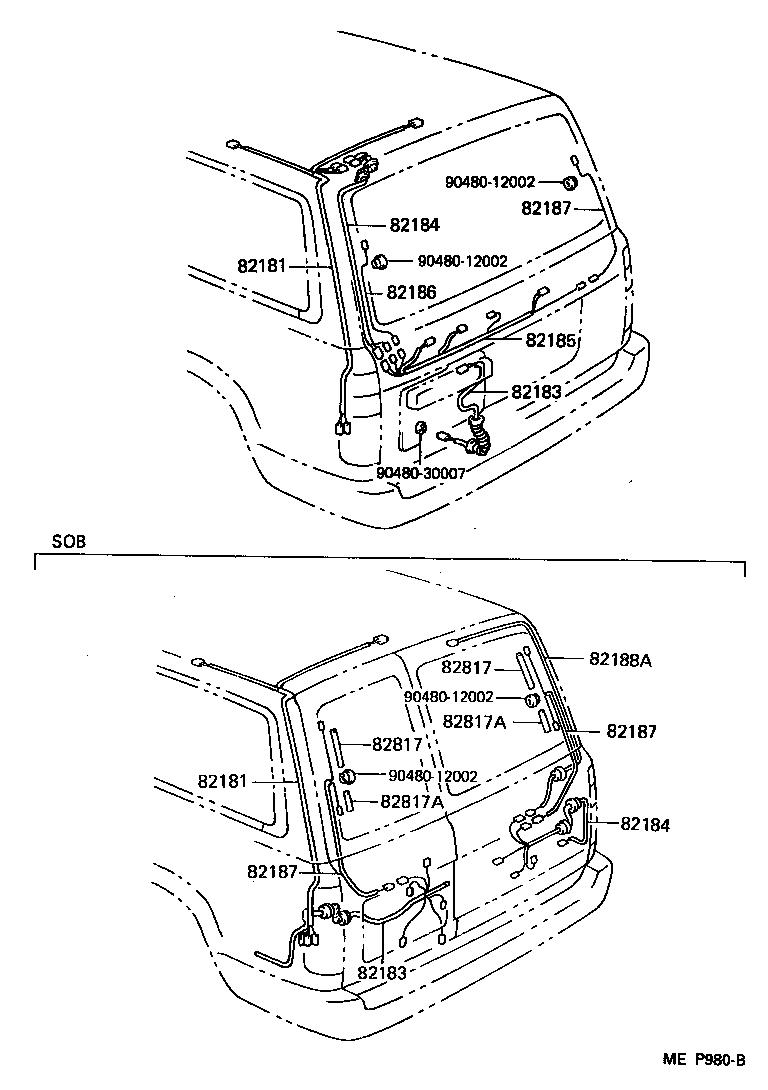

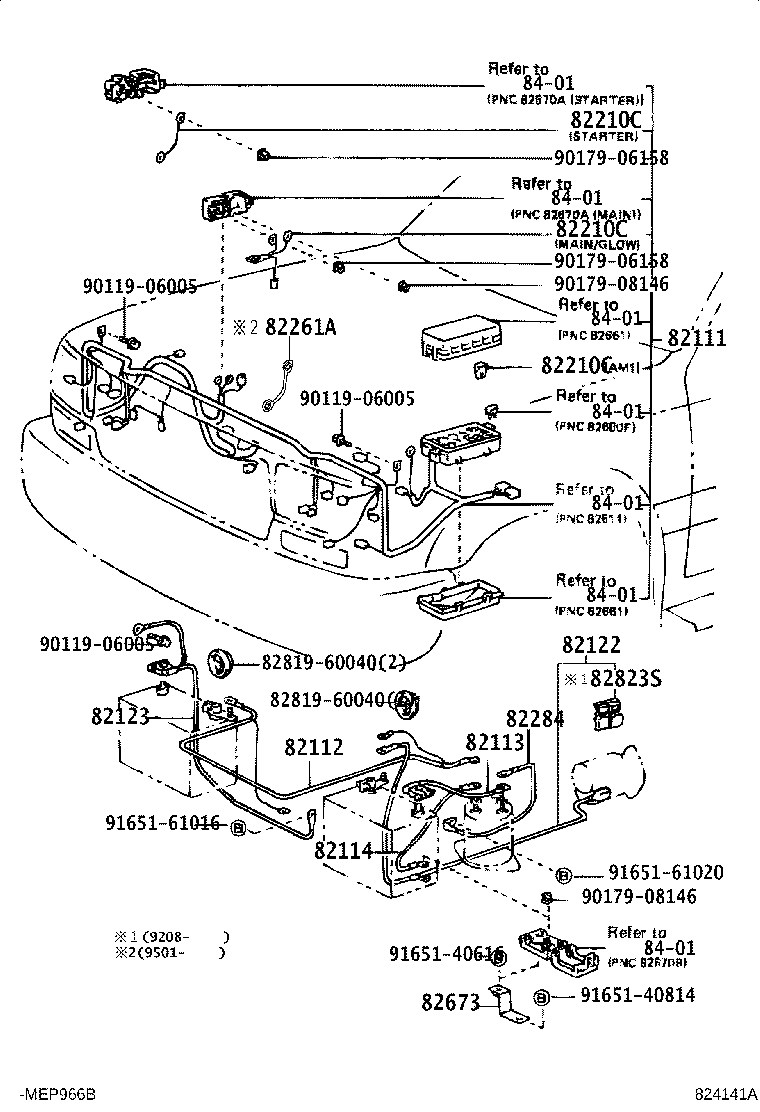

Figure MEQ435 MEQ435 1990-01 → — Figure 824141A 824141A 1990-01 → — Figure MEQ436A MEQ436A 1990-01 → — Figure MEP969A MEP969A 1990-01 → 1992-08 Figure MEU552C MEU552C 1992-08 → — Figure 824142 824142 1990-01 → 1995-01 Figure 824152 824152 1995-01 → — Figure 824151 824151 1990-01 → 1995-01 Figure MEY452 MEY452 1995-01 → — Figure 824148 824148 1990-01 → 1995-01 Figure 824147 824147 1995-01 → — Figure MEP974A MEP974A 1990-01 → — Figure 824143 824143 1990-01 → — Figure MEP980B MEP980B 1990-01 → — Figure MEP983A MEP983A 1990-01 → 1992-08 Figure MEU522D MEU522D 1992-08 → — Figure 824145 824145 1992-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82261A Wire, Alternator
82284 Wire, Earth
82345 Diode
82412 Wire, Fuel Gage
82673 Bracket, Junction Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82822 Bracket,Connector Block
82823S Cap, Starter Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
