Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

19 part groups · 7 illustrations

Illustrations

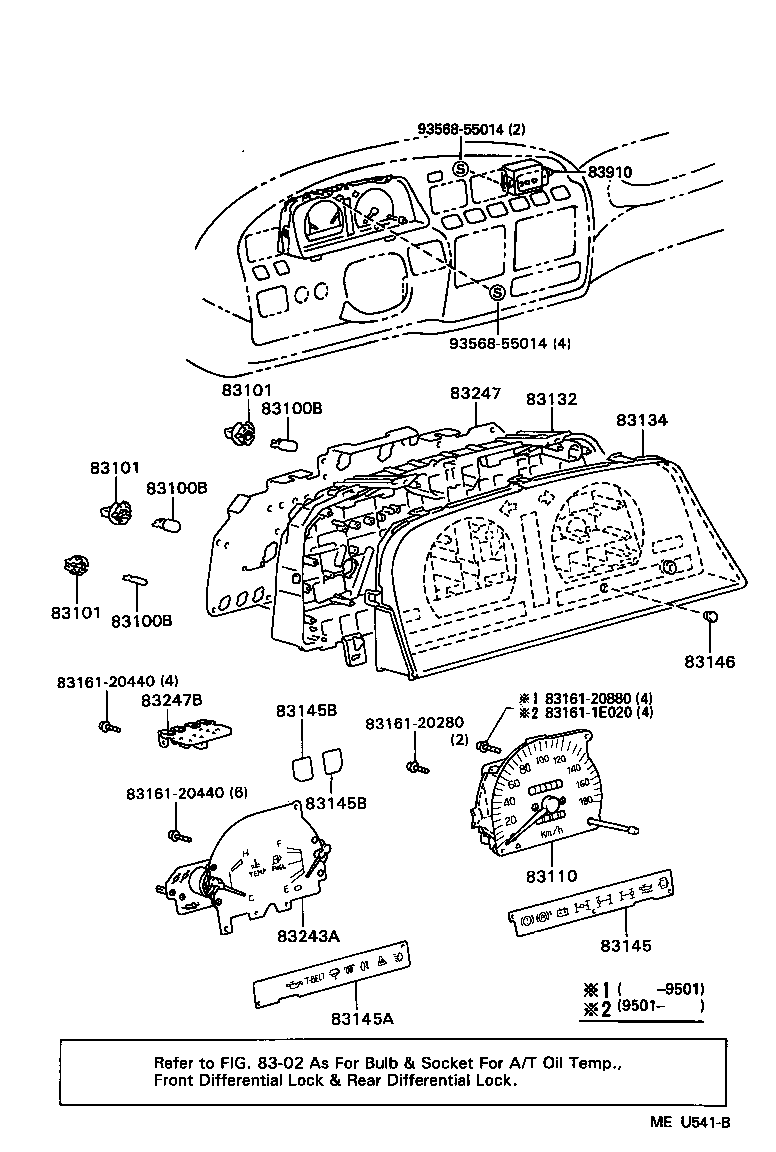

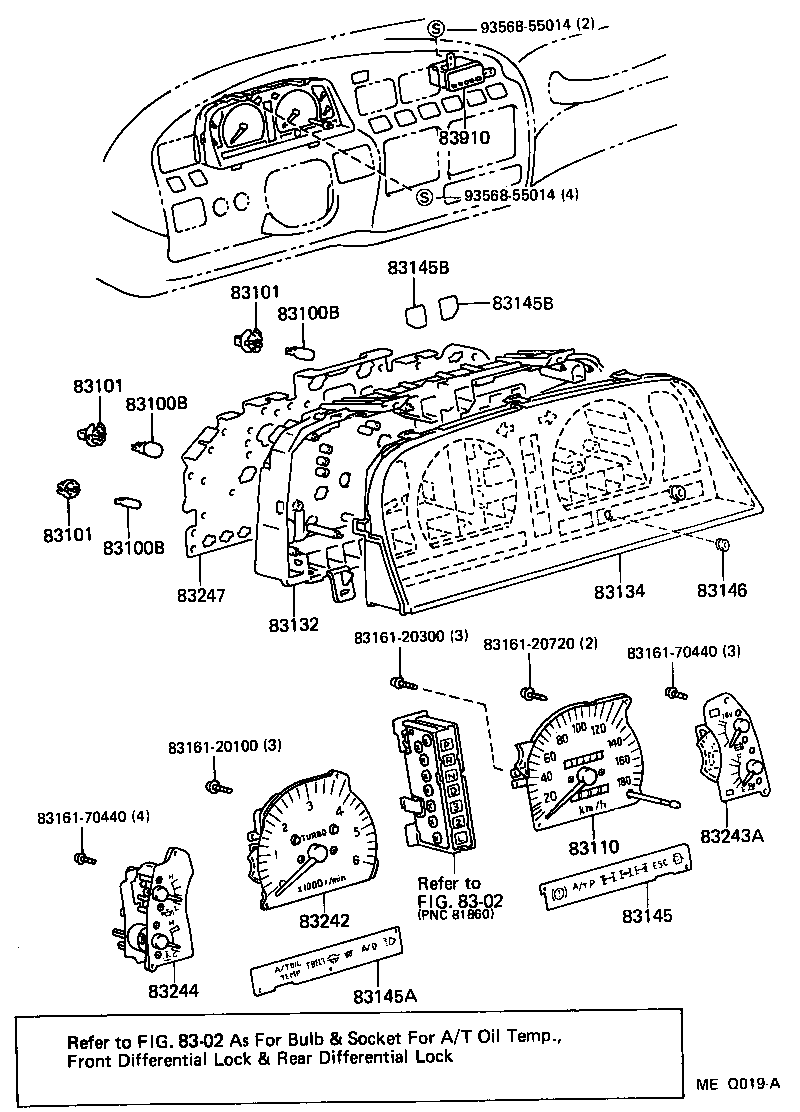

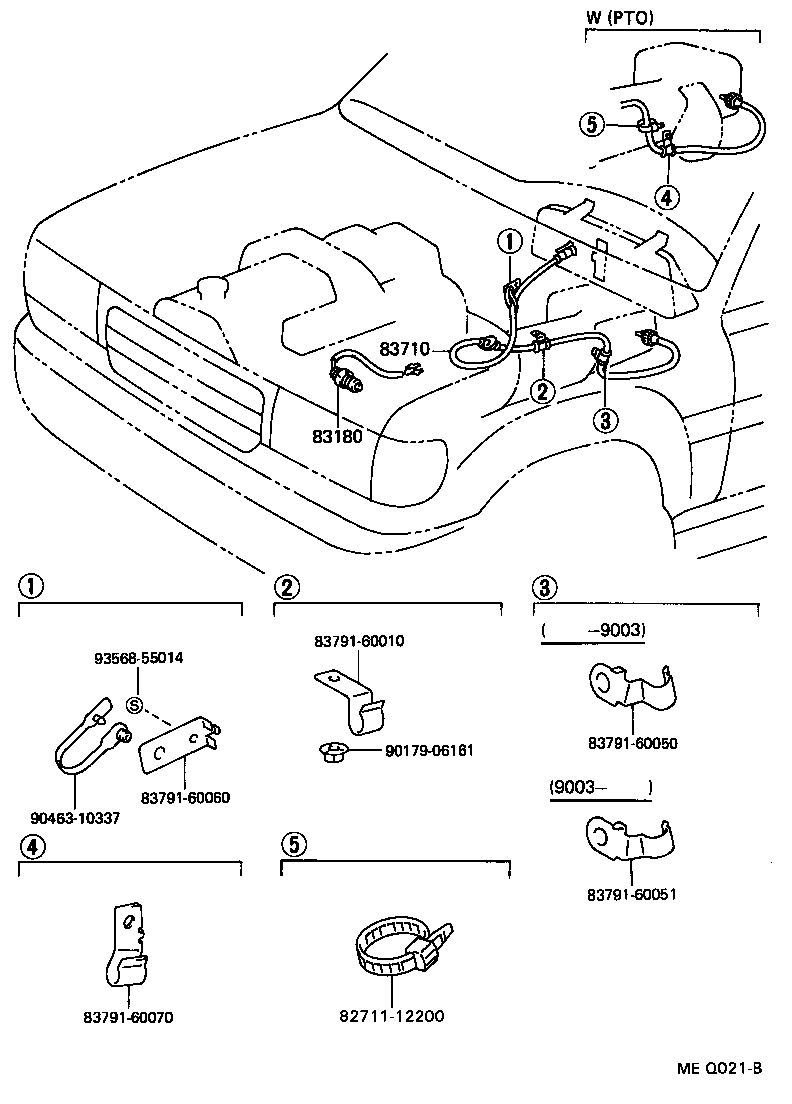

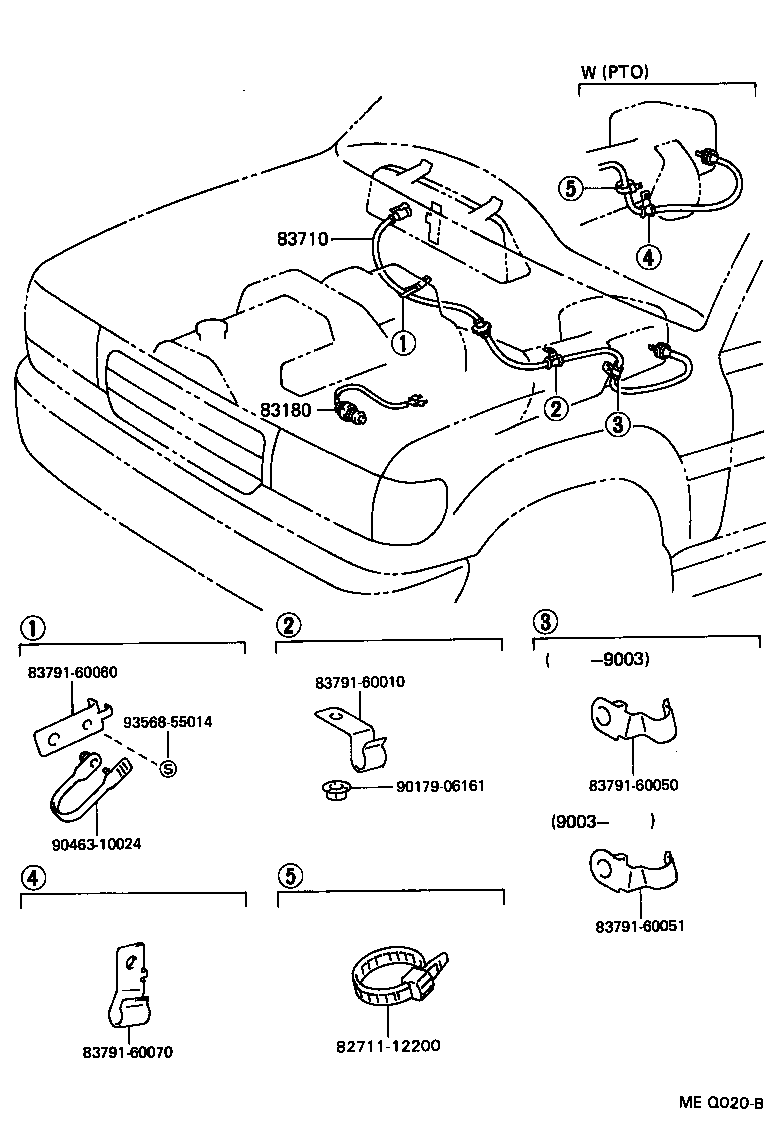

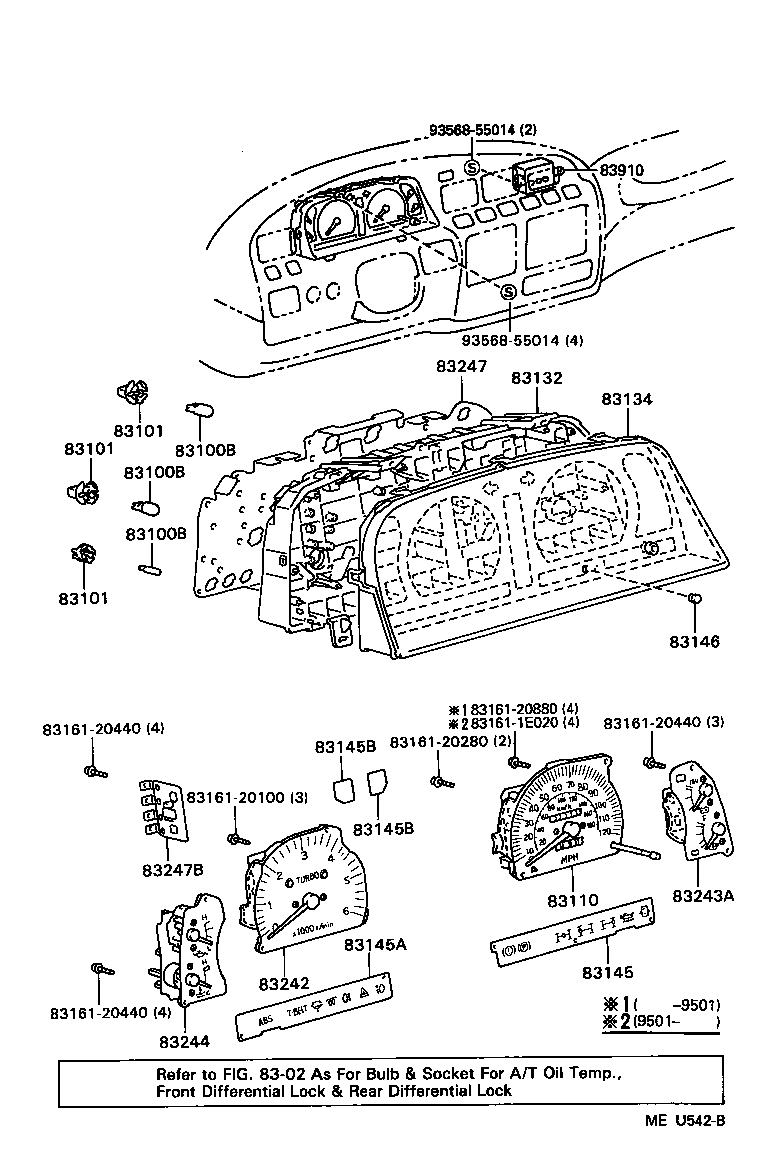

Figure MEQ015A MEQ015A 1990-01 → 1992-08 Figure MEU541B MEU541B 1992-08 → — Figure MEQ019A MEQ019A 1990-01 → 1992-08 Figure MEU542B MEU542B 1992-08 → — Figure MEQ020B MEQ020B 1990-01 → — Figure MEQ021B MEQ021B 1990-01 → — Figure MEU523A MEU523A 1992-08 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83134 Cover, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83146 Grommet, Meter Glass
83180 Detector Assy, Revolution
83181A Sensor, Speedometer
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83247B Plate, Meter Circuit, NO.2
83710 Cable Assy, Speedometer Drive, NO.1
83783 Key, Speedmeter Sensor
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
