Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

12 part groups · 2 illustrations

Illustrations

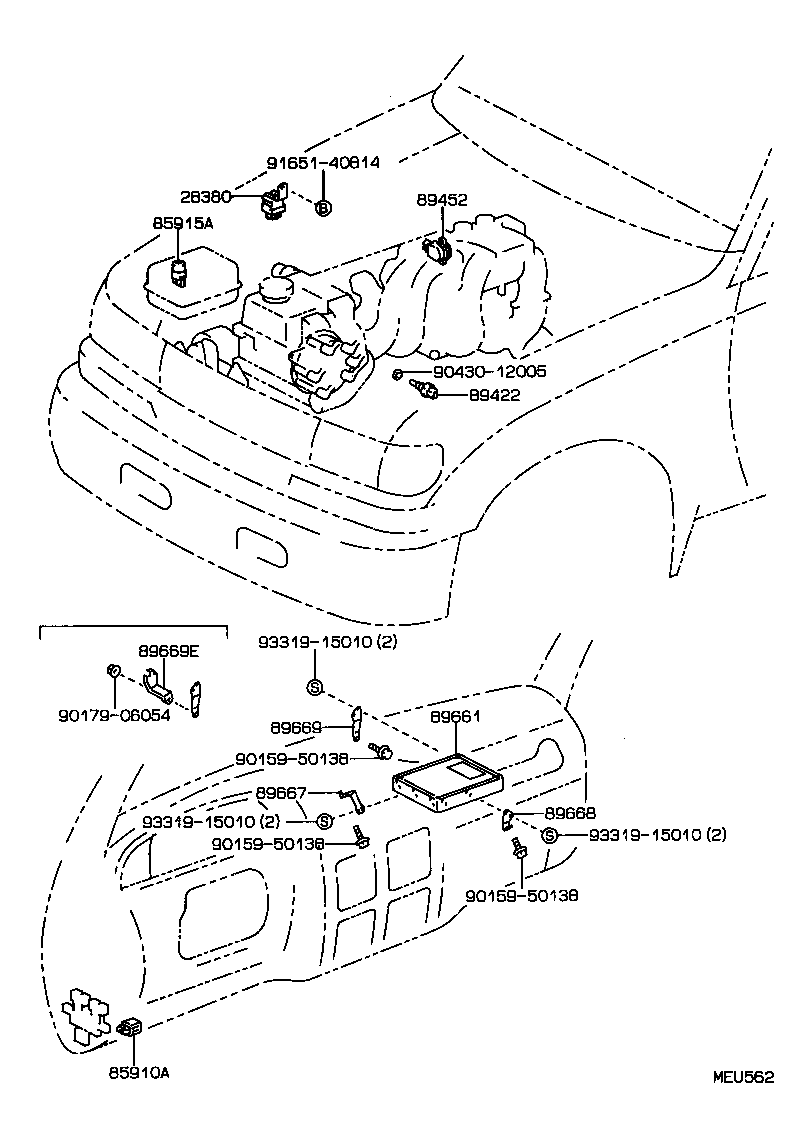

Figure 84H054 84H054 1990-01 → 1992-08 Figure MEU562 MEU562 1992-08 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
85910A Relay Assy, Circuit Opening (FOR EFI)
85915A Relay, Main
89422 Sensor, Water Temperature (FOR E.F.I.)
89428A Switch, Water Temperature (FOR E.F.I)
89452 Sensor, Throttle Position (FOR E.F.I.)
89462 Switch, Start Injector Time
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89669E Bracket, Engine Control Computer, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
