Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

9 part groups · 2 illustrations

Illustrations

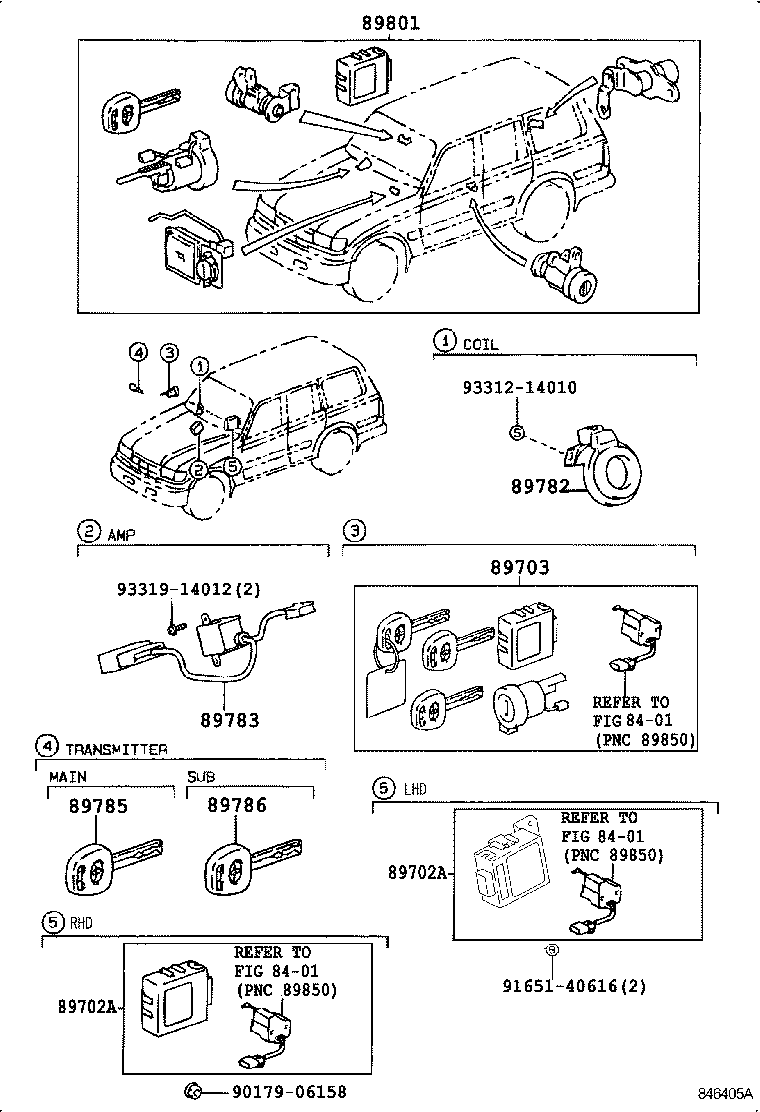

Figure 846404A 846404A 1995-05 → — Figure 846405A 846405A 1996-05 → —

Part groups

PNCDescription
89702A Computer Set, Transponder W/Valve Control
89703 Cylinder & Key Set, Ignition W/Transponder
89709 Computer Set, Transponder Key
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89786 Transmitter, Transponder Key Sub
89801 Computer Set, Transponder Key Diesel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
