Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 3 illustrations

Illustrations

Figure MEP991F

MEP991F 1990-01 → —

Figure NE2591

NE2591 1996-08 → —

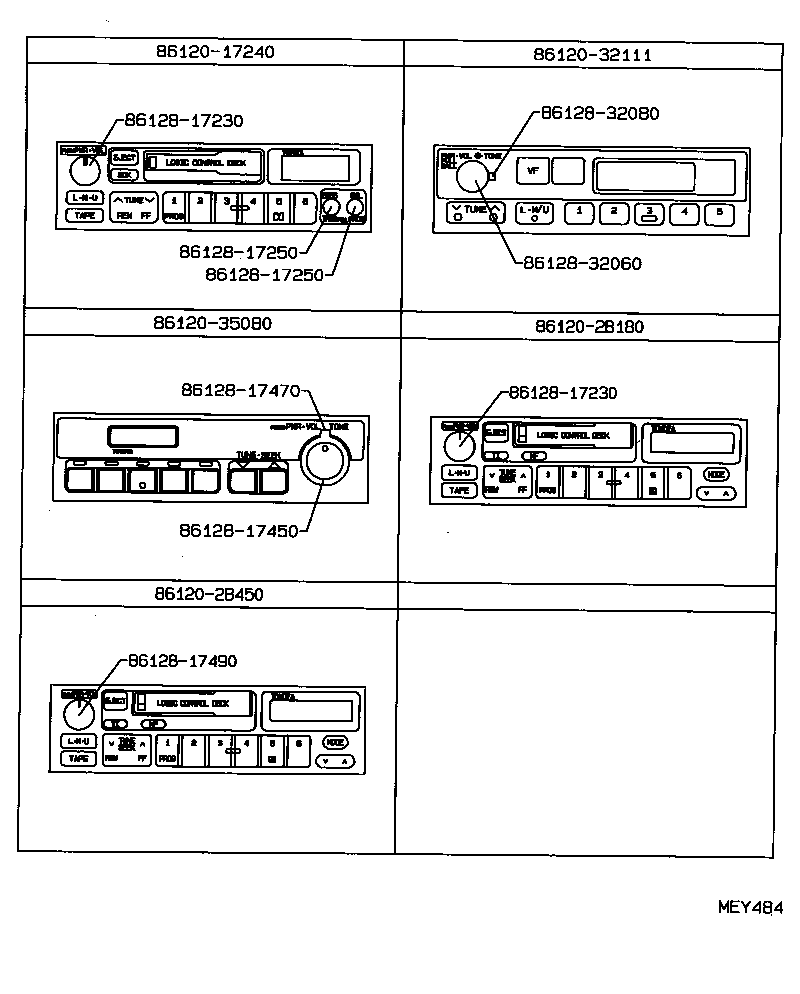

Figure MEY484

MEY484 1990-01 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011C	Filter, Noise
86120	Receiver Assy, Radio
86120A	Knob, Radio Receiver Switch
86120E	Knob, Radio Receiver Balance
86170	Switch And Volume Assy, Radio
86174	Case, Switch & Volume
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86237	Wire, Condenser
86267B	Fan, Tape Player Cooling

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
