Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

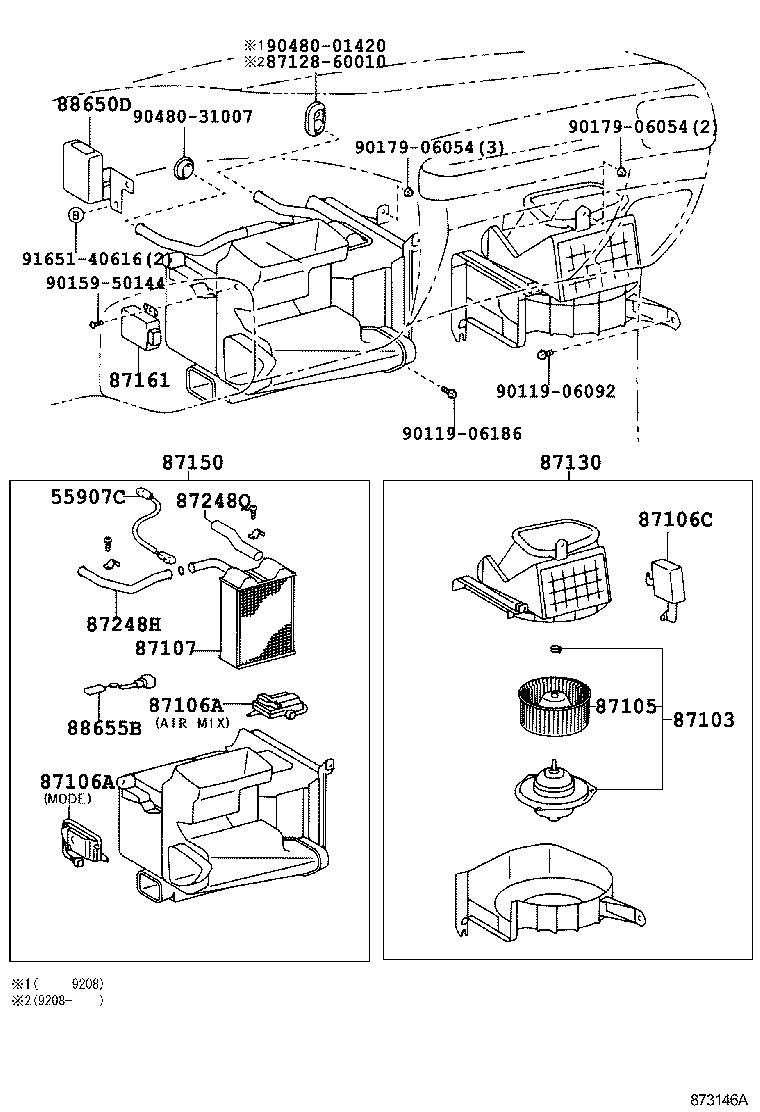

Heating & Air Conditioning - Heater Unit & Blower
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |

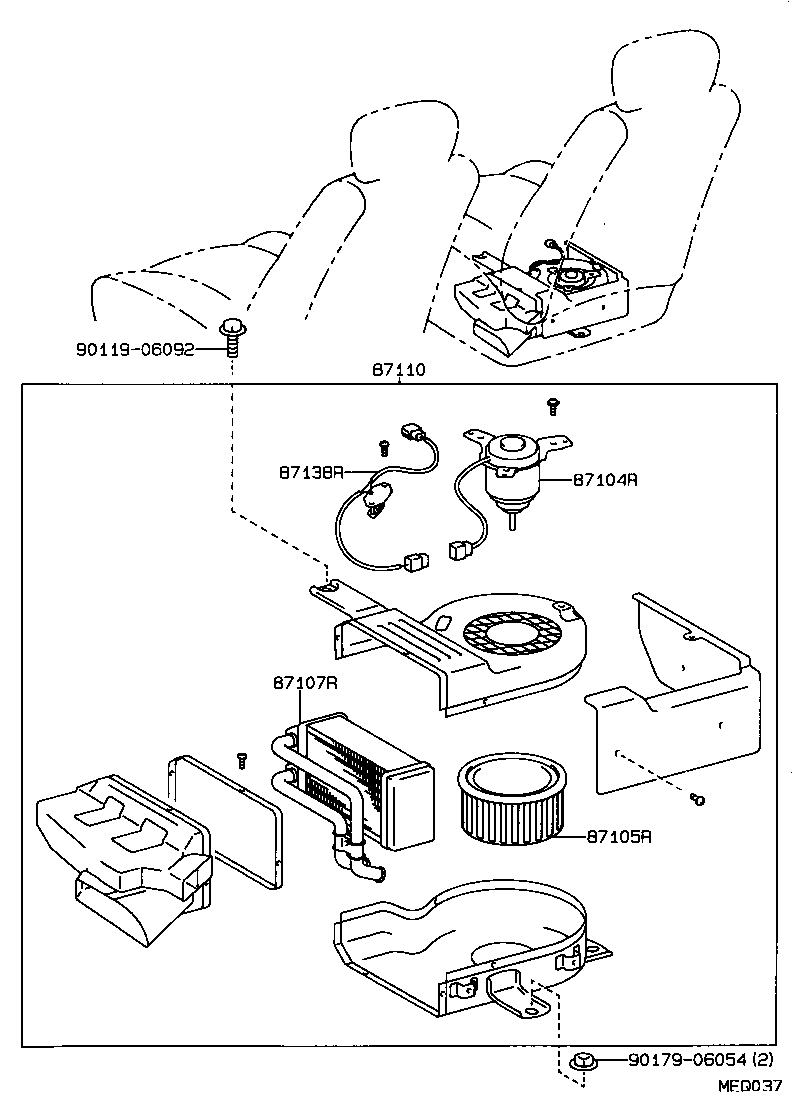

| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87106A | Servo Sub-assy, Damper |
| 87106C | Servo Sub-assy, Damper(FOR BLOWER) |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87110 | Heater Assy |
| 87130 | Blower Assy, Heater, Front |
| 87138R | Resistor, Rear Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87161 | Amplifier, Heater Servo Motor |
| 87248H | Pipe, Heater Water Inlet |
| 87248Q | Pipe, Front Heater Radiator Water |
| 88650D | Amplifier Assy |
| 88655B | Switch, Water Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
