Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

19 part groups · 7 illustrations

Illustrations

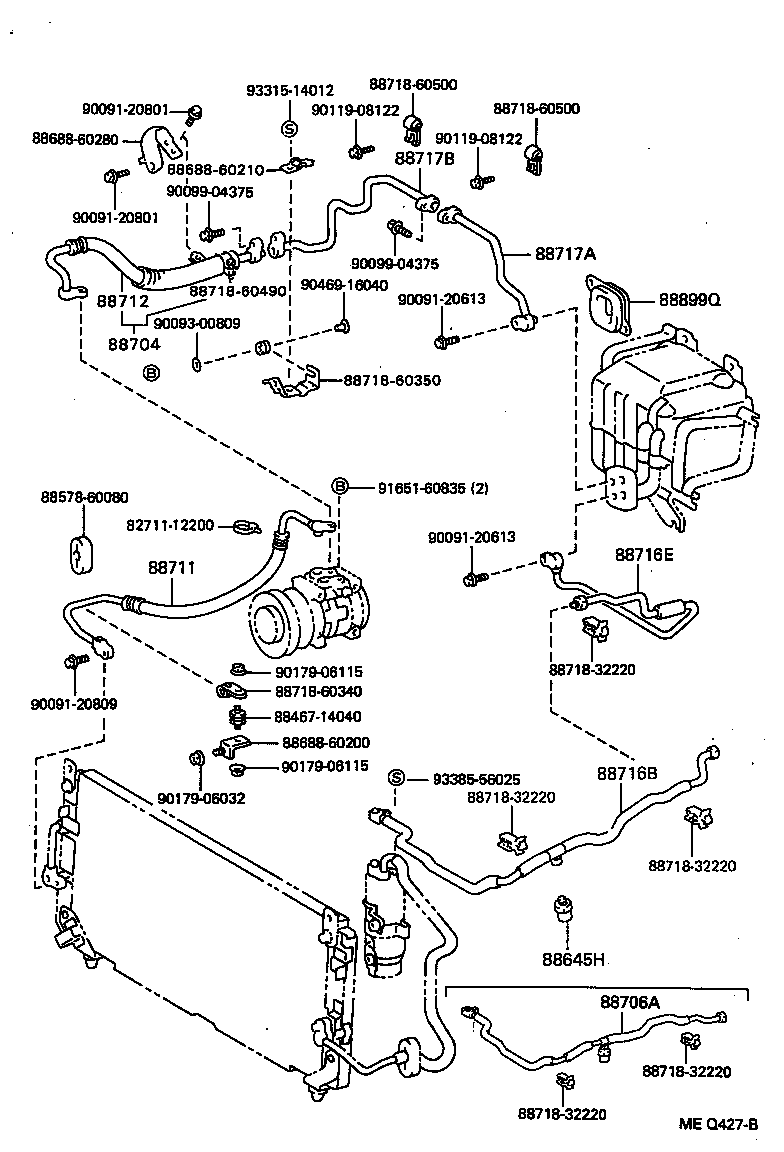

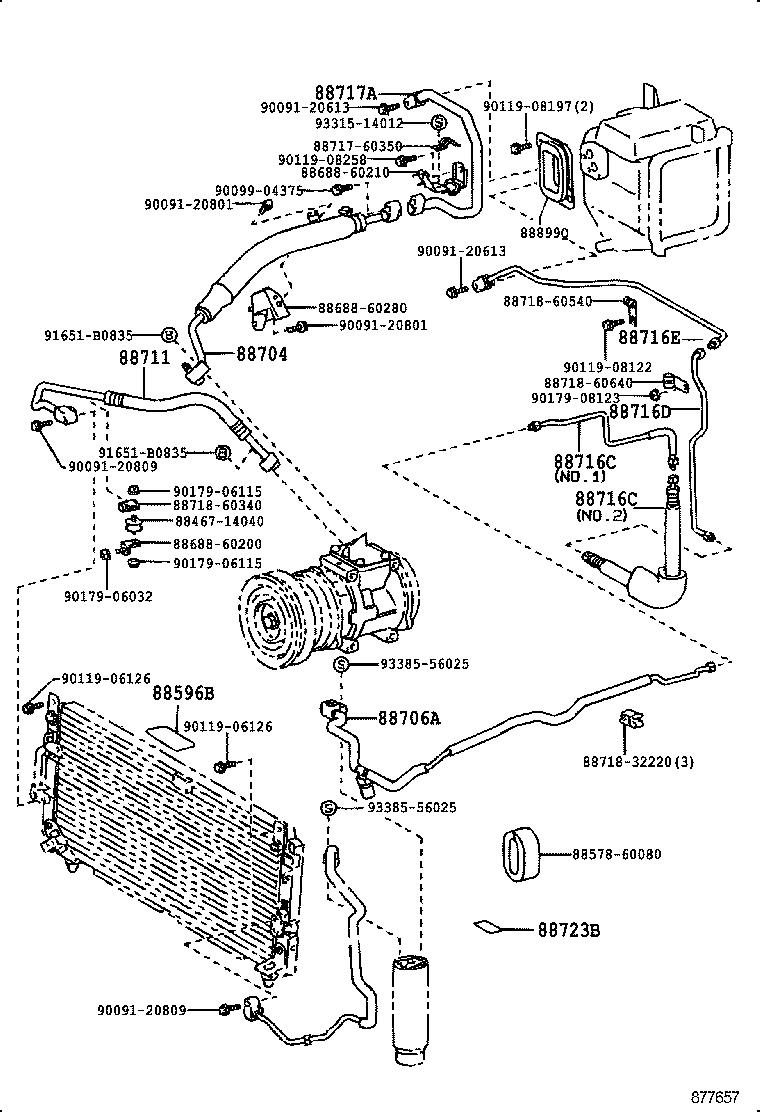

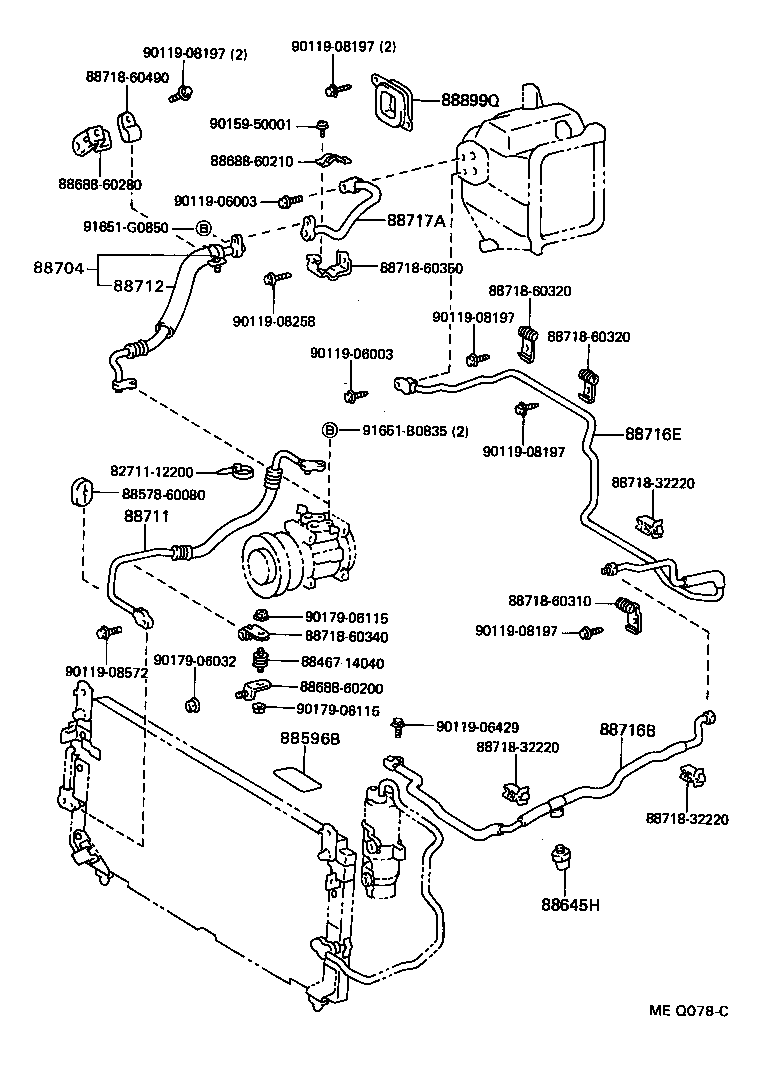

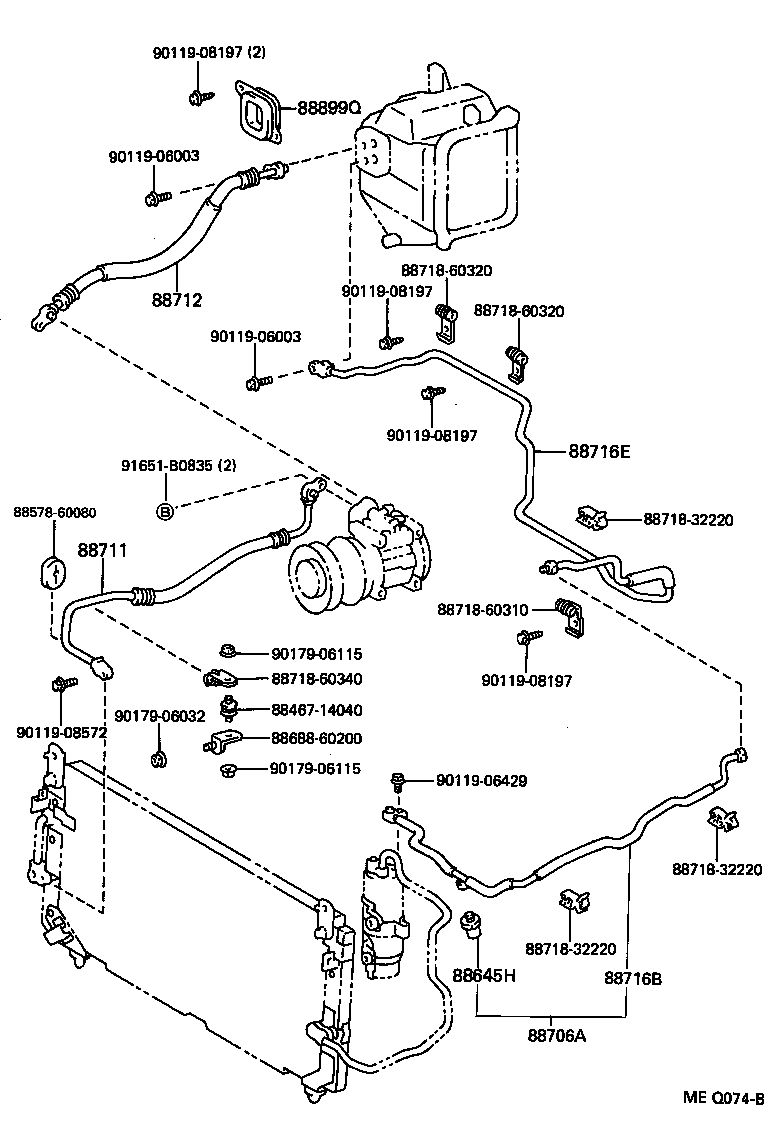

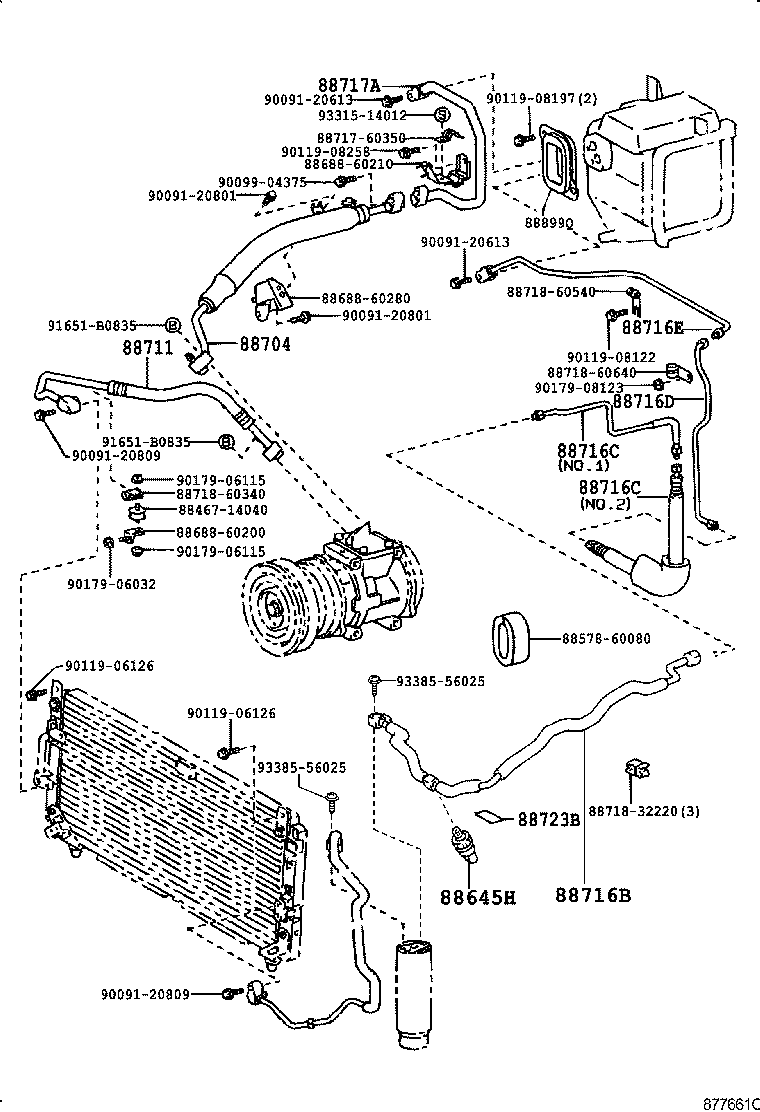

Figure MEQ070C MEQ070C 1990-01 → — Figure MEQ074B MEQ074B 1990-01 → 1992-08 Figure MEQ427B MEQ427B 1990-01 → — Figure MEQ427B MEQ427B 1995-01 → — Figure MEQ078C MEQ078C 1990-01 → 1992-08 Figure 877657 877657 1992-08 → 1993-05 Figure 877661C 877661C 1993-05 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88596B Plate, Caution, NO.1
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88723B Label, Cooler Service Caution
88899Q Plate, Cover
