Heating & Air Conditioning - Compressor

25 part groups · 6 illustrations

Illustrations

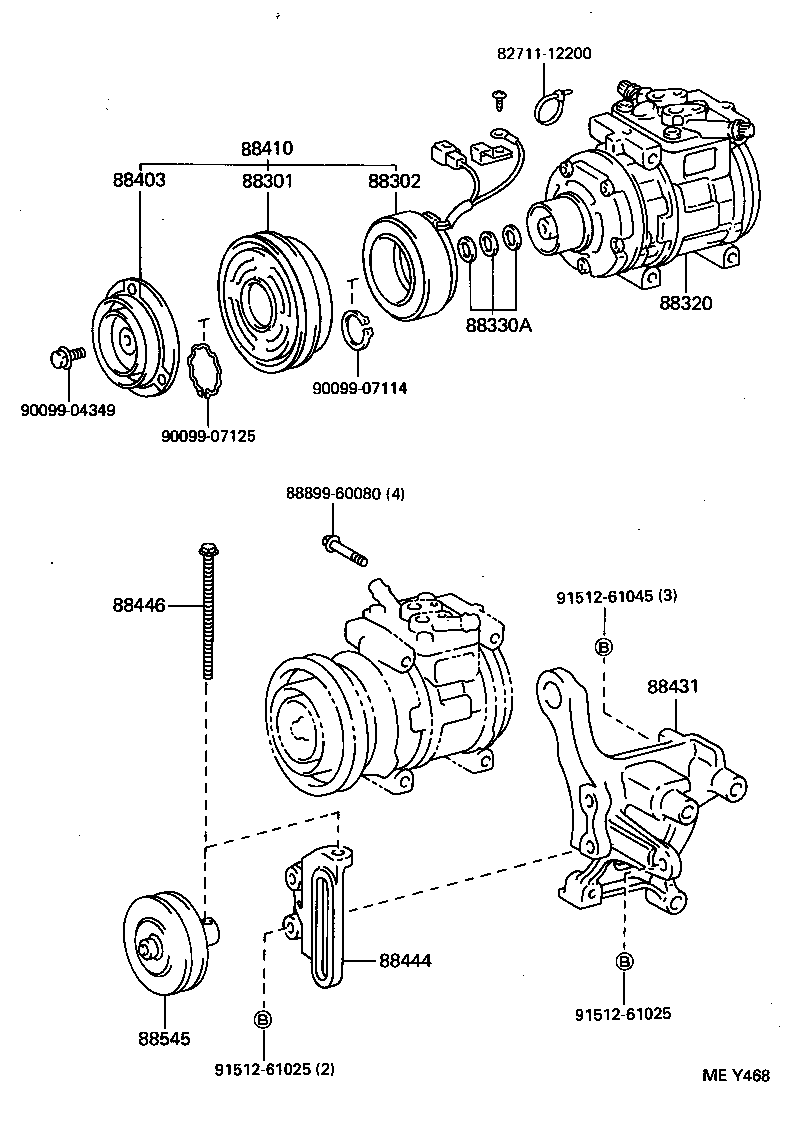

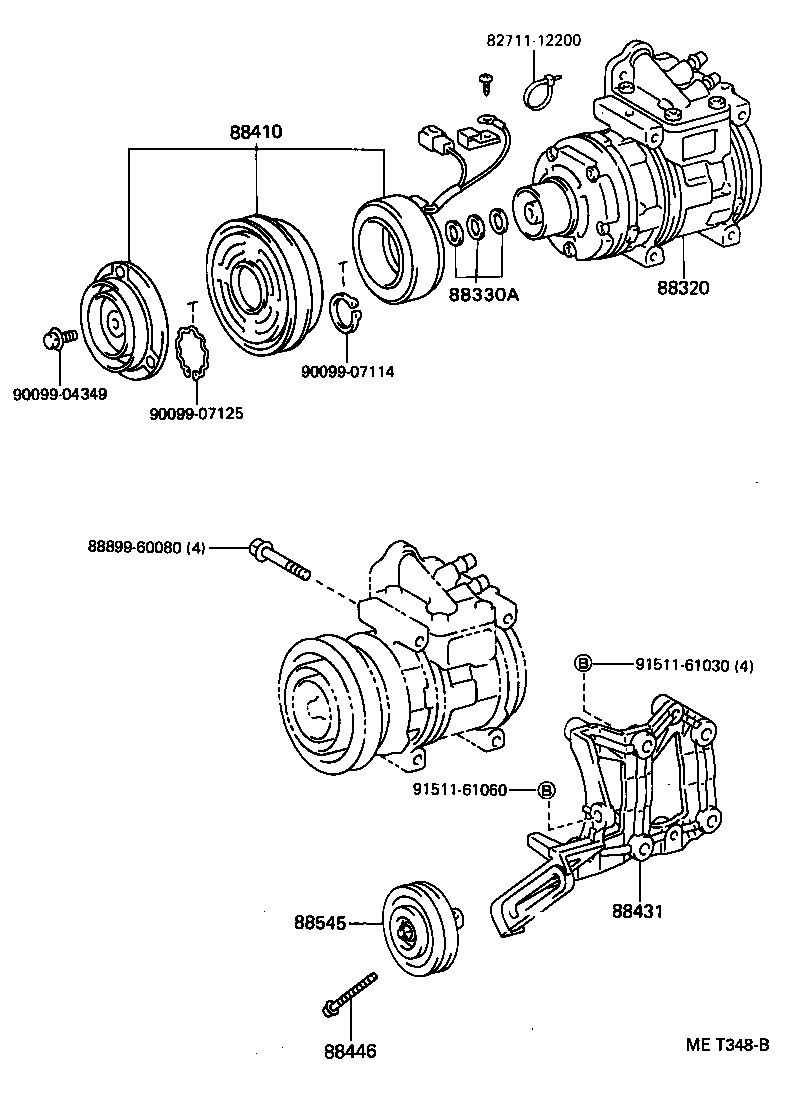

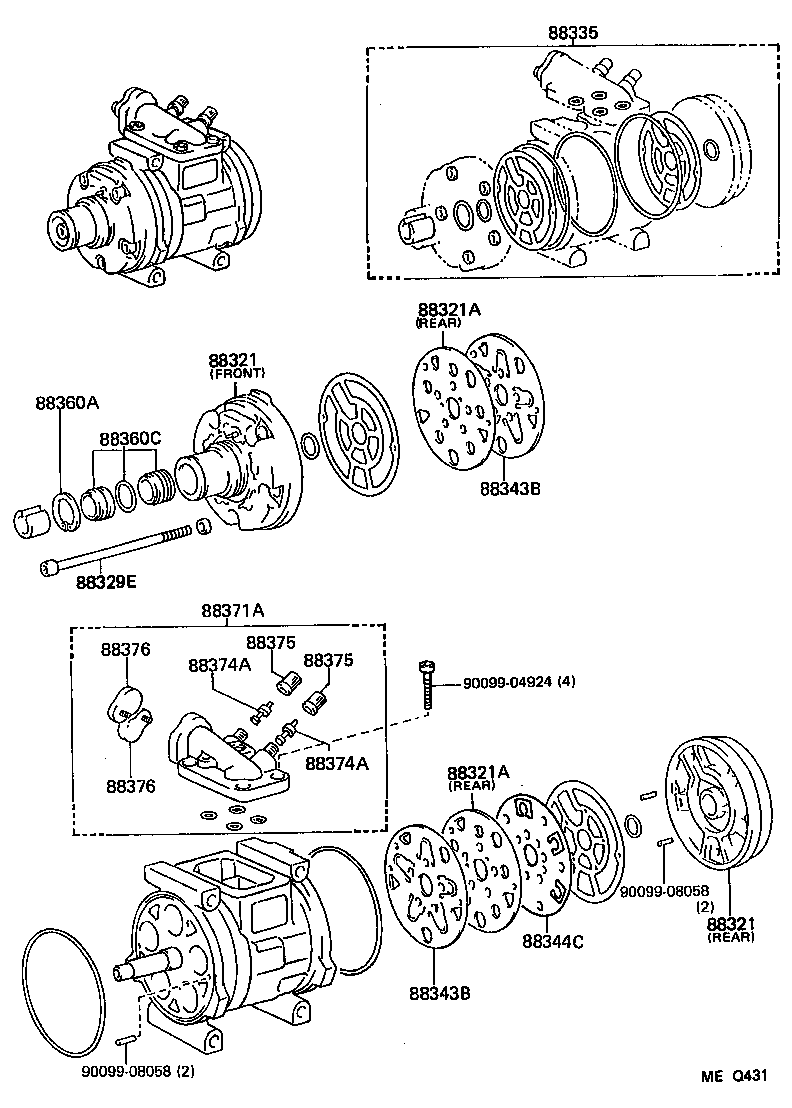

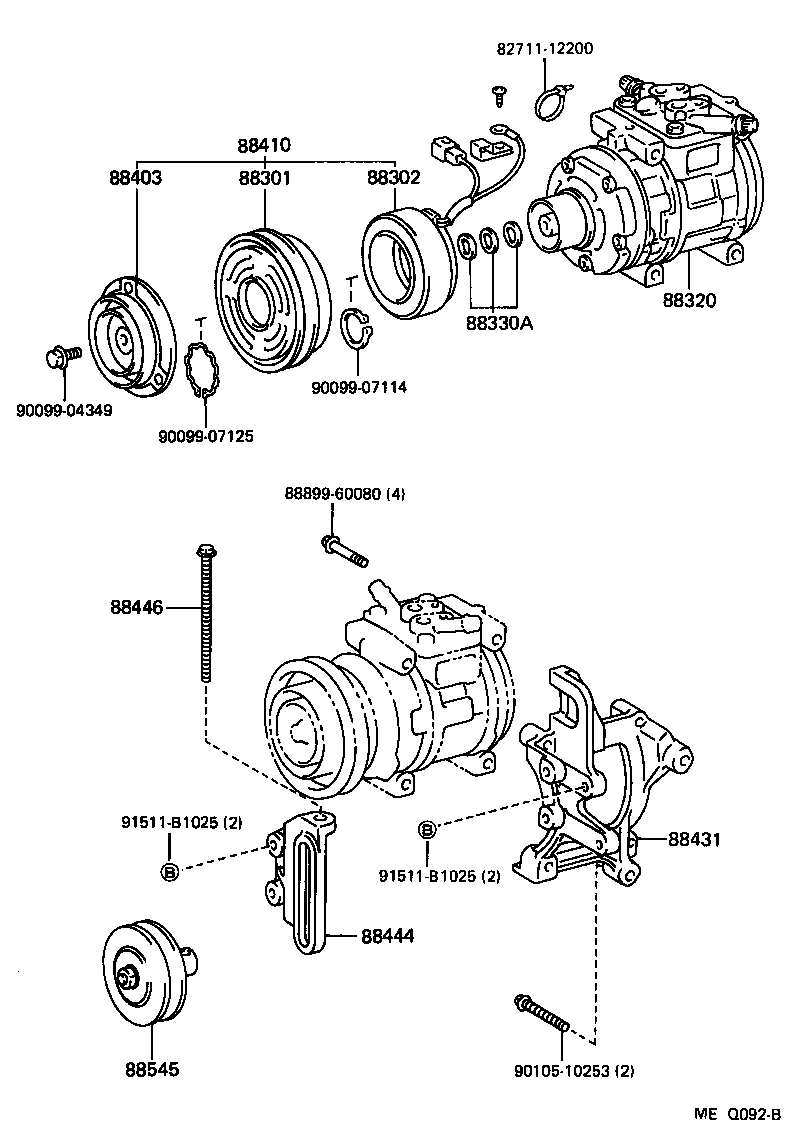

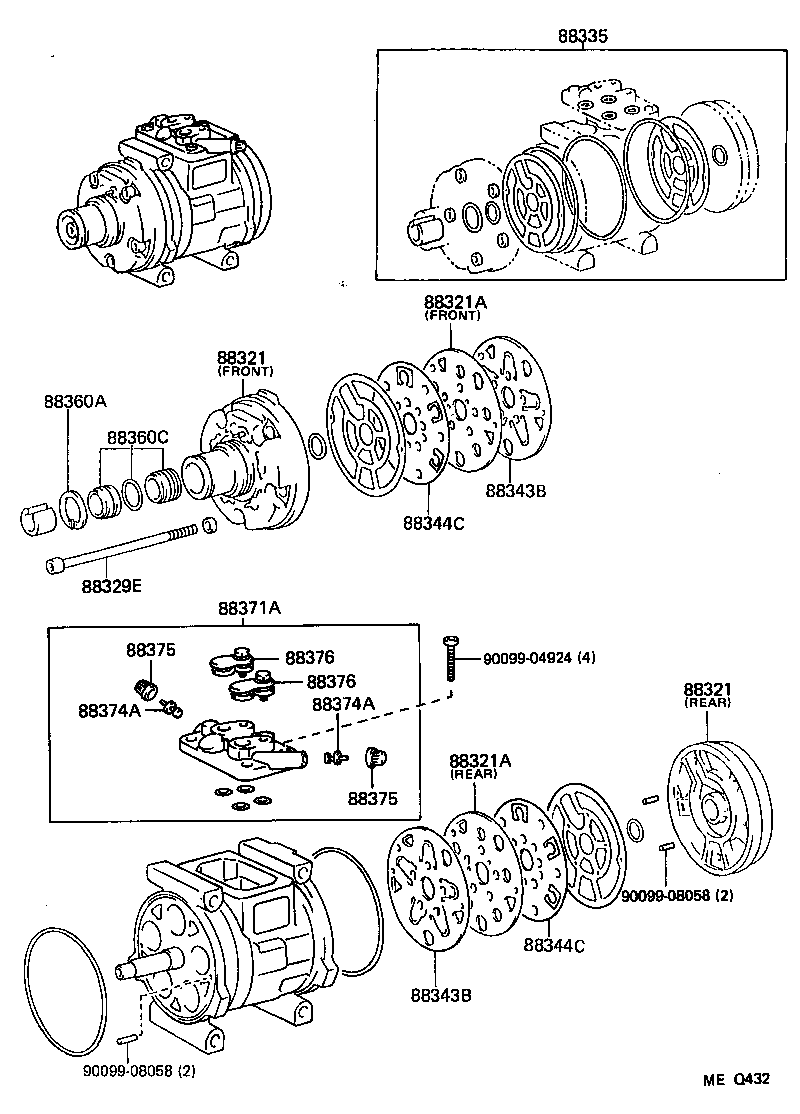

Figure MEQ091C MEQ091C 1990-01 → 1992-08 Figure MET348B MET348B 1992-08 → — Figure MEQ092B MEQ092B 1990-01 → 1995-01 Figure MEY468 MEY468 1995-01 → — Figure MEQ431 MEQ431 1990-01 → — Figure MEQ432 MEQ432 1990-01 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88329E Bolt, Compressor, NO.1
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88343B Reed, Suction Valve
88344C Reed, Discharge Valve
88360A Ring, Compressor Seal Plate Snap
88360C Seal Assy, Shaft
88371A Valve, Suction
88374A Valve, Service
88375 Cap, Cooler Compressor Service Valve
88376 Cap, Blind
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88415A Cover, Dust
88431 Bracket, Compressor Mounting, NO.1
88442 Shaft, Idle Pulley
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88545 Pulley Assy, Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
