Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

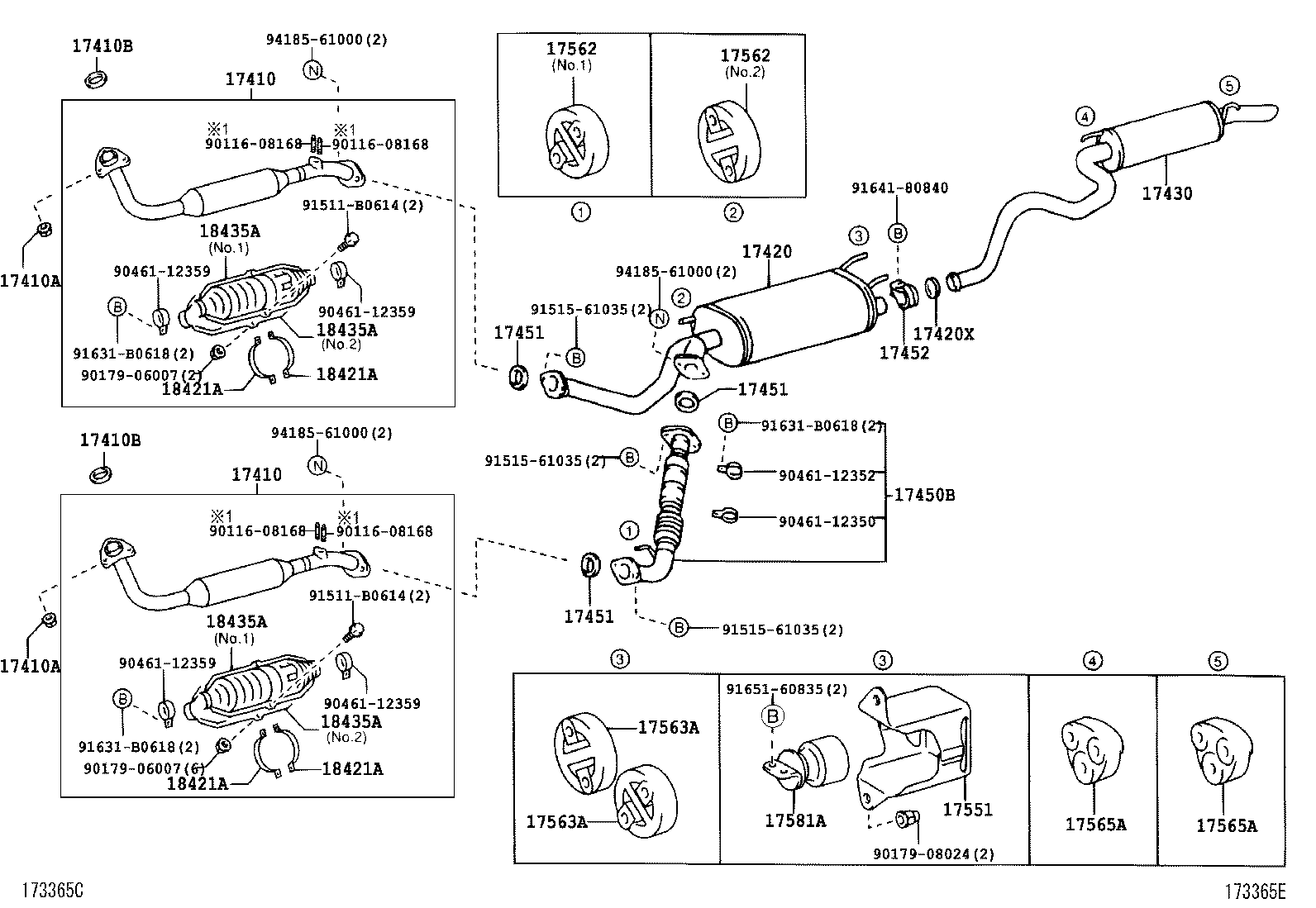

Exploded illustration 173365E 17451 — GASKET, EXHAUST PIPE (7 parts) 9151561035 — not listed in this catalogue 9151561035 — not listed in this catalogue 17420 — PIPE ASSY, EXHAUST, CENTER (13 parts) 17451 — GASKET, EXHAUST PIPE (7 parts) 9164180840 — not listed in this catalogue 17452 — CLAMP, EXHAUST PIPE (4 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (4 parts) 91631B0618 — not listed in this catalogue 9046112352 — not listed in this catalogue 17450B — PIPE ASSY, EXHAUST, FRONT NO.2 (3 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (4 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (4 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (4 parts) 9046112350 — not listed in this catalogue 17551 — INSULATOR, EXHAUST PIPE HEAT, NO.1 (4 parts) 9017908024 — not listed in this catalogue 17563A — SUPPORT, EXHAUST PIPE, NO.3 (4 parts) 17563A — SUPPORT, EXHAUST PIPE, NO.3 (4 parts) 17562 — SUPPORT, EXHAUST PIPE, NO.2 (15 parts) 17451 — GASKET, EXHAUST PIPE (7 parts) 9151561035 — not listed in this catalogue 17562 — SUPPORT, EXHAUST PIPE, NO.2 (15 parts) 17581A — DAMPER, EXHAUST PIPE (4 parts) 9418561000 — not listed in this catalogue 9165160835 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (21 parts) 17410B — GASKET, EXHAUST PIPE (7 parts) 17410B — GASKET, EXHAUST PIPE (7 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (3 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (8 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (8 parts) 91631B0618 — not listed in this catalogue 9046112359 — not listed in this catalogue 91511B0614 — not listed in this catalogue 18421A — STAY, CONVERTER PROTECTOR, LH (3 parts) 18421A — STAY, CONVERTER PROTECTOR, LH (3 parts) 9046112359 — not listed in this catalogue 91631B0618 — not listed in this catalogue 9046112359 — not listed in this catalogue 18421A — STAY, CONVERTER PROTECTOR, LH (3 parts) 91511B0614 — not listed in this catalogue 9017906007 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (21 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (8 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (8 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (3 parts) 9046112359 — not listed in this catalogue 18421A — STAY, CONVERTER PROTECTOR, LH (3 parts) 9017906007 — not listed in this catalogue 9418561000 — not listed in this catalogue 9418561000 — not listed in this catalogue 9011608168 — not listed in this catalogue 9011608168 — not listed in this catalogue 9011608168 — not listed in this catalogue 9011608168 — not listed in this catalogue
173365E · 30 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
108 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17401-17150 note Pipe Assy, Exhaust, Front
1998-01 → 2001-08 ended
1HDFTE HDJ100 —
17401-17150 note Pipe Assy, Exhaust, Front
2001-08 → 2002-08 ended
1HDFTE HDJ100 LHD —
17401-17160 note Pipe Assy, Exhaust, Front
1998-01 → 2002-08 ended
1HDFTE HDJ100 4FC;1HDFTE HDJ100 +3 —
17401-17200 note Pipe Assy, Exhaust, Front
2001-08 → 2002-08 ended
1HDFTE HDJ100 VX —
17410-50260 note Pipe Assy, Exhaust, Front
1998-01 → 2001-08 ended
2UZFE UZJ100 —
17410-50260 note Pipe Assy, Exhaust, Front
2001-08 → 2002-08 ended
2UZFE UZJ100 LHD —
17401-17150 note Pipe Assy, Exhaust, Front
2002-08 → 2003-07 ended
1HDFTE HDJ100 LHD 4FC —
17401-17150 note Pipe Assy, Exhaust, Front
2005-01 → 2005-05 ended
1HDFTE HDJ100 RHD —
17401-17150 note Pipe Assy, Exhaust, Front
2003-07 → 2005-05 ended
1HDFTE HDJ100 LHD 5FC —
17401-17150 note Pipe Assy, Exhaust, Front
2002-08 → 2005-05 ended
1HDFTE HDJ100 LHD 5F —
17401-17160 note Pipe Assy, Exhaust, Front
2002-08 → 2003-07 ended
1HDFTE HDJ100 RHD 4FC —
17401-17160 note Pipe Assy, Exhaust, Front
2002-08 → 2005-01 ended
1HDFTE HDJ100 RHD (5F,5FC) —
17401-17200 note Pipe Assy, Exhaust, Front
2002-08 → 2005-05 ended
1HDFTE HDJ100 5F VX —
17401-17200 note Pipe Assy, Exhaust, Front
2002-08 → 2003-07 ended
1HDFTE HDJ100 4FC —
17401-17200 note Pipe Assy, Exhaust, Front
2003-07 → 2005-05 ended
1HDFTE HDJ100 5FC —
17401-17150 note Pipe Assy, Exhaust, Front
2005-05 → —
1HDFTE HDJ100 —
17401-17160 note Pipe Assy, Exhaust, Front
2005-05 → —
1HDFTE HDJ100 RHD 5FC —
17401-17200 note Pipe Assy, Exhaust, Front
2005-05 → —
1HDFTE HDJ100 —
17410-50350 note Pipe Assy, Exhaust, Front
2005-05 → —
2UZFE UZJ100 —
17410-50350 note Pipe Assy, Exhaust, Front
2002-08 → 2005-05 ended
2UZFE UZJ100 —
17410-50350 note Pipe Assy, Exhaust, Front
2001-08 → 2002-08 ended
2UZFE UZJ100 —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1998-01 → 2002-08 ended
2UZFE UZJ100 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2002-08 → 2005-05 ended
2UZFE UZJ100 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
2005-05 → —
2UZFE UZJ100 —
17410B — Gasket, Exhaust Pipe
17451-67020 Gasket, Exhaust Pipe
1998-01 → 2002-08 ended
1HDFTE HDJ100 —
90917-06065 Gasket, Exhaust Pipe
1998-01 → 2002-08 ended
2UZFE UZJ100 —
17451-67020 Gasket, Exhaust Pipe
2002-08 → 2003-07 ended
1HDFTE HDJ100 —
17451-67020 Gasket, Exhaust Pipe
2003-07 → 2005-05 ended
1HDFTE HDJ100 —
90917-06065 Gasket, Exhaust Pipe
2002-08 → 2005-05 ended
2UZFE UZJ100 —
17451-67020 Gasket, Exhaust Pipe
2005-05 → —
1HDFTE HDJ100 —
90917-06065 Gasket, Exhaust Pipe
2005-05 → —
2UZFE UZJ100 —
17420 — Pipe Assy, Exhaust, Center
17403-17160 Pipe Assy, Exhaust, Center
1998-01 → 2001-08 ended
1HDFTE HDJ100 —
17403-17160 note Pipe Assy, Exhaust, Center
2001-08 → 2002-08 ended
1HDFTE HDJ100 —
17403-17210 note Pipe Assy, Exhaust, Center
2001-08 → 2002-08 ended
1HDFTE HDJ100 VX —
17403-50150 Pipe Assy, Exhaust, Center
1998-01 → 1998-10 ended
2UZFE UZJ100 —
17403-50151 Pipe Assy, Exhaust, Center
1998-10 → 2002-08 ended
2UZFE UZJ100 —
17403-17160 note Pipe Assy, Exhaust, Center
2002-08 → 2003-01 ended
1HDFTE HDJ100 —
17403-17160 note Pipe Assy, Exhaust, Center
2003-01 → 2005-05 ended
1HDFTE HDJ100 —
17403-17210 note Pipe Assy, Exhaust, Center
2002-08 → 2003-07 ended
1HDFTE HDJ100 VX —
17403-17210 note Pipe Assy, Exhaust, Center
2003-07 → 2005-05 ended
1HDFTE HDJ100 VX —
17403-50151 Pipe Assy, Exhaust, Center
2002-08 → 2005-05 ended
2UZFE UZJ100 —
17403-17160 note Pipe Assy, Exhaust, Center
2005-05 → —
1HDFTE HDJ100 —
17403-17210 note Pipe Assy, Exhaust, Center
2005-05 → —
1HDFTE HDJ100 —
17403-50151 Pipe Assy, Exhaust, Center
2005-05 → —
2UZFE UZJ100 —
17420X — Gasket, Exhaust Pipe, Center
17451-50050 Gasket, Exhaust Pipe, Center
1998-01 → 2002-08 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17451-50050 Gasket, Exhaust Pipe, Center
2002-08 → 2003-07 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17451-50050 Gasket, Exhaust Pipe, Center
2003-07 → 2005-05 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17451-50050 Gasket, Exhaust Pipe, Center
2005-05 → —
1HDFTE,2UZFE HDJ100,UZJ100 —
17430 — Pipe Assy, Exhaust, Tail
17405-50030 Pipe Assy, Exhaust, Tail
1998-01 → 2002-08 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17405-50030 Pipe Assy, Exhaust, Tail
2002-08 → 2003-07 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17405-50030 Pipe Assy, Exhaust, Tail
2003-07 → 2005-05 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17405-50030 Pipe Assy, Exhaust, Tail
2005-05 → —
1HDFTE,2UZFE HDJ100,UZJ100 —
17450B — Pipe Assy, Exhaust, Front NO.2
17450-50070 Pipe Assy, Exhaust, Front NO.2
1998-01 → 2002-08 ended
2UZFE UZJ100 —
17450-50070 Pipe Assy, Exhaust, Front NO.2
2002-08 → 2005-05 ended
2UZFE UZJ100 —
17450-50070 Pipe Assy, Exhaust, Front NO.2
2005-05 → —
2UZFE UZJ100 —
17451 — Gasket, Exhaust Pipe
90917-06045 Gasket, Exhaust Pipe
1998-01 → 2002-08 ended
2UZFE UZJ100 —
90917-06076 Gasket, Exhaust Pipe
1998-01 → 2002-08 ended
1HDFTE HDJ100 —
90917-06045 Gasket, Exhaust Pipe
2002-08 → 2005-05 ended
2UZFE UZJ100 —
90917-06076 Gasket, Exhaust Pipe
2003-07 → 2005-05 ended
1HDFTE HDJ100 —
90917-06076 Gasket, Exhaust Pipe
2002-08 → 2003-07 ended
1HDFTE HDJ100 —
90917-06045 Gasket, Exhaust Pipe
2005-05 → —
2UZFE UZJ100 —
90917-06076 Gasket, Exhaust Pipe
2005-05 → —
1HDFTE HDJ100 —
17452 — Clamp, Exhaust Pipe
17452-50050 Clamp, Exhaust Pipe
1998-01 → 2002-08 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17452-50050 Clamp, Exhaust Pipe
2002-08 → 2003-07 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17452-50050 Clamp, Exhaust Pipe
2003-07 → 2005-05 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17452-50050 Clamp, Exhaust Pipe
2005-05 → —
1HDFTE,2UZFE HDJ100,UZJ100 —
17551 — Insulator, Exhaust Pipe Heat, NO.1
17551-50090 Insulator, Exhaust Pipe Heat, NO.1
1998-10 → 2002-08 ended
2UZFE UZJ100 —
17551-50090 Insulator, Exhaust Pipe Heat, NO.1
2002-08 → 2004-06 ended
2UZFE UZJ100 —
17551-50091 Insulator, Exhaust Pipe Heat, NO.1
2004-06 → 2005-05 ended
2UZFE UZJ100 —
17551-50091 Insulator, Exhaust Pipe Heat, NO.1
2005-05 → —
2UZFE UZJ100 —
17562 — Support, Exhaust Pipe, NO.2
17565-46040 note Support, Exhaust Pipe, NO.2
2001-11 → 2002-08 ended
2UZFE UZJ100 —
17565-50100 note Support, Exhaust Pipe, NO.2
1999-02 → 2001-11 ended
2UZFE UZJ100 —
17565-74280 Support, Exhaust Pipe, NO.2
1998-01 → 1999-02 ended
2UZFE UZJ100 —
17565-74280 Support, Exhaust Pipe, NO.2
1998-01 → 2002-08 ended
1HDFTE HDJ100 —
17565-74280 note Support, Exhaust Pipe, NO.2
1999-02 → 2002-08 ended
2UZFE UZJ100 —
17565-74280 note Support, Exhaust Pipe, NO.2
2000-01 → 2002-08 ended
2UZFE UZJ100 LHD —
17565-46040 note Support, Exhaust Pipe, NO.2
2002-08 → 2005-05 ended
2UZFE UZJ100 —
17565-74280 Support, Exhaust Pipe, NO.2
2002-08 → 2003-07 ended
1HDFTE HDJ100 —
17565-74280 note Support, Exhaust Pipe, NO.2
2002-08 → 2005-05 ended
2UZFE UZJ100 —
17565-74280 note Support, Exhaust Pipe, NO.2
2002-08 → 2005-05 ended
2UZFE UZJ100 LHD —
17565-74280 Support, Exhaust Pipe, NO.2
2003-07 → 2005-05 ended
1HDFTE HDJ100 —
17565-46040 note Support, Exhaust Pipe, NO.2
2005-05 → —
2UZFE UZJ100 —
17565-74280 Support, Exhaust Pipe, NO.2
2005-05 → —
1HDFTE HDJ100 —
17565-74280 note Support, Exhaust Pipe, NO.2
2005-05 → —
2UZFE UZJ100 LHD —
17565-74280 note Support, Exhaust Pipe, NO.2
2005-05 → —
2UZFE UZJ100 —
17563A — Support, Exhaust Pipe, NO.3
17565-74280 Support, Exhaust Pipe, NO.3
1998-01 → 2002-08 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17565-74280 Support, Exhaust Pipe, NO.3
2002-08 → 2003-07 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17565-74280 Support, Exhaust Pipe, NO.3
2003-07 → 2005-05 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17565-74280 Support, Exhaust Pipe, NO.3
2005-05 → —
1HDFTE,2UZFE HDJ100,UZJ100 —
17565A — Support, Exhaust Pipe, NO.4
17565-13030 Support, Exhaust Pipe, NO.4
1998-01 → 2002-08 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17565-13030 Support, Exhaust Pipe, NO.4
2002-08 → 2003-07 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17565-13030 Support, Exhaust Pipe, NO.4
2003-07 → 2005-05 ended
1HDFTE,2UZFE HDJ100,UZJ100 —
17565-13030 Support, Exhaust Pipe, NO.4
2005-05 → —
1HDFTE,2UZFE HDJ100,UZJ100 —
17581A — Damper, Exhaust Pipe
17581-50090 Damper, Exhaust Pipe
1998-10 → 1999-01 ended
2UZFE UZJ100 —
17581-70080 Damper, Exhaust Pipe
1999-02 → 2002-08 ended
2UZFE UZJ100 —
17581-70080 Damper, Exhaust Pipe
2002-08 → 2005-05 ended
2UZFE UZJ100 —
17581-70080 Damper, Exhaust Pipe
2005-05 → —
2UZFE UZJ100 —
18421A — Stay, Converter Protector, LH
18421-50010 Stay, Converter Protector, LH
2001-08 → 2002-08 ended
2UZFE UZJ100 —
18421-50010 Stay, Converter Protector, LH
2002-08 → 2005-05 ended
2UZFE UZJ100 —
18421-50010 Stay, Converter Protector, LH
2005-05 → —
2UZFE UZJ100 —
18435A — Protector, Monolithic Converter
18435-50080 Protector, Monolithic Converter
1998-01 → 2001-08 ended
2UZFE UZJ100 —
18435-50080 note Protector, Monolithic Converter
2001-08 → 2002-08 ended
2UZFE UZJ100 LHD —
18435-50110 note Protector, Monolithic Converter
2001-08 → 2002-08 ended
2UZFE UZJ100 —
18445-50050 note Protector, Monolithic Converter
2001-08 → 2002-08 ended
2UZFE UZJ100 —
18435-50110 note Protector, Monolithic Converter
2002-08 → 2005-05 ended
2UZFE UZJ100 —
18445-50050 note Protector, Monolithic Converter
2002-08 → 2005-05 ended
2UZFE UZJ100 —
18435-50110 note Protector, Monolithic Converter
2005-05 → —
2UZFE UZJ100 —
18445-50050 note Protector, Monolithic Converter
2005-05 → —
2UZFE UZJ100 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
