Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

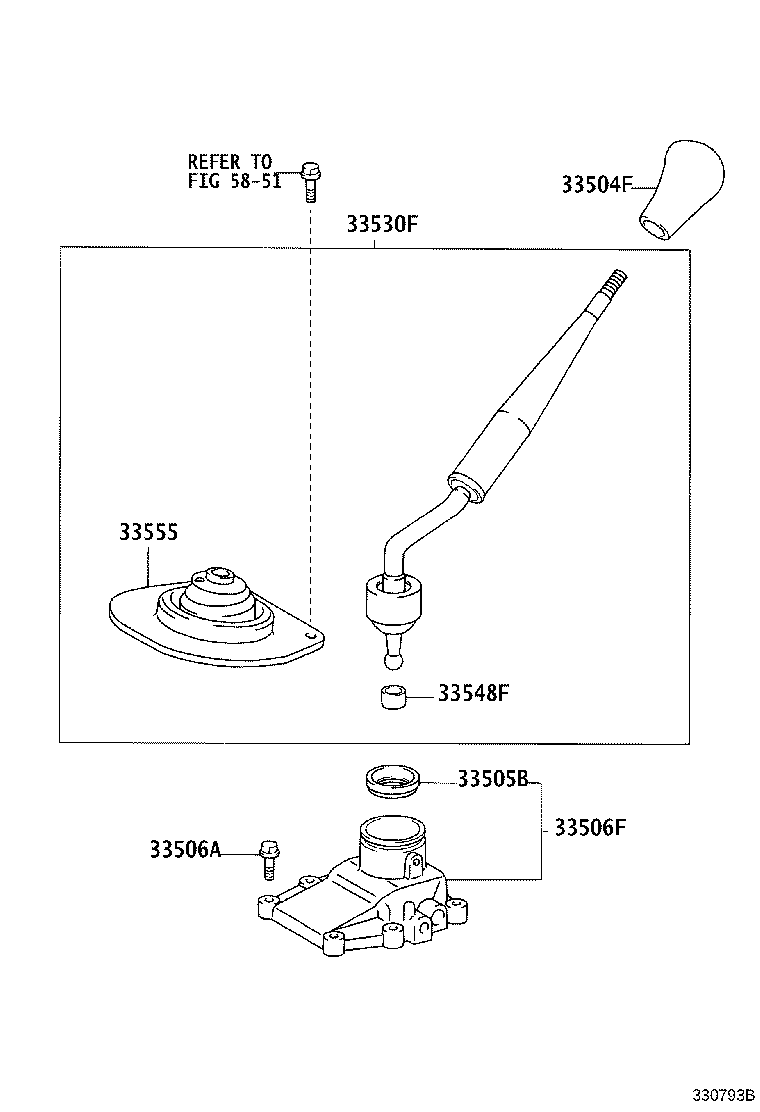

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-60121-C0 note |
Knob Sub-assy, Shift Lever
2000-08 → 2002-08
ended
|
HDJ100 STD | — | |
| 33504-60130-C0 note |
Knob Sub-assy, Shift Lever
1998-01 → 2002-08
ended
|
HDJ100 5F VX | — | |
| 33542-20140-C0 note |
Knob Sub-assy, Shift Lever
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 RHD 4FC | — | |
| 33542-20160-C0 note |
Knob Sub-assy, Shift Lever
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 LHD 4FC | — | |
| 33542-60100-C0 note |
Knob Sub-assy, Shift Lever
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 RHD 4FC | — | |
| 33542-60110-C0 note |
Knob Sub-assy, Shift Lever
2000-10 → 2001-06
ended
|
HDJ100,UZJ100 LHD 4FC | — | |
| 33542-60110-C0 note |
Knob Sub-assy, Shift Lever
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 LHD 4FC | — | |
| 33504-60121-C0 note |
Knob Sub-assy, Shift Lever
2002-08 → 2005-05
ended
|
HDJ100 STD | — | |
| 33504-60130-C0 note |
Knob Sub-assy, Shift Lever
2002-08 → 2005-05
ended
|
HDJ100 5F VX | — | |
| 33504-60180-C0 note |
Knob Sub-assy, Shift Lever
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 5FC | — | |
| 33542-20140-C0 note |
Knob Sub-assy, Shift Lever
2002-08 → 2003-07
ended
|
HDJ100 RHD 4FC | — | |
| 33542-20160-C0 note |
Knob Sub-assy, Shift Lever
2002-08 → 2003-07
ended
|
HDJ100 LHD 4FC | — | |
| 33504-60130-C0 note |
Knob Sub-assy, Shift Lever
2005-05 → 2007-08
ended
|
HDJ100 5F | — | |
| 33504-60180-C0 note |
Knob Sub-assy, Shift Lever
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 5FC | — | |
| 33505B — Seat Sub-assy, Shift Lever | ||||
| 33505-60011 |
Seat Sub-assy, Shift Lever
1998-01 → 2002-08
ended
|
HDJ100 LHD 5F | — | |
| 33505-60011 |
Seat Sub-assy, Shift Lever
2002-08 → 2005-05
ended
|
HDJ100 5F | — | |
| 33505-60011 |
Seat Sub-assy, Shift Lever
2005-05 → —
|
HDJ100 5F | — | |
| 33506A — Bolt (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90119-08332 note |
Bolt (FOR CONTROL SHIFT LEVER RETAINER)
1998-01 → 2002-08
ended
|
HDJ100 LHD 5F | — | |
| 90119-08332 note |
Bolt (FOR CONTROL SHIFT LEVER RETAINER)
1998-01 → 2002-08
ended
|
HDJ100 5F | — | |
| 90119-08332 note |
Bolt (FOR CONTROL SHIFT LEVER RETAINER)
2002-08 → 2005-05
ended
|
HDJ100 LHD 5F | — | |
| 90119-08332 note |
Bolt (FOR CONTROL SHIFT LEVER RETAINER)
2002-08 → 2005-05
ended
|
HDJ100 5F | — | |
| 90119-08332 note |
Bolt (FOR CONTROL SHIFT LEVER RETAINER)
2005-05 → —
|
HDJ100 LHD 5F | — | |
| 90119-08332 note |
Bolt (FOR CONTROL SHIFT LEVER RETAINER)
2005-05 → —
|
HDJ100 5F | — | |
| 33506F — Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) | ||||
| 33506-60090 note |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1998-01 → 2002-08
ended
|
HDJ100 LHD 5F | — | |
| 33506-60100 note |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1998-01 → 2002-08
ended
|
HDJ100 5F | — | |
| 33506-60090 note |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2002-08 → 2005-05
ended
|
HDJ100 LHD 5F | — | |
| 33506-60100 note |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2002-08 → 2005-05
ended
|
HDJ100 5F | — | |
| 33506-60090 note |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2005-05 → —
|
HDJ100 LHD 5F | — | |
| 33506-60100 note |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2005-05 → —
|
HDJ100 5F | — | |
| 33530F — Lever Assy, Shift (FOR FLOOR SHIFT) | ||||
| 33530-60360 note |
Lever Assy, Shift (FOR FLOOR SHIFT)
1998-01 → 2002-08
ended
|
HDJ100 LHD 5F | — | |
| 33530-60370 note |
Lever Assy, Shift (FOR FLOOR SHIFT)
1998-01 → 2002-08
ended
|
HDJ100 RHD 5F | — | |
| 33530-60380 note |
Lever Assy, Shift (FOR FLOOR SHIFT)
1998-01 → 2002-08
ended
|
HDJ100 LHD 5F | — | |
| 33530-60360 note |
Lever Assy, Shift (FOR FLOOR SHIFT)
2002-08 → 2005-05
ended
|
HDJ100 LHD 5F | — | |
| 33530-60370 note |
Lever Assy, Shift (FOR FLOOR SHIFT)
2002-08 → 2005-05
ended
|
HDJ100 RHD 5F | — | |
| 33530-60380 note |
Lever Assy, Shift (FOR FLOOR SHIFT)
2002-08 → 2005-05
ended
|
HDJ100 LHD 5F | — | |
| 33530-60360 note |
Lever Assy, Shift (FOR FLOOR SHIFT)
2005-05 → —
|
HDJ100 LHD 5F | — | |
| 33530-60370 note |
Lever Assy, Shift (FOR FLOOR SHIFT)
2005-05 → —
|
HDJ100 RHD 5F | — | |
| 33530-60380 note |
Lever Assy, Shift (FOR FLOOR SHIFT)
2005-05 → —
|
HDJ100 LHD 5F | — | |
| 33548F — Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) | ||||
| 33548-22020 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
2000-08 → 2002-08
ended
|
HDJ100 5F | — | |
| 33548-31010 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
1998-01 → 2000-08
ended
|
HDJ100 5F | — | |
| 33548-22020 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
2002-08 → 2005-05
ended
|
HDJ100 5F | — | |
| 33548-22020 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
2005-05 → —
|
HDJ100 5F | — | |
| 33555 — Boot, Shift Lever | ||||
| 33555-60090 note |
Boot, Shift Lever
1998-01 → 2002-08
ended
|
HDJ100 LHD 5F | — | |
| 33555-60100 note |
Boot, Shift Lever
1998-01 → 2002-08
ended
|
HDJ100 5F | — | |
| 33555-60140 |
Boot, Shift Lever
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 4FC | — | |
| 33555-22170 |
Boot, Shift Lever
2002-08 → 2004-07
ended
|
HDJ100,UZJ100 LHD 5FC | — | |
| 33555-60090 note |
Boot, Shift Lever
2002-08 → 2005-05
ended
|
HDJ100 LHD 5F | — | |
| 33555-60100 note |
Boot, Shift Lever
2002-08 → 2005-05
ended
|
HDJ100 5F | — | |
| 33555-60140 |
Boot, Shift Lever
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 33555-60090 note |
Boot, Shift Lever
2005-05 → —
|
HDJ100 LHD 5F | — | |
| 33555-60100 note |
Boot, Shift Lever
2005-05 → —
|
HDJ100 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
