Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

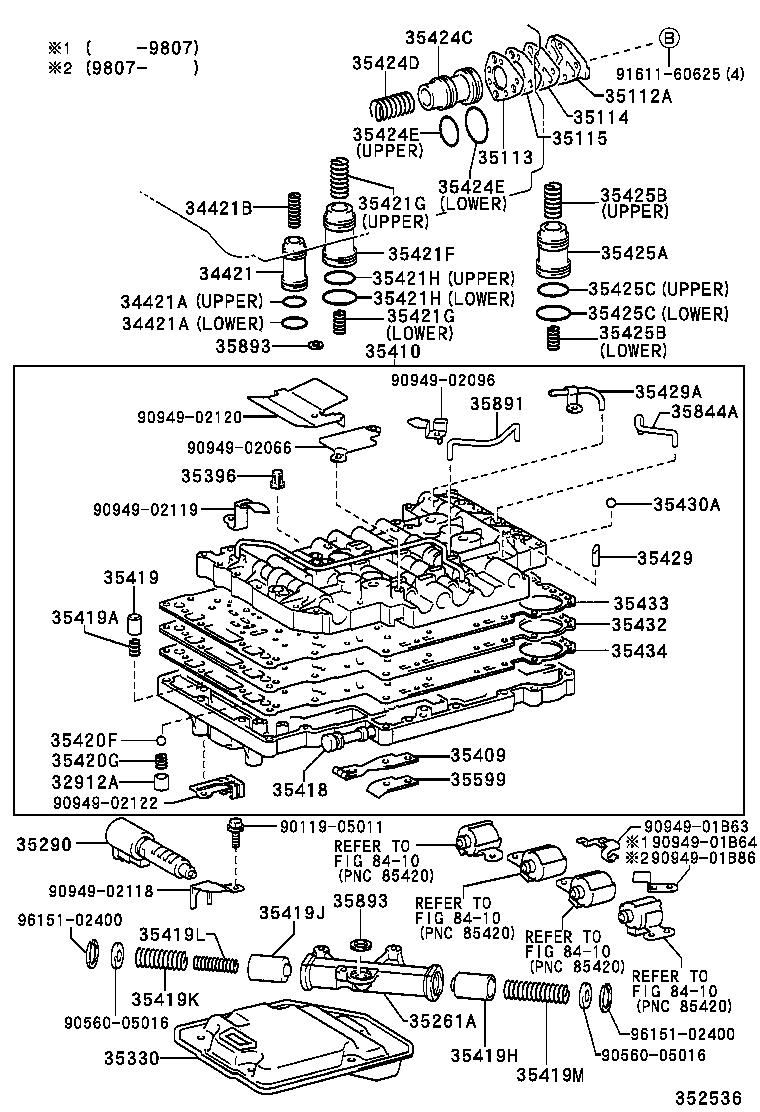

Exploded illustration 352536 35424C — PISTON, C-1 ACCUMULATOR (3 parts) 35424D — SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) (7 parts) 9161160625 — not listed in this catalogue 35112A — COVER, FRONT CLUTCH ACCUMULATOR (3 parts) 35114 — GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 (3 parts) 35424E — RING, O (FOR C-1 ACCUMULATOR PISTON) (7 parts) 35115 — PLATE, FRONT CLUTCH ACCUMULATOR (3 parts) 35113 — GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 (3 parts) 35424E — RING, O (FOR C-1 ACCUMULATOR PISTON) (7 parts) 35425B — SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) (10 parts) 35421G — SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) (6 parts) 34421B — SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) (3 parts) 35425A — PISTON, C-2 ACCUMULATOR (7 parts) 35421F — PISTON, ACCUMULATOR, NO.2 (3 parts) 34421 — PISTON, OVERDRIVE BRAKE ACCUMULATOR (3 parts) 35421H — RING (FOR ACCUMULATOR PISTON NO.2) (6 parts) 35425C — RING, O (FOR C-2 ACCUMULATOR PISTON) (12 parts) 35421H — RING (FOR ACCUMULATOR PISTON NO.2) (6 parts) 34421A — RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) (6 parts) 35425C — RING, O (FOR C-2 ACCUMULATOR PISTON) (12 parts) 35421G — SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) (6 parts) 34421A — RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) (6 parts) 35425B — SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) (10 parts) 35893 — GASKET, CENTER SUPPORT APPLY (3 parts) 35410 — BODY ASSY, TRANSMISSION VALVE (12 parts) 9094902096 — not listed in this catalogue 35429A — TUBE, LINE PRESSURE (2 parts) 35891 — TUBE, OVERDRIVE DIRECT CLUTCH (2 parts) 35844A — TUBE, ACCUMULATOR BACK PRESSURE, NO.1 (2 parts) 9094902120 — not listed in this catalogue 9094902066 — not listed in this catalogue 35396 — STRAINER, THROTTLE OIL (2 parts) 35430A — BALL (FOR REAR UPPER VALVE BODY) (2 parts) 9094902119 — not listed in this catalogue 35429 — TUBE, LINE PRESSURE (2 parts) 35419 — VALVE, CHECK, NO.1 (2 parts) 35433 — GASKET, VALVE BODY, NO.1 (5 parts) 35419A — SPRING, COMPRESSION (FOR CHECK VALVE) (3 parts) 35432 — PLATE, VALVE BODY, NO.1 (6 parts) 35434 — GASKET, VALVE BODY, NO.2 (5 parts) 35420F — BALL, CHECK, NO.1 (2 parts) 35409 — SPRING SUB-ASSY, MANUAL DETENT (3 parts) 35420G — SPRING, BARREL SHAPED (2 parts) 35599 — COVER, MANUAL DETENT SPRING (3 parts) 32912A — CAGE, CHECK VALVE(FOR VALVE BODY) (2 parts) 35418 — VALVE, MANUAL (3 parts) 9094902122 — not listed in this catalogue 9011905011 — not listed in this catalogue 9094901B63 — not listed in this catalogue 9094901B64 — not listed in this catalogue 35290 — SOLENOID ASSY, LINE PRESSURE CONTROL (9 parts) 9094901B86 — not listed in this catalogue 8410 — not listed in this catalogue 9094902118 — not listed in this catalogue 35893 — GASKET, CENTER SUPPORT APPLY (3 parts) 35419J — VALVE, CHECK, NO.6 (3 parts) 8410 — not listed in this catalogue 9615102400 — not listed in this catalogue 35419L — SPRING, COMPRESSION (FOR CHECK VALVE NO.3) (3 parts) 8410 — not listed in this catalogue 8410 — not listed in this catalogue 35419K — SPRING, COMPRESSION (FOR CHECK VALVE NO.2) (3 parts) 35261A — CYLINDER, THROTTLE PRESSURE ACCUMULATOR (3 parts) 9056005016 — not listed in this catalogue 9615102400 — not listed in this catalogue 35419H — VALVE, CHECK, NO.5 (3 parts) 9056005016 — not listed in this catalogue 35330 — STRAINER ASSY, VALVE BODY OIL (6 parts) 35419M — SPRING, COMPRESSION (FOR CHECK VALVE NO.4) (3 parts)
352536 · 50 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
181 parts on this figure
Part number Description Fitment Price
32912A — Cage, Check Valve(FOR VALVE BODY)
32912-60010 Cage, Check Valve(FOR VALVE BODY)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
32912-60010 Cage, Check Valve(FOR VALVE BODY)
1998-01 → 1999-07 ended
HDJ100 4FC —
34421 — Piston, Overdrive Brake Accumulator
34421-37010 Piston, Overdrive Brake Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
34421-37010 Piston, Overdrive Brake Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
34421-37010 Piston, Overdrive Brake Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
34421A — Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
90301-26003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-26003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-29003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-29003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-26003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-29003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
34421B — Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
90501-32041 Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-32042 Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-32041 Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
35112A — Cover, Front Clutch Accumulator
35112-60010 Cover, Front Clutch Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
35112-60010 Cover, Front Clutch Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35112-60010 Cover, Front Clutch Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35113 — Gasket, Front Clutch Accumlator, NO.2
35113-60020 Gasket, Front Clutch Accumlator, NO.2
1998-01 → 1999-07 ended
HDJ100 4FC —
35113-60020 Gasket, Front Clutch Accumlator, NO.2
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35113-60020 Gasket, Front Clutch Accumlator, NO.2
2002-08 → 2003-07 ended
HDJ100 4FC —
35114 — Gasket, Front Clutch Accumlator, NO.1
35114-60020 Gasket, Front Clutch Accumlator, NO.1
1998-01 → 1999-07 ended
HDJ100 4FC —
35114-60020 Gasket, Front Clutch Accumlator, NO.1
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35114-60020 Gasket, Front Clutch Accumlator, NO.1
2002-08 → 2003-07 ended
HDJ100 4FC —
35115 — Plate, Front Clutch Accumulator
35115-60010 Plate, Front Clutch Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
35115-60010 Plate, Front Clutch Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35115-60010 Plate, Front Clutch Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35261A — Cylinder, Throttle Pressure Accumulator
35261-60010 Cylinder, Throttle Pressure Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35261-60010 Cylinder, Throttle Pressure Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
35261-60010 Cylinder, Throttle Pressure Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35290 — Solenoid Assy, Line Pressure Control
35290-60010 Solenoid Assy, Line Pressure Control
1998-01 → 1998-03 ended
HDJ100,UZJ100 4FC —
35290-60010 Solenoid Assy, Line Pressure Control
1998-03 → 2002-08 ended
HDJ100 4FC —
35290-60010 note Solenoid Assy, Line Pressure Control
1999-07 → 2002-08 ended
UZJ100 LHD —
35290-60020 Solenoid Assy, Line Pressure Control
1998-03 → 2002-08 ended
UZJ100 —
35290-60010 Solenoid Assy, Line Pressure Control
2002-08 → 2003-07 ended
HDJ100 4FC —
35290-60030 Solenoid Assy, Line Pressure Control
2002-08 → 2003-09 ended
UZJ100 —
35290-60030 Solenoid Assy, Line Pressure Control
2003-07 → 2003-09 ended
HDJ100 5FC —
35290-60040 Solenoid Assy, Line Pressure Control
2003-09 → 2005-05 ended
HDJ100,UZJ100 5FC —
35290-60040 Solenoid Assy, Line Pressure Control
2005-05 → —
HDJ100,UZJ100 5FC —
35330 — Strainer Assy, Valve Body Oil
35330-60030 Strainer Assy, Valve Body Oil
1998-01 → 2002-08 ended
UZJ100 —
35330-60040 Strainer Assy, Valve Body Oil
1998-01 → 2002-08 ended
HDJ100 4FC —
35330-60040 note Strainer Assy, Valve Body Oil
1999-07 → 2002-08 ended
UZJ100 LHD —
35330-60040 Strainer Assy, Valve Body Oil
2002-08 → 2003-07 ended
HDJ100 4FC —
35330-60050 Strainer Assy, Valve Body Oil
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
35330-60050 Strainer Assy, Valve Body Oil
2005-05 → —
HDJ100,UZJ100 5FC —
35396 — Strainer, Throttle Oil
35396-36020 Strainer, Throttle Oil
1998-01 → 1999-07 ended
HDJ100 4FC —
35396-36020 Strainer, Throttle Oil
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35409 — Spring Sub-assy, Manual Detent
35409-30020 Spring Sub-assy, Manual Detent
1998-01 → 2002-08 ended
UZJ100 —
35409-60010 note Spring Sub-assy, Manual Detent
1999-07 → 2002-08 ended
UZJ100 LHD —
35409-60010 Spring Sub-assy, Manual Detent
1998-01 → 2002-08 ended
HDJ100 4FC —
35410 — Body Assy, Transmission Valve
35410-60410 Body Assy, Transmission Valve
1998-01 → 1998-03 ended
UZJ100 —
35410-60411 Body Assy, Transmission Valve
1998-03 → 1998-04 ended
UZJ100 —
35410-60412 Body Assy, Transmission Valve
1998-04 → 1998-05 ended
UZJ100 —
35410-60413 note Body Assy, Transmission Valve
1998-05 → 2000-08 ended
UZJ100 —
35410-60420 note Body Assy, Transmission Valve
1999-07 → 2002-08 ended
UZJ100 LHD —
35410-60430 Body Assy, Transmission Valve
1998-01 → 2002-08 ended
HDJ100 4FC —
35410-60500 Body Assy, Transmission Valve
2000-08 → 2002-08 ended
UZJ100 —
35410-60430 Body Assy, Transmission Valve
2002-08 → 2003-07 ended
HDJ100 4FC —
35410-60520 Body Assy, Transmission Valve
2003-09 → 2005-05 ended
HDJ100,UZJ100 5FC —
35410-60540 Body Assy, Transmission Valve
2003-07 → 2003-09 ended
HDJ100 5FC —
35410-60540 Body Assy, Transmission Valve
2002-08 → 2003-09 ended
UZJ100 —
35410-60520 Body Assy, Transmission Valve
2005-05 → —
HDJ100,UZJ100 5FC —
35418 — Valve, Manual
35418-24010 Valve, Manual
1998-01 → 2002-08 ended
UZJ100 —
35418-60010 Valve, Manual
1998-01 → 2002-08 ended
HDJ100 4FC —
35418-60010 note Valve, Manual
1999-07 → 2002-08 ended
UZJ100 LHD —
35419 — Valve, Check, NO.1
35419-36010 Valve, Check, NO.1
1998-01 → 2002-08 ended
HDJ100 4FC —
35419-36010 note Valve, Check, NO.1
1999-07 → 2002-08 ended
UZJ100 LHD —
35419A — Spring, Compression (FOR CHECK VALVE)
90501-09093 Spring, Compression (FOR CHECK VALVE)
1998-01 → 2002-08 ended
UZJ100 —
90501-12129 Spring, Compression (FOR CHECK VALVE)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-12129 note Spring, Compression (FOR CHECK VALVE)
1999-07 → 2002-08 ended
UZJ100 LHD —
35419H — Valve, Check, NO.5
35419-60010 Valve, Check, NO.5
1998-01 → 1999-07 ended
HDJ100 4FC —
35419-60010 Valve, Check, NO.5
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35419-60010 Valve, Check, NO.5
2002-08 → 2003-07 ended
HDJ100 4FC —
35419J — Valve, Check, NO.6
35419-60020 Valve, Check, NO.6
1998-01 → 1999-07 ended
HDJ100 4FC —
35419-60020 Valve, Check, NO.6
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35419-60020 Valve, Check, NO.6
2002-08 → 2003-07 ended
HDJ100 4FC —
35419K — Spring, Compression (FOR CHECK VALVE NO.2)
90501-18114 Spring, Compression (FOR CHECK VALVE NO.2)
1998-01 → 1999-07 ended
HDJ100 4FC —
90501-18114 Spring, Compression (FOR CHECK VALVE NO.2)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90501-18114 Spring, Compression (FOR CHECK VALVE NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
35419L — Spring, Compression (FOR CHECK VALVE NO.3)
90501-18115 Spring, Compression (FOR CHECK VALVE NO.3)
1998-01 → 1999-07 ended
HDJ100 4FC —
90501-18115 Spring, Compression (FOR CHECK VALVE NO.3)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90501-18115 Spring, Compression (FOR CHECK VALVE NO.3)
2002-08 → 2003-07 ended
HDJ100 4FC —
35419M — Spring, Compression (FOR CHECK VALVE NO.4)
90501-20157 Spring, Compression (FOR CHECK VALVE NO.4)
1998-01 → 1999-07 ended
HDJ100 4FC —
90501-20157 Spring, Compression (FOR CHECK VALVE NO.4)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90501-20157 Spring, Compression (FOR CHECK VALVE NO.4)
2002-08 → 2003-07 ended
HDJ100 4FC —
35420F — Ball, Check, NO.1
90360-10006 Ball, Check, NO.1
1998-01 → 1999-07 ended
HDJ100 4FC —
90360-10006 Ball, Check, NO.1
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35420G — Spring, Barrel Shaped
90503-04004 Spring, Barrel Shaped
1998-01 → 1999-07 ended
HDJ100 4FC —
90503-04004 Spring, Barrel Shaped
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35421F — Piston, Accumulator, NO.2
35402-60020 Piston, Accumulator, NO.2
1998-01 → 1999-07 ended
HDJ100 4FC —
35402-60020 Piston, Accumulator, NO.2
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35402-60020 Piston, Accumulator, NO.2
2002-08 → 2003-07 ended
HDJ100 4FC —
35421G — Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
90501-22044 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-26090 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-38007 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-38010 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-22044 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
90501-38007 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
35421H — Ring (FOR ACCUMULATOR PISTON NO.2)
90301-29003 note Ring (FOR ACCUMULATOR PISTON NO.2)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-29003 note Ring (FOR ACCUMULATOR PISTON NO.2)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-37004 note Ring (FOR ACCUMULATOR PISTON NO.2)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-37004 note Ring (FOR ACCUMULATOR PISTON NO.2)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-29003 note Ring (FOR ACCUMULATOR PISTON NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-37004 note Ring (FOR ACCUMULATOR PISTON NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
35424C — Piston, C-1 Accumulator
35424-60020 Piston, C-1 Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
35424-60020 Piston, C-1 Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35424-60020 Piston, C-1 Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35424D — Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
90501-24032 Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-26083 Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-20173 note Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90501-21040 note Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90501-26083 Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90501-20173 note Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
90501-21040 note Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
35424E — Ring, O (FOR C-1 ACCUMULATOR PISTON)
90301-22003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-22003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-28003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1999-11 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-28009 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1999-07 → 1999-11 ended
HDJ100 4FC;UZJ100 LHD —
90301-28009 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-22003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-28003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
35425A — Piston, C-2 Accumulator
35405-60060 Piston, C-2 Accumulator
1998-01 → 2002-08 ended
HDJ100 4FC —
35405-60060 note Piston, C-2 Accumulator
1999-07 → 2002-08 ended
UZJ100 LHD —
35425-30020 Piston, C-2 Accumulator
1998-01 → 2002-08 ended
UZJ100 —
35405-60060 Piston, C-2 Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35425-60060 Piston, C-2 Accumulator
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
35425-50020 Piston, C-2 Accumulator
2006-08 → —
HDJ100,UZJ100 5FC —
35425-60060 Piston, C-2 Accumulator
2005-05 → 2006-08 ended
HDJ100,UZJ100 5FC —
35425B — Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
90501-18098 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-18113 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-22016 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
UZJ100 —
90501-25027 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
UZJ100 —
90501-30018 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-32040 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-18113 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90501-27036 Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90501-32040 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90501-27036 Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
35425C — Ring, O (FOR C-2 ACCUMULATOR PISTON)
90301-25010 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
UZJ100 —
90301-28003 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90301-28003 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90301-31010 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
UZJ100 —
90301-33006 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90301-33006 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90301-20008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90301-28003 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-28008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90301-33006 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-20008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
90301-28008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
35429 — Tube, Line Pressure
35429-36010 Tube, Line Pressure
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35429-36010 Tube, Line Pressure
1998-01 → 1999-07 ended
HDJ100 4FC —
35429A — Tube, Line Pressure
35429-60010 Tube, Line Pressure
1998-01 → 1999-07 ended
HDJ100 4FC —
35429-60010 Tube, Line Pressure
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35430A — Ball (FOR REAR UPPER VALVE BODY)
90360-06004 note Ball (FOR REAR UPPER VALVE BODY)
1998-01 → 1999-07 ended
HDJ100 4FC —
90360-06004 note Ball (FOR REAR UPPER VALVE BODY)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35432 — Plate, Valve Body, NO.1
35432-34080 Plate, Valve Body, NO.1
2000-08 → 2002-08 ended
UZJ100 —
35432-60120 Plate, Valve Body, NO.1
1998-01 → 1998-04 ended
UZJ100 —
35432-60121 Plate, Valve Body, NO.1
1998-04 → 1998-05 ended
UZJ100 —
35432-60122 Plate, Valve Body, NO.1
1998-05 → 2000-08 ended
UZJ100 —
35432-60130 note Plate, Valve Body, NO.1
1999-07 → 2002-08 ended
UZJ100 LHD —
35432-60140 Plate, Valve Body, NO.1
1998-01 → 2002-08 ended
HDJ100 4FC —
35433 — Gasket, Valve Body, NO.1
35433-24011 Gasket, Valve Body, NO.1
1998-01 → 1998-05 ended
UZJ100 —
35433-24012 Gasket, Valve Body, NO.1
1998-05 → 2000-08 ended
UZJ100 —
35433-60030 Gasket, Valve Body, NO.1
1998-01 → 2002-08 ended
HDJ100 4FC —
35433-60030 note Gasket, Valve Body, NO.1
1999-07 → 2002-08 ended
UZJ100 LHD —
35433-60040 Gasket, Valve Body, NO.1
2000-08 → 2002-08 ended
UZJ100 —
35434 — Gasket, Valve Body, NO.2
35434-24011 Gasket, Valve Body, NO.2
1998-01 → 1998-05 ended
UZJ100 —
35434-24012 Gasket, Valve Body, NO.2
1998-05 → 2000-08 ended
UZJ100 —
35434-60030 Gasket, Valve Body, NO.2
1998-01 → 2002-08 ended
HDJ100 4FC —
35434-60030 note Gasket, Valve Body, NO.2
1999-07 → 2002-08 ended
UZJ100 LHD —
35434-60040 Gasket, Valve Body, NO.2
2000-08 → 2002-08 ended
UZJ100 —
35599 — Cover, Manual Detent Spring
35599-30020 Cover, Manual Detent Spring
1998-01 → 2002-08 ended
UZJ100 —
35599-60010 Cover, Manual Detent Spring
1998-01 → 2002-08 ended
HDJ100 4FC —
35599-60010 note Cover, Manual Detent Spring
1999-07 → 2002-08 ended
UZJ100 LHD —
35844A — Tube, Accumulator Back Pressure, NO.1
35844-36010 Tube, Accumulator Back Pressure, NO.1
1998-01 → 1999-07 ended
HDJ100 4FC —
35844-36010 Tube, Accumulator Back Pressure, NO.1
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35891 — Tube, Overdrive Direct Clutch
35891-36010 Tube, Overdrive Direct Clutch
1998-01 → 1999-07 ended
HDJ100 4FC —
35891-36010 Tube, Overdrive Direct Clutch
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35893 — Gasket, Center Support Apply
35893-36010 Gasket, Center Support Apply
1998-01 → 1999-07 ended
HDJ100 4FC —
35893-36010 Gasket, Center Support Apply
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35893-36010 Gasket, Center Support Apply
2002-08 → 2003-07 ended
HDJ100 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
