Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

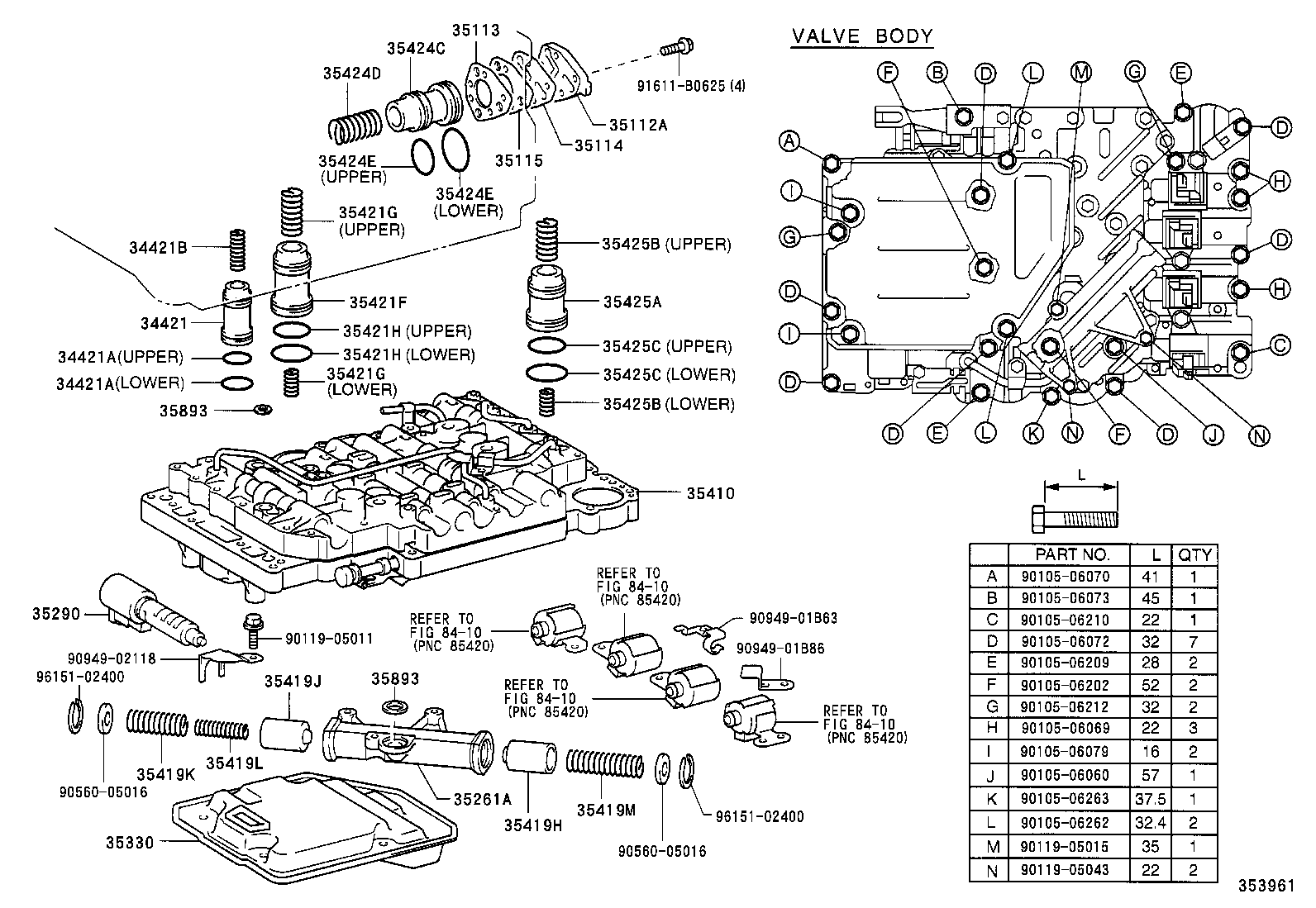

Exploded illustration 353961 35113 — GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 (3 parts) 35424C — PISTON, C-1 ACCUMULATOR (3 parts) 35424D — SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) (7 parts) 91611B0625 — not listed in this catalogue 35112A — COVER, FRONT CLUTCH ACCUMULATOR (3 parts) 35114 — GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 (3 parts) 35115 — PLATE, FRONT CLUTCH ACCUMULATOR (3 parts) 35424E — RING, O (FOR C-1 ACCUMULATOR PISTON) (7 parts) 35424E — RING, O (FOR C-1 ACCUMULATOR PISTON) (7 parts) 35421G — SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) (6 parts) 35425B — SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) (10 parts) 34421B — SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) (3 parts) 35425A — PISTON, C-2 ACCUMULATOR (7 parts) 35421F — PISTON, ACCUMULATOR, NO.2 (3 parts) 34421 — PISTON, OVERDRIVE BRAKE ACCUMULATOR (3 parts) 35421H — RING (FOR ACCUMULATOR PISTON NO.2) (6 parts) 35425C — RING, O (FOR C-2 ACCUMULATOR PISTON) (12 parts) 35421H — RING (FOR ACCUMULATOR PISTON NO.2) (6 parts) 34421A — RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) (6 parts) 35421G — SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) (6 parts) 35425C — RING, O (FOR C-2 ACCUMULATOR PISTON) (12 parts) 34421A — RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) (6 parts) 35425B — SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) (10 parts) 35893 — GASKET, CENTER SUPPORT APPLY (3 parts) 35410 — BODY ASSY, TRANSMISSION VALVE (12 parts) 9010506070 — not listed in this catalogue 8410 — not listed in this catalogue 9010506073 — not listed in this catalogue 35290 — SOLENOID ASSY, LINE PRESSURE CONTROL (9 parts) 9094901B63 — not listed in this catalogue 9010506210 — not listed in this catalogue 8410 — not listed in this catalogue 9011905011 — not listed in this catalogue 9010506072 — not listed in this catalogue 9094901B86 — not listed in this catalogue 9094902118 — not listed in this catalogue 9010506209 — not listed in this catalogue 9615102400 — not listed in this catalogue 35893 — GASKET, CENTER SUPPORT APPLY (3 parts) 35419J — VALVE, CHECK, NO.6 (3 parts) 9010506202 — not listed in this catalogue 8410 — not listed in this catalogue 9010506212 — not listed in this catalogue 8410 — not listed in this catalogue 9010506069 — not listed in this catalogue 9010506079 — not listed in this catalogue 35419L — SPRING, COMPRESSION (FOR CHECK VALVE NO.3) (3 parts) 35419K — SPRING, COMPRESSION (FOR CHECK VALVE NO.2) (3 parts) 9010506060 — not listed in this catalogue 9056005016 — not listed in this catalogue 35261A — CYLINDER, THROTTLE PRESSURE ACCUMULATOR (3 parts) 9010506263 — not listed in this catalogue 35419M — SPRING, COMPRESSION (FOR CHECK VALVE NO.4) (3 parts) 9615102400 — not listed in this catalogue 9010506262 — not listed in this catalogue 35419H — VALVE, CHECK, NO.5 (3 parts) 35330 — STRAINER ASSY, VALVE BODY OIL (6 parts) 9011905015 — not listed in this catalogue 9056005016 — not listed in this catalogue 9011905043 — not listed in this catalogue
353961 · 33 callouts, 27 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
133 parts on this figure
Part number Description Fitment Price
34421 — Piston, Overdrive Brake Accumulator
34421-37010 Piston, Overdrive Brake Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
34421-37010 Piston, Overdrive Brake Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
34421-37010 Piston, Overdrive Brake Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
34421A — Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
90301-26003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-26003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-29003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-29003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-26003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-29003 note Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
34421B — Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
90501-32041 Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-32042 Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-32041 Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
35112A — Cover, Front Clutch Accumulator
35112-60010 Cover, Front Clutch Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
35112-60010 Cover, Front Clutch Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35112-60010 Cover, Front Clutch Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35113 — Gasket, Front Clutch Accumlator, NO.2
35113-60020 Gasket, Front Clutch Accumlator, NO.2
1998-01 → 1999-07 ended
HDJ100 4FC —
35113-60020 Gasket, Front Clutch Accumlator, NO.2
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35113-60020 Gasket, Front Clutch Accumlator, NO.2
2002-08 → 2003-07 ended
HDJ100 4FC —
35114 — Gasket, Front Clutch Accumlator, NO.1
35114-60020 Gasket, Front Clutch Accumlator, NO.1
1998-01 → 1999-07 ended
HDJ100 4FC —
35114-60020 Gasket, Front Clutch Accumlator, NO.1
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35114-60020 Gasket, Front Clutch Accumlator, NO.1
2002-08 → 2003-07 ended
HDJ100 4FC —
35115 — Plate, Front Clutch Accumulator
35115-60010 Plate, Front Clutch Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
35115-60010 Plate, Front Clutch Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35115-60010 Plate, Front Clutch Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35261A — Cylinder, Throttle Pressure Accumulator
35261-60010 Cylinder, Throttle Pressure Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
35261-60010 Cylinder, Throttle Pressure Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35261-60010 Cylinder, Throttle Pressure Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35290 — Solenoid Assy, Line Pressure Control
35290-60010 Solenoid Assy, Line Pressure Control
1998-01 → 1998-03 ended
HDJ100,UZJ100 4FC —
35290-60010 Solenoid Assy, Line Pressure Control
1998-03 → 2002-08 ended
HDJ100 4FC —
35290-60010 note Solenoid Assy, Line Pressure Control
1999-07 → 2002-08 ended
UZJ100 LHD —
35290-60020 Solenoid Assy, Line Pressure Control
1998-03 → 2002-08 ended
UZJ100 —
35290-60010 Solenoid Assy, Line Pressure Control
2002-08 → 2003-07 ended
HDJ100 4FC —
35290-60030 Solenoid Assy, Line Pressure Control
2002-08 → 2003-09 ended
UZJ100 —
35290-60030 Solenoid Assy, Line Pressure Control
2003-07 → 2003-09 ended
HDJ100 5FC —
35290-60040 Solenoid Assy, Line Pressure Control
2003-09 → 2005-05 ended
HDJ100,UZJ100 5FC —
35290-60040 Solenoid Assy, Line Pressure Control
2005-05 → —
HDJ100,UZJ100 5FC —
35330 — Strainer Assy, Valve Body Oil
35330-60030 Strainer Assy, Valve Body Oil
1998-01 → 2002-08 ended
UZJ100 —
35330-60040 Strainer Assy, Valve Body Oil
1998-01 → 2002-08 ended
HDJ100 4FC —
35330-60040 note Strainer Assy, Valve Body Oil
1999-07 → 2002-08 ended
UZJ100 LHD —
35330-60040 Strainer Assy, Valve Body Oil
2002-08 → 2003-07 ended
HDJ100 4FC —
35330-60050 Strainer Assy, Valve Body Oil
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
35330-60050 Strainer Assy, Valve Body Oil
2005-05 → —
HDJ100,UZJ100 5FC —
35410 — Body Assy, Transmission Valve
35410-60410 Body Assy, Transmission Valve
1998-01 → 1998-03 ended
UZJ100 —
35410-60411 Body Assy, Transmission Valve
1998-03 → 1998-04 ended
UZJ100 —
35410-60412 Body Assy, Transmission Valve
1998-04 → 1998-05 ended
UZJ100 —
35410-60413 note Body Assy, Transmission Valve
1998-05 → 2000-08 ended
UZJ100 —
35410-60420 note Body Assy, Transmission Valve
1999-07 → 2002-08 ended
UZJ100 LHD —
35410-60430 Body Assy, Transmission Valve
1998-01 → 2002-08 ended
HDJ100 4FC —
35410-60500 Body Assy, Transmission Valve
2000-08 → 2002-08 ended
UZJ100 —
35410-60430 Body Assy, Transmission Valve
2002-08 → 2003-07 ended
HDJ100 4FC —
35410-60520 Body Assy, Transmission Valve
2003-09 → 2005-05 ended
HDJ100,UZJ100 5FC —
35410-60540 Body Assy, Transmission Valve
2003-07 → 2003-09 ended
HDJ100 5FC —
35410-60540 Body Assy, Transmission Valve
2002-08 → 2003-09 ended
UZJ100 —
35410-60520 Body Assy, Transmission Valve
2005-05 → —
HDJ100,UZJ100 5FC —
35419H — Valve, Check, NO.5
35419-60010 Valve, Check, NO.5
1998-01 → 1999-07 ended
HDJ100 4FC —
35419-60010 Valve, Check, NO.5
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35419-60010 Valve, Check, NO.5
2002-08 → 2003-07 ended
HDJ100 4FC —
35419J — Valve, Check, NO.6
35419-60020 Valve, Check, NO.6
1998-01 → 1999-07 ended
HDJ100 4FC —
35419-60020 Valve, Check, NO.6
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35419-60020 Valve, Check, NO.6
2002-08 → 2003-07 ended
HDJ100 4FC —
35419K — Spring, Compression (FOR CHECK VALVE NO.2)
90501-18114 Spring, Compression (FOR CHECK VALVE NO.2)
1998-01 → 1999-07 ended
HDJ100 4FC —
90501-18114 Spring, Compression (FOR CHECK VALVE NO.2)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90501-18114 Spring, Compression (FOR CHECK VALVE NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
35419L — Spring, Compression (FOR CHECK VALVE NO.3)
90501-18115 Spring, Compression (FOR CHECK VALVE NO.3)
1998-01 → 1999-07 ended
HDJ100 4FC —
90501-18115 Spring, Compression (FOR CHECK VALVE NO.3)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90501-18115 Spring, Compression (FOR CHECK VALVE NO.3)
2002-08 → 2003-07 ended
HDJ100 4FC —
35419M — Spring, Compression (FOR CHECK VALVE NO.4)
90501-20157 Spring, Compression (FOR CHECK VALVE NO.4)
1998-01 → 1999-07 ended
HDJ100 4FC —
90501-20157 Spring, Compression (FOR CHECK VALVE NO.4)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90501-20157 Spring, Compression (FOR CHECK VALVE NO.4)
2002-08 → 2003-07 ended
HDJ100 4FC —
35421F — Piston, Accumulator, NO.2
35402-60020 Piston, Accumulator, NO.2
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35402-60020 Piston, Accumulator, NO.2
1998-01 → 1999-07 ended
HDJ100 4FC —
35402-60020 Piston, Accumulator, NO.2
2002-08 → 2003-07 ended
HDJ100 4FC —
35421G — Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
90501-22044 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-26090 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-38007 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-38010 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-22044 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
90501-38007 note Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
35421H — Ring (FOR ACCUMULATOR PISTON NO.2)
90301-29003 note Ring (FOR ACCUMULATOR PISTON NO.2)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-29003 note Ring (FOR ACCUMULATOR PISTON NO.2)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-37004 note Ring (FOR ACCUMULATOR PISTON NO.2)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-37004 note Ring (FOR ACCUMULATOR PISTON NO.2)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-29003 note Ring (FOR ACCUMULATOR PISTON NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-37004 note Ring (FOR ACCUMULATOR PISTON NO.2)
2002-08 → 2003-07 ended
HDJ100 4FC —
35424C — Piston, C-1 Accumulator
35424-60020 Piston, C-1 Accumulator
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35424-60020 Piston, C-1 Accumulator
1998-01 → 1999-07 ended
HDJ100 4FC —
35424-60020 Piston, C-1 Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35424D — Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
90501-24032 Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-26083 Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-20173 note Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90501-21040 note Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90501-26083 Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90501-20173 note Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
90501-21040 note Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
35424E — Ring, O (FOR C-1 ACCUMULATOR PISTON)
90301-22003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-22003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-28003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1999-11 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
90301-28009 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1998-01 → 1999-07 ended
HDJ100 4FC —
90301-28009 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
1999-07 → 1999-11 ended
HDJ100 4FC;UZJ100 LHD —
90301-22003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-28003 note Ring, O (FOR C-1 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
35425A — Piston, C-2 Accumulator
35405-60060 Piston, C-2 Accumulator
1998-01 → 2002-08 ended
HDJ100 4FC —
35405-60060 note Piston, C-2 Accumulator
1999-07 → 2002-08 ended
UZJ100 LHD —
35425-30020 Piston, C-2 Accumulator
1998-01 → 2002-08 ended
UZJ100 —
35405-60060 Piston, C-2 Accumulator
2002-08 → 2003-07 ended
HDJ100 4FC —
35425-60060 Piston, C-2 Accumulator
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
35425-50020 Piston, C-2 Accumulator
2006-08 → —
HDJ100,UZJ100 5FC —
35425-60060 Piston, C-2 Accumulator
2005-05 → 2006-08 ended
HDJ100,UZJ100 5FC —
35425B — Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
90501-18098 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-18113 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-22016 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
UZJ100 —
90501-25027 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
UZJ100 —
90501-30018 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90501-32040 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90501-18113 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90501-27036 Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90501-32040 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90501-27036 Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
35425C — Ring, O (FOR C-2 ACCUMULATOR PISTON)
90301-25010 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
UZJ100 —
90301-28003 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90301-28003 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90301-31010 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
UZJ100 —
90301-33006 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1998-01 → 2002-08 ended
HDJ100 4FC —
90301-33006 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
1999-07 → 2002-08 ended
UZJ100 LHD —
90301-20008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90301-28003 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-28008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2005-05 ended
HDJ100,UZJ100 5FC —
90301-33006 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2002-08 → 2003-07 ended
HDJ100 4FC —
90301-20008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
90301-28008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2005-05 → —
HDJ100,UZJ100 5FC —
35893 — Gasket, Center Support Apply
35893-36010 Gasket, Center Support Apply
1998-01 → 1999-07 ended
HDJ100 4FC —
35893-36010 Gasket, Center Support Apply
1999-07 → 2002-08 ended
HDJ100 4FC;UZJ100 LHD —
35893-36010 Gasket, Center Support Apply
2002-08 → 2003-07 ended
HDJ100 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
