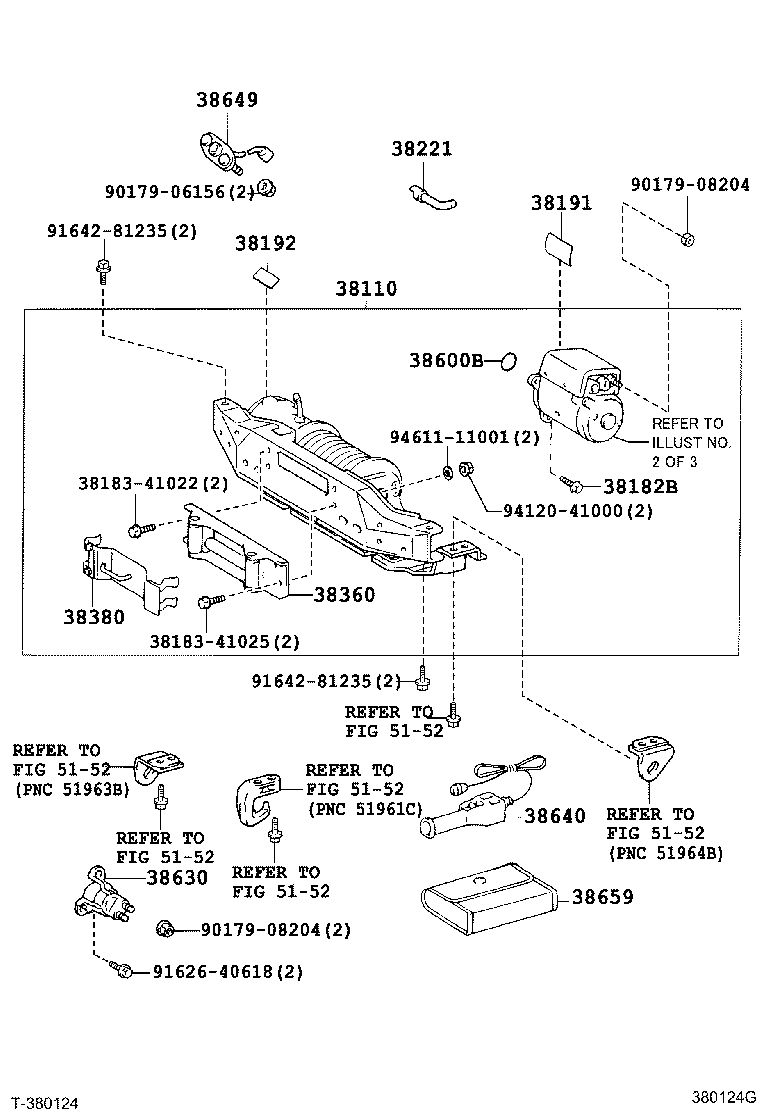

Exploded illustration 380124G 38191 — PLATE, WINCH CAUTION, NO.1 (3 parts) 38192 — PLATE, WINCH CAUTION, NO.2 (3 parts) 38221 — LEVER, CLUTCH HUB SHIFT (3 parts) 38630 — SWITCH ASSY, MAGNET, NO.1 (3 parts) 38640 — SWITCH ASSY, WINCH CONTROL (3 parts) 38659 — COVER, WINCH CONTROL SWITCH (3 parts) 9162640618 — not listed in this catalogue 38649 — WIRE, WINCH CONTROL (3 parts) 38110 — WINCH ASSY (3 parts) 9017906156 — not listed in this catalogue 9017908204 — not listed in this catalogue 9017908204 — not listed in this catalogue 9164281235 — not listed in this catalogue 9164281235 — not listed in this catalogue 5152 — not listed in this catalogue 5152 — not listed in this catalogue 5152 — not listed in this catalogue 5152 — not listed in this catalogue 5152 — not listed in this catalogue 5152 — not listed in this catalogue 38600B — RING, O (FOR WINCH MOTOR) (2 parts) 38182B — BOLT, WINCH, NO.1 (21 parts) 38360 — BRACKET ASSY, WINCH ROLLER (3 parts) 9412041000 — not listed in this catalogue 38380 — HOLDER ASSY, WINCH HOOK (3 parts) 9461111001 — not listed in this catalogue 3818341022 — not listed in this catalogue 3818341025 — not listed in this catalogue
380124G · 12 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
38110 — Winch Assy
38110-60240 Winch Assy
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38110-60260 Winch Assy
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38110-60260 Winch Assy
2005-05 → —
UZJ100;HDJ100 5F —
38182B — Bolt, Winch, NO.1
38182-40822 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38182-41022 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38182-60825 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38182-60830 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38182-61025 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38182-81235 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38183-41022 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38183-41025 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38183-61025 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38183-61235 note Bolt, Winch, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38182-40822 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38182-41022 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38182-60825 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38182-60830 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38182-61025 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38182-81235 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38183-41022 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38183-41025 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38183-61025 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38183-61235 note Bolt, Winch, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38182-60830 note Bolt, Winch, NO.1
2005-05 → 2007-08 ended
UZJ100;HDJ100 5F —
38191 — Plate, Winch Caution, NO.1
38191-60121 Plate, Winch Caution, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38191-60121 Plate, Winch Caution, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38191-60121 Plate, Winch Caution, NO.1
2005-05 → —
UZJ100;HDJ100 5F —
38192 — Plate, Winch Caution, NO.2
38192-60090 Plate, Winch Caution, NO.2
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38192-60090 Plate, Winch Caution, NO.2
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38192-60090 Plate, Winch Caution, NO.2
2005-05 → —
UZJ100;HDJ100 5F —
38221 — Lever, Clutch Hub Shift
38221-60240 Lever, Clutch Hub Shift
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38221-60240 Lever, Clutch Hub Shift
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38221-60240 Lever, Clutch Hub Shift
2005-05 → —
UZJ100;HDJ100 5F —
38360 — Bracket Assy, Winch Roller
38360-60083 Bracket Assy, Winch Roller
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38360-60083 Bracket Assy, Winch Roller
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38360-60083 Bracket Assy, Winch Roller
2005-05 → 2007-08 ended
UZJ100;HDJ100 5F —
38380 — Holder Assy, Winch Hook
38380-60022 Holder Assy, Winch Hook
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38380-60022 Holder Assy, Winch Hook
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38380-60022 Holder Assy, Winch Hook
2005-05 → 2007-08 ended
UZJ100;HDJ100 5F —
38600B — Ring, O (FOR WINCH MOTOR)
90301-59044 Ring, O (FOR WINCH MOTOR)
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
90301-59044 Ring, O (FOR WINCH MOTOR)
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38630 — Switch Assy, Magnet, NO.1
38630-60160 Switch Assy, Magnet, NO.1
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38630-60160 Switch Assy, Magnet, NO.1
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38630-60160 Switch Assy, Magnet, NO.1
2005-05 → —
UZJ100;HDJ100 5F —
38640 — Switch Assy, Winch Control
38640-35010 Switch Assy, Winch Control
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38640-35010 Switch Assy, Winch Control
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38640-35010 Switch Assy, Winch Control
2005-05 → —
UZJ100;HDJ100 5F —
38649 — Wire, Winch Control
38649-60030 Wire, Winch Control
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38649-60030 Wire, Winch Control
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38649-60030 Wire, Winch Control
2005-05 → —
UZJ100;HDJ100 5F —
38659 — Cover, Winch Control Switch
38659-60010 Cover, Winch Control Switch
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
38659-60010 Cover, Winch Control Switch
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
38659-60010 Cover, Winch Control Switch
2005-05 → —
UZJ100;HDJ100 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
