Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

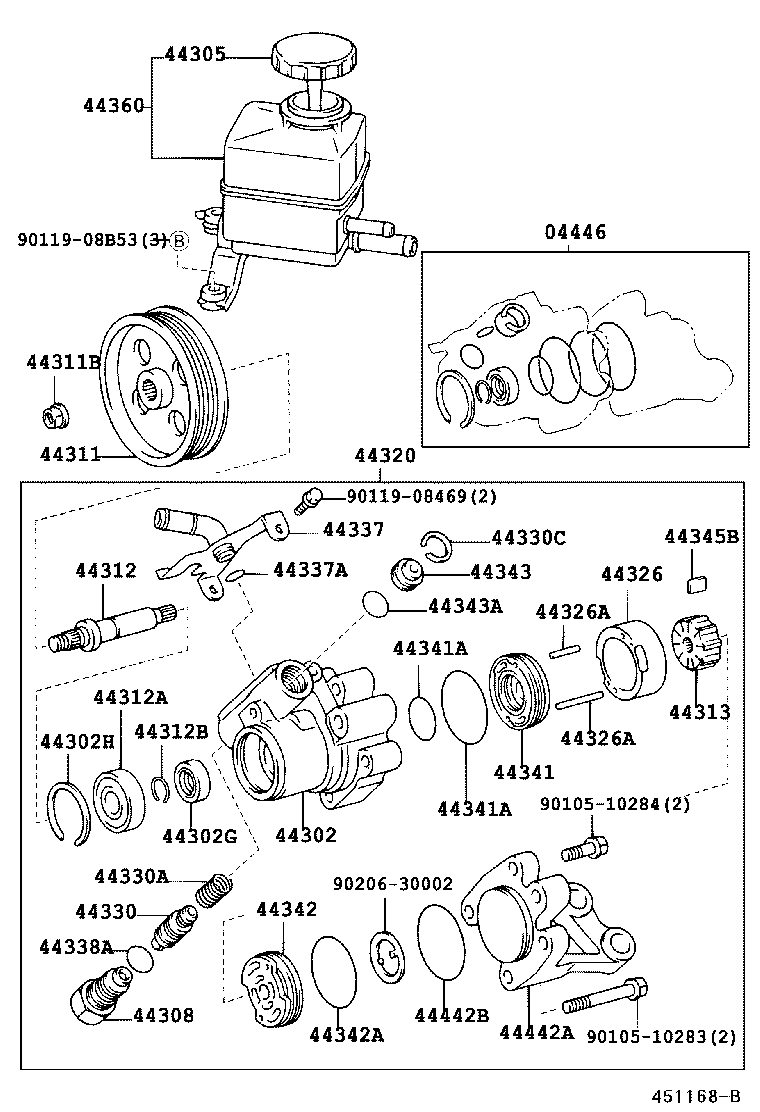

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04446 — Gasket Kit, Power Steering Pump | ||||
| 04446-24011 note |
Gasket Kit, Power Steering Pump
1999-07 → 2001-01
ended
|
UZJ100 LHD | — | |
| 04446-24012 note |
Gasket Kit, Power Steering Pump
2001-01 → 2002-08
ended
|
UZJ100 LHD | — | |
| 04446-34010 |
Gasket Kit, Power Steering Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 04446-60100 |
Gasket Kit, Power Steering Pump
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 04446-60120 |
Gasket Kit, Power Steering Pump
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 04446-60130 |
Gasket Kit, Power Steering Pump
2002-08 → 2005-05
ended
|
HDJ100 | — | |
| 04446-60120 |
Gasket Kit, Power Steering Pump
2005-05 → 2005-10
ended
|
UZJ100 | — | |
| 04446-60130 |
Gasket Kit, Power Steering Pump
2005-05 → —
|
HDJ100 | — | |
| 04446-60200 |
Gasket Kit, Power Steering Pump
2005-10 → —
|
UZJ100 | — | |
| 44302 — Housing Sub-assy, Vane Pump, Front | ||||
| 44302-24021 note |
Housing Sub-assy, Vane Pump, Front
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44302-60070 |
Housing Sub-assy, Vane Pump, Front
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44302-60080 |
Housing Sub-assy, Vane Pump, Front
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44302G — Seal, Oil, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 90311-17004 note |
Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 90311-18015 |
Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44302H — Ring, Snap, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-52010 |
Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 90521-51003 note |
Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-32020 |
Cap Sub-assy, Vane Pump Oil Reservoir
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44305-35010 |
Cap Sub-assy, Vane Pump Oil Reservoir
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44305-32020 |
Cap Sub-assy, Vane Pump Oil Reservoir
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44305-35010 |
Cap Sub-assy, Vane Pump Oil Reservoir
2002-08 → 2005-05
ended
|
HDJ100 | — | |
| 44305-32020 |
Cap Sub-assy, Vane Pump Oil Reservoir
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 44305-35010 |
Cap Sub-assy, Vane Pump Oil Reservoir
2005-05 → 2007-08
ended
|
HDJ100 | — | |
| 44308 — Union Sub-assy, Pressure Port | ||||
| 44308-60090 note |
Union Sub-assy, Pressure Port
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44308-60100 |
Union Sub-assy, Pressure Port
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44311 — Pulley, Vane Pump | ||||
| 44311-60080 note |
Pulley, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44311-60090 |
Pulley, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44311B — Nut(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
Nut(FOR VANE PUMP PULLEY)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44312 — Shaft, Vane Pump | ||||
| 44312-32020 |
Shaft, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44312-50010 note |
Shaft, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44312-60030 |
Shaft, Vane Pump
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44312A — Bearing(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
Bearing(FOR VANE PUMP SHAFT)
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 90363-17011 note |
Bearing(FOR VANE PUMP SHAFT)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44312B — Ring, Snap, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 90520-10003 |
Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 90520-15005 note |
Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44313 — Rotor, Vane Pump | ||||
| 44313-26060 note |
Rotor, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44313-26070 note |
Rotor, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44313-26080 note |
Rotor, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44313-26090 note |
Rotor, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44313-26100 note |
Rotor, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44313-40020 note |
Rotor, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44313-40030 note |
Rotor, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44313-40040 note |
Rotor, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44313-40050 note |
Rotor, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44313-40060 note |
Rotor, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44320 — Pump Assy, Vane | ||||
| 44320-60310 |
Pump Assy, Vane
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44320-60320 note |
Pump Assy, Vane
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44326 — Ring, Cam(FOR VANE PUMP) | ||||
| 44325-32200 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44325-32210 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44325-32220 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44325-32230 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44325-32240 note |
Ring, Cam(FOR VANE PUMP)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44325-50030 note |
Ring, Cam(FOR VANE PUMP)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44325-50040 note |
Ring, Cam(FOR VANE PUMP)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44325-50050 note |
Ring, Cam(FOR VANE PUMP)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44325-60010 note |
Ring, Cam(FOR VANE PUMP)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44325-60020 note |
Ring, Cam(FOR VANE PUMP)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44326A — Pin, Straight(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 note |
Pin, Straight(FOR VANE PUMP CAM RING)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 90250-04071 note |
Pin, Straight(FOR VANE PUMP CAM RING)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 90250-04080 note |
Pin, Straight(FOR VANE PUMP CAM RING)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44330 — Valve Assy, Flow Control | ||||
| 44330-26071 note |
Valve Assy, Flow Control
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44330-26081 note |
Valve Assy, Flow Control
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44330-26091 note |
Valve Assy, Flow Control
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44330-26101 note |
Valve Assy, Flow Control
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44330-26111 note |
Valve Assy, Flow Control
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44330-26121 note |
Valve Assy, Flow Control
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44330-30280 note |
Valve Assy, Flow Control
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44330-30290 note |
Valve Assy, Flow Control
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44330-30300 note |
Valve Assy, Flow Control
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44330-30310 note |
Valve Assy, Flow Control
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44330-30320 note |
Valve Assy, Flow Control
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44330-30330 note |
Valve Assy, Flow Control
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44330A — Spring, Compression(FOR FLOW CONTROL VALVE) | ||||
| 90029-60013 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 90501-12103 note |
Spring, Compression(FOR FLOW CONTROL VALVE)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 90501-13034 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44330C — Ring, Snap(FOR FLOW CONTROL VALVE) | ||||
| 96151-02200 |
Ring, Snap(FOR FLOW CONTROL VALVE)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44337 — Union, Power Steering Suction Port | ||||
| 44337-30050 |
Union, Power Steering Suction Port
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44337-60090 |
Union, Power Steering Suction Port
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44337-60110 note |
Union, Power Steering Suction Port
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44337-60140 note |
Union, Power Steering Suction Port
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44337-60150 note |
Union, Power Steering Suction Port
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44337-60160 |
Union, Power Steering Suction Port
2002-08 → 2005-05
ended
|
HDJ100 | — | |
| 44337-60140 note |
Union, Power Steering Suction Port
2005-05 → —
|
UZJ100 | — | |
| 44337-60150 note |
Union, Power Steering Suction Port
2005-05 → —
|
UZJ100 | — | |
| 44337-60160 |
Union, Power Steering Suction Port
2005-05 → —
|
HDJ100 | — | |
| 44337A — Ring, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
Ring, O(FOR POWER STEERING SUCTION PORT)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 90301-15025 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 90301-15025 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 44338A — Ring, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 note |
Ring, O(FOR PRESSURE PORT UNION)
1998-01 → 2001-01
ended
|
UZJ100 | — | |
| 90301-19013 note |
Ring, O(FOR PRESSURE PORT UNION)
2001-01 → 2002-08
ended
|
UZJ100 RHD | — | |
| 90301-19018 note |
Ring, O(FOR PRESSURE PORT UNION)
2001-01 → 2002-08
ended
|
UZJ100 LHD | — | |
| 96711-19016 note |
Ring, O(FOR PRESSURE PORT UNION)
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44341 — Plate, Vane Pump Side, Front | ||||
| 44341-30050 |
Plate, Vane Pump Side, Front
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44341A — Ring, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-28005 note |
Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 90301-53004 note |
Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44342 — Plate, Vane Pump Side, Rear | ||||
| 44342-20010 note |
Plate, Vane Pump Side, Rear
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44342-60040 |
Plate, Vane Pump Side, Rear
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44342-60050 |
Plate, Vane Pump Side, Rear
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44342A — Ring, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-47001 |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 90301-53004 note |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44343 — Seat, Flow Control Spring | ||||
| 44343-50010 |
Seat, Flow Control Spring
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44343A — Ring, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 90301-18006 |
Ring, O(FOR FLOW CONTROL SPRING SEAT)
1999-07 → 2001-01
ended
|
UZJ100 LHD | — | |
| 90301-18013 |
Ring, O(FOR FLOW CONTROL SPRING SEAT)
2001-01 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44345B — Plate, Vane Pump | ||||
| 44345-12010 note |
Plate, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44345-12020 note |
Plate, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44345-12030 note |
Plate, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44345-12040 note |
Plate, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44345-12050 note |
Plate, Vane Pump
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44345-26010 note |
Plate, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44345-26020 note |
Plate, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44345-26030 note |
Plate, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44345-26040 note |
Plate, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44345-26050 note |
Plate, Vane Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44360 — Reservoir Assy, Vane Pump Oil | ||||
| 44360-60210 note |
Reservoir Assy, Vane Pump Oil
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44360-60220 |
Reservoir Assy, Vane Pump Oil
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44360-60230 note |
Reservoir Assy, Vane Pump Oil
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44360-60210 note |
Reservoir Assy, Vane Pump Oil
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44360-60220 |
Reservoir Assy, Vane Pump Oil
2002-08 → 2005-05
ended
|
HDJ100 | — | |
| 44360-60230 note |
Reservoir Assy, Vane Pump Oil
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44360-60210 note |
Reservoir Assy, Vane Pump Oil
2005-05 → —
|
UZJ100 | — | |
| 44360-60220 |
Reservoir Assy, Vane Pump Oil
2005-05 → —
|
HDJ100 | — | |
| 44360-60230 note |
Reservoir Assy, Vane Pump Oil
2005-05 → —
|
UZJ100 | — | |
| 44442A — Bracket, Vane Pump, Rear | ||||
| 44442-50020 |
Bracket, Vane Pump, Rear
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44442B — Ring, O(FOR VANE PUMP BRACKET REAR) | ||||
| 90301-53006 |
Ring, O(FOR VANE PUMP BRACKET REAR)
1999-07 → 2001-01
ended
|
UZJ100 LHD | — | |
| 90301-53007 |
Ring, O(FOR VANE PUMP BRACKET REAR)
2001-01 → 2002-08
ended
|
UZJ100 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
