Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

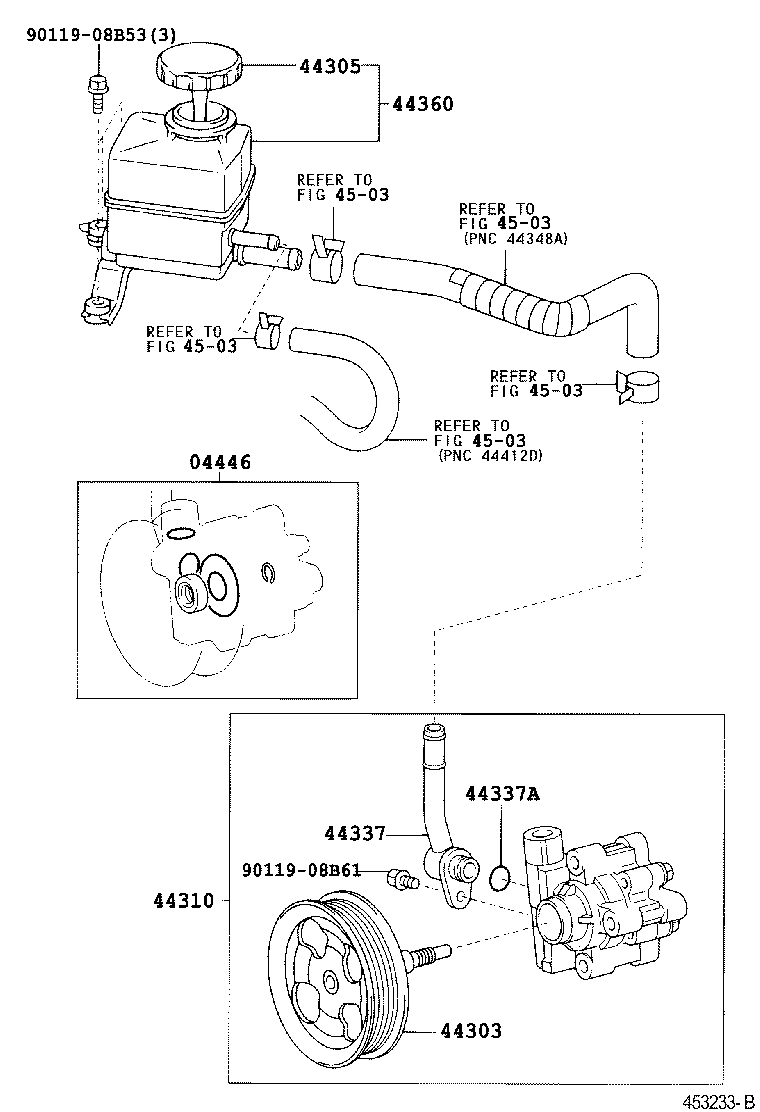

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04446 — Gasket Kit, Power Steering Pump | ||||
| 04446-24011 note |
Gasket Kit, Power Steering Pump
1999-07 → 2001-01
ended
|
UZJ100 LHD | — | |
| 04446-24012 note |
Gasket Kit, Power Steering Pump
2001-01 → 2002-08
ended
|
UZJ100 LHD | — | |
| 04446-34010 |
Gasket Kit, Power Steering Pump
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 04446-60100 |
Gasket Kit, Power Steering Pump
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 04446-60120 |
Gasket Kit, Power Steering Pump
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 04446-60130 |
Gasket Kit, Power Steering Pump
2002-08 → 2005-05
ended
|
HDJ100 | — | |
| 04446-60120 |
Gasket Kit, Power Steering Pump
2005-05 → 2005-10
ended
|
UZJ100 | — | |
| 04446-60130 |
Gasket Kit, Power Steering Pump
2005-05 → —
|
HDJ100 | — | |
| 04446-60200 |
Gasket Kit, Power Steering Pump
2005-10 → —
|
UZJ100 | — | |
| 44303 — Shaft Sub-assy, W/Rotor | ||||
| 44303-60010 note |
Shaft Sub-assy, W/Rotor
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44303-60010 note |
Shaft Sub-assy, W/Rotor
2005-05 → —
|
UZJ100 | — | |
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-32020 |
Cap Sub-assy, Vane Pump Oil Reservoir
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44305-35010 |
Cap Sub-assy, Vane Pump Oil Reservoir
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44305-32020 |
Cap Sub-assy, Vane Pump Oil Reservoir
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44305-35010 |
Cap Sub-assy, Vane Pump Oil Reservoir
2002-08 → 2005-05
ended
|
HDJ100 | — | |
| 44305-32020 |
Cap Sub-assy, Vane Pump Oil Reservoir
2005-05 → 2007-08
ended
|
UZJ100 | — | |
| 44305-35010 |
Cap Sub-assy, Vane Pump Oil Reservoir
2005-05 → 2007-08
ended
|
HDJ100 | — | |
| 44310 — Pump Assy, Vane | ||||
| 44310-60320 |
Pump Assy, Vane
1998-01 → 2001-08
ended
|
HDJ100 | — | |
| 44310-60320 |
Pump Assy, Vane
2001-08 → 2002-08
ended
|
HDJ100 4FC;HDJ100 LHD 5F | — | |
| 44310-60380 note |
Pump Assy, Vane
2001-08 → 2002-08
ended
|
HDJ100 VX | — | |
| 44310-60390 note |
Pump Assy, Vane
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44310-60400 note |
Pump Assy, Vane
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44310-60410 |
Pump Assy, Vane
2002-08 → 2005-05
ended
|
HDJ100 | — | |
| 44310-60420 note |
Pump Assy, Vane
2002-08 → 2005-05
ended
|
HDJ100 VX | — | |
| 44310-60390 note |
Pump Assy, Vane
2005-05 → —
|
UZJ100 | — | |
| 44310-60400 note |
Pump Assy, Vane
2005-05 → —
|
UZJ100 | — | |
| 44310-60410 |
Pump Assy, Vane
2005-05 → —
|
HDJ100 | — | |
| 44310-60420 note |
Pump Assy, Vane
2005-05 → —
|
HDJ100 | — | |
| 44337 — Union, Power Steering Suction Port | ||||
| 44337-30050 |
Union, Power Steering Suction Port
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44337-60090 |
Union, Power Steering Suction Port
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44337-60110 note |
Union, Power Steering Suction Port
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44337-60140 note |
Union, Power Steering Suction Port
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44337-60150 note |
Union, Power Steering Suction Port
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44337-60160 |
Union, Power Steering Suction Port
2002-08 → 2005-05
ended
|
HDJ100 | — | |
| 44337-60140 note |
Union, Power Steering Suction Port
2005-05 → —
|
UZJ100 | — | |
| 44337-60150 note |
Union, Power Steering Suction Port
2005-05 → —
|
UZJ100 | — | |
| 44337-60160 |
Union, Power Steering Suction Port
2005-05 → —
|
HDJ100 | — | |
| 44337A — Ring, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
Ring, O(FOR POWER STEERING SUCTION PORT)
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 90301-15025 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 90301-15025 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 44360 — Reservoir Assy, Vane Pump Oil | ||||
| 44360-60210 note |
Reservoir Assy, Vane Pump Oil
1998-01 → 2002-08
ended
|
UZJ100 | — | |
| 44360-60220 |
Reservoir Assy, Vane Pump Oil
1998-01 → 2002-08
ended
|
HDJ100 | — | |
| 44360-60230 note |
Reservoir Assy, Vane Pump Oil
1999-07 → 2002-08
ended
|
UZJ100 LHD | — | |
| 44360-60210 note |
Reservoir Assy, Vane Pump Oil
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44360-60220 |
Reservoir Assy, Vane Pump Oil
2002-08 → 2005-05
ended
|
HDJ100 | — | |
| 44360-60230 note |
Reservoir Assy, Vane Pump Oil
2002-08 → 2005-05
ended
|
UZJ100 | — | |
| 44360-60210 note |
Reservoir Assy, Vane Pump Oil
2005-05 → —
|
UZJ100 | — | |
| 44360-60220 |
Reservoir Assy, Vane Pump Oil
2005-05 → —
|
HDJ100 | — | |
| 44360-60230 note |
Reservoir Assy, Vane Pump Oil
2005-05 → —
|
UZJ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
