Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

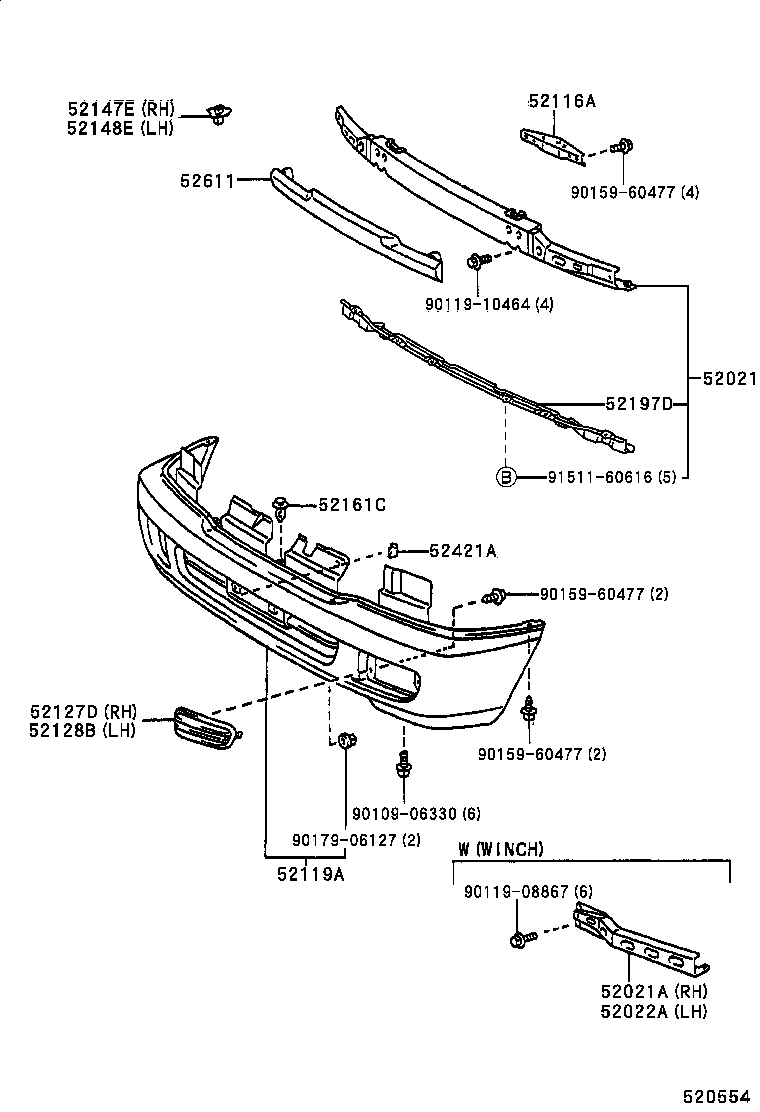

Exploded illustration 520554 52116A — SUPPORT, FRONT BUMPER SIDE, LH (1 parts) 52147E — BRACKET, FRONT BUMPER MOUNTING, RH (3 parts) 52148E — BRACKET, FRONT BUMPER MOUNTING, LH (3 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (3 parts) 9015960477 — not listed in this catalogue 9011910464 — not listed in this catalogue 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (4 parts) 52197D — REINFORCEMENT, FRONT BUMPER ARM (1 parts) 9151160616 — not listed in this catalogue 52161C — PIECE, FRONT BUMPER (3 parts) 52421A — PAD, FRONT BUMPER (3 parts) 9015960477 — not listed in this catalogue 52127D — COVER, FRONT BUMPER HOLE, RH (3 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (3 parts) 9015960477 — not listed in this catalogue 9010906330 — not listed in this catalogue 9017906127 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (26 parts) 9011908867 — not listed in this catalogue 52021A — REINFORCEMENT SUB-ASSY, FRONT BUMPER, RH (4 parts) 52022A — REINFORCEMENT SUB-ASSY, FRONT BUMPER, LH (4 parts)
520554 · 13 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
52021 — Reinforcement Sub-assy, Front Bumper
52021-60020 Reinforcement Sub-assy, Front Bumper
1998-01 → 1998-08 ended
HDJ100,UZJ100 —
52110-60010 Reinforcement Sub-assy, Front Bumper
1998-08 → 2002-08 ended
HDJ100,UZJ100 —
52021-60060 Reinforcement Sub-assy, Front Bumper
2002-08 → 2005-05 ended
HDJ100,UZJ100 —
52021-60060 Reinforcement Sub-assy, Front Bumper
2005-05 → —
HDJ100,UZJ100 —
52021A — Reinforcement Sub-assy, Front Bumper, RH
52021-60050 Reinforcement Sub-assy, Front Bumper, RH
1998-08 → 2002-08 ended
HDJ100,UZJ100 —
52131-60100 Reinforcement Sub-assy, Front Bumper, RH
1998-01 → 1998-08 ended
HDJ100,UZJ100 —
52131-60140 Reinforcement Sub-assy, Front Bumper, RH
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
52131-60140 Reinforcement Sub-assy, Front Bumper, RH
2005-05 → —
UZJ100;HDJ100 5F —
52022A — Reinforcement Sub-assy, Front Bumper, LH
52022-60030 Reinforcement Sub-assy, Front Bumper, LH
1998-08 → 2002-08 ended
HDJ100,UZJ100 —
52132-60070 Reinforcement Sub-assy, Front Bumper, LH
1998-01 → 1998-08 ended
HDJ100,UZJ100 —
52132-60100 Reinforcement Sub-assy, Front Bumper, LH
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
52132-60100 Reinforcement Sub-assy, Front Bumper, LH
2005-05 → —
UZJ100;HDJ100 5F —
52116A — Support, Front Bumper Side, LH
52116-60110 Support, Front Bumper Side, LH
1998-02 → 2002-08 ended
HDJ100,UZJ100 —
52119A — Cover, Front Bumper
52119-60160 note Cover, Front Bumper
2000-08 → 2002-08 ended
HDJ100 STD —
52119-60220 Cover, Front Bumper
2000-08 → 2002-08 ended
HDJ100 STD —
52119-60904 Cover, Front Bumper
1998-01 → 2002-08 ended
HDJ100,UZJ100 LHD VX —
52119-60907 note Cover, Front Bumper
2000-01 → 2002-08 ended
UZJ100 LHD —
52119-60908 note Cover, Front Bumper
2000-01 → 2002-08 ended
UZJ100 LHD —
52119-60909 note Cover, Front Bumper
1998-01 → 2002-08 ended
HDJ100,UZJ100 VX —
52119-60910 note Cover, Front Bumper
1998-01 → 2002-08 ended
HDJ100,UZJ100 VX —
52119-60911 note Cover, Front Bumper
1998-01 → 2002-08 ended
HDJ100,UZJ100 LHD VX —
52119-60916 note Cover, Front Bumper
2000-01 → 2002-08 ended
UZJ100 LHD —
52119-60917 note Cover, Front Bumper
2000-01 → 2002-08 ended
UZJ100 LHD —
52119-60680 note Cover, Front Bumper
2002-08 → 2005-05 ended
HDJ100 STD —
52119-60700 note Cover, Front Bumper
2002-08 → 2005-05 ended
HDJ100 STD —
52119-60918 Cover, Front Bumper
2002-08 → 2005-05 ended
HDJ100,UZJ100 LHD VX —
52119-60919 note Cover, Front Bumper
2002-08 → 2005-05 ended
UZJ100 LHD —
52119-60920 note Cover, Front Bumper
2002-08 → 2005-05 ended
UZJ100 LHD —
52119-60921 note Cover, Front Bumper
2002-08 → 2005-05 ended
HDJ100,UZJ100 VX —
52119-60922 note Cover, Front Bumper
2002-08 → 2003-08 ended
UZJ100;HDJ100 5F VX —
52119-60922 note Cover, Front Bumper
2003-08 → 2005-05 ended
UZJ100;HDJ100 5F VX —
52119-60923 note Cover, Front Bumper
2002-08 → 2003-08 ended
UZJ100 LHD;HDJ100 LHD 5F +1 —
52119-60923 note Cover, Front Bumper
2003-08 → 2005-05 ended
UZJ100 LHD;HDJ100 LHD 5F +1 —
52119-60924 note Cover, Front Bumper
2002-08 → 2005-05 ended
UZJ100 LHD —
52119-60925 note Cover, Front Bumper
2002-08 → 2005-05 ended
UZJ100 LHD —
52119-60918 Cover, Front Bumper
2005-05 → 2007-08 ended
HDJ100,UZJ100 LHD —
52119-60923 note Cover, Front Bumper
2005-05 → 2007-08 ended
UZJ100 LHD;HDJ100 LHD 5F —
52119-60956 note Cover, Front Bumper
2005-05 → 2007-08 ended
HDJ100,UZJ100 —
52119-60959 note Cover, Front Bumper
2005-05 → 2007-08 ended
UZJ100;HDJ100 5F —
52127D — Cover, Front Bumper Hole, RH
52127-60010 Cover, Front Bumper Hole, RH
1998-01 → 2002-08 ended
HDJ100,UZJ100 VX —
52127-60030 Cover, Front Bumper Hole, RH
2002-08 → 2005-05 ended
HDJ100,UZJ100 VX —
52127-60030 Cover, Front Bumper Hole, RH
2005-05 → —
HDJ100,UZJ100 —
52128B — Cover, Front Bumper Hole, LH
52128-60010 Cover, Front Bumper Hole, LH
1998-01 → 2002-08 ended
HDJ100,UZJ100 VX —
52128-60030 Cover, Front Bumper Hole, LH
2002-08 → 2005-05 ended
HDJ100,UZJ100 VX —
52128-60030 Cover, Front Bumper Hole, LH
2005-05 → —
HDJ100,UZJ100 —
52147E — Bracket, Front Bumper Mounting, RH
52147-60050 Bracket, Front Bumper Mounting, RH
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
52147-60050 Bracket, Front Bumper Mounting, RH
2002-08 → 2005-05 ended
HDJ100,UZJ100 —
52147-60050 Bracket, Front Bumper Mounting, RH
2005-05 → —
HDJ100,UZJ100 —
52148E — Bracket, Front Bumper Mounting, LH
52147-60050 Bracket, Front Bumper Mounting, LH
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
52147-60050 Bracket, Front Bumper Mounting, LH
2002-08 → 2005-05 ended
HDJ100,UZJ100 —
52147-60050 Bracket, Front Bumper Mounting, LH
2005-05 → —
HDJ100,UZJ100 —
52161C — Piece, Front Bumper
52161-16010 Piece, Front Bumper
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
52161-16010 Piece, Front Bumper
2002-08 → 2005-05 ended
HDJ100,UZJ100 —
52161-16010 Piece, Front Bumper
2005-05 → 2007-08 ended
HDJ100,UZJ100 —
52197D — Reinforcement, Front Bumper Arm
52197-60010 Reinforcement, Front Bumper Arm
1998-08 → 2002-08 ended
HDJ100,UZJ100 —
52421A — Pad, Front Bumper
52421-60050 Pad, Front Bumper
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
52421-60090 Pad, Front Bumper
2002-08 → 2005-05 ended
UZJ100;HDJ100 5F —
52421-60090 Pad, Front Bumper
2005-05 → —
UZJ100;HDJ100 5F —
52611 — Absorber, Front Bumper Energy
52611-60010 Absorber, Front Bumper Energy
1998-01 → 2002-08 ended
HDJ100,UZJ100 —
52611-60020 Absorber, Front Bumper Energy
2002-08 → 2005-05 ended
HDJ100,UZJ100 —
52611-60020 Absorber, Front Bumper Energy
2005-05 → —
HDJ100,UZJ100 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
