Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

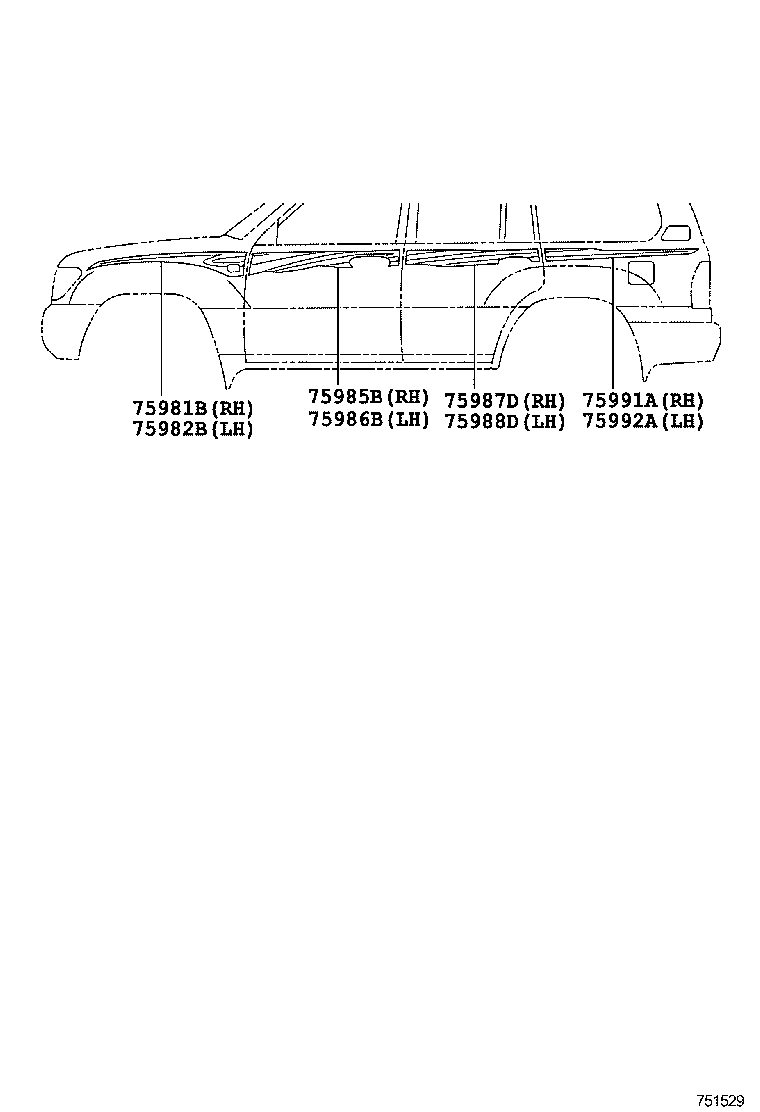

Exploded illustration 751529 75986B — STRIPE, FRONT DOOR, NO.3 LH (14 parts) 75981B — STRIPE, FENDER, RH (14 parts) 75982B — STRIPE, FENDER, LH (14 parts) 75985B — STRIPE, FRONT DOOR, NO.3 RH (14 parts) 75987D — STRIPE, REAR DOOR, OUTSIDE, RH (14 parts) 75988D — STRIPE, REAR DOOR OUTSIDE, LH (14 parts) 75991A — STRIPE, QUARTER, RH (14 parts) 75992A — STRIPE, QUARTER, LH (14 parts)
751529 · 8 callouts Full size ↗
112 parts on this figure
Part number Description Fitment Price
75981B — Stripe, Fender, RH
75981-60450 Stripe, Fender, RH
1998-01 → 1999-07 ended
HDJ100,UZJ100 —
75981-60550 Stripe, Fender, RH
1999-07 → 2000-08 ended
HDJ100,UZJ100 —
75981-60580 Stripe, Fender, RH
2000-08 → 2001-08 ended
HDJ100 STD —
75981-60590 Stripe, Fender, RH
2000-08 → 2001-08 ended
HDJ100,UZJ100 VX —
75981-60650 Stripe, Fender, RH
2001-08 → 2002-08 ended
HDJ100 STD —
75981-60660 Stripe, Fender, RH
2001-08 → 2002-08 ended
HDJ100,UZJ100 VX —
75981-60710 Stripe, Fender, RH
2002-08 → 2003-08 ended
HDJ100 STD —
75981-60720 Stripe, Fender, RH
2002-08 → 2003-08 ended
HDJ100,UZJ100 VX —
75981-60790 Stripe, Fender, RH
2003-08 → 2004-08 ended
HDJ100 STD —
75981-60800 Stripe, Fender, RH
2003-08 → 2004-07 ended
HDJ100,UZJ100 VX —
75981-60820 Stripe, Fender, RH
2004-08 → 2005-05 ended
HDJ100 STD —
75981-60830 Stripe, Fender, RH
2004-08 → 2005-05 ended
HDJ100,UZJ100 VX —
75981-60880 Stripe, Fender, RH
2005-05 → 2006-07 ended
HDJ100,UZJ100 —
75981-60A50 Stripe, Fender, RH
2006-07 → —
HDJ100,UZJ100 —
75982B — Stripe, Fender, LH
75982-60450 Stripe, Fender, LH
1998-01 → 1999-07 ended
HDJ100,UZJ100 —
75982-60550 Stripe, Fender, LH
1999-07 → 2000-08 ended
HDJ100,UZJ100 —
75982-60580 Stripe, Fender, LH
2000-08 → 2001-08 ended
HDJ100 STD —
75982-60590 Stripe, Fender, LH
2000-08 → 2001-08 ended
HDJ100,UZJ100 VX —
75982-60650 Stripe, Fender, LH
2001-08 → 2002-08 ended
HDJ100 STD —
75982-60660 Stripe, Fender, LH
2001-08 → 2002-08 ended
HDJ100,UZJ100 VX —
75982-60700 Stripe, Fender, LH
2002-08 → 2003-08 ended
HDJ100 STD —
75982-60710 Stripe, Fender, LH
2002-08 → 2003-08 ended
HDJ100,UZJ100 VX —
75982-60780 Stripe, Fender, LH
2003-08 → 2004-08 ended
HDJ100 STD —
75982-60790 Stripe, Fender, LH
2003-08 → 2004-07 ended
HDJ100,UZJ100 VX —
75982-60810 Stripe, Fender, LH
2004-08 → 2005-05 ended
HDJ100 STD —
75982-60820 Stripe, Fender, LH
2004-08 → 2005-05 ended
HDJ100,UZJ100 VX —
75982-60870 Stripe, Fender, LH
2005-05 → 2006-07 ended
HDJ100,UZJ100 —
75982-60A40 Stripe, Fender, LH
2006-07 → —
HDJ100,UZJ100 —
75985B — Stripe, Front Door, NO.3 RH
75985-60370 Stripe, Front Door, NO.3 RH
1998-01 → 1999-07 ended
HDJ100,UZJ100 —
75985-60440 Stripe, Front Door, NO.3 RH
1999-07 → 2000-08 ended
HDJ100,UZJ100 —
75985-60470 Stripe, Front Door, NO.3 RH
2000-08 → 2001-08 ended
HDJ100 STD —
75985-60480 Stripe, Front Door, NO.3 RH
2000-08 → 2001-08 ended
HDJ100,UZJ100 VX —
75985-60510 Stripe, Front Door, NO.3 RH
2001-08 → 2002-08 ended
HDJ100 STD —
75985-60520 Stripe, Front Door, NO.3 RH
2001-08 → 2002-08 ended
HDJ100,UZJ100 VX —
75985-60580 Stripe, Front Door, NO.3 RH
2002-08 → 2003-08 ended
HDJ100 STD —
75985-60590 Stripe, Front Door, NO.3 RH
2002-08 → 2003-08 ended
HDJ100,UZJ100 VX —
75985-60640 Stripe, Front Door, NO.3 RH
2003-08 → 2004-08 ended
HDJ100 STD —
75985-60650 Stripe, Front Door, NO.3 RH
2003-08 → 2004-07 ended
HDJ100,UZJ100 VX —
75985-60660 Stripe, Front Door, NO.3 RH
2004-08 → 2005-05 ended
HDJ100 STD —
75985-60670 Stripe, Front Door, NO.3 RH
2004-08 → 2005-05 ended
HDJ100,UZJ100 VX —
75985-60700 Stripe, Front Door, NO.3 RH
2005-05 → 2006-07 ended
HDJ100,UZJ100 —
75985-60730 Stripe, Front Door, NO.3 RH
2006-07 → —
HDJ100,UZJ100 —
75986B — Stripe, Front Door, NO.3 LH
75986-60300 Stripe, Front Door, NO.3 LH
1998-01 → 1999-07 ended
HDJ100,UZJ100 —
75986-60440 Stripe, Front Door, NO.3 LH
1999-07 → 2000-08 ended
HDJ100,UZJ100 —
75986-60470 Stripe, Front Door, NO.3 LH
2000-08 → 2001-08 ended
HDJ100 STD —
75986-60480 Stripe, Front Door, NO.3 LH
2000-08 → 2001-08 ended
HDJ100,UZJ100 VX —
75986-60510 Stripe, Front Door, NO.3 LH
2001-08 → 2002-08 ended
HDJ100 STD —
75986-60520 Stripe, Front Door, NO.3 LH
2001-08 → 2002-08 ended
HDJ100,UZJ100 VX —
75986-60580 Stripe, Front Door, NO.3 LH
2002-08 → 2003-08 ended
HDJ100 STD —
75986-60590 Stripe, Front Door, NO.3 LH
2002-08 → 2003-08 ended
HDJ100,UZJ100 VX —
75986-60640 Stripe, Front Door, NO.3 LH
2003-08 → 2004-08 ended
HDJ100 STD —
75986-60650 Stripe, Front Door, NO.3 LH
2003-08 → 2004-07 ended
HDJ100,UZJ100 VX —
75986-60660 Stripe, Front Door, NO.3 LH
2004-08 → 2005-05 ended
HDJ100 STD —
75986-60670 Stripe, Front Door, NO.3 LH
2004-08 → 2005-05 ended
HDJ100,UZJ100 VX —
75986-60700 Stripe, Front Door, NO.3 LH
2005-05 → 2006-07 ended
HDJ100,UZJ100 —
75986-60730 Stripe, Front Door, NO.3 LH
2006-07 → —
HDJ100,UZJ100 —
75987D — Stripe, Rear Door, Outside, RH
75987-60320 Stripe, Rear Door, Outside, RH
1998-01 → 1999-07 ended
HDJ100,UZJ100 —
75987-60340 Stripe, Rear Door, Outside, RH
1999-07 → 2000-08 ended
HDJ100,UZJ100 —
75987-60350 Stripe, Rear Door, Outside, RH
2000-08 → 2001-08 ended
HDJ100 STD —
75987-60360 Stripe, Rear Door, Outside, RH
2000-08 → 2001-08 ended
HDJ100,UZJ100 VX —
75987-60370 Stripe, Rear Door, Outside, RH
2001-08 → 2002-08 ended
HDJ100 STD —
75987-60380 Stripe, Rear Door, Outside, RH
2001-08 → 2002-08 ended
HDJ100,UZJ100 VX —
75987-60410 Stripe, Rear Door, Outside, RH
2002-08 → 2003-08 ended
HDJ100 STD —
75987-60420 Stripe, Rear Door, Outside, RH
2002-08 → 2003-08 ended
HDJ100,UZJ100 VX —
75987-60460 Stripe, Rear Door, Outside, RH
2003-08 → 2004-08 ended
HDJ100 STD —
75987-60470 Stripe, Rear Door, Outside, RH
2003-08 → 2004-07 ended
HDJ100,UZJ100 VX —
75987-60480 Stripe, Rear Door, Outside, RH
2004-08 → 2005-05 ended
HDJ100 STD —
75987-60490 Stripe, Rear Door, Outside, RH
2004-08 → 2005-05 ended
HDJ100,UZJ100 VX —
75987-60510 Stripe, Rear Door, Outside, RH
2005-05 → 2006-07 ended
HDJ100,UZJ100 —
75987-60530 Stripe, Rear Door, Outside, RH
2006-07 → —
HDJ100,UZJ100 —
75988D — Stripe, Rear Door Outside, LH
75988-60380 Stripe, Rear Door Outside, LH
1998-01 → 1999-07 ended
HDJ100,UZJ100 —
75988-60420 Stripe, Rear Door Outside, LH
1999-07 → 2000-08 ended
HDJ100,UZJ100 —
75988-60430 Stripe, Rear Door Outside, LH
2000-08 → 2001-08 ended
HDJ100 STD —
75988-60440 Stripe, Rear Door Outside, LH
2000-08 → 2001-08 ended
HDJ100,UZJ100 VX —
75988-60470 Stripe, Rear Door Outside, LH
2001-08 → 2002-08 ended
HDJ100 STD —
75988-60480 Stripe, Rear Door Outside, LH
2001-08 → 2002-08 ended
HDJ100,UZJ100 VX —
75988-60520 Stripe, Rear Door Outside, LH
2002-08 → 2003-08 ended
HDJ100 STD —
75988-60530 Stripe, Rear Door Outside, LH
2002-08 → 2003-08 ended
HDJ100,UZJ100 VX —
75988-60580 Stripe, Rear Door Outside, LH
2003-08 → 2004-08 ended
HDJ100 STD —
75988-60590 Stripe, Rear Door Outside, LH
2003-08 → 2004-07 ended
HDJ100,UZJ100 VX —
75988-60600 Stripe, Rear Door Outside, LH
2004-08 → 2005-05 ended
HDJ100 STD —
75988-60610 Stripe, Rear Door Outside, LH
2004-08 → 2005-05 ended
HDJ100,UZJ100 VX —
75988-60640 Stripe, Rear Door Outside, LH
2005-05 → 2006-07 ended
HDJ100,UZJ100 —
75988-60670 Stripe, Rear Door Outside, LH
2006-07 → —
HDJ100,UZJ100 —
75991A — Stripe, Quarter, RH
75991-60660 Stripe, Quarter, RH
1998-01 → 1999-07 ended
HDJ100,UZJ100 —
75991-60830 Stripe, Quarter, RH
1999-07 → 2000-08 ended
HDJ100,UZJ100 —
75991-60890 Stripe, Quarter, RH
2000-08 → 2001-08 ended
HDJ100 STD —
75991-6A010 Stripe, Quarter, RH
2000-08 → 2001-08 ended
HDJ100,UZJ100 VX —
75991-6A080 Stripe, Quarter, RH
2001-08 → 2002-08 ended
HDJ100 STD —
75991-6A090 Stripe, Quarter, RH
2001-08 → 2002-08 ended
HDJ100,UZJ100 VX —
75991-60A00 Stripe, Quarter, RH
2003-08 → 2004-08 ended
HDJ100 STD —
75991-60A10 Stripe, Quarter, RH
2003-08 → 2004-07 ended
HDJ100,UZJ100 VX —
75991-60A40 Stripe, Quarter, RH
2004-08 → 2005-05 ended
HDJ100 STD —
75991-60A60 Stripe, Quarter, RH
2004-08 → 2005-05 ended
HDJ100,UZJ100 VX —
75991-6A180 Stripe, Quarter, RH
2002-08 → 2003-08 ended
HDJ100 STD —
75991-6A190 Stripe, Quarter, RH
2002-08 → 2003-08 ended
HDJ100,UZJ100 VX —
75991-60B20 Stripe, Quarter, RH
2005-05 → 2006-07 ended
HDJ100,UZJ100 —
75991-60C20 Stripe, Quarter, RH
2006-07 → —
HDJ100,UZJ100 —
75992A — Stripe, Quarter, LH
75992-60660 Stripe, Quarter, LH
1998-01 → 1999-07 ended
HDJ100,UZJ100 —
75992-60830 Stripe, Quarter, LH
1999-07 → 2000-08 ended
HDJ100,UZJ100 —
75992-60890 Stripe, Quarter, LH
2000-08 → 2001-08 ended
HDJ100 STD —
75992-6A010 Stripe, Quarter, LH
2000-08 → 2001-08 ended
HDJ100,UZJ100 VX —
75992-6A080 Stripe, Quarter, LH
2001-08 → 2002-08 ended
HDJ100 STD —
75992-6A090 Stripe, Quarter, LH
2001-08 → 2002-08 ended
HDJ100,UZJ100 VX —
75992-60A00 Stripe, Quarter, LH
2003-08 → 2004-08 ended
HDJ100 STD —
75992-60A10 Stripe, Quarter, LH
2003-08 → 2004-07 ended
HDJ100,UZJ100 VX —
75992-60A40 Stripe, Quarter, LH
2004-08 → 2005-05 ended
HDJ100 STD —
75992-60A60 Stripe, Quarter, LH
2004-08 → 2005-05 ended
HDJ100,UZJ100 VX —
75992-6A190 Stripe, Quarter, LH
2002-08 → 2003-08 ended
HDJ100 STD —
75992-6A200 Stripe, Quarter, LH
2002-08 → 2003-08 ended
HDJ100,UZJ100 VX —
75992-60B20 Stripe, Quarter, LH
2005-05 → 2006-07 ended
HDJ100,UZJ100 —
75992-60C20 Stripe, Quarter, LH
2006-07 → —
HDJ100,UZJ100 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
