Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

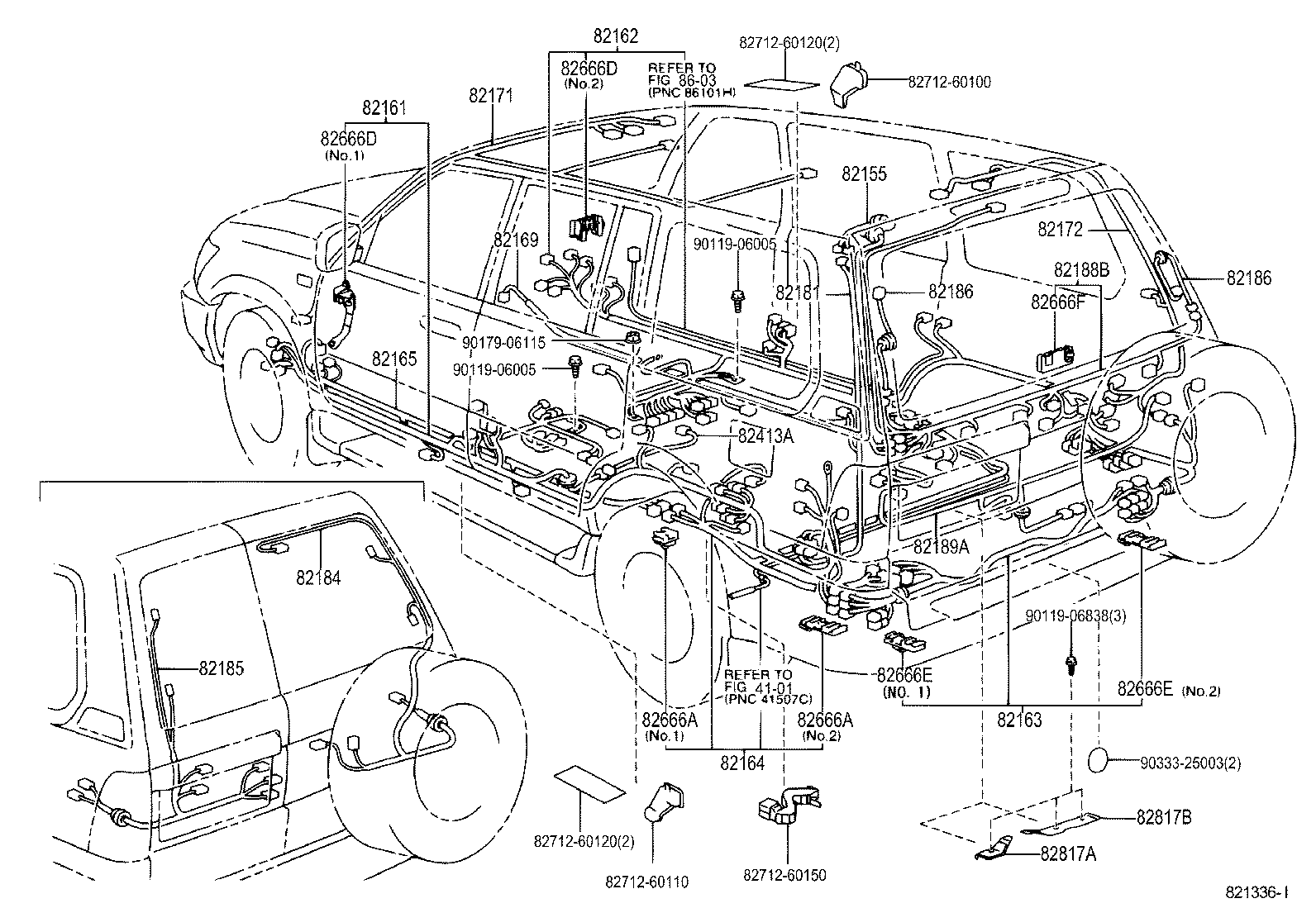

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82155 — Wire, Center Piller, NO.1 | ||||
| 82155-60010 |
Wire, Center Piller, NO.1
1998-01 → 1998-07
ended
|
HDJ100,UZJ100 | — | |
| 82155-60020 |
Wire, Center Piller, NO.1
1998-07 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82155-60021 |
Wire, Center Piller, NO.1
2002-08 → 2003-03
ended
|
HDJ100,UZJ100 VX | — | |
| 82155-60022 |
Wire, Center Piller, NO.1
2003-03 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82155-60030 |
Wire, Center Piller, NO.1
2002-08 → 2005-05
ended
|
HDJ100 STD | — | |
| 82155-60040 note |
Wire, Center Piller, NO.1
2003-07 → 2005-05
ended
|
HDJ100 5FC | — | |
| 82155-60022 |
Wire, Center Piller, NO.1
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82155-60040 note |
Wire, Center Piller, NO.1
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82161 — Wire, Floor | ||||
| 82161-60541 |
Wire, Floor
2000-08 → 2001-08
ended
|
HDJ100 STD | — | |
| 82161-60542 |
Wire, Floor
2001-08 → 2002-08
ended
|
HDJ100 STD | — | |
| 82161-60660 |
Wire, Floor
1998-01 → 1998-12
ended
|
HDJ100,UZJ100 | — | |
| 82161-60661 |
Wire, Floor
1998-12 → 1999-07
ended
|
HDJ100,UZJ100 | — | |
| 82161-60662 |
Wire, Floor
1999-07 → 2000-08
ended
|
HDJ100,UZJ100 | — | |
| 82161-60663 |
Wire, Floor
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82161-60664 |
Wire, Floor
2002-08 → 2003-03
ended
|
HDJ100,UZJ100 | — | |
| 82161-60665 |
Wire, Floor
2003-03 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82161-60665 |
Wire, Floor
2003-03 → 2005-05
ended
|
HDJ100,UZJ100 5F,5FC | — | |
| 82161-6A380 note |
Wire, Floor
2002-08 → 2002-12
ended
|
HDJ100,UZJ100 VX | — | |
| 82161-6A381 note |
Wire, Floor
2002-12 → 2003-03
ended
|
HDJ100,UZJ100 VX | — | |
| 82161-6A382 note |
Wire, Floor
2003-03 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82161-6A382 note |
Wire, Floor
2003-03 → 2003-11
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82161-6A383 note |
Wire, Floor
2003-11 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82161-6A460 note |
Wire, Floor
2002-08 → 2005-05
ended
|
HDJ100 LHD 5F | — | |
| 82161-60666 |
Wire, Floor
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82161-6A384 note |
Wire, Floor
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82161-6A460 note |
Wire, Floor
2005-05 → —
|
HDJ100 LHD 5F | — | |
| 82162 — Wire, Floor, NO.2 | ||||
| 82162-60480 |
Wire, Floor, NO.2
1998-01 → 1999-07
ended
|
HDJ100,UZJ100 | — | |
| 82162-60481 |
Wire, Floor, NO.2
1999-07 → 2000-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82162-60482 |
Wire, Floor, NO.2
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82162-60512 note |
Wire, Floor, NO.2
2000-01 → 2000-08
ended
|
UZJ100 LHD | — | |
| 82162-60513 note |
Wire, Floor, NO.2
2000-08 → 2002-08
ended
|
UZJ100 LHD | — | |
| 82162-60613 note |
Wire, Floor, NO.2
2000-01 → 2000-08
ended
|
UZJ100 LHD | — | |
| 82162-60614 note |
Wire, Floor, NO.2
2000-08 → 2002-08
ended
|
UZJ100 LHD | — | |
| 82162-60760 |
Wire, Floor, NO.2
1999-07 → 2000-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82162-60761 |
Wire, Floor, NO.2
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82162-60810 note |
Wire, Floor, NO.2
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82162-60830 note |
Wire, Floor, NO.2
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 RHD 4FC | — | |
| 82162-60483 |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82162-60483 |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 5F,5FC | — | |
| 82162-60484 |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 82162-60494 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82162-60494 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82162-60495 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82162-60514 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82162-60514 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82162-60515 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82162-60615 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82162-60615 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82162-60616 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82162-6A320 note |
Wire, Floor, NO.2
2002-08 → 2005-05
ended
|
HDJ100 LHD 5F | — | |
| 82162-6A330 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82162-6A330 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82162-6A331 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82162-6A340 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82162-6A340 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82162-6A341 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82162-6A370 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82162-6A370 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82162-6A371 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82162-6A380 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82162-6A380 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
UZJ100;HDJ100 5F VX | — | |
| 82162-6A380 note |
Wire, Floor, NO.2
2003-07 → 2003-08
ended
|
HDJ100 5FC | — | |
| 82162-6A381 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82162-6A440 note |
Wire, Floor, NO.2
2003-07 → 2003-08
ended
|
HDJ100 LHD 5FC | — | |
| 82162-6A440 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
UZJ100 LHD;HDJ100 LHD 5F +1 | — | |
| 82162-6A440 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 LHD 4FC | — | |
| 82162-6A441 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82162-6A450 note |
Wire, Floor, NO.2
2003-07 → 2003-08
ended
|
HDJ100 LHD 5FC | — | |
| 82162-6A450 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
UZJ100 LHD;HDJ100 LHD 5F +1 | — | |
| 82162-6A450 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 LHD 4FC | — | |
| 82162-6A451 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82162-6A460 note |
Wire, Floor, NO.2
2003-07 → 2003-08
ended
|
HDJ100 RHD 5FC | — | |
| 82162-6A460 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
UZJ100 RHD;HDJ100 RHD 5F | — | |
| 82162-6A460 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 RHD 4FC | — | |
| 82162-6A461 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82162-6A470 note |
Wire, Floor, NO.2
2002-08 → 2003-07
ended
|
HDJ100 RHD 4FC | — | |
| 82162-6A470 note |
Wire, Floor, NO.2
2002-08 → 2003-08
ended
|
UZJ100 RHD;HDJ100 RHD 5F | — | |
| 82162-6A470 note |
Wire, Floor, NO.2
2003-07 → 2003-08
ended
|
HDJ100 RHD 5FC | — | |
| 82162-6A471 note |
Wire, Floor, NO.2
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82162-60484 |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82162-60495 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82162-60515 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82162-60616 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82162-6A320 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100 LHD 5F | — | |
| 82162-6A331 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82162-6A341 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82162-6A371 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82162-6A381 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82162-6A441 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 LHD | — | |
| 82162-6A453 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 LHD | — | |
| 82162-6A471 note |
Wire, Floor, NO.2
2005-05 → —
|
HDJ100,UZJ100 RHD | — | |
| 82163 — Wire, Floor, NO.3 | ||||
| 82163-60210 |
Wire, Floor, NO.3
1998-01 → 1998-12
ended
|
HDJ100,UZJ100 RHD | — | |
| 82163-60211 |
Wire, Floor, NO.3
1998-12 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82163-60230 note |
Wire, Floor, NO.3
1998-01 → 1998-12
ended
|
HDJ100,UZJ100 RHD | — | |
| 82163-60231 note |
Wire, Floor, NO.3
1998-12 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82163-60250 |
Wire, Floor, NO.3
1998-01 → 1998-12
ended
|
HDJ100,UZJ100 LHD | — | |
| 82163-60251 |
Wire, Floor, NO.3
1998-12 → 2002-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82163-60260 note |
Wire, Floor, NO.3
1998-01 → 1998-12
ended
|
HDJ100,UZJ100 LHD | — | |
| 82163-60261 note |
Wire, Floor, NO.3
1998-12 → 2002-08
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82163-60322 note |
Wire, Floor, NO.3
2000-01 → 2000-08
ended
|
UZJ100 LHD | — | |
| 82163-60323 note |
Wire, Floor, NO.3
2000-08 → 2002-08
ended
|
UZJ100 LHD | — | |
| 82163-60212 |
Wire, Floor, NO.3
2002-08 → 2003-07
ended
|
HDJ100 RHD 4FC | — | |
| 82163-60212 note |
Wire, Floor, NO.3
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 RHD (5F,5FC) | — | |
| 82163-60213 |
Wire, Floor, NO.3
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82163-60232 |
Wire, Floor, NO.3
2002-08 → 2003-08
ended
|
UZJ100 RHD;HDJ100 RHD 5F | — | |
| 82163-60232 note |
Wire, Floor, NO.3
2003-07 → 2003-08
ended
|
HDJ100 RHD 5FC | — | |
| 82163-60232 note |
Wire, Floor, NO.3
2002-08 → 2003-07
ended
|
HDJ100 RHD 4FC | — | |
| 82163-60233 note |
Wire, Floor, NO.3
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82163-60243 note |
Wire, Floor, NO.3
2002-08 → 2003-07
ended
|
HDJ100 RHD 4FC | — | |
| 82163-60243 note |
Wire, Floor, NO.3
2002-08 → 2003-08
ended
|
UZJ100 RHD;HDJ100 RHD 5F | — | |
| 82163-60243 note |
Wire, Floor, NO.3
2003-07 → 2003-08
ended
|
HDJ100 RHD 5FC | — | |
| 82163-60244 note |
Wire, Floor, NO.3
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82163-60252 |
Wire, Floor, NO.3
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82163-60253 |
Wire, Floor, NO.3
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD | — | |
| 82163-60262 note |
Wire, Floor, NO.3
2002-08 → 2003-07
ended
|
HDJ100 LHD 4FC | — | |
| 82163-60262 note |
Wire, Floor, NO.3
2002-08 → 2003-08
ended
|
UZJ100 LHD;HDJ100 LHD 5F +1 | — | |
| 82163-60263 note |
Wire, Floor, NO.3
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82163-60263 note |
Wire, Floor, NO.3
2003-07 → 2003-08
ended
|
HDJ100 LHD 5FC | — | |
| 82163-60324 note |
Wire, Floor, NO.3
2002-08 → 2003-07
ended
|
HDJ100 LHD 4FC | — | |
| 82163-60324 note |
Wire, Floor, NO.3
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 LHD (5F,5FC) VX | — | |
| 82163-60325 note |
Wire, Floor, NO.3
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82163-60213 note |
Wire, Floor, NO.3
2005-05 → —
|
HDJ100,UZJ100 RHD | — | |
| 82163-60233 |
Wire, Floor, NO.3
2005-05 → —
|
HDJ100,UZJ100 RHD | — | |
| 82163-60245 note |
Wire, Floor, NO.3
2005-05 → —
|
HDJ100,UZJ100 RHD | — | |
| 82163-60253 note |
Wire, Floor, NO.3
2005-05 → —
|
HDJ100,UZJ100 LHD | — | |
| 82163-60264 |
Wire, Floor, NO.3
2005-05 → —
|
HDJ100,UZJ100 LHD | — | |
| 82163-60326 note |
Wire, Floor, NO.3
2005-05 → —
|
HDJ100,UZJ100 LHD | — | |
| 82164 — Wire, Frame | ||||
| 82164-60160 |
Wire, Frame
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 | — | |
| 82164-60170 note |
Wire, Frame
1998-01 → 1998-04
ended
|
HDJ100,UZJ100 | — | |
| 82164-60171 note |
Wire, Frame
1998-04 → 2002-08
ended
|
HDJ100,UZJ100 | — | |
| 82164-60190 note |
Wire, Frame
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82164-60200 note |
Wire, Frame
1998-01 → 1998-04
ended
|
HDJ100,UZJ100 | — | |
| 82164-60201 note |
Wire, Frame
1998-04 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82164-60160 |
Wire, Frame
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82164-60160 |
Wire, Frame
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 5F,5FC | — | |
| 82164-60171 note |
Wire, Frame
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82164-60171 note |
Wire, Frame
2002-08 → 2005-05
ended
|
HDJ100 5F | — | |
| 82164-60171 note |
Wire, Frame
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 5FC | — | |
| 82164-60191 note |
Wire, Frame
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82164-60191 note |
Wire, Frame
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82164-60202 note |
Wire, Frame
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82164-60202 note |
Wire, Frame
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82164-60160 |
Wire, Frame
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82164-60171 note |
Wire, Frame
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82164-60191 note |
Wire, Frame
2005-05 → 2006-06
ended
|
HDJ100,UZJ100 | — | |
| 82164-60192 note |
Wire, Frame
2006-07 → —
|
HDJ100,UZJ100 | — | |
| 82164-60202 note |
Wire, Frame
2005-05 → 2006-06
ended
|
HDJ100,UZJ100 | — | |
| 82164-60203 note |
Wire, Frame
2006-07 → —
|
HDJ100,UZJ100 | — | |
| 82165 — Wire, Frame, NO.2 | ||||
| 82165-60130 |
Wire, Frame, NO.2
1998-01 → 1999-07
ended
|
HDJ100,UZJ100 | — | |
| 82165-60131 |
Wire, Frame, NO.2
1999-07 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82165-60131 |
Wire, Frame, NO.2
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82165-60131 |
Wire, Frame, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82169 — Wire Frame, NO.3 | ||||
| 82169-60040 |
Wire Frame, NO.3
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82169-60040 |
Wire Frame, NO.3
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82169-60040 |
Wire Frame, NO.3
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-60540 |
Wire, Roof, NO.1
1998-01 → 2000-08
ended
|
HDJ100,UZJ100 | — | |
| 82171-60541 |
Wire, Roof, NO.1
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82171-60620 note |
Wire, Roof, NO.1
1998-01 → 2000-08
ended
|
HDJ100,UZJ100 | — | |
| 82171-60621 note |
Wire, Roof, NO.1
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82171-60701 |
Wire, Roof, NO.1
2000-08 → 2002-08
ended
|
HDJ100 STD | — | |
| 82171-60542 |
Wire, Roof, NO.1
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82171-60702 |
Wire, Roof, NO.1
2002-08 → 2005-05
ended
|
HDJ100 STD | — | |
| 82171-6A270 note |
Wire, Roof, NO.1
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82171-60542 |
Wire, Roof, NO.1
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82171-6A270 note |
Wire, Roof, NO.1
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82172 — Wire, Roof, NO.2 | ||||
| 82172-60110 |
Wire, Roof, NO.2
2000-01 → 2002-08
ended
|
UZJ100 LHD | — | |
| 82172-60110 |
Wire, Roof, NO.2
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82172-60110 |
Wire, Roof, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82181 — Wire, Luggage Room, NO.1 | ||||
| 82181-60090 |
Wire, Luggage Room, NO.1
1998-01 → 1998-07
ended
|
HDJ100,UZJ100 | — | |
| 82184 — Wire, Back Door, NO.1 | ||||
| 82184-60201 |
Wire, Back Door, NO.1
2002-01 → 2002-08
ended
|
HDJ100 STD | — | |
| 82184-60211 |
Wire, Back Door, NO.1
2000-08 → 2002-01
ended
|
HDJ100 STD | — | |
| 82184-60202 |
Wire, Back Door, NO.1
2002-08 → 2005-05
ended
|
HDJ100 STD | — | |
| 82185 — Wire, Back Door, NO.2 | ||||
| 82185-60080 |
Wire, Back Door, NO.2
2000-08 → 2002-08
ended
|
HDJ100 STD | — | |
| 82185-60081 |
Wire, Back Door, NO.2
2002-08 → 2005-05
ended
|
HDJ100 STD | — | |
| 82186 — Wire, Rear Window, NO.1 | ||||
| 82186-60040 |
Wire, Rear Window, NO.1
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82186-60040 |
Wire, Rear Window, NO.1
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82186-60040 |
Wire, Rear Window, NO.1
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 | — | |
| 82188B — Wire, Back Door, Upper | ||||
| 82188-60050 |
Wire, Back Door, Upper
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82188-60051 |
Wire, Back Door, Upper
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82188-60052 |
Wire, Back Door, Upper
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82188-60070 note |
Wire, Back Door, Upper
2003-07 → 2005-05
ended
|
HDJ100 5FC | — | |
| 82188-60052 |
Wire, Back Door, Upper
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82188-60070 note |
Wire, Back Door, Upper
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82189A — Wire, Back Door, Lower | ||||
| 82189-60030 |
Wire, Back Door, Lower
1998-01 → 1998-12
ended
|
HDJ100,UZJ100 | — | |
| 82189-60031 |
Wire, Back Door, Lower
1998-12 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82189-60032 |
Wire, Back Door, Lower
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82189-60032 |
Wire, Back Door, Lower
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82413A — Wire, Fuel Tank | ||||
| 82413-60010 |
Wire, Fuel Tank
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 | — | |
| 82413-60011 |
Wire, Fuel Tank
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 82413-60011 |
Wire, Fuel Tank
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-60060 note |
Holder, Connector NO.2
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82666-60070 note |
Holder, Connector NO.2
1998-01 → 1998-03
ended
|
HDJ100,UZJ100 | — | |
| 82666-60160 note |
Holder, Connector NO.2
1998-03 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82666-60060 note |
Holder, Connector NO.2
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82666-60160 note |
Holder, Connector NO.2
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82666-60060 note |
Holder, Connector NO.2
2005-05 → 2006-06
ended
|
HDJ100,UZJ100 | — | |
| 82666-60060 note |
Holder, Connector NO.2
2006-07 → —
|
HDJ100,UZJ100 | — | |
| 82666-60160 note |
Holder, Connector NO.2
2005-05 → 2006-06
ended
|
HDJ100,UZJ100 | — | |
| 82666-60160 note |
Holder, Connector NO.2
2006-07 → —
|
HDJ100,UZJ100 | — | |
| 82666D — Holder, Connector NO.5 | ||||
| 82666-60100 note |
Holder, Connector NO.5
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 | — | |
| 82666-60110 note |
Holder, Connector NO.5
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 | — | |
| 82666-60030 note |
Holder, Connector NO.5
2003-03 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82666-60030 note |
Holder, Connector NO.5
2002-08 → 2005-05
ended
|
HDJ100 5FC;HDJ100 LHD 5F | — | |
| 82666-60030 note |
Holder, Connector NO.5
2003-03 → 2005-05
ended
|
UZJ100;HDJ100 RHD 5F | — | |
| 82666-60270 note |
Holder, Connector NO.5
2003-03 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82666-60270 note |
Holder, Connector NO.5
2002-08 → 2005-05
ended
|
HDJ100 5FC;HDJ100 LHD 5F | — | |
| 82666-60270 note |
Holder, Connector NO.5
2003-03 → 2005-05
ended
|
UZJ100;HDJ100 RHD 5F | — | |
| 82666-60030 note |
Holder, Connector NO.5
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82666-60270 note |
Holder, Connector NO.5
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82666E — Holder, Connector NO.6 | ||||
| 82666-60060 note |
Holder, Connector NO.6
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82666-60060 note |
Holder, Connector NO.6
2000-08 → 2002-08
ended
|
HDJ100 STD | — | |
| 82666-60070 note |
Holder, Connector NO.6
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 | — | |
| 82666-60070 note |
Holder, Connector NO.6
2000-01 → 2002-08
ended
|
UZJ100 LHD | — | |
| 82666-60060 |
Holder, Connector NO.6
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 (5F,5FC) VX | — | |
| 82666-60060 note |
Holder, Connector NO.6
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 82666-60060 note |
Holder, Connector NO.6
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 5F,5FC | — | |
| 82666-60060 note |
Holder, Connector NO.6
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 82666-60070 note |
Holder, Connector NO.6
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82666-60070 note |
Holder, Connector NO.6
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD | — | |
| 82666-60070 note |
Holder, Connector NO.6
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82666-60310 note |
Holder, Connector NO.6
2003-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD | — | |
| 82666-60060 note |
Holder, Connector NO.6
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82666-60070 note |
Holder, Connector NO.6
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82666-60310 note |
Holder, Connector NO.6
2005-05 → —
|
HDJ100,UZJ100 LHD | — | |
| 82666F — Holder, Connector NO.7 | ||||
| 82666-22070 |
Holder, Connector NO.7
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-60440 |
Protector, Wiring Harness, NO.2
2000-10 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82817-60440 |
Protector, Wiring Harness, NO.2
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82817-60440 |
Protector, Wiring Harness, NO.2
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-60450 |
Protector, Wiring Harness, NO.3
2000-10 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82817-60450 |
Protector, Wiring Harness, NO.3
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82817-60450 |
Protector, Wiring Harness, NO.3
2005-05 → —
|
HDJ100,UZJ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
