Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

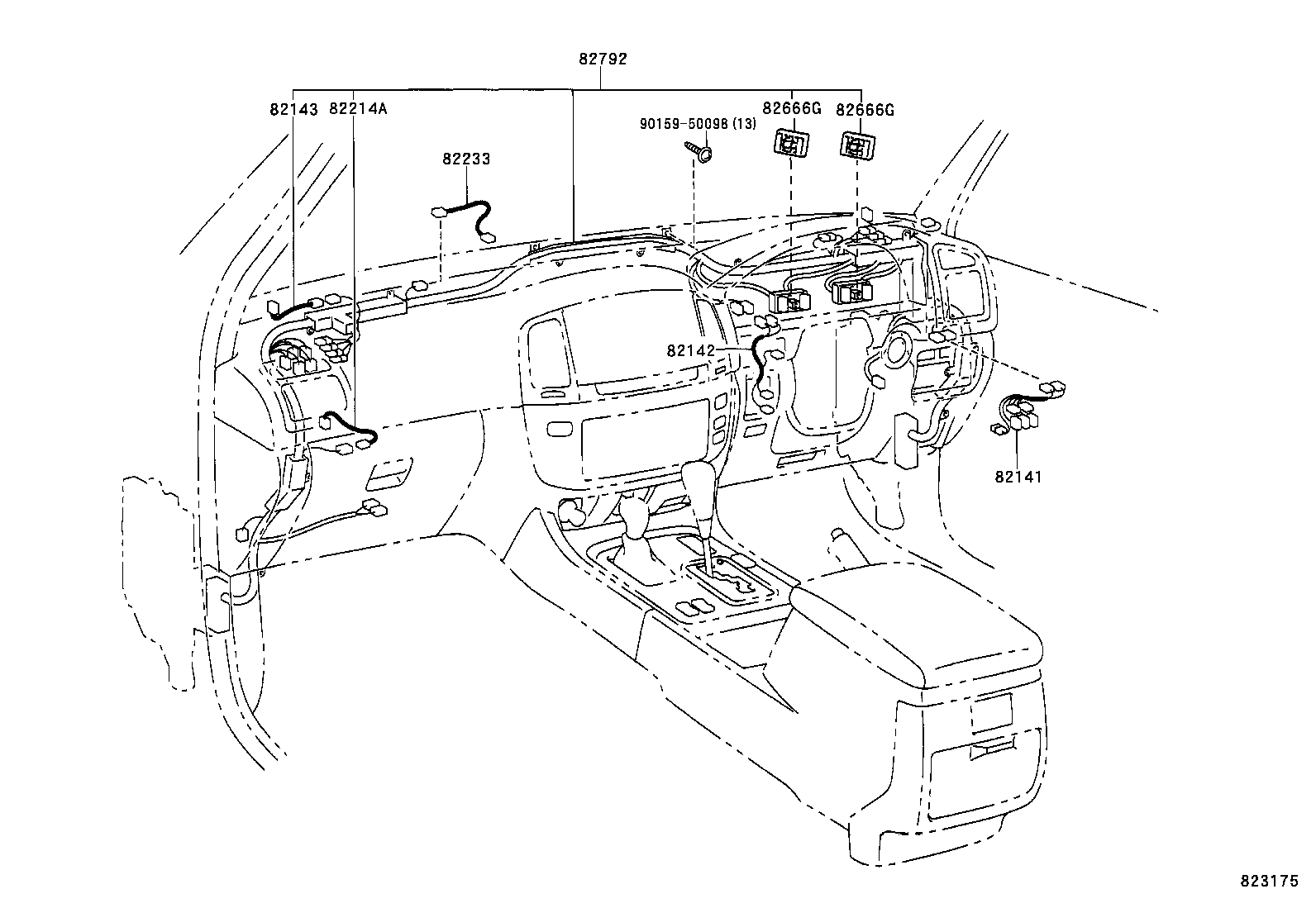

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-60250 |
Wire, Instrument Panel
1998-01 → 2000-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82141-60251 |
Wire, Instrument Panel
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82141-60270 |
Wire, Instrument Panel
1998-01 → 2000-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82141-60271 |
Wire, Instrument Panel
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82141-60342 |
Wire, Instrument Panel
2000-08 → 2001-08
ended
|
HDJ100 STD | — | |
| 82141-60343 |
Wire, Instrument Panel
2001-08 → 2002-08
ended
|
HDJ100 STD | — | |
| 82141-60360 note |
Wire, Instrument Panel
1998-01 → 2000-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82141-60361 note |
Wire, Instrument Panel
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82141-60370 note |
Wire, Instrument Panel
1998-01 → 2000-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82141-60371 note |
Wire, Instrument Panel
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82141-60390 note |
Wire, Instrument Panel
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82141-60400 note |
Wire, Instrument Panel
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 RHD 4FC | — | |
| 82141-60252 |
Wire, Instrument Panel
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82141-60272 |
Wire, Instrument Panel
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82141-60344 |
Wire, Instrument Panel
2002-08 → 2005-05
ended
|
HDJ100 STD | — | |
| 82141-60362 note |
Wire, Instrument Panel
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82141-60372 note |
Wire, Instrument Panel
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82141-60253 |
Wire, Instrument Panel
2005-05 → —
|
HDJ100,UZJ100 RHD | — | |
| 82141-60272 |
Wire, Instrument Panel
2005-05 → —
|
HDJ100,UZJ100 LHD | — | |
| 82141-60363 note |
Wire, Instrument Panel
2005-05 → —
|
HDJ100,UZJ100 RHD | — | |
| 82141-60372 note |
Wire, Instrument Panel
2005-05 → —
|
HDJ100,UZJ100 LHD | — | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-60050 |
Wire, Instrument Panel, NO.2
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82142-60061 note |
Wire, Instrument Panel, NO.2
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 RHD 4FC | — | |
| 82142-60130 |
Wire, Instrument Panel, NO.2
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82142-60130 |
Wire, Instrument Panel, NO.2
2005-05 → —
|
HDJ100,UZJ100 RHD | — | |
| 82143 — Wire, Instrument Panel, NO.3 | ||||
| 82143-60091 |
Wire, Instrument Panel, NO.3
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD 5FC | — | |
| 82143-60091 |
Wire, Instrument Panel, NO.3
2003-08 → 2005-05
ended
|
HDJ100 LHD 5F;HDJ100,UZJ100 RHD | — | |
| 82143-60091 |
Wire, Instrument Panel, NO.3
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82214A — Wire, Lamp | ||||
| 82214-60030 |
Wire, Lamp
1998-01 → 1999-07
ended
|
HDJ100,UZJ100 | — | |
| 82214-60030 |
Wire, Lamp
1999-07 → 1999-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82214-60030 |
Wire, Lamp
1999-08 → 2002-08
ended
|
UZJ100;HDJ100 RHD;HDJ100 STD | — | |
| 82214-60030 |
Wire, Lamp
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD 5FC | — | |
| 82214-60030 |
Wire, Lamp
2003-08 → 2005-05
ended
|
HDJ100 LHD 5F;HDJ100,UZJ100 RHD | — | |
| 82214-60030 |
Wire, Lamp
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82233 — Wire, Computer | ||||
| 82233-60011 |
Wire, Computer
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 82233-60011 |
Wire, Computer
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82666G — Holder, Connector NO.8 | ||||
| 82666-60050 |
Holder, Connector NO.8
1999-07 → 1999-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82666-60050 |
Holder, Connector NO.8
1999-08 → 2002-08
ended
|
UZJ100;HDJ100 RHD;HDJ100 STD | — | |
| 82666-60050 |
Holder, Connector NO.8
1998-01 → 1999-07
ended
|
HDJ100,UZJ100 | — | |
| 82666-60050 |
Holder, Connector NO.8
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 82666-60050 |
Holder, Connector NO.8
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 82792 — Wire, Instrument Panel Integration | ||||
| 82792-60020 |
Wire, Instrument Panel Integration
1998-01 → 1998-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82792-60021 |
Wire, Instrument Panel Integration
1998-08 → 1999-07
ended
|
HDJ100,UZJ100 RHD | — | |
| 82792-60060 |
Wire, Instrument Panel Integration
1998-01 → 1998-04
ended
|
HDJ100,UZJ100 LHD | — | |
| 82792-60061 |
Wire, Instrument Panel Integration
1998-04 → 1999-07
ended
|
HDJ100,UZJ100 LHD | — | |
| 82792-60100 |
Wire, Instrument Panel Integration
1999-07 → 2000-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82792-60101 |
Wire, Instrument Panel Integration
2000-08 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82792-60120 |
Wire, Instrument Panel Integration
1999-07 → 2000-01
ended
|
HDJ100,UZJ100 LHD | — | |
| 82792-60121 |
Wire, Instrument Panel Integration
2000-01 → 2000-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82792-60122 |
Wire, Instrument Panel Integration
2000-08 → 2001-07
ended
|
HDJ100,UZJ100 LHD | — | |
| 82792-60123 |
Wire, Instrument Panel Integration
2001-07 → 2002-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82792-60024 |
Wire, Instrument Panel Integration
2002-08 → 2003-07
ended
|
HDJ100 RHD 4FC | — | |
| 82792-60024 |
Wire, Instrument Panel Integration
2002-08 → 2003-08
ended
|
HDJ100 RHD 5F | — | |
| 82792-60063 note |
Wire, Instrument Panel Integration
2002-08 → 2003-08
ended
|
HDJ100 STD | — | |
| 82792-60063 |
Wire, Instrument Panel Integration
2002-08 → 2003-07
ended
|
HDJ100 LHD 4FC | — | |
| 82792-60063 |
Wire, Instrument Panel Integration
2002-08 → 2003-08
ended
|
HDJ100 LHD 5F VX | — | |
| 82792-60102 |
Wire, Instrument Panel Integration
2002-08 → 2003-08
ended
|
HDJ100,UZJ100 RHD 5FC | — | |
| 82792-60103 |
Wire, Instrument Panel Integration
2003-08 → 2004-07
ended
|
HDJ100,UZJ100 RHD | — | |
| 82792-60104 |
Wire, Instrument Panel Integration
2004-07 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82792-60124 |
Wire, Instrument Panel Integration
2002-08 → 2003-04
ended
|
UZJ100 LHD | — | |
| 82792-60125 |
Wire, Instrument Panel Integration
2003-04 → 2004-07
ended
|
UZJ100 LHD | — | |
| 82792-60125 note |
Wire, Instrument Panel Integration
2003-07 → 2004-07
ended
|
HDJ100 LHD 5FC | — | |
| 82792-60125 note |
Wire, Instrument Panel Integration
2003-08 → 2004-07
ended
|
HDJ100 LHD 5F | — | |
| 82792-60126 note |
Wire, Instrument Panel Integration
2004-07 → 2005-05
ended
|
HDJ100,UZJ100 LHD | — | |
| 82792-60160 |
Wire, Instrument Panel Integration
2002-08 → 2003-08
ended
|
HDJ100 STD | — | |
| 82792-60260 |
Wire, Instrument Panel Integration
2003-08 → 2004-07
ended
|
HDJ100 STD | — | |
| 82792-60261 |
Wire, Instrument Panel Integration
2004-07 → 2005-05
ended
|
HDJ100 STD | — | |
| 82792-60104 |
Wire, Instrument Panel Integration
2005-05 → —
|
HDJ100,UZJ100 RHD | — | |
| 82792-60126 |
Wire, Instrument Panel Integration
2005-05 → 2006-09
ended
|
HDJ100,UZJ100 LHD | — | |
| 82792-60127 |
Wire, Instrument Panel Integration
2006-09 → —
|
HDJ100,UZJ100 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
