Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

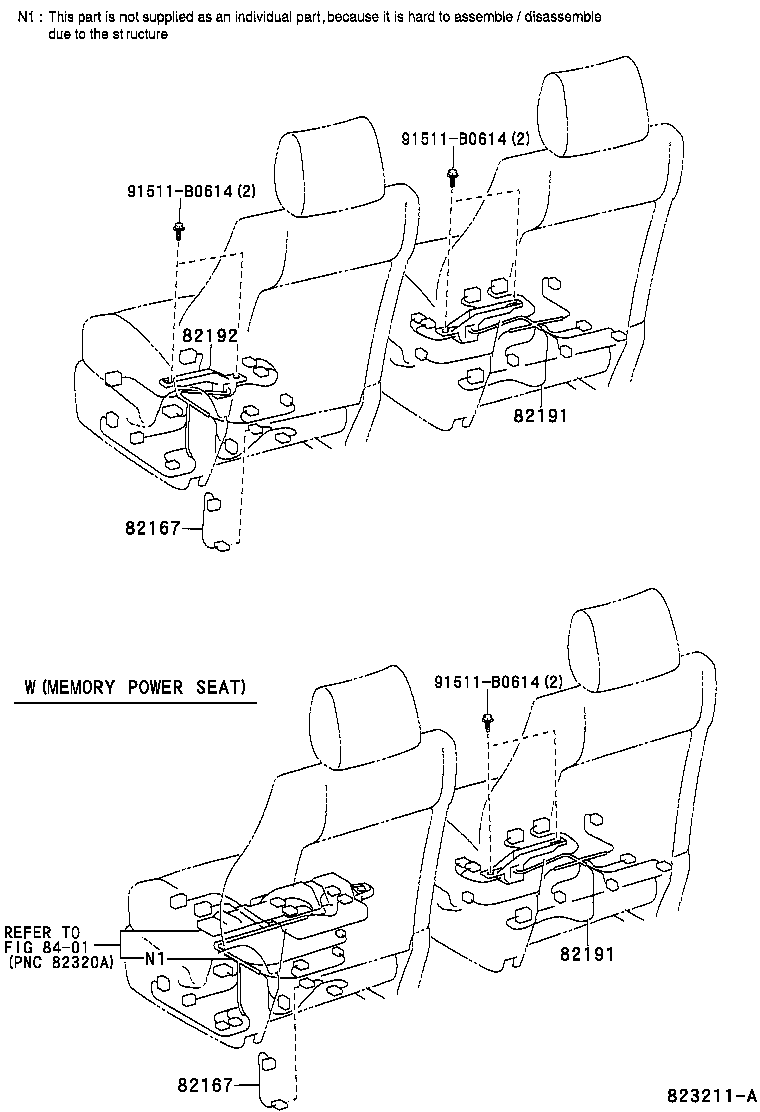

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82167 — Wire, Seat, NO.1 | ||||
| 82167-60120 |
Wire, Seat, NO.1
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 82167-60121 |
Wire, Seat, NO.1
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 82167-60121 |
Wire, Seat, NO.1
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 | — | |
| 82191 — Wire, Front Seat, RH | ||||
| 82191-60010 note |
Wire, Front Seat, RH
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82191-60020 |
Wire, Front Seat, RH
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82191-60030 |
Wire, Front Seat, RH
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82191-60050 note |
Wire, Front Seat, RH
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82191-60060 note |
Wire, Front Seat, RH
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82191-60011 note |
Wire, Front Seat, RH
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82191-60021 |
Wire, Front Seat, RH
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD | — | |
| 82191-60031 |
Wire, Front Seat, RH
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82191-60061 note |
Wire, Front Seat, RH
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82191-60011 note |
Wire, Front Seat, RH
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82191-60021 |
Wire, Front Seat, RH
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82191-60031 |
Wire, Front Seat, RH
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82191-60061 note |
Wire, Front Seat, RH
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82192 — Wire, Front Seat, LH | ||||
| 82192-60010 note |
Wire, Front Seat, LH
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82192-60020 |
Wire, Front Seat, LH
2000-08 → 2002-08
ended
|
HDJ100 STD | — | |
| 82192-60030 |
Wire, Front Seat, LH
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82192-60050 note |
Wire, Front Seat, LH
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82192-60060 |
Wire, Front Seat, LH
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82192-60011 note |
Wire, Front Seat, LH
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82192-60021 |
Wire, Front Seat, LH
2002-08 → 2005-05
ended
|
HDJ100 STD | — | |
| 82192-60031 |
Wire, Front Seat, LH
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 LHD VX | — | |
| 82192-60061 note |
Wire, Front Seat, LH
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 RHD | — | |
| 82192-60011 note |
Wire, Front Seat, LH
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 RHD | — | |
| 82192-60031 |
Wire, Front Seat, LH
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 LHD | — | |
| 82192-60061 |
Wire, Front Seat, LH
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
