Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

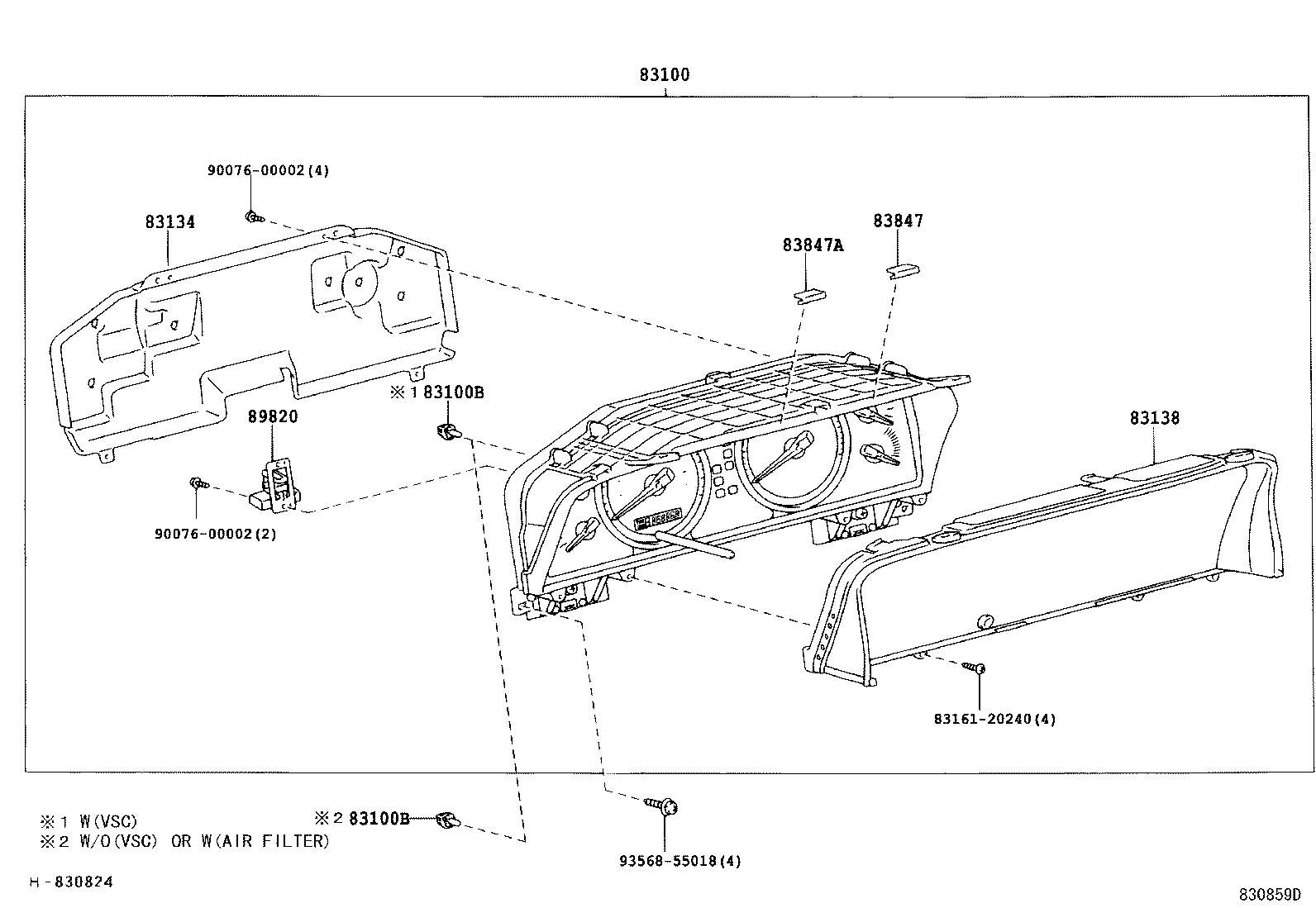

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-60A70 note |
Meter Assy, Combination
2003-08 → 2005-05
ended
|
HDJ100 RHD 5FC | — | |
| 83800-60A80 note |
Meter Assy, Combination
2003-08 → 2005-05
ended
|
HDJ100 RHD 5FC | — | |
| 83800-60A90 note |
Meter Assy, Combination
2003-08 → 2004-07
ended
|
HDJ100 5F VX | — | |
| 83800-60A91 |
Meter Assy, Combination
2004-07 → 2005-05
ended
|
HDJ100 5F VX | — | |
| 83800-60B00 note |
Meter Assy, Combination
2003-08 → 2005-05
ended
|
HDJ100 RHD 5F | — | |
| 83800-60B10 note |
Meter Assy, Combination
2003-08 → 2005-05
ended
|
HDJ100 RHD 5FC | — | |
| 83800-60B20 note |
Meter Assy, Combination
2003-08 → 2005-05
ended
|
HDJ100 RHD 5FC | — | |
| 83800-60B30 note |
Meter Assy, Combination
2003-07 → 2004-07
ended
|
HDJ100 LHD 5FC | — | |
| 83800-60B31 note |
Meter Assy, Combination
2004-07 → 2005-05
ended
|
HDJ100 LHD 5FC | — | |
| 83800-60B40 |
Meter Assy, Combination
2003-07 → 2004-07
ended
|
HDJ100 LHD 5FC | — | |
| 83800-60B41 |
Meter Assy, Combination
2004-07 → 2005-05
ended
|
HDJ100 LHD 5FC | — | |
| 83800-60B70 |
Meter Assy, Combination
2003-08 → 2005-05
ended
|
HDJ100 STD | — | |
| 83800-6D740 note |
Meter Assy, Combination
2002-08 → 2003-09
ended
|
UZJ100 RHD | — | |
| 83800-6D741 note |
Meter Assy, Combination
2003-09 → 2005-05
ended
|
UZJ100 RHD | — | |
| 83800-6D750 note |
Meter Assy, Combination
2002-08 → 2003-08
ended
|
UZJ100 RHD | — | |
| 83800-6D760 note |
Meter Assy, Combination
2002-08 → 2003-09
ended
|
UZJ100 LHD | — | |
| 83800-6D761 note |
Meter Assy, Combination
2003-09 → 2004-07
ended
|
UZJ100 LHD | — | |
| 83800-6D762 note |
Meter Assy, Combination
2004-07 → 2005-05
ended
|
UZJ100 LHD | — | |
| 83800-6D770 note |
Meter Assy, Combination
2002-08 → 2003-09
ended
|
UZJ100 LHD | — | |
| 83800-6D771 note |
Meter Assy, Combination
2003-09 → 2004-07
ended
|
UZJ100 LHD | — | |
| 83800-6D772 note |
Meter Assy, Combination
2004-07 → 2005-05
ended
|
UZJ100 LHD | — | |
| 83800-6D780 |
Meter Assy, Combination
2002-08 → 2005-05
ended
|
UZJ100 RHD | — | |
| 83800-6D790 note |
Meter Assy, Combination
2002-08 → 2005-05
ended
|
UZJ100 RHD | — | |
| 83800-6D800 note |
Meter Assy, Combination
2002-08 → 2003-07
ended
|
UZJ100 LHD | — | |
| 83800-6D810 |
Meter Assy, Combination
2002-08 → 2003-08
ended
|
UZJ100 LHD | — | |
| 83800-6D830 note |
Meter Assy, Combination
2002-08 → 2003-07
ended
|
HDJ100 RHD 4FC | — | |
| 83800-6D840 note |
Meter Assy, Combination
2002-08 → 2003-07
ended
|
HDJ100 4FC | — | |
| 83800-6D850 note |
Meter Assy, Combination
2002-08 → 2003-08
ended
|
HDJ100 RHD 5F | — | |
| 83800-6D860 note |
Meter Assy, Combination
2002-08 → 2003-08
ended
|
HDJ100 5F VX | — | |
| 83800-6E300 |
Meter Assy, Combination
2002-08 → 2003-08
ended
|
HDJ100 STD | — | |
| 83800-60A70 note |
Meter Assy, Combination
2005-05 → —
|
HDJ100 RHD 5FC | — | |
| 83800-60A80 note |
Meter Assy, Combination
2005-05 → —
|
HDJ100 RHD 5FC | — | |
| 83800-60A91 note |
Meter Assy, Combination
2005-05 → —
|
HDJ100 RHD 5F | — | |
| 83800-60A91 |
Meter Assy, Combination
2005-05 → —
|
HDJ100 LHD 5F | — | |
| 83800-60B00 |
Meter Assy, Combination
2005-05 → —
|
HDJ100 RHD 5F | — | |
| 83800-60B10 note |
Meter Assy, Combination
2005-05 → —
|
HDJ100 RHD 5FC | — | |
| 83800-60B20 |
Meter Assy, Combination
2005-05 → —
|
HDJ100 RHD 5FC | — | |
| 83800-60B31 note |
Meter Assy, Combination
2005-05 → —
|
HDJ100 LHD 5FC | — | |
| 83800-60B41 |
Meter Assy, Combination
2005-05 → —
|
HDJ100 LHD 5FC | — | |
| 83800-6D741 |
Meter Assy, Combination
2005-05 → —
|
UZJ100 RHD | — | |
| 83800-6D762 note |
Meter Assy, Combination
2005-05 → —
|
UZJ100 LHD | — | |
| 83800-6D772 |
Meter Assy, Combination
2005-05 → —
|
UZJ100 LHD | — | |
| 83800-6D780 note |
Meter Assy, Combination
2005-05 → —
|
UZJ100 RHD | — | |
| 83800-6D790 note |
Meter Assy, Combination
2005-05 → —
|
UZJ100 RHD | — | |
| 83100B — Bulb, Combination Meter, NO.1 | ||||
| 83120-60020 note |
Bulb, Combination Meter, NO.1
1999-07 → 2002-08
ended
|
HDJ100 | — | |
| 83120-60020 note |
Bulb, Combination Meter, NO.1
1998-01 → 1999-07
ended
|
HDJ100,UZJ100 | — | |
| 90010-06028 note |
Bulb, Combination Meter, NO.1
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 4FC;HDJ100 LHD 5F +1 | — | |
| 90010-06029 note |
Bulb, Combination Meter, NO.1
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 | — | |
| 90010-06031 note |
Bulb, Combination Meter, NO.1
1999-07 → 2002-08
ended
|
UZJ100;HDJ100 RHD;HDJ100 LHD 5F | — | |
| 90010-06032 note |
Bulb, Combination Meter, NO.1
1998-01 → 1999-07
ended
|
HDJ100,UZJ100 | — | |
| 90010-06032 note |
Bulb, Combination Meter, NO.1
1999-07 → 1999-08
ended
|
HDJ100 LHD 4FC | — | |
| 90010-06033 note |
Bulb, Combination Meter, NO.1
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 4FC;HDJ100 LHD 5F +1 | — | |
| 90076-04003 note |
Bulb, Combination Meter, NO.1
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 VX | — | |
| 90010-06032 note |
Bulb, Combination Meter, NO.1
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 90010-06032 note |
Bulb, Combination Meter, NO.1
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 83134 — Cover, Combination Meter, NO.1 | ||||
| 83821-6A840 |
Cover, Combination Meter, NO.1
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 4FC | — | |
| 83821-6A850 note |
Cover, Combination Meter, NO.1
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 4FC;HDJ100 LHD 5F +1 | — | |
| 83821-6A870 |
Cover, Combination Meter, NO.1
1998-01 → 2002-08
ended
|
HDJ100 5F | — | |
| 83821-6D870 |
Cover, Combination Meter, NO.1
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 83821-6D870 |
Cover, Combination Meter, NO.1
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 83138 — Glass, Speedometer | ||||
| 83852-6A840 |
Glass, Speedometer
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 | — | |
| 83852-6A850 note |
Glass, Speedometer
2000-08 → 2001-08
ended
|
HDJ100,UZJ100 4FC;HDJ100 LHD 5F +1 | — | |
| 83852-6D660 |
Glass, Speedometer
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 VX | — | |
| 83852-6D870 |
Glass, Speedometer
2002-08 → 2005-05
ended
|
HDJ100 STD | — | |
| 83852-6D660 |
Glass, Speedometer
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 83847 — Cushion, Combination Speedometer, NO.1 | ||||
| 83847-6D870 |
Cushion, Combination Speedometer, NO.1
2002-08 → 2004-06
ended
|
HDJ100 LHD 5FC | — | |
| 83847-6D870 |
Cushion, Combination Speedometer, NO.1
2003-08 → 2004-06
ended
|
HDJ100 LHD 5F VX | — | |
| 83847-6D870 |
Cushion, Combination Speedometer, NO.1
2002-08 → 2005-05
ended
|
UZJ100 RHD | — | |
| 83847-6D870 |
Cushion, Combination Speedometer, NO.1
2003-08 → 2005-05
ended
|
HDJ100 RHD;HDJ100 STD | — | |
| 83847-6D870 |
Cushion, Combination Speedometer, NO.1
2003-09 → 2005-05
ended
|
UZJ100 LHD | — | |
| 83847-6D870 |
Cushion, Combination Speedometer, NO.1
2004-07 → 2005-05
ended
|
HDJ100 LHD VX | — | |
| 83847-6D870 |
Cushion, Combination Speedometer, NO.1
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 83847A — Cushion, Combination Speedmeter | ||||
| 83848-6D870 |
Cushion, Combination Speedmeter
2002-08 → 2004-06
ended
|
HDJ100 LHD 5FC | — | |
| 83848-6D870 |
Cushion, Combination Speedmeter
2004-07 → 2005-05
ended
|
HDJ100 LHD VX | — | |
| 83848-6D870 |
Cushion, Combination Speedmeter
2003-09 → 2005-05
ended
|
UZJ100 LHD | — | |
| 83848-6D870 |
Cushion, Combination Speedmeter
2003-08 → 2005-05
ended
|
HDJ100 RHD;HDJ100 STD | — | |
| 83848-6D870 |
Cushion, Combination Speedmeter
2002-08 → 2005-05
ended
|
UZJ100 RHD | — | |
| 83848-6D870 |
Cushion, Combination Speedmeter
2003-08 → 2004-06
ended
|
HDJ100 LHD 5F VX | — | |
| 83848-6D870 |
Cushion, Combination Speedmeter
2005-05 → —
|
HDJ100,UZJ100 | — | |
| 89820 — Sensor Assy, Inclination | ||||
| 89820-60010 |
Sensor Assy, Inclination
1998-01 → 2002-08
ended
|
HDJ100,UZJ100 | — | |
| 89820-60030 |
Sensor Assy, Inclination
2002-08 → 2005-05
ended
|
HDJ100,UZJ100 | — | |
| 89820-60030 |
Sensor Assy, Inclination
2005-05 → 2007-08
ended
|
HDJ100,UZJ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
