Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

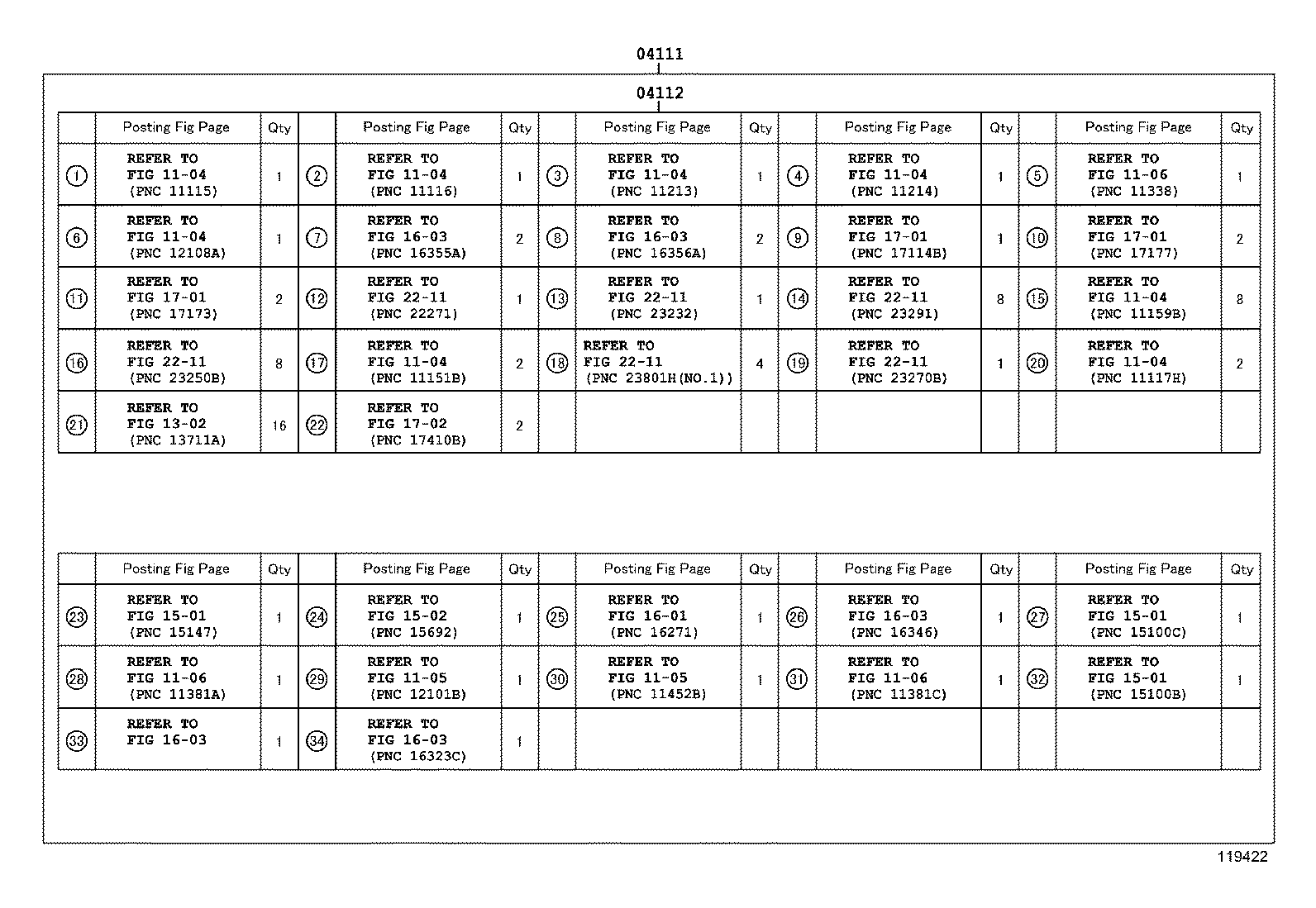

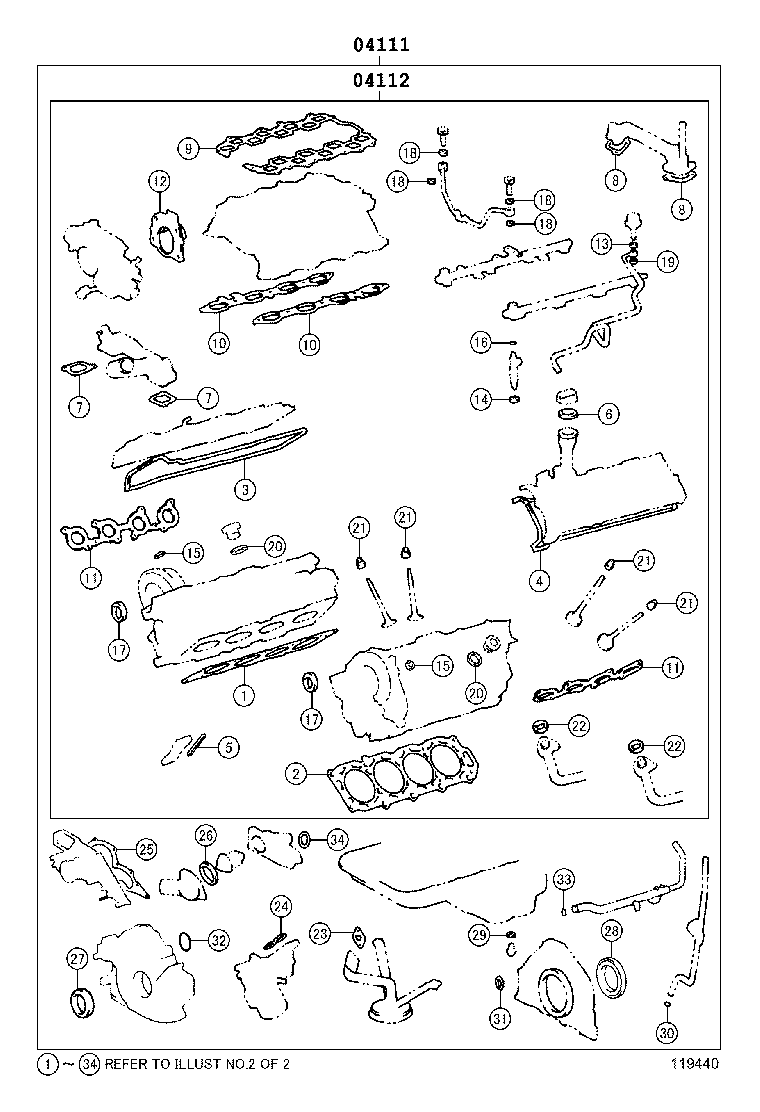

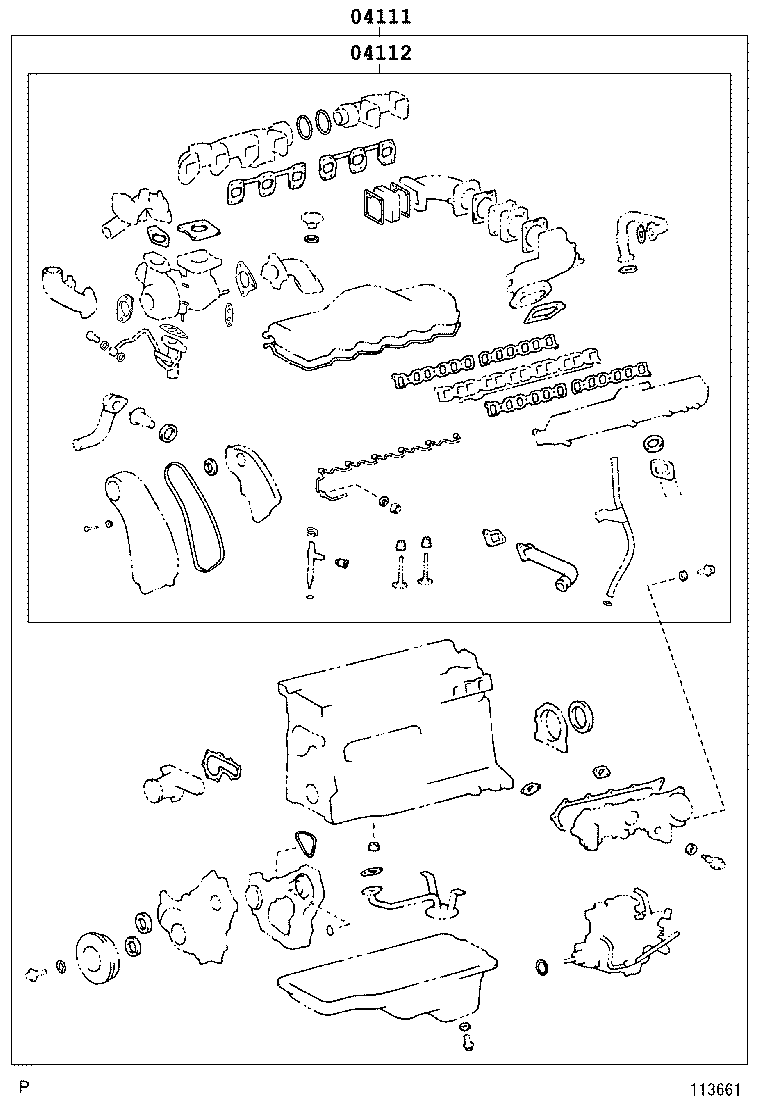

Figure 110980 110980 1998-01 → 2005-05 Figure 113661 113661 2005-05 → — Figure 119439 119439 1998-01 → 2005-05 Figure 119421 119421 1998-01 → 2005-05 Figure 119440 119440 2005-05 → — Figure 119422 119422 2005-05 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
