Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01

Camshaft & Valve

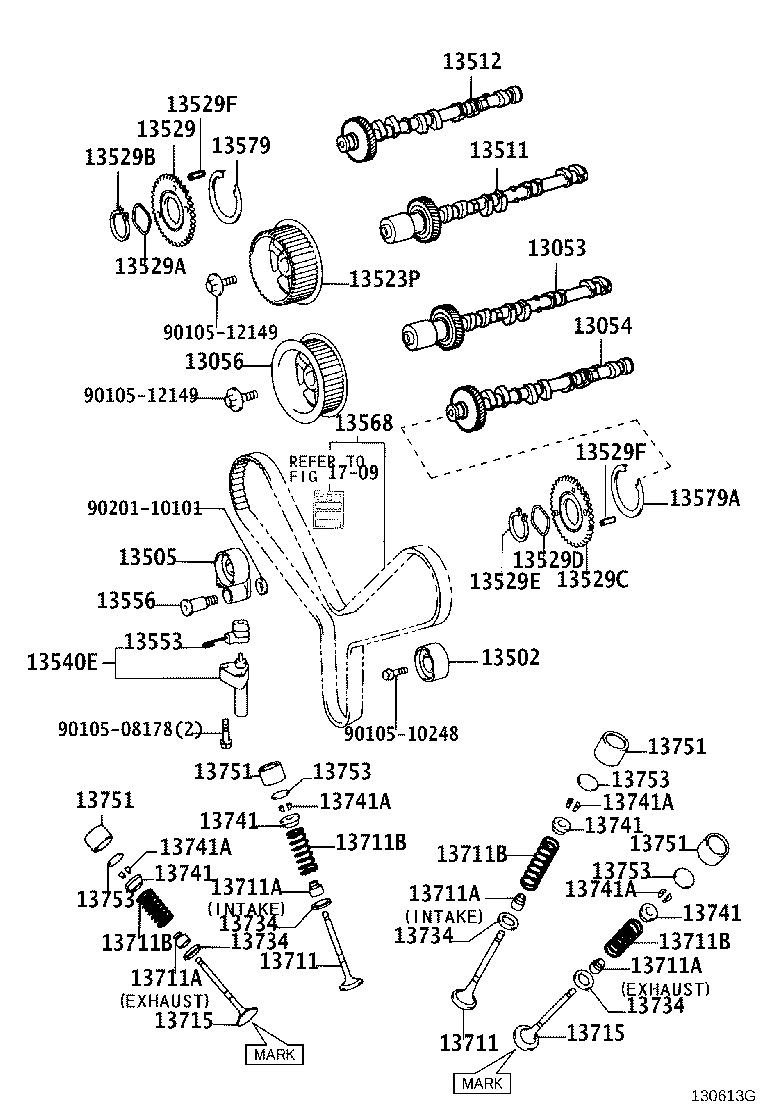

46 part groups · 2 illustrations

PNC	Description
11802	Bearing Set, Camshaft
13053	Camshaft Sub-assy, NO.3
13054	Camshaft Sub-assy, NO.4
13056	Pulley Sub-assy, Camshaft Timing, LH
13502	Idler Sub-assy, Timing Belt, NO.2
13505	Idler Sub-assy, Timing Belt, NO.1
13511	Camshaft
13512	Camshaft, NO.2
13523A	Key, Woodruff(FOR TIMING GEAR)
13523P	Pulley, Camshaft Timing
13528	Gear, Camshaft Drive
13529	Gear, Camshaft Sub
13529A	Washer, Wave(FOR CAMSHAFT SUB GEAR)
13529B	Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR)
13529C	Gear, Camshaft Sub, NO.3
13529D	Washer, Wave(FOR CAMSHAFT SUB GEAR, NO.3)
13529E	Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR, NO.3)
13529F	Pin, Straight(FOR CAMSHAFT SUB GEAR)
13540	Tensioner Assy, Chain, NO.1
13540E	Tensioner Assy, Timing Belt
13553	Cover, Chain Tensioner Dust
13556	Shaft, Timing Belt Idler
13568	Belt, Timing
13571	Plate, Camshaft Thrust
13579	Washer, Camshaft Timing Gear Bolt
13579A	Washer, Camshaft Timing Gear Bolt, NO.3
13585A	Flange, Camshaft Timing Pulley, NO.1
13586	Flange, Camshaft Timing Pulley, NO.2
13613	Gear, Injection Pump Drive
13613D	Bearing, Radial Ball
13708	Screw Sub-assy, Valve Adjusting
13711	Valve, Intake
13711A	Seal OR Ring, O(FOR VALVE STEM OIL)
13711B	Spring, Compression(FOR INNER)
13715	Valve, Exhaust
13734	Seat, Valve Spring
13741	Retainer, Valve Spring
13741A	Lock, Valve Spring Retainer
13751	Lifter, Valve
13753	Shim, Valve Adjusting
13801	Arm Sub-assy, Valve Rocker, NO.1
13801B	Nut, Hexagon(FOR VALVE ADJUSTING)
13801C	Screw, Valve Adjusting
13802	Arm Sub-assy, Valve Rocker, NO.2
13819	Bridge, Valve
13901	Shaft Sub-assy, Valve Rocker, NO.1
