Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01
Engine Oil Pump
17 part groups · 4 illustrations
Part groups

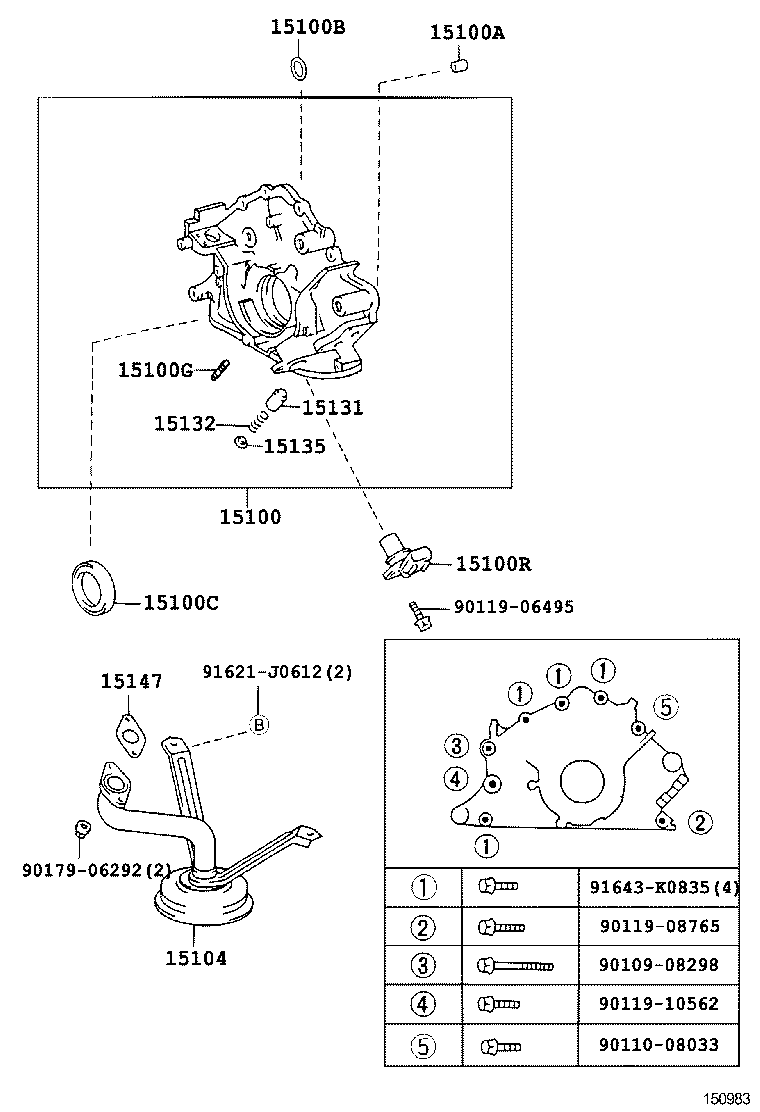

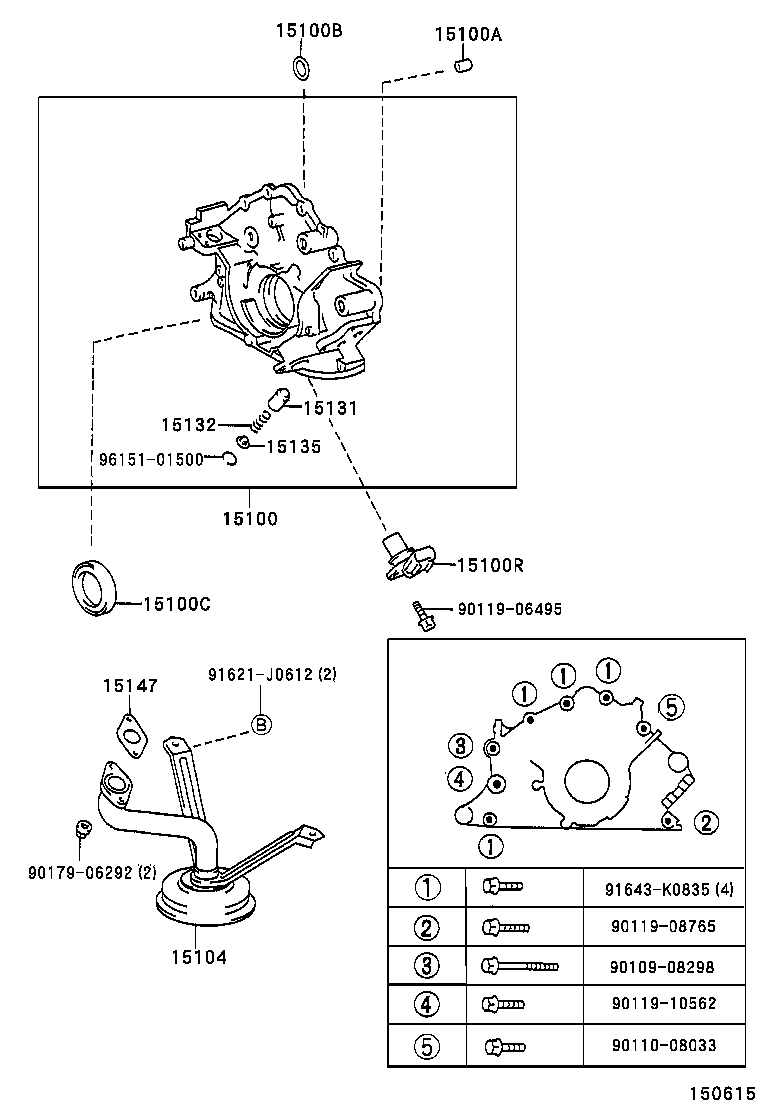

| PNC | Description |
|---|---|
| 15100 | Pump Assy, Oil |
| 15100A | Pin, Ring(FOR OIL PUMP SET) |
| 15100B | Ring, O(FOR OIL PUMP) |
| 15100C | Seal(FOR OIL PUMP) |
| 15100G | Bolt,Stud(FOR OIL PUMP) |
| 15100R | Sensor, Crank Position |
| 15103 | Gear Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15115 | Cover, Oil Pump |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15135 | Retainer, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
| 15149 | Gasket, Oil Strainer Flange |
| 15193 | Gasket, Oil Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
