Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

28 part groups · 7 illustrations

Illustrations

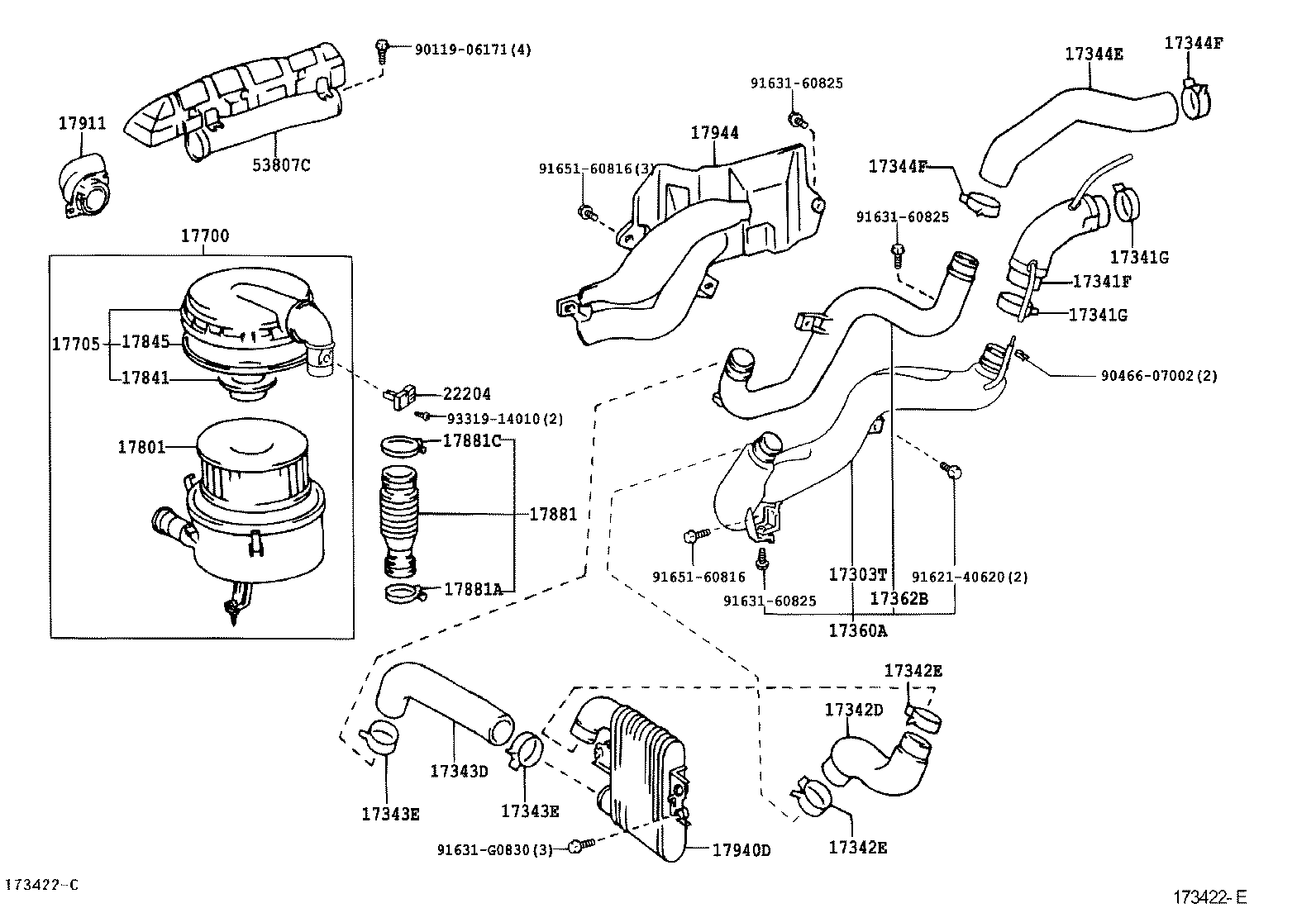

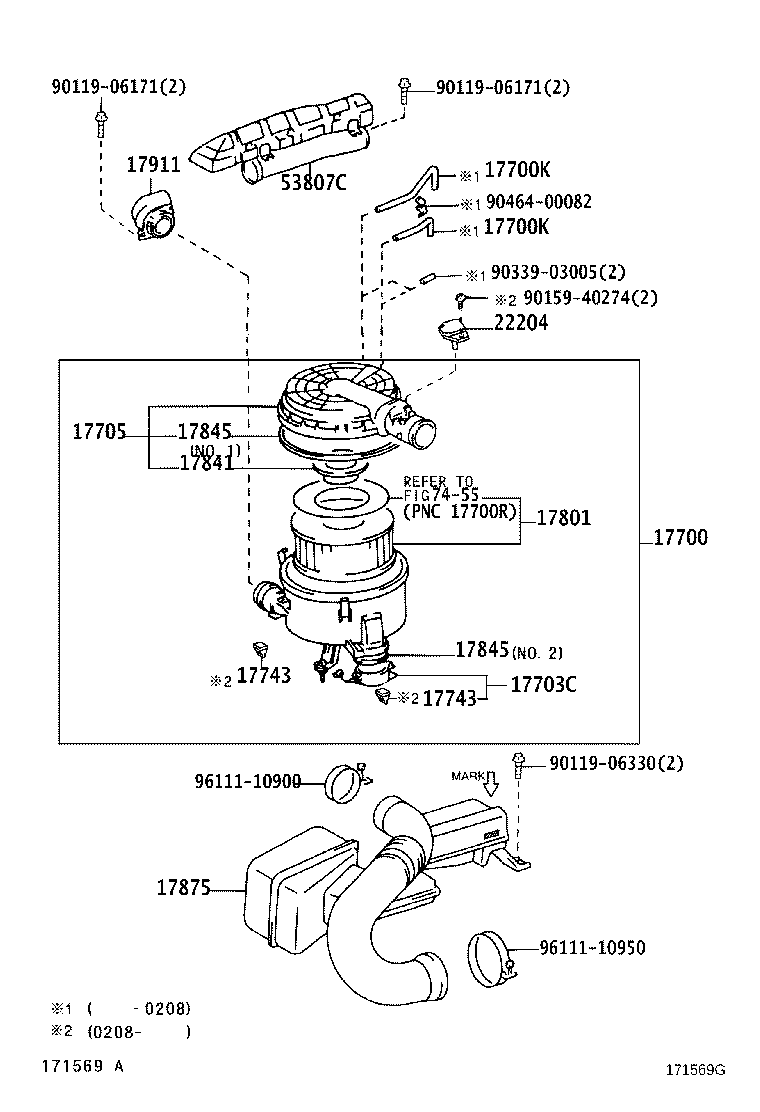

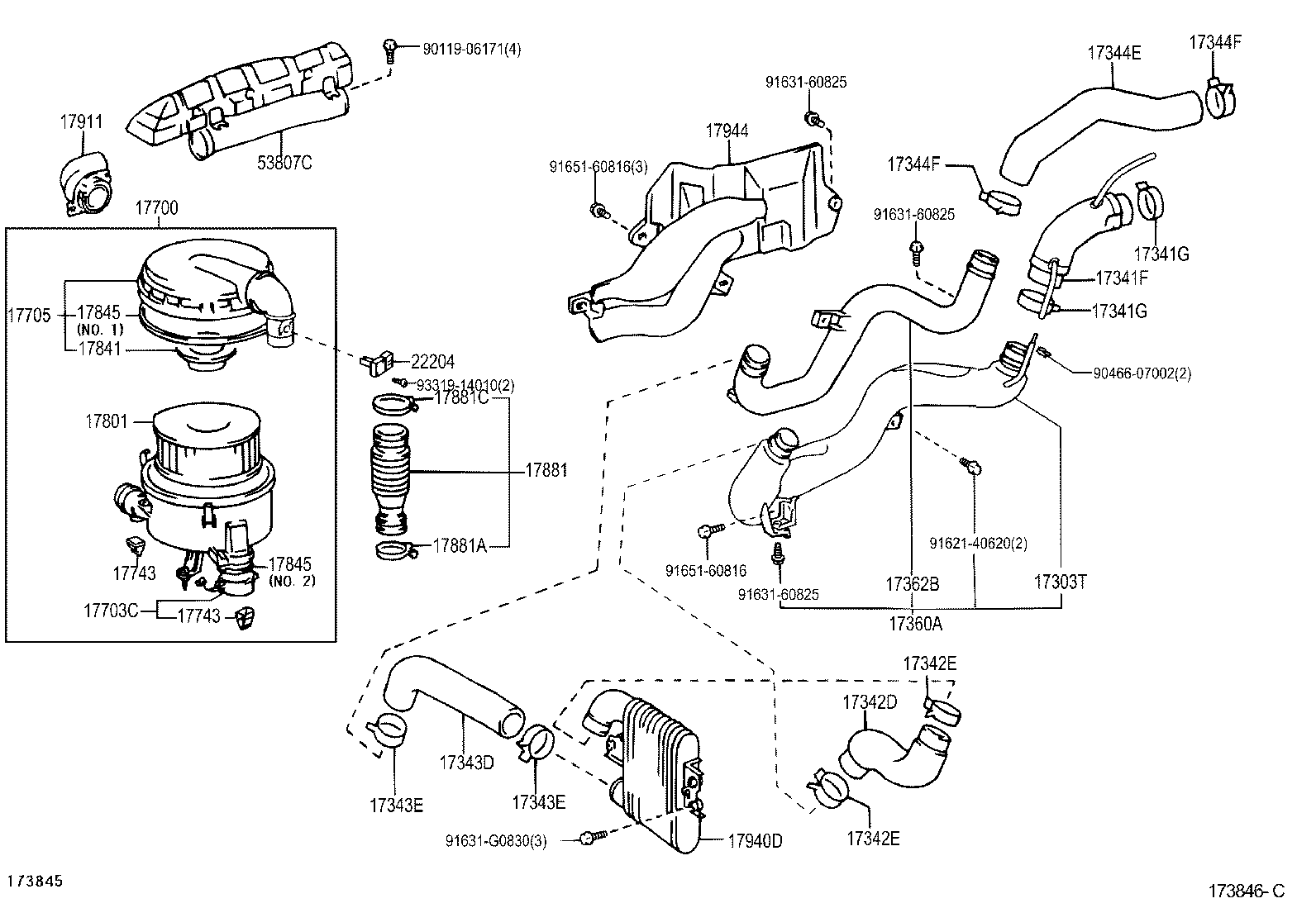

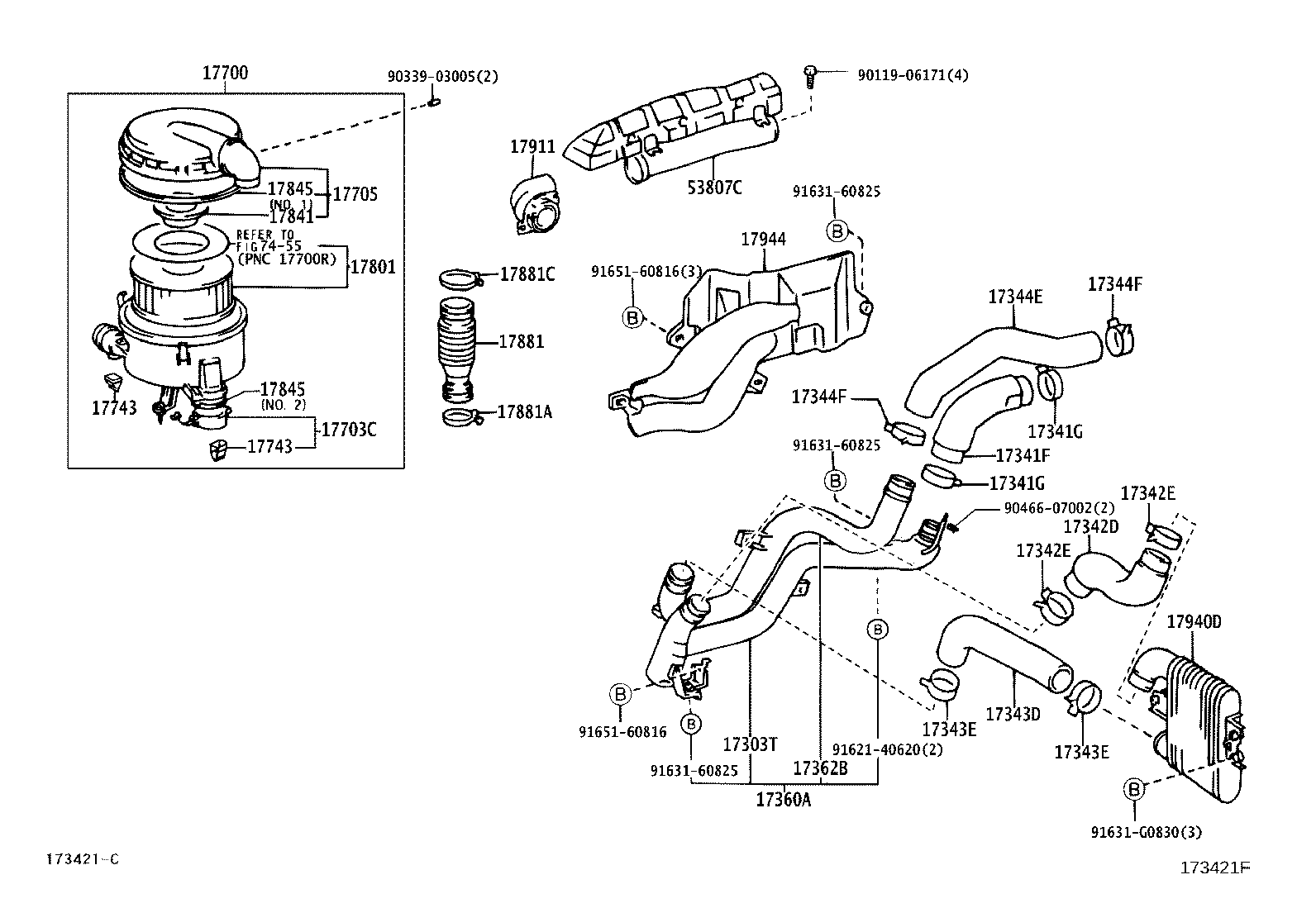

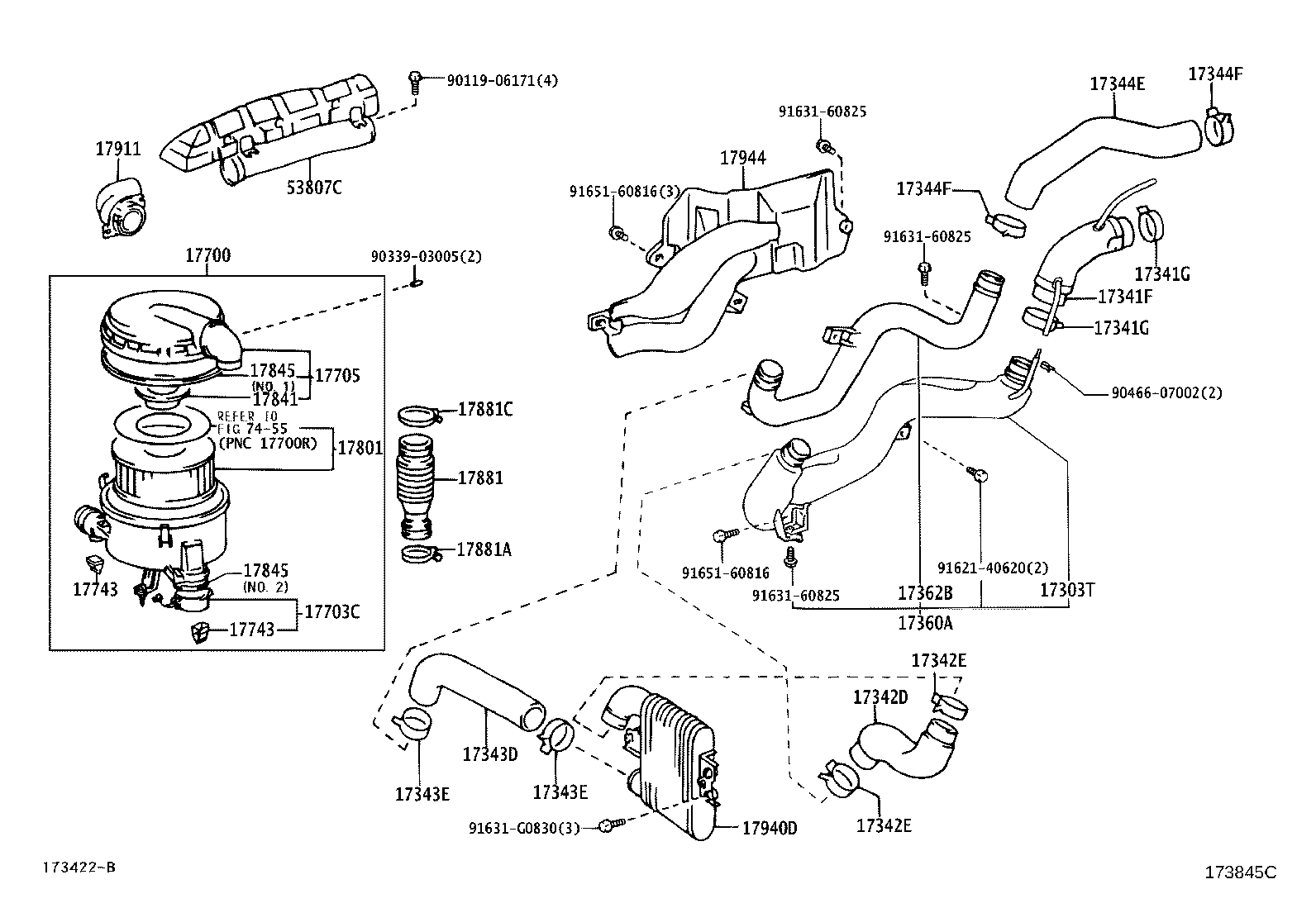

Figure 171555D 171555D 1998-01 → 2002-08 Figure 173422E 173422E 2002-08 → 2003-07 Figure 173846C 173846C 2003-07 → — Figure 173421F 173421F 2002-08 → 2003-08 Figure 173845C 173845C 2003-08 → — Figure 171559B 171559B 1998-01 → — Figure 171569G 171569G 1999-07 → —

Part groups

PNCDescription
17303T Pipe Sub-assy, Air
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17360A Tube Assy, Air
17362B Tube, Air, NO.2
17700 Cleaner Assy, Air
17700K Hose, Vacuum(FOR AIR CLEANER WARNING SENSOR)
17703C Cap Sub-assy, Dust
17705 Cap Sub-assy, Air Cleaner
17743 Valve, Dust Relief
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17911 Duct, Cool Air Intake, NO.1
17940D Intercooler Assy
17944 Protector, Intercooler Pipe
22204 Meter Sub-assy, Intake Air Flow
53807C Duct Sub-assy, Front Fender Air, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
