Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 7 illustrations

Illustrations

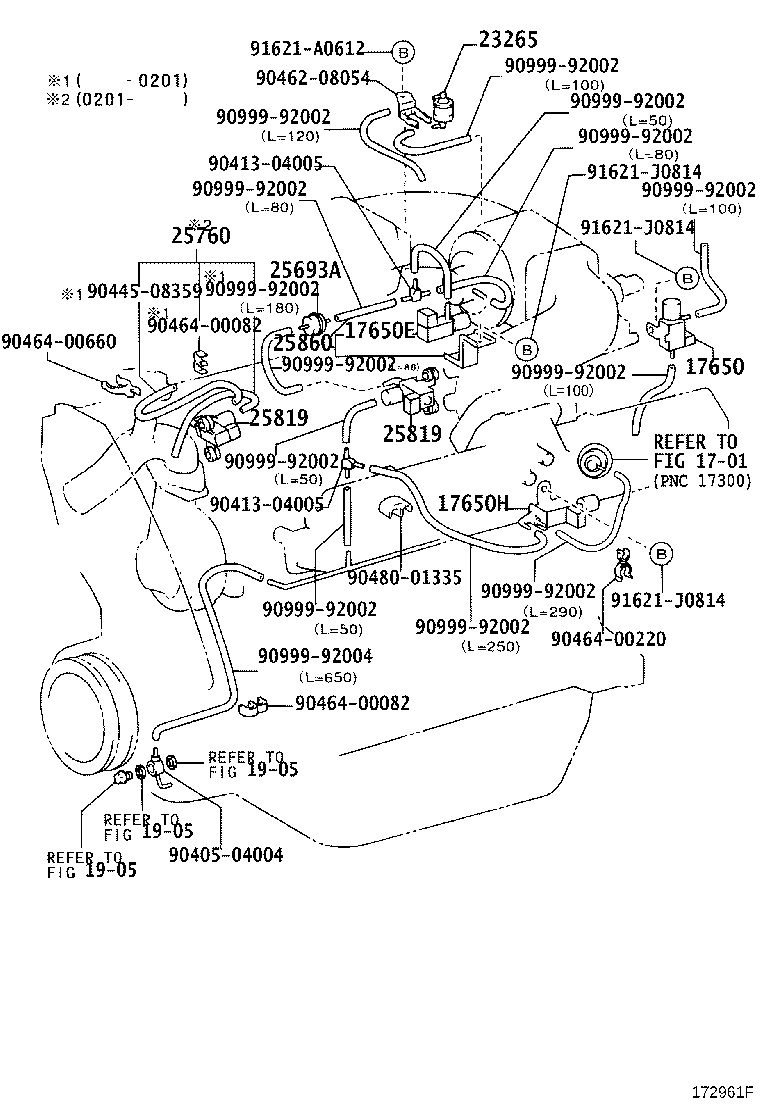

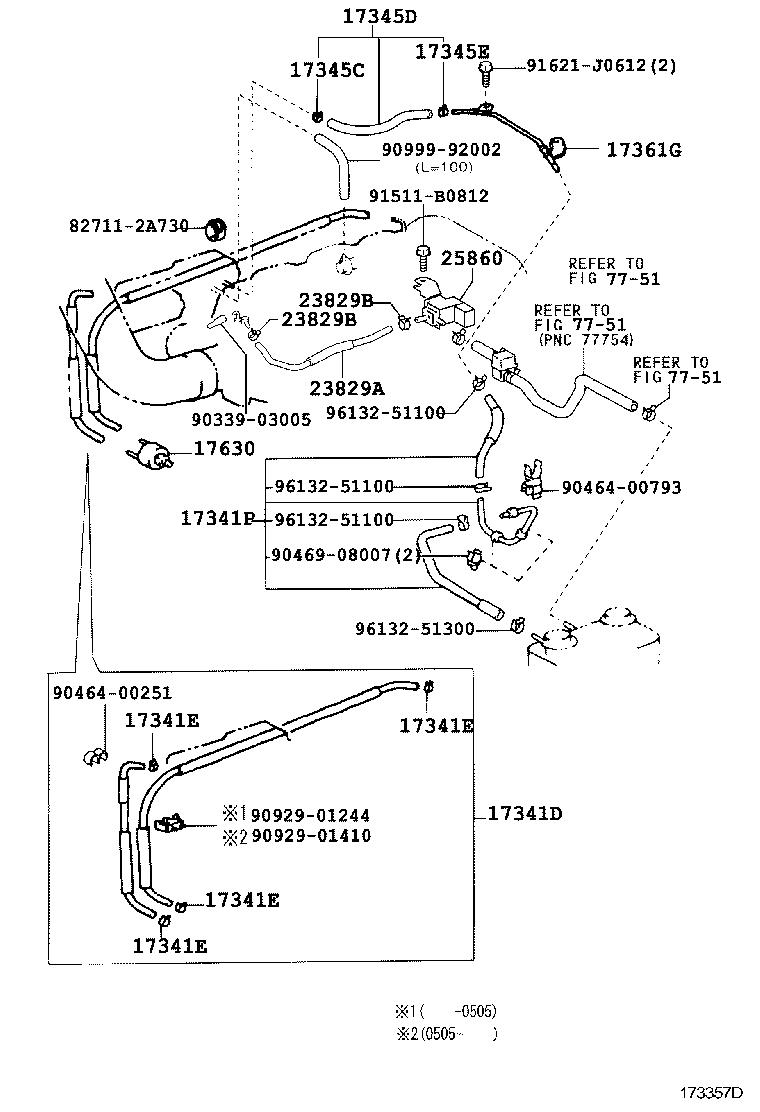

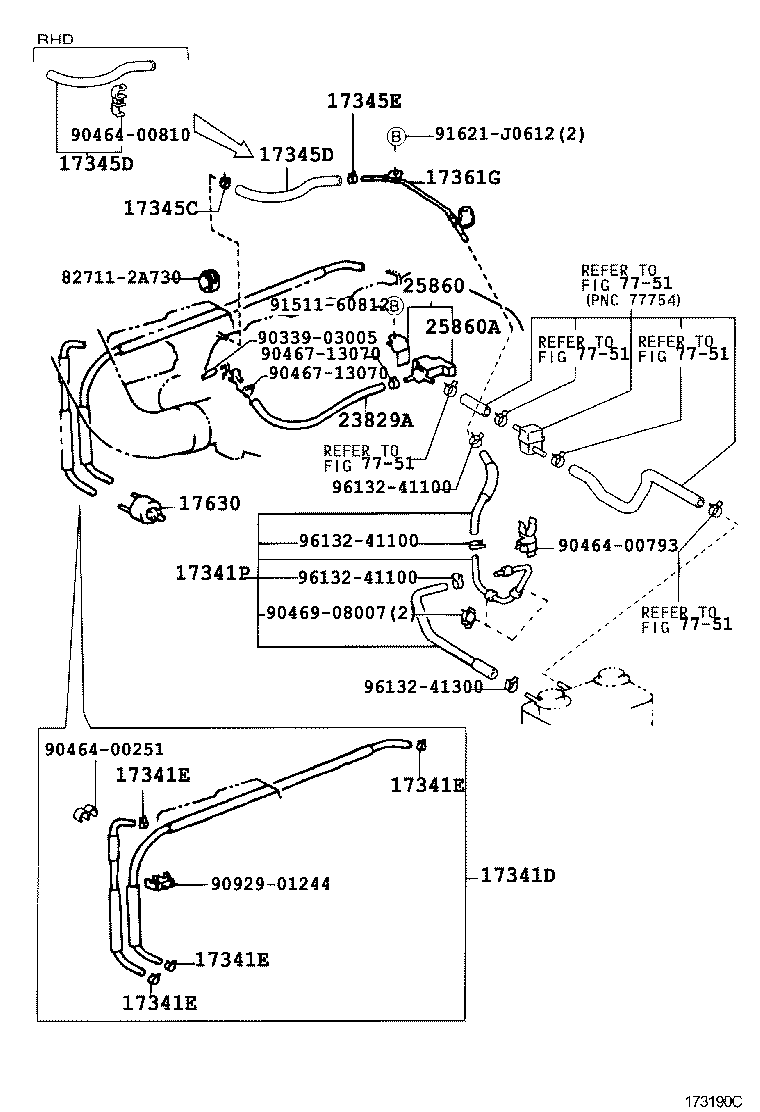

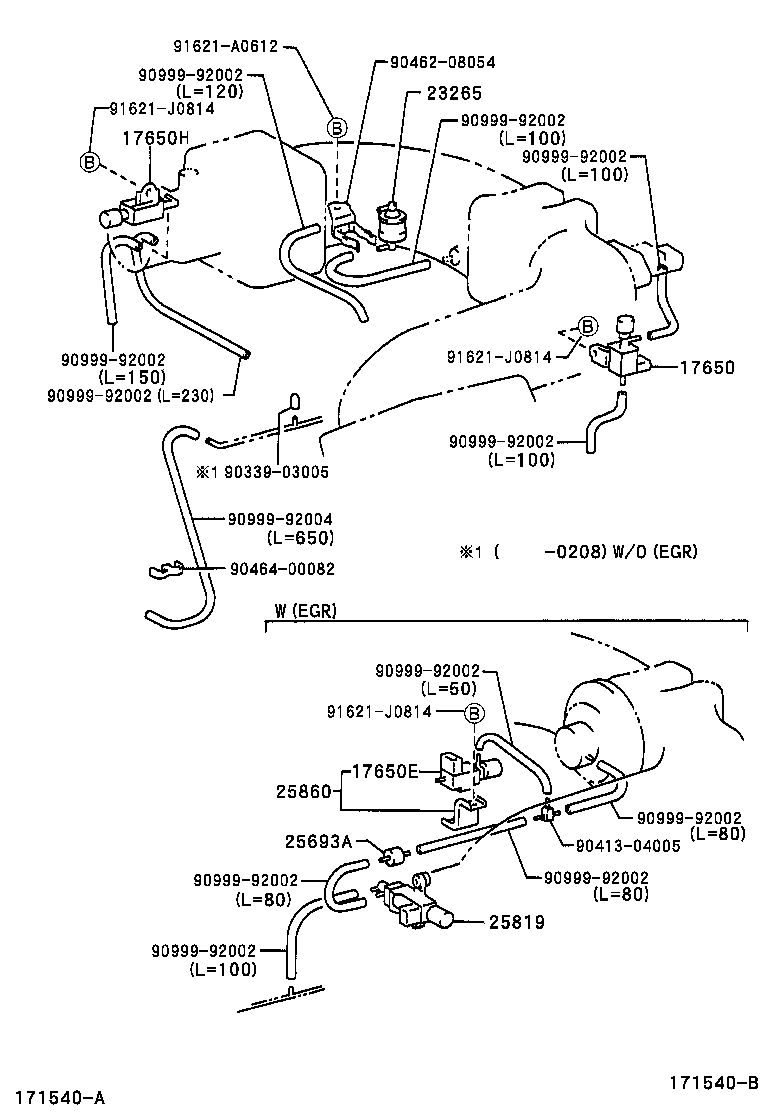

Figure 170021 170021 1998-01 → — Figure 171540B 171540B 1998-01 → — Figure 172961F 172961F 2001-08 → — Figure 171568B 171568B 1998-01 → 2001-08 Figure 173190C 173190C 2001-08 → 2002-08 Figure 173189A 173189A 2001-08 → 2002-08 Figure 173357D 173357D 2002-08 → —

Part groups

PNCDescription
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17341P Hose, Air
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650H Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25693A Damper, Egr Vacuum Modulator
25760 Hose Assy, Vacuum Transmitting
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
