Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

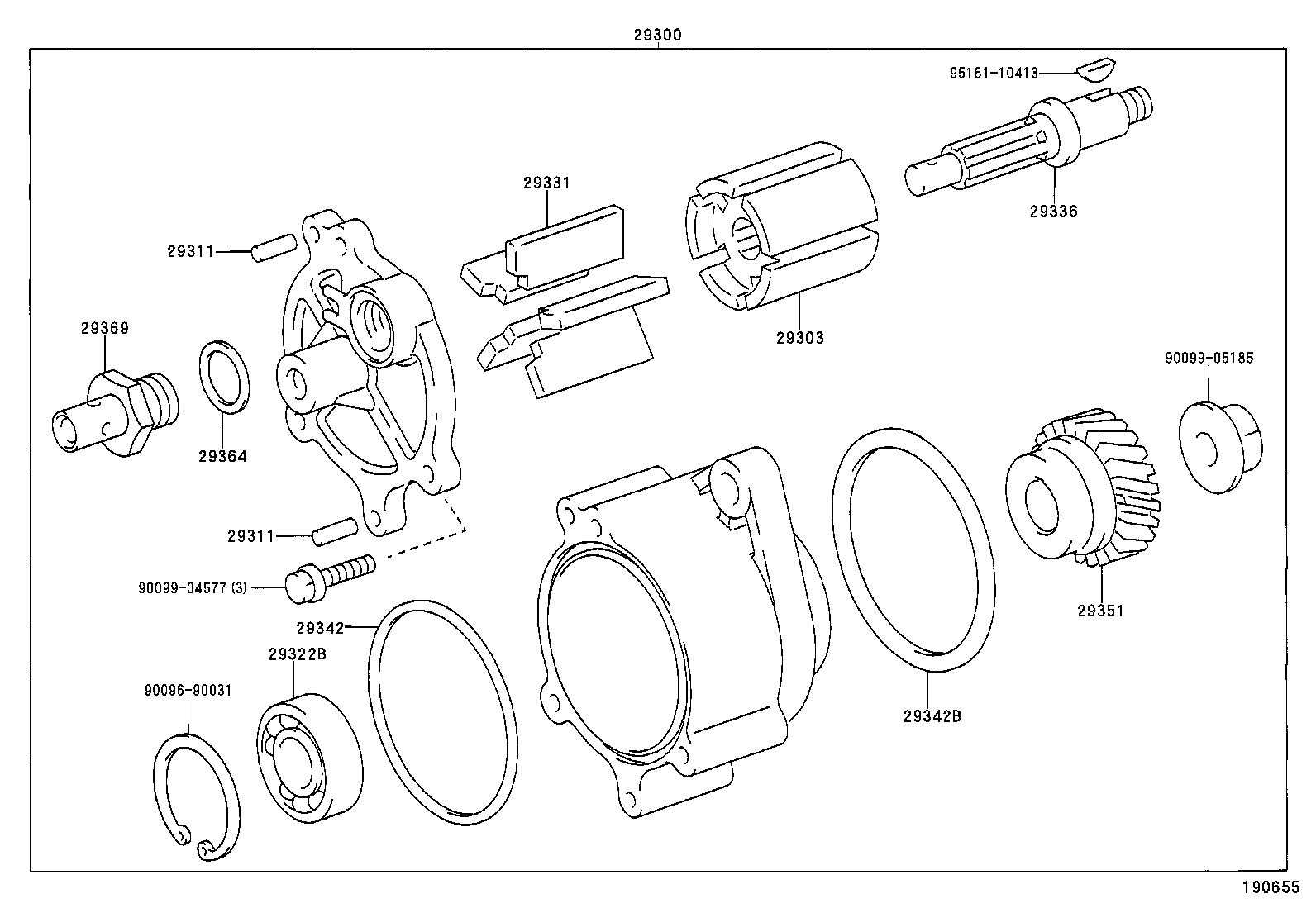

Vacuum Pump
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 29300 | Pump Assy, Vacuum |
| 29303 | Rotor Sub-assy, Vacuum Pump |
| 29311 | Pin, Vacuum Pump Dowel, NO.1 |
| 29322B | Bearing, Vacuum Pump |
| 29331 | Blade, Vacuum Pump, A |
| 29336 | Shaft, Vacuum Pump |
| 29342 | Packing, Vacuum Pump |
| 29342B | Ring, O |
| 29351 | Gear, Vacuum Pump |
| 29364 | Washer, Vacuum Pump |
| 29369 | Valve Sub-assy, Check |
| 29391 | Tube, Vacuum Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
