Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

44 part groups · 7 illustrations

Illustrations

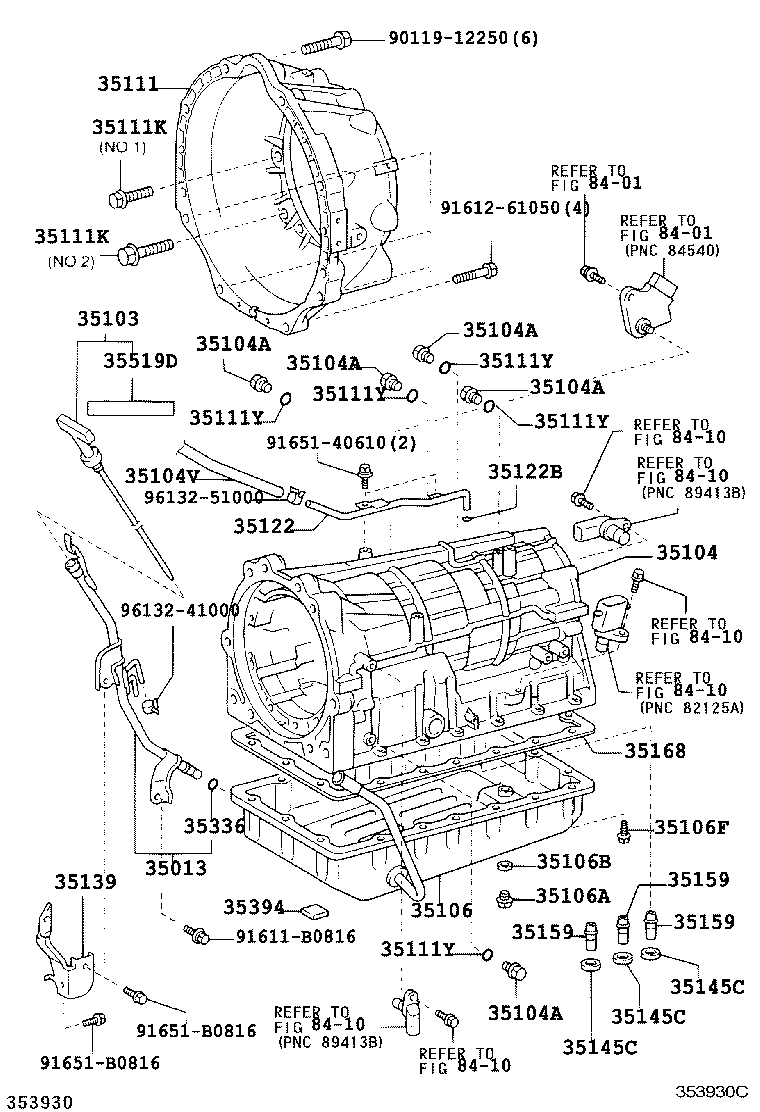

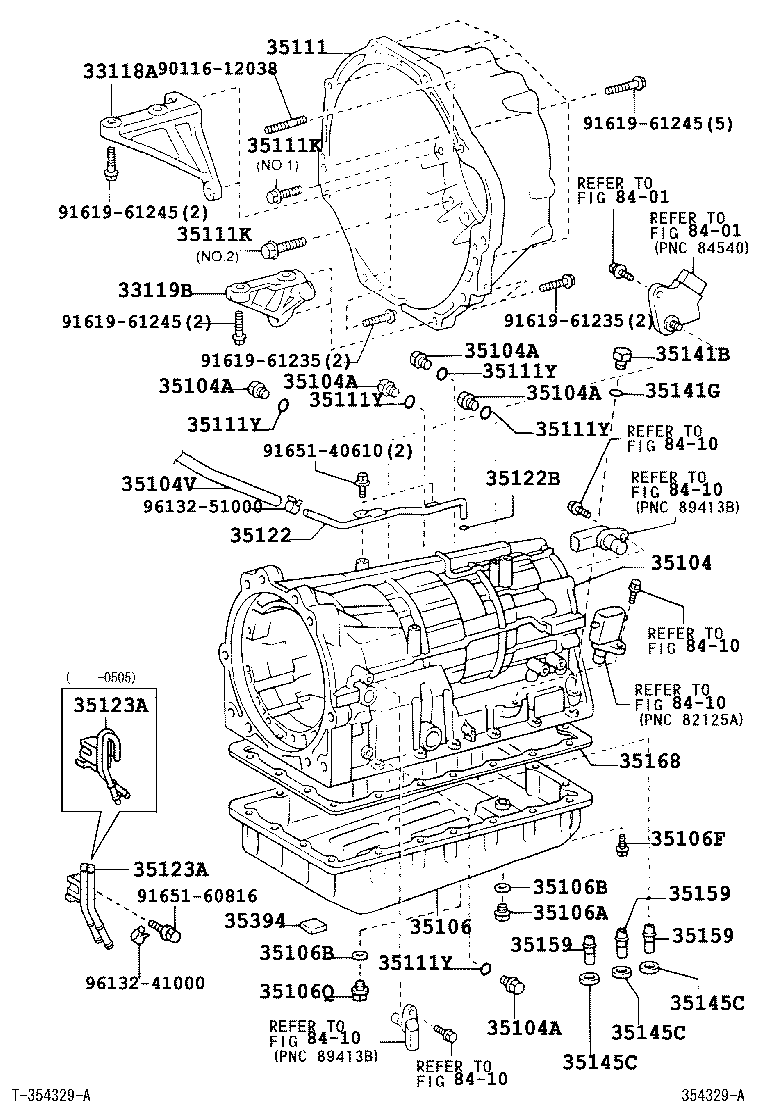

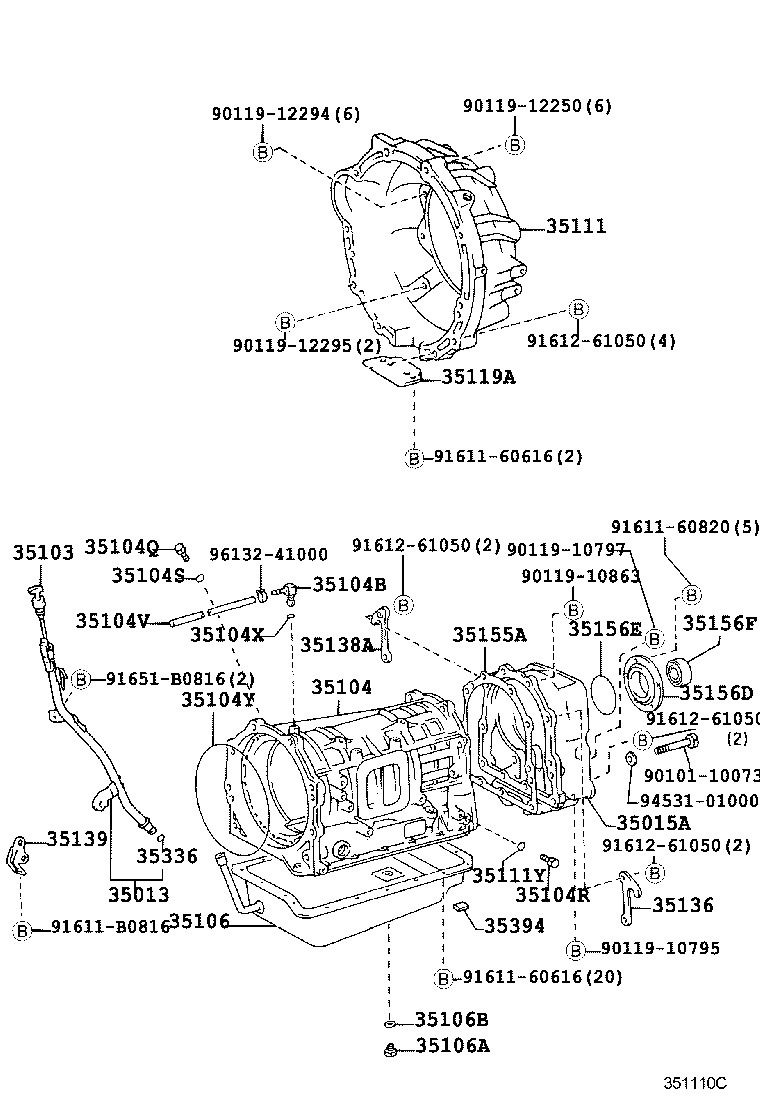

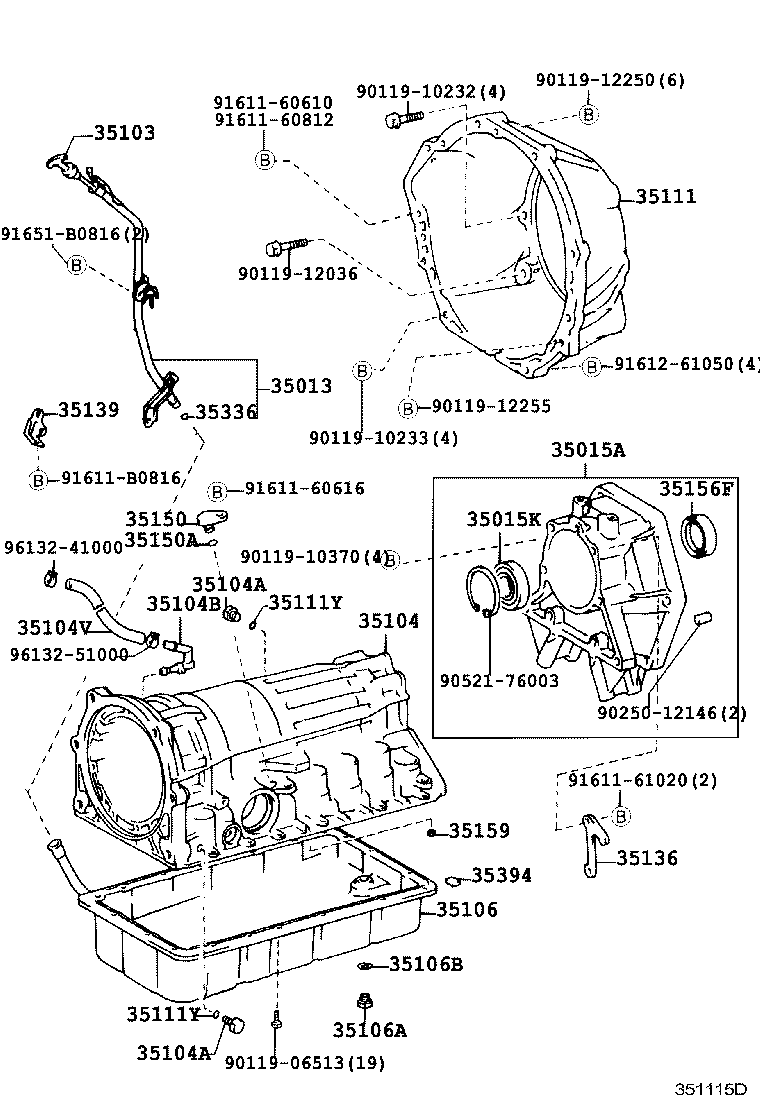

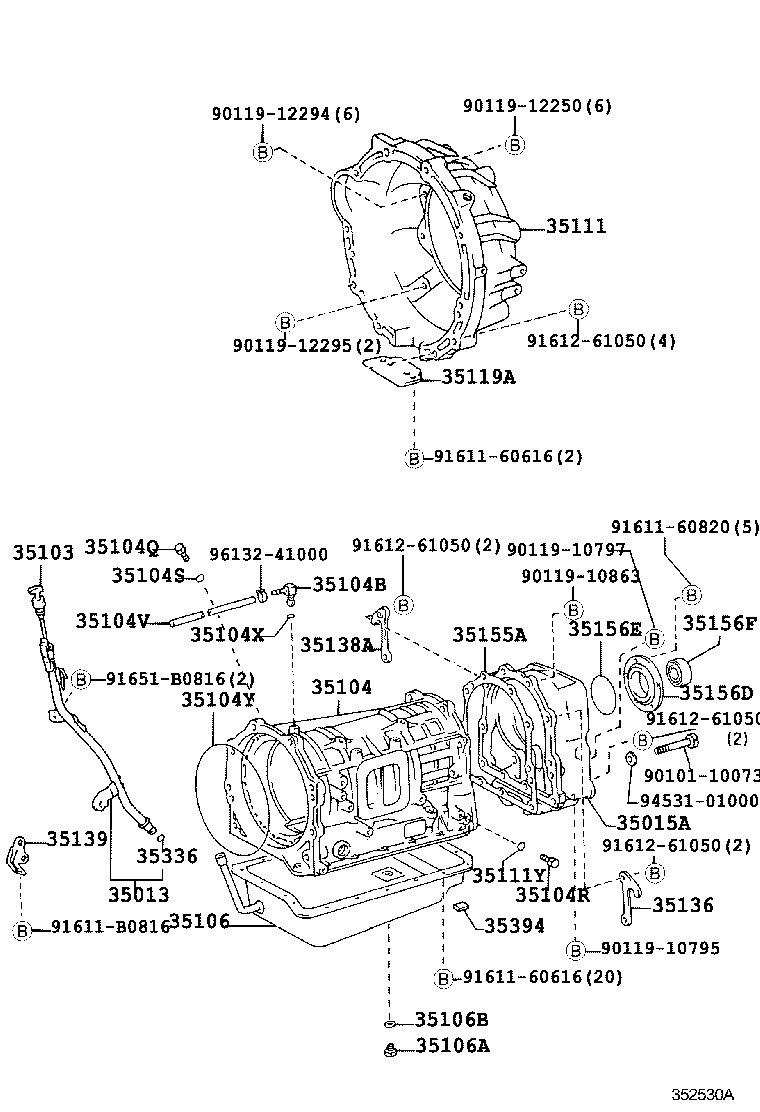

Figure 353951A 353951A 1998-01 → 2003-07 Figure 354329A 354329A 2003-07 → — Figure 351115D 351115D 1998-01 → 2002-08 Figure 351110C 351110C 1999-07 → 2002-08 Figure 352530A 352530A 2000-01 → 2002-08 Figure 353930C 353930C 2002-08 → 2003-08 Figure 354320C 354320C 2003-08 → —

Part groups

PNCDescription
33118A Plate, Stiffener, RH(ATM)
33119B Plate, Stiffener, LH(ATM)
35013 Tube Sub-assy, Transmission Oil Filler
35015A Adapter Sub-assy, Transmission Case, Rear
35015K Bearing, Radial Ball(FOR TRANSMISSION CASE ADAPTER)
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104Q Plug, NO.1 (FOR TRANSAXLE CASE)
35104R Plug, NO.2 (FOR TRANSAXLE CASE)
35104S Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
35104V Hose (FOR BREATHER PLUG)
35104X Ring, O (FOR BREATHER PLUG)
35104Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35106Q Plug (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111K Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35119A Cover, Transmission Housing
35122 Tube, Breather (FOR AUTOMATIC TRANSAXLE)
35122B Ring, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
35123A Skirt, Transmission Breather
35136 Hanger, Transmission,NO.1
35138A Hanger, Transmission, NO.2
35139 Bracket, Oil Filler Tube
35141B Plug (FOR AUTOMATIC TRANSMISSION CASE)
35141G Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35145C Gasket, Transaxle Case
35150 Plug Assy, Transmission Case
35150A Ring, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
35155A Gasket, Transmission Case Adapter
35156D Cover, Transmission Case Rear Adapter
35156E Ring, O(FOR TRANSMISSION CASE REAR ADAPTER COVER)
35156F Seal, Oil(FOR TRANSMISSION CASE REAR ADAPTER COVER)
35159 Gasket, Brake Drum
35168 Gasket, Automatic Transmission Oil Pan
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35519D Label, Automatic Transmission Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
