Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

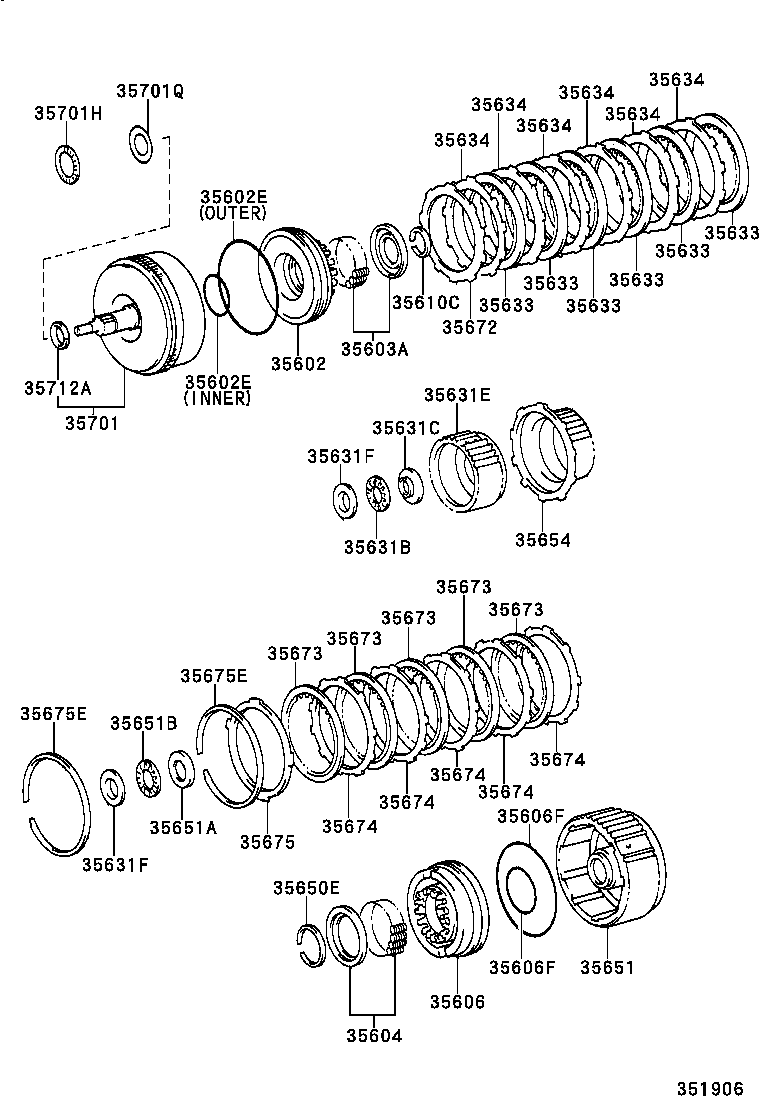

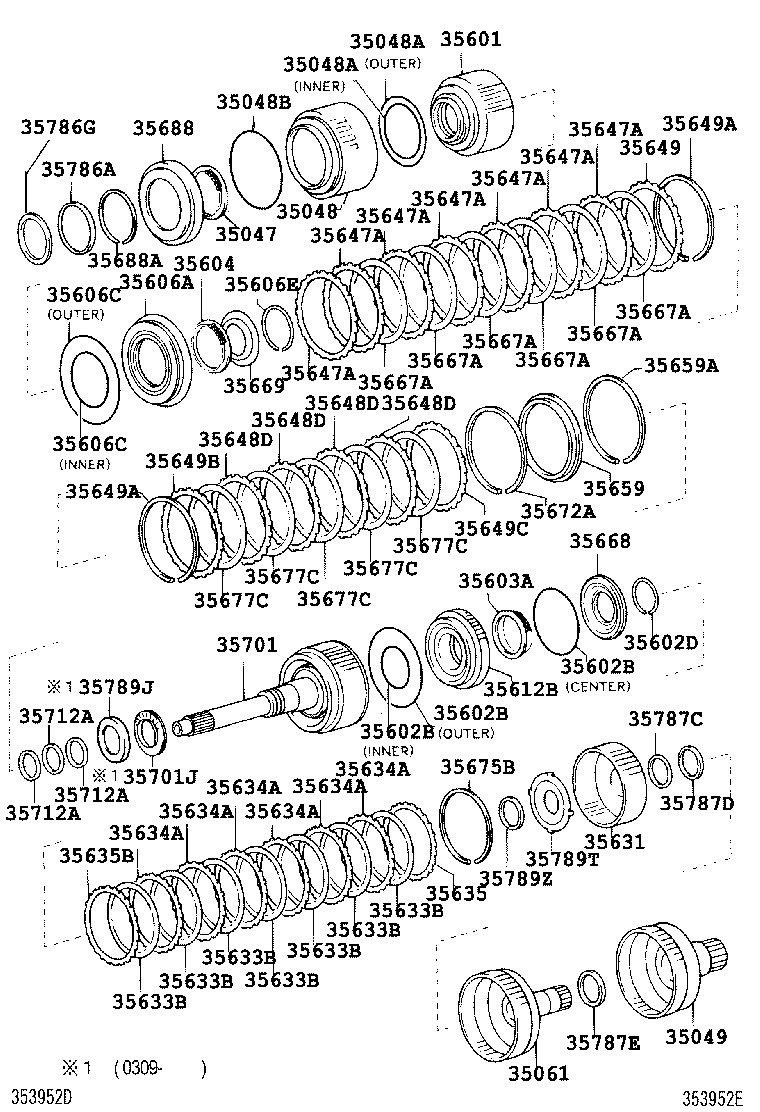

Brake Band & Multiple Disc Clutch (ATM)
91 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 35047 | Spring Sub-assy, Reverse Clutch Return |
| 35048 | Piston Sub-assy, Reverse Clutch |
| 35048A | Ring, O (FOR REVERSE CLUTCH PISTON) |
| 35048B | Ring, O (FOR REVERSE CLUTCH PISTON) |
| 35049 | Hub Sub-assy, Reverse Clutch |
| 35061 | Hub Sub-assy, Forward Clutch |
| 35601 | Drum Sub-assy, Clutch |
| 35602 | Piston Sub-assy, Front Clutch |
| 35602B | Ring, O (FOR FORWARD CLUTCH PISTON) |
| 35602D | Ring, Shaft Snap(FOR FORWARD CLUTCH PISTON RETURN SPRING) |
| 35602E | Ring, O (FOR FRONT CLUTCH PISTON) |
| 35603A | Spring Sub-assy, Forward Clutch Return |
| 35604 | Spring Sub-assy, Direct Clutch Return |
| 35605A | Drum Sub-assy, Direct Clutch |
| 35606 | Piston Sub-assy, Rear Clutch |
| 35606A | Piston Sub-assy, Direct Clutch |
| 35606C | Ring, O (FOR DIRECT CLUTCH PISTON) |
| 35606E | Ring, Shaft Snap (FOR DIRECT CLUTCH PISTON RETURN SPRING) |
| 35606F | Ring, O (FOR REAR CLUTCH PISTON) |
| 35610C | Ring, Shaft Snap (FOR FRONT CLUTCH PISTON RETURN SPRING) |
| 35612B | Piston, Forward Clutch |
| 35616C | Washer, Clutch Drum Thrust (FOR DIRECT CLUTCH DRUM) |
| 35631 | Hub, Clutch(FOR MULTIPLE DISC CLUTCH) |
| 35631B | Bearing, Thrust(FOR FRONT CLUTCH HUB) |
| 35631C | Race, Thrust Bearing(FOR FRONT CLUTCH HUB FRONT) |
| 35631E | Hub, Front Clutch |
| 35631F | Race, Thrust Bearing(FOR REAR CLUTCH DRUM) |
| 35633 | Disc, Clutch (FOR FRONT CLUTCH) |
| 35633B | Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35633C | Disc, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35634 | Plate, Front Clutch |
| 35634A | Plate, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35634B | Plate, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35635 | Flange, Forward Clutch |
| 35635B | Flange, Forward Clutch |
| 35647A | Plate, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35648D | Plate, Clutch, NO.3 |
| 35649 | Flange, Reverse Clutch |
| 35649A | Ring, Hole Snap(FOR REVERSE CLUTCH FLANGE) |
| 35649B | Flange, Reverse Clutch |
| 35649C | Flange, Reverse Clutch |
| 35650E | Ring, O (FOR REAR CLUTCH PISTON OUTER) |
| 35651 | Drum, Rear Clutch |
| 35651A | Race, Thrust Bearing (FOR REAR CLUTCH DRUM) |
| 35651B | Bearing, Thrust Needle Roller (FOR REAR CLUTCH DRUM) |
| 35654 | Hub, Rear Clutch |
| 35659 | Sleeve, Reverse Clutch Reaction |
| 35659A | Ring, Snap (FOR REVERSE CLUTCH REACTION SLEEVE) |
| 35667A | Disk, Direct Clutch |
| 35668 | Balancer, Clutch, NO.1 |
| 35669 | Balancer, Clutch, NO.2 |
| 35672 | Plate, Clutch Cushion |
| 35672A | Plate, Clutch Cushion (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35673 | Disc, Rear Clutch |
| 35674 | Plate, Rear Clutch |
| 35675 | Flange, Rear Clutch |
| 35675B | Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE) |
| 35675C | Flange, Direct Clutch |
| 35675D | Ring, Hole Snap (FOR DIRECT CLUTCH FLANGE) |
| 35675E | Ring, Hole Snap (FOR REAR CLUTCH FLANGE) |
| 35677C | Disc, Rear Clutch |
| 35686 | Washer, Clutch Drum Thrust (FOR INPUT SHAFT) |
| 35688 | Balancer, Clutch, NO.3 |
| 35688A | Ring, Snap (FOR REVERSE CLUTCH RETURN SPRING) |
| 35701 | Shaft Sub-assy, Input |
| 35701B | Bearing, Thrust Needle Roller (FOR INPUT SHAFT REAR) |
| 35701C | Race, Thrust Bearing (FOR INPUT SHAFT REAR) |
| 35701H | Bearing, Thrust Needle Roller (FOR INPUT SHAFT) |
| 35701J | Bearing, Thrust Needle Roller (FOR INPUT SHAFT FRONT) |
| 35701Q | Race, Thrust Bearing (FOR INPUT SHAFT FRONT) |
| 35712A | Ring, Input Shaft Oil Seal |
| 35786A | Race, Thrust Bearing, NO.1 |
| 35786G | Bearing,Thrust Needle Roller |
| 35787C | Race, Thrust Bearing, NO.2 |
| 35787D | Bearing, Thrust Needle Roller |
| 35787E | Bearing, Thrust Needle Roller |
| 35789J | Race, Thrust Bearing (FOR INPUT SHAFT FRONT) |
| 35789T | Race, Thrust Bearing (INPUT SHAFT REAR) |
| 35789Z | Bearing, Thrust Needle Roller |
| 35810B | Band Assy, 2ND Coast Brake |
| 35810C | Pin (FOR 2ND COAST BRAKE BAND) |
| 35810D | Ring, E (FOR 2ND COAST BRAKE BAND PIN) |
| 35815 | Cover, 2ND Coast Brake |
| 35815A | Ring, O (FOR 2ND COAST BRAKE COVER) |
| 35815B | Ring, Hole Snap (FOR 2ND COAST BRAKE COVER) |
| 35821A | Piston, 2ND Coast Brake |
| 35821B | Washer, Plate (FOR 2ND COAST BRAKE PISTON) |
| 35821G | Spring, Compression (FOR 2ND COAST BRAKE PISTON) |
| 35821H | Ring, E (FOR 2ND COAST BRAKE PISTON) |
| 35822A | Rod, 2ND Coast Brake Piston |
| 35865A | Ring, 2ND Coast Brake Piston Oil Seal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
