Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

10 part groups · 4 illustrations

Illustrations

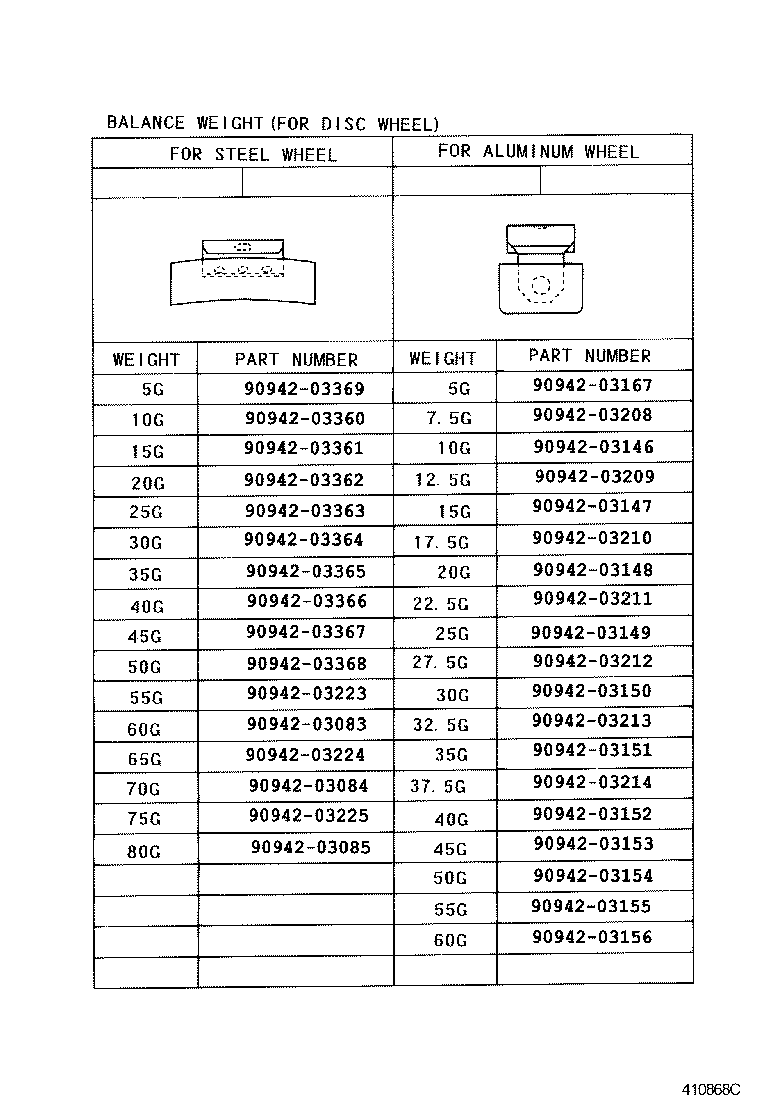

Figure 410689I 410689I 1998-01 → — Figure 412208A 412208A 1998-01 → — Figure 410871C 410871C 1998-01 → — Figure 410868C 410868C 1998-01 → —

Part groups

PNCDescription
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42601F Wheel, Disc (FOR FRONT)
42601R Wheel, Disc (FOR REAR)
42603A Ornament Sub-assy, Wheel Hub(FOR FRONT)
42603B Ornament Sub-assy, Wheel Hub(FOR REAR)
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42652 Tire
42652A Tire (FOR SPARE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
