Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 9 illustrations

Illustrations

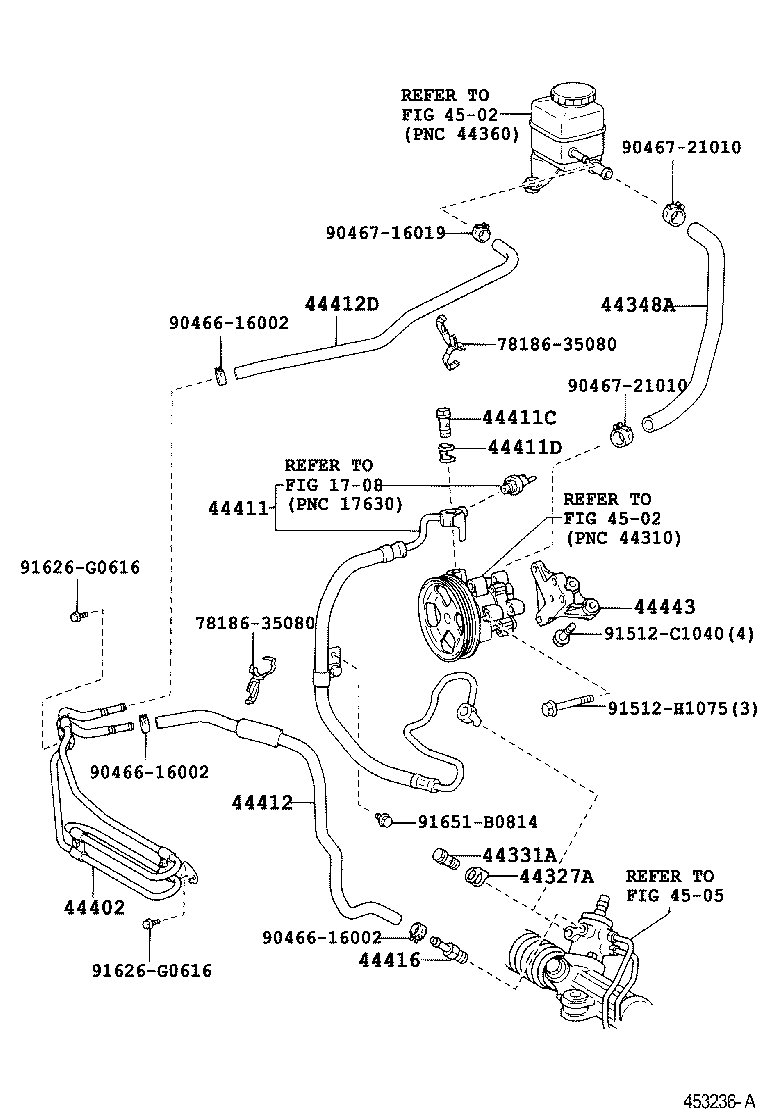

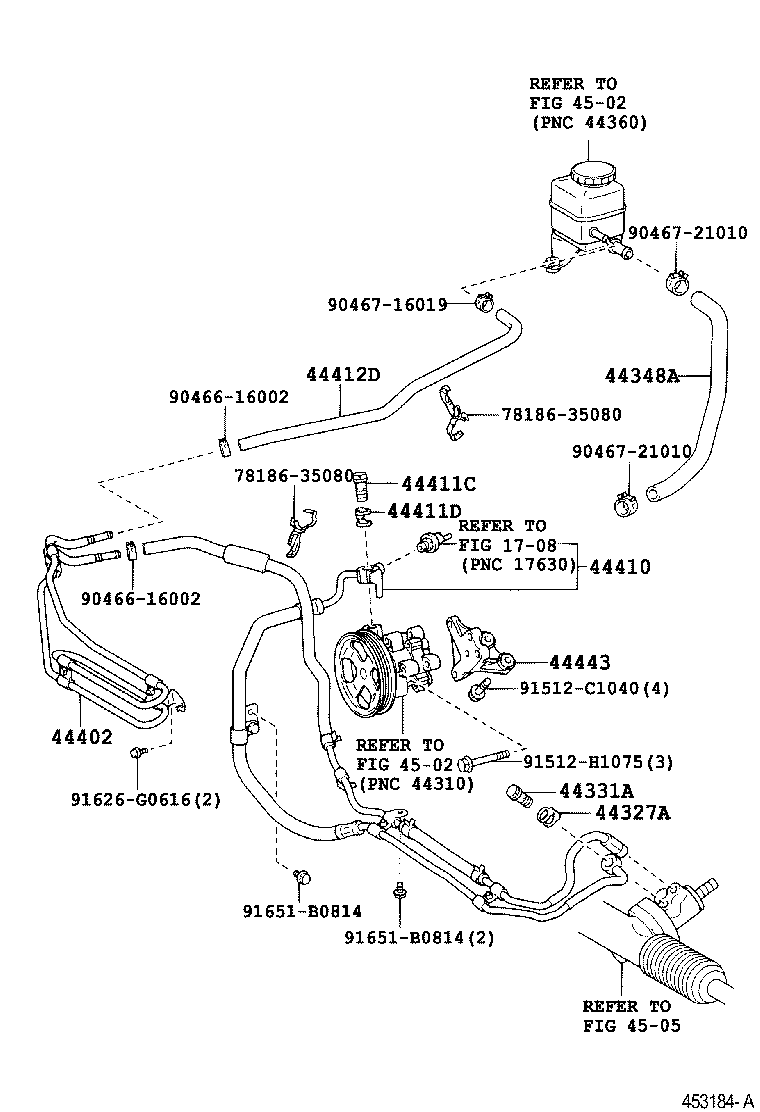

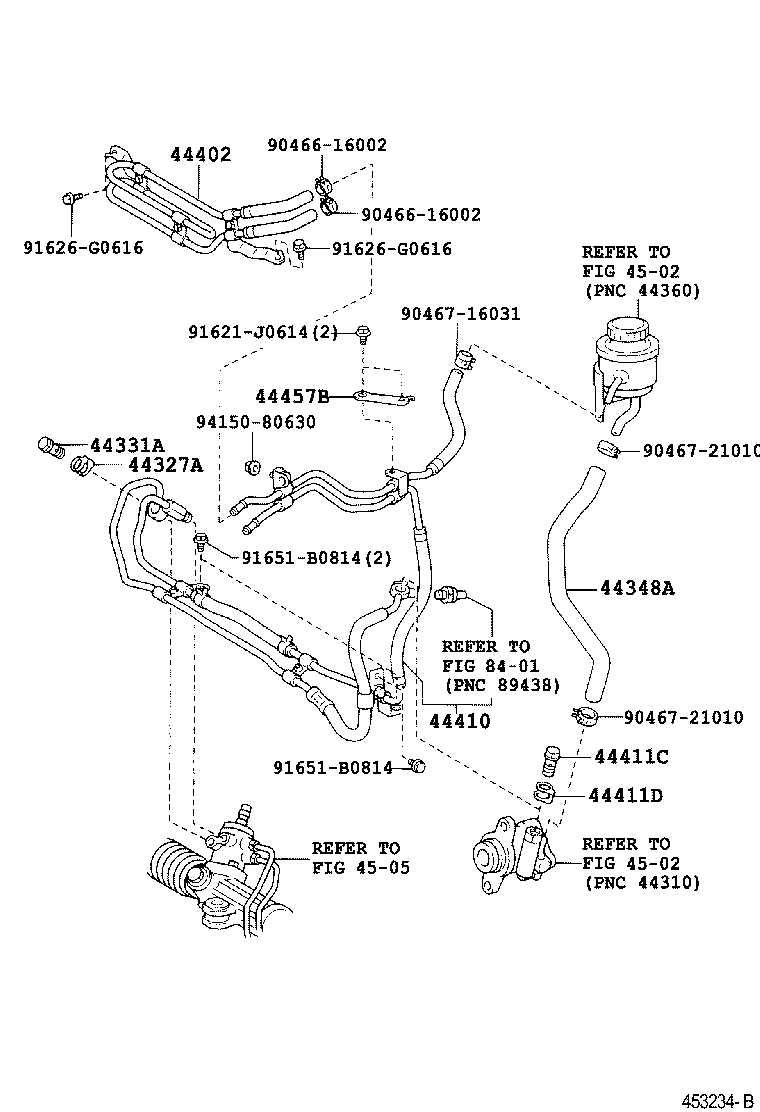

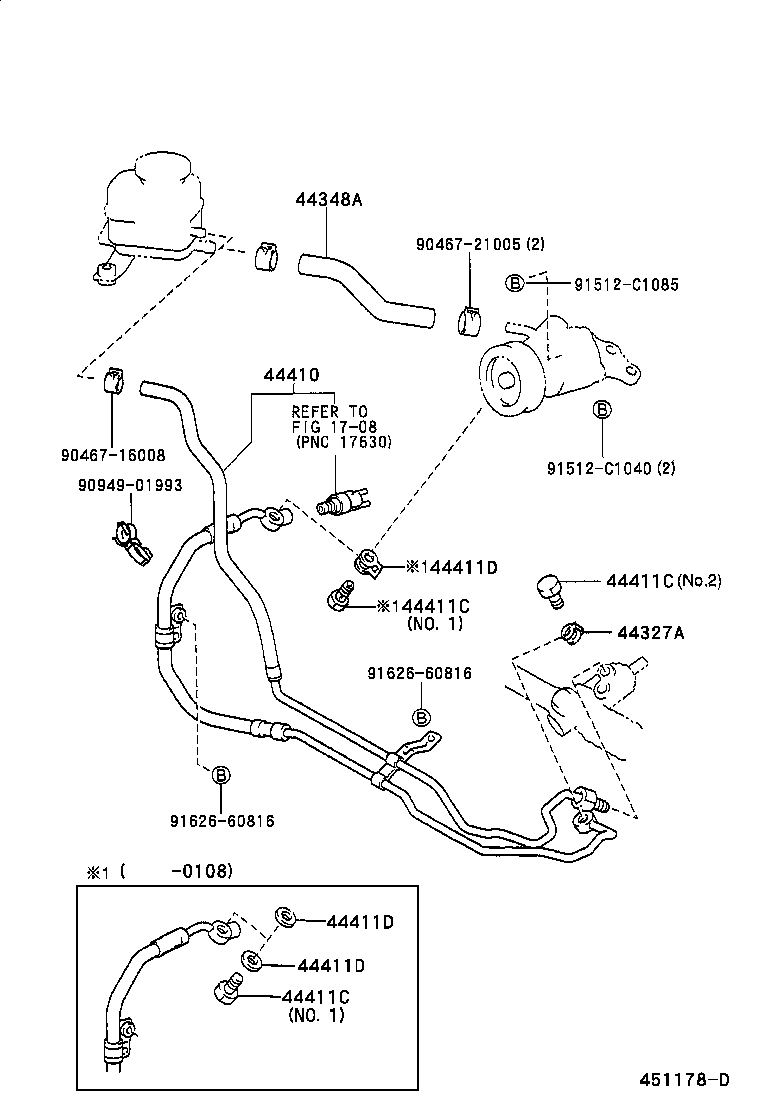

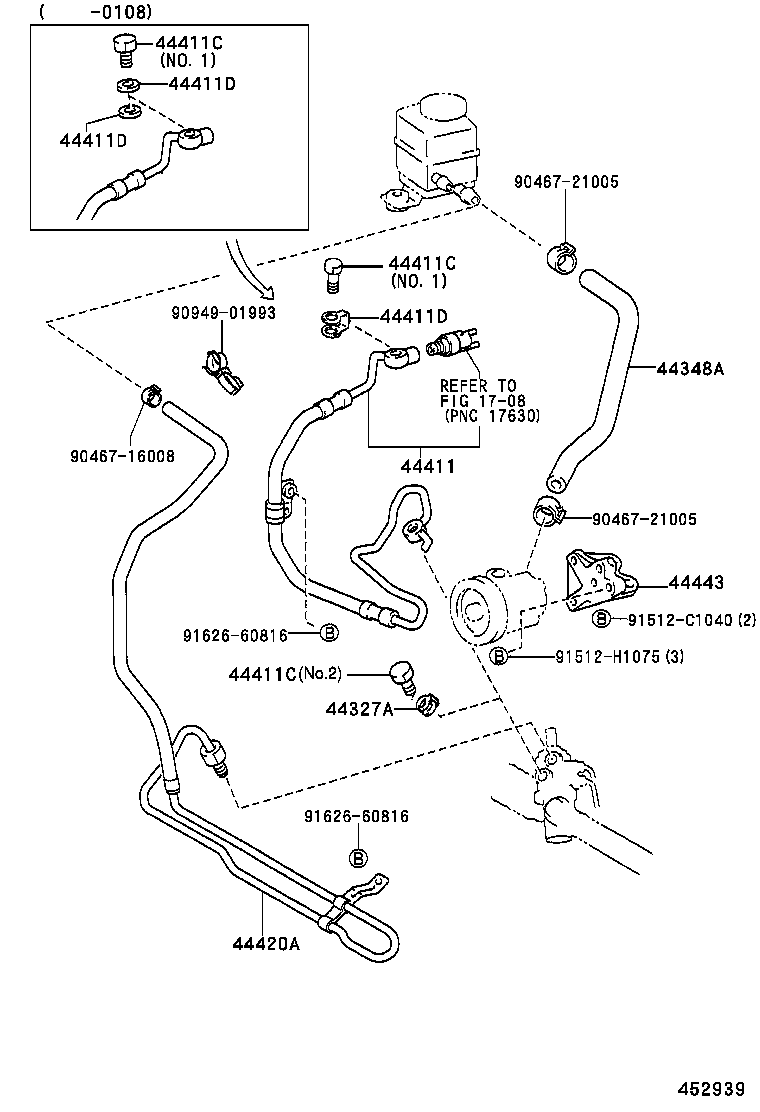

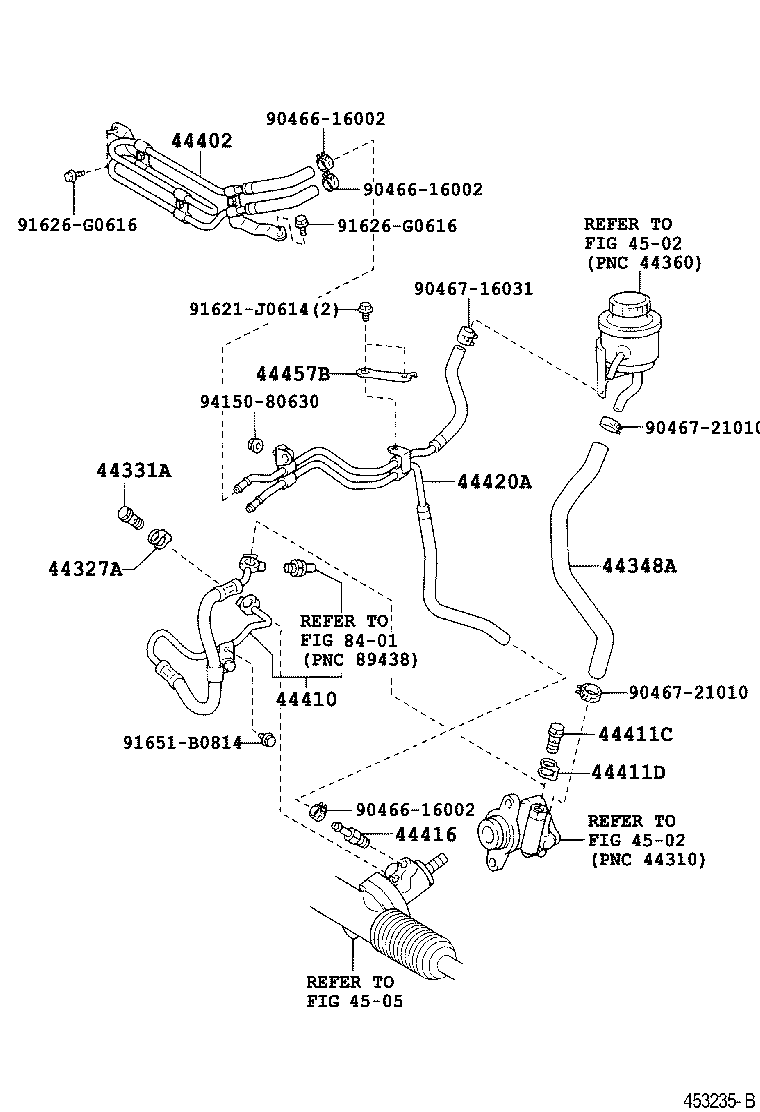

Figure 451182D 451182D 1998-01 → 2002-08 Figure 451170D 451170D 1998-01 → 2002-08 Figure 451181D 451181D 1998-01 → 2002-08 Figure 452939 452939 1998-01 → 2002-08 Figure 451178D 451178D 1999-07 → 2002-08 Figure 453234B 453234B 2002-08 → — Figure 453235B 453235B 2002-08 → — Figure 453236A 453236A 2002-08 → — Figure 453184A 453184A 2002-08 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44331A Valve, Power Steering & Suspension Control Check
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
44420A Tube Assy, Return
44443 Bracket, Pump
44457B Bracket, Power Steering Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
