Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Disc Brake Caliper & Dust Cover

22 part groups · 2 illustrations

Illustrations

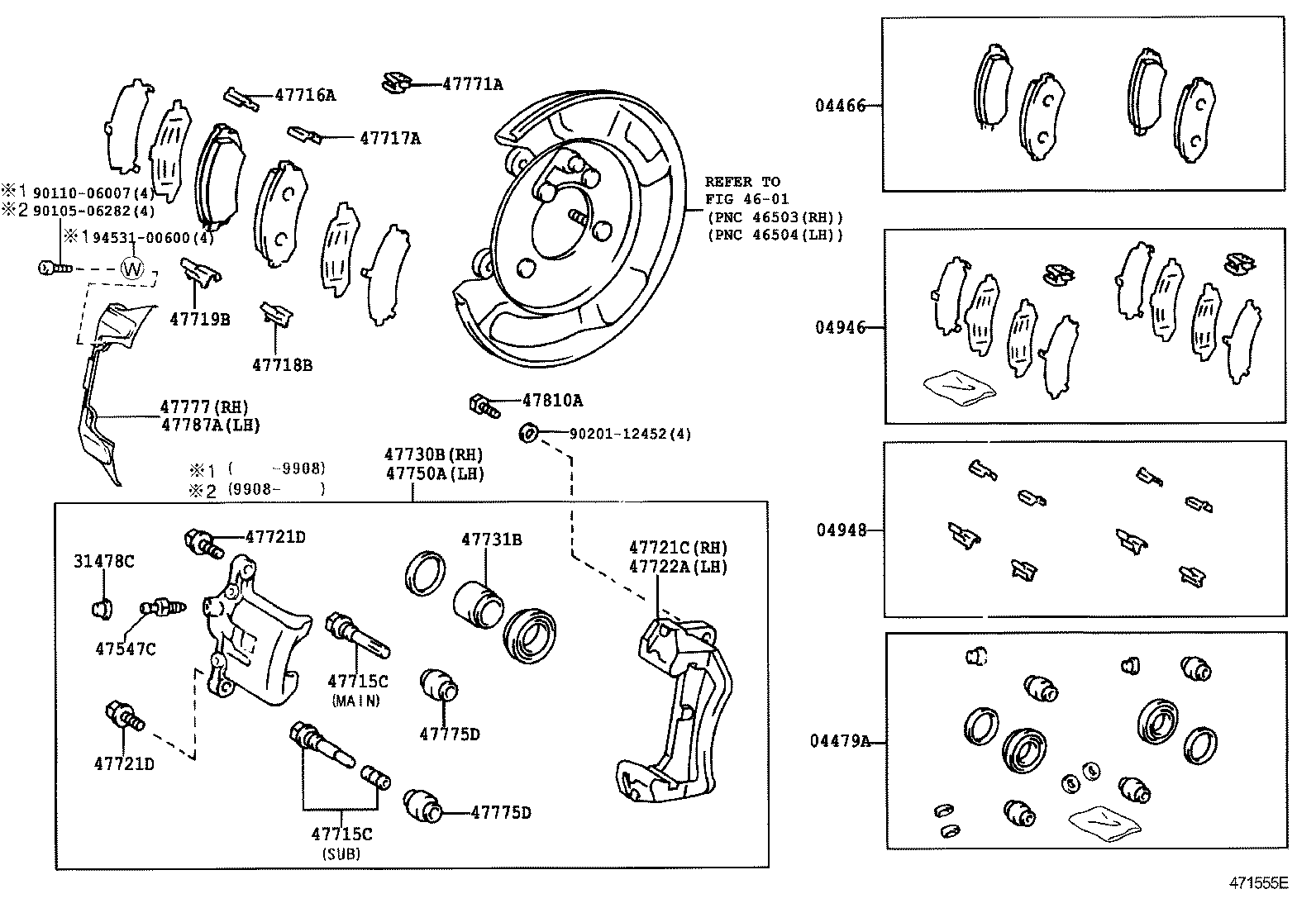

Figure 471030I 471030I 1998-01 → 1999-04 Figure 471555E 471555E 1999-04 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
31478C Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47547C Plug, Bleeder(FOR REAR DISC BRAKE)
47715C Pin, Cylinder Slide(FOR REAR DISC BRAKE)
47716A Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47717A Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
47718B Plate, Pad Support, NO.3(FOR REAR DISK BRAKE)
47719B Plate, Pad Support, NO.4(FOR REAR DISK BRAKE)
47721C Mounting, Rear Disc Brake Cylinder, RH
47721D Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
47722A Mounting, Rear Disc Brake Cylinder, LH
47730B Cylinder Assy, Rear Disc Brake, RH
47731B Piston, Rear Disc Brake
47750A Cylinder Assy, Disc Brake, Rear LH
47771A Plate, Pad Wear Indicator(FOR REAR DISC BRAKE)
47775D Boot, Bush Dust(FOR REAR DISC BRAKE)
47777 Protector, Dust Boot, RH
47787A Protector, Dust Boot, LH
47810A Bolt, Hexagon(FOR REAR CALIPER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
