Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

43 part groups · 6 illustrations

Illustrations

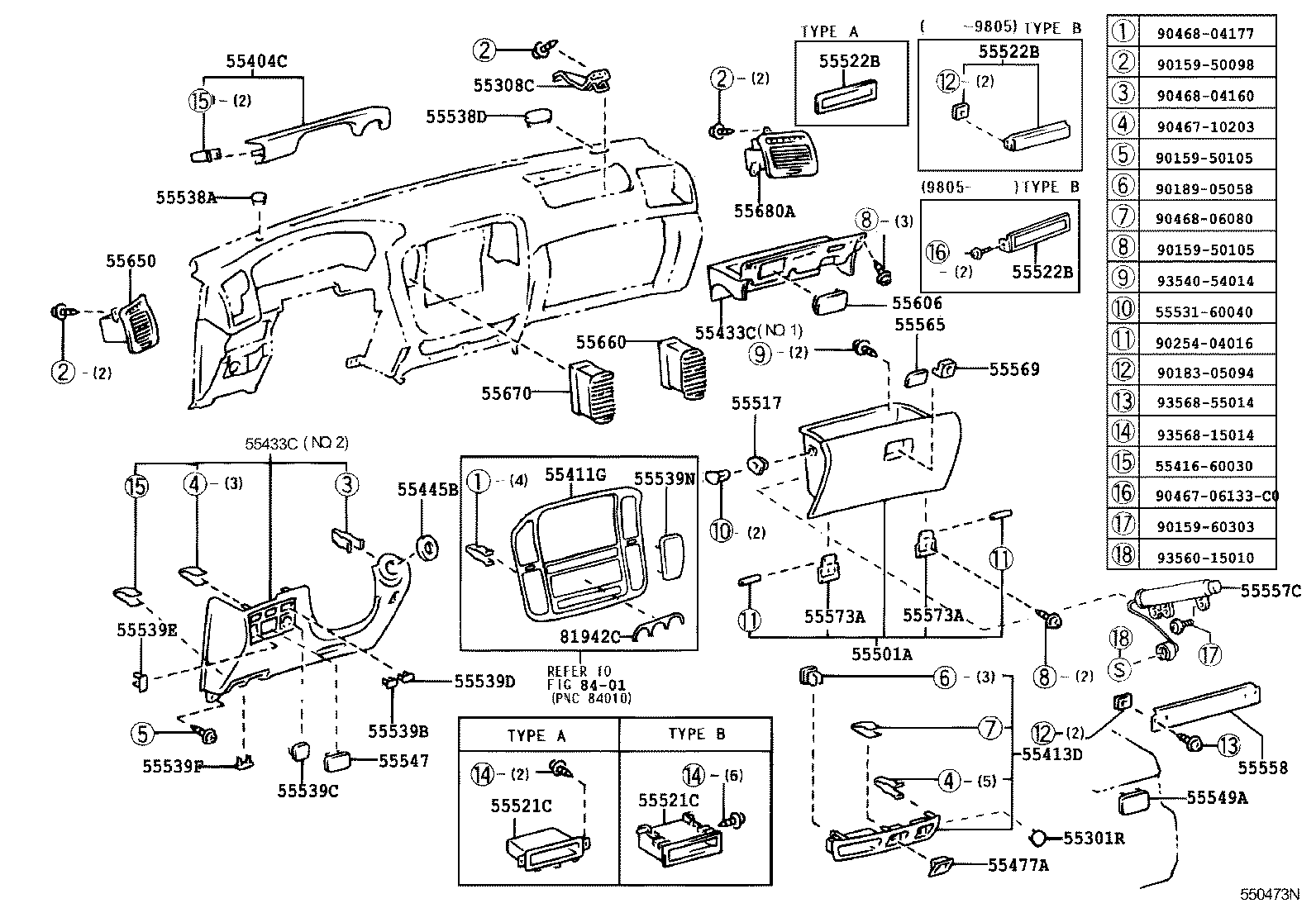

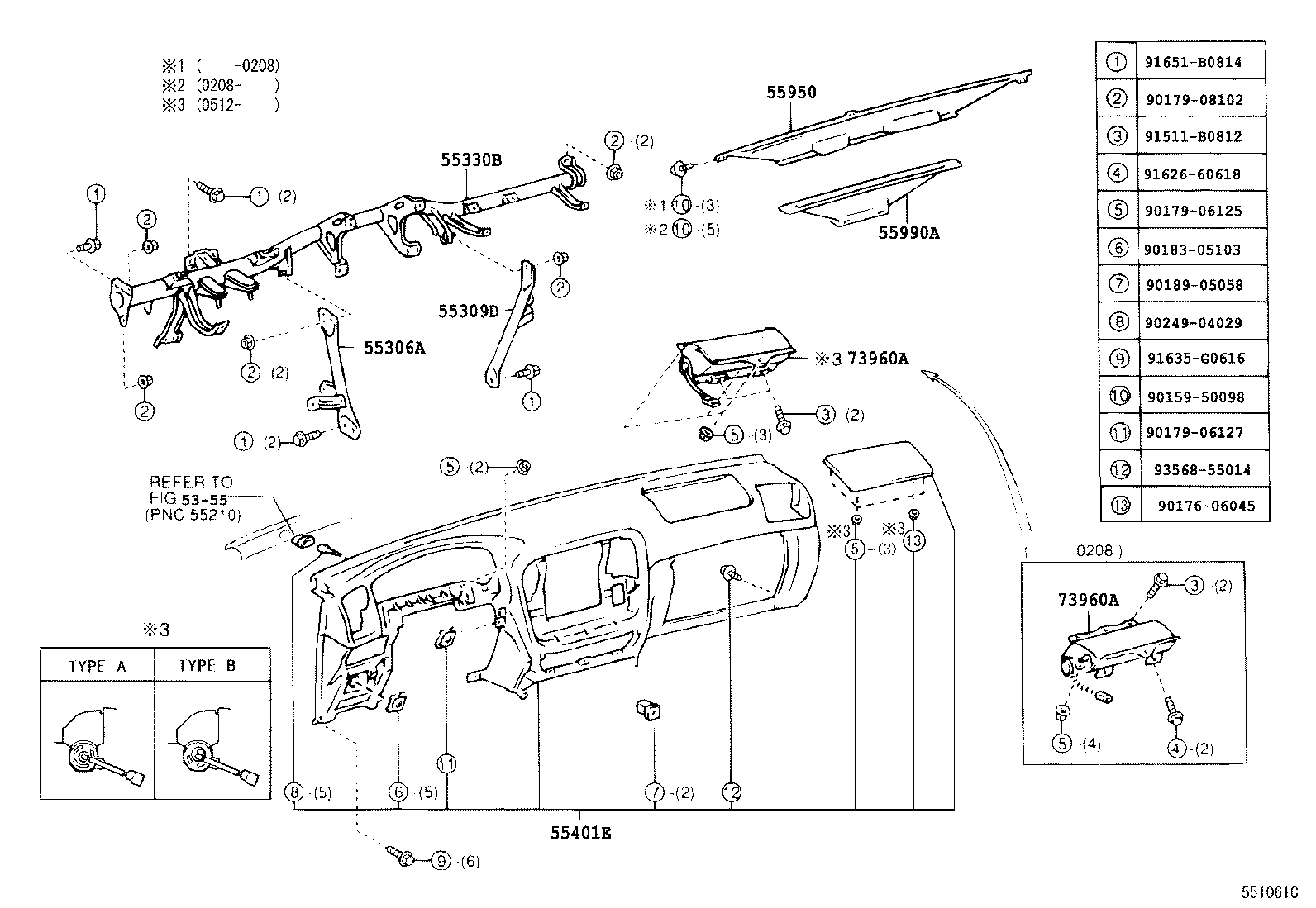

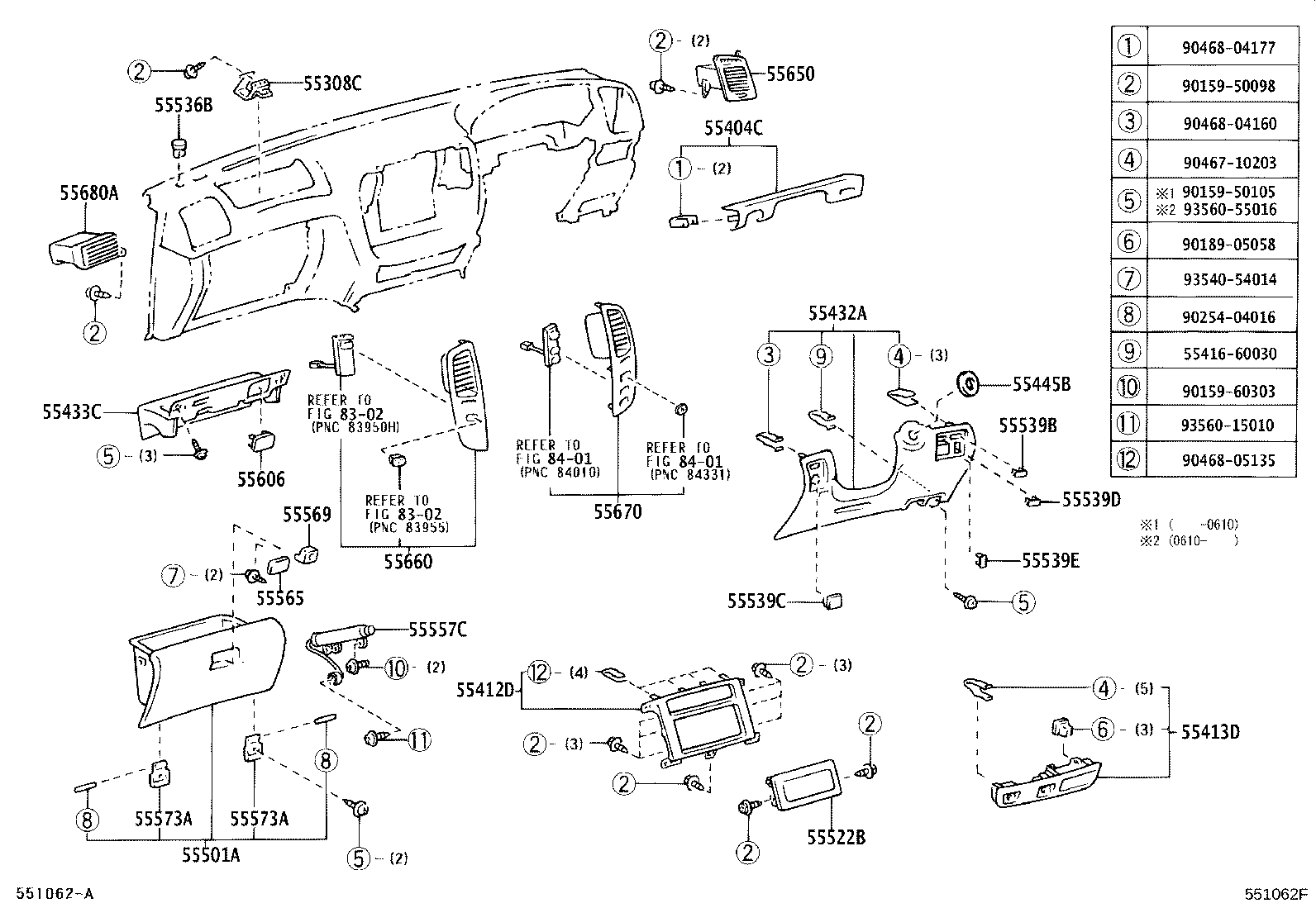

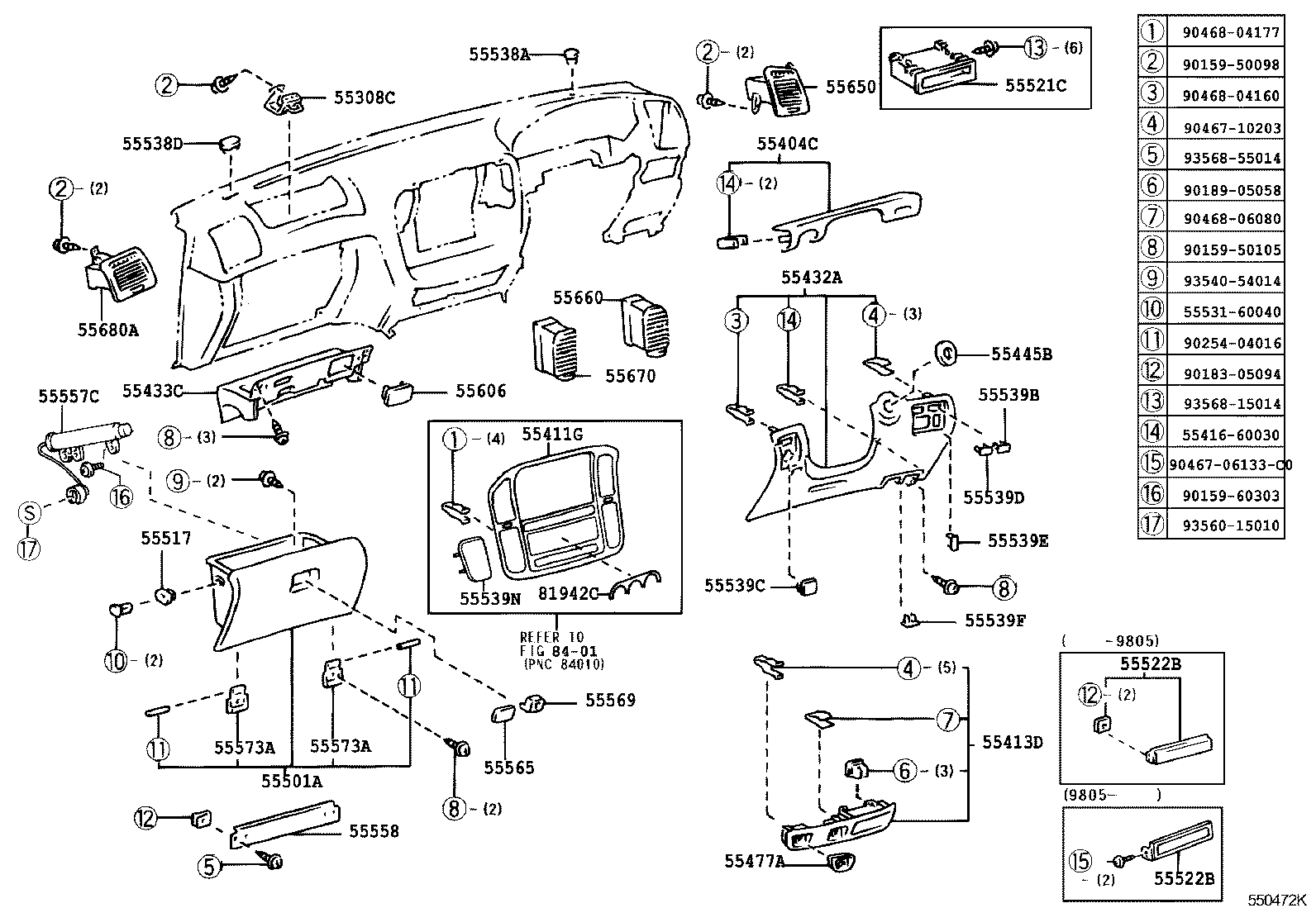

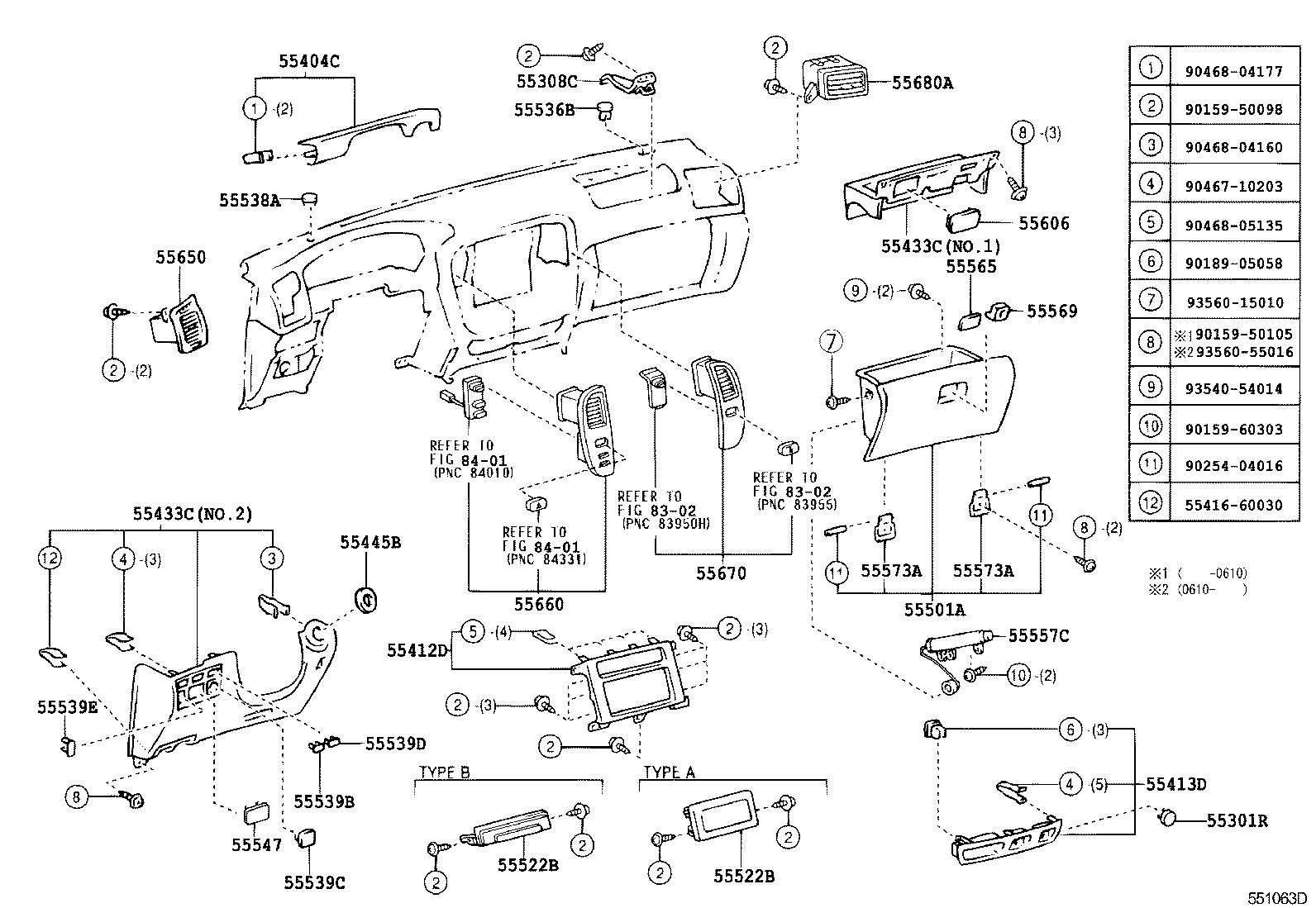

Figure 551060C 551060C 1998-01 → — Figure 551061C 551061C 1998-01 → — Figure 550472K 550472K 1998-01 → 2002-08 Figure 551062F 551062F 2002-08 → — Figure 550473N 550473N 1998-01 → 2002-08 Figure 551063D 551063D 2002-08 → —

Part groups

PNCDescription
55301R Plug, Hole(FOR INSTRUMENT PANEL)
55306A Brace Sub-assy, Instrument Panel, NO.1
55308C Bracket Sub-assy, Instrument Panel, Center
55309D Brace Sub-assy, Instrument Panel TO Floor
55330B Reinforcement Assy, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55413D Panel, Instrument Cluster Finish, Center Lower
55432A Panel, Instrument Panel Finish, Lower RH
55433C Panel, Instrument Panel Finish, Lower LH
55445B Plate, Instrument Panel Finish
55477A Bezel, Cigarette Lighter Hole
55501A Door Sub-assy, Glove Compartment
55517 Stopper, Glove Compartment Door Arm
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55536B Cover, Light Control Switch Hole
55538A Cover, Cooler Switch Hole
55538D Cover, Sunshine Sensor Hole
55539B Cover, Spare Switch Hole, NO.2
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55539F Cover, Spare Switch Hole
55539N Cover, Spare Switch Hole
55547 Cover, Remote Control Mirror Hole
55549A Cover, Rear Cooler Switch Hole
55557C Damper, Glove Compartment Door
55558 Reinforcement, Glove Compartment Door
55565 Handle, Glove Compartment Door Lock
55569 Cover, Glove Compartment Door Lock
55573A Hinge, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55950 Nozzle Assy, Defroster
55990A Nozzle Assy, Defroster, Lower
73960A Airbag Assy, Instrument Panel Passenger W/O Door
81942C Sheet, Heater Control Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
