Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

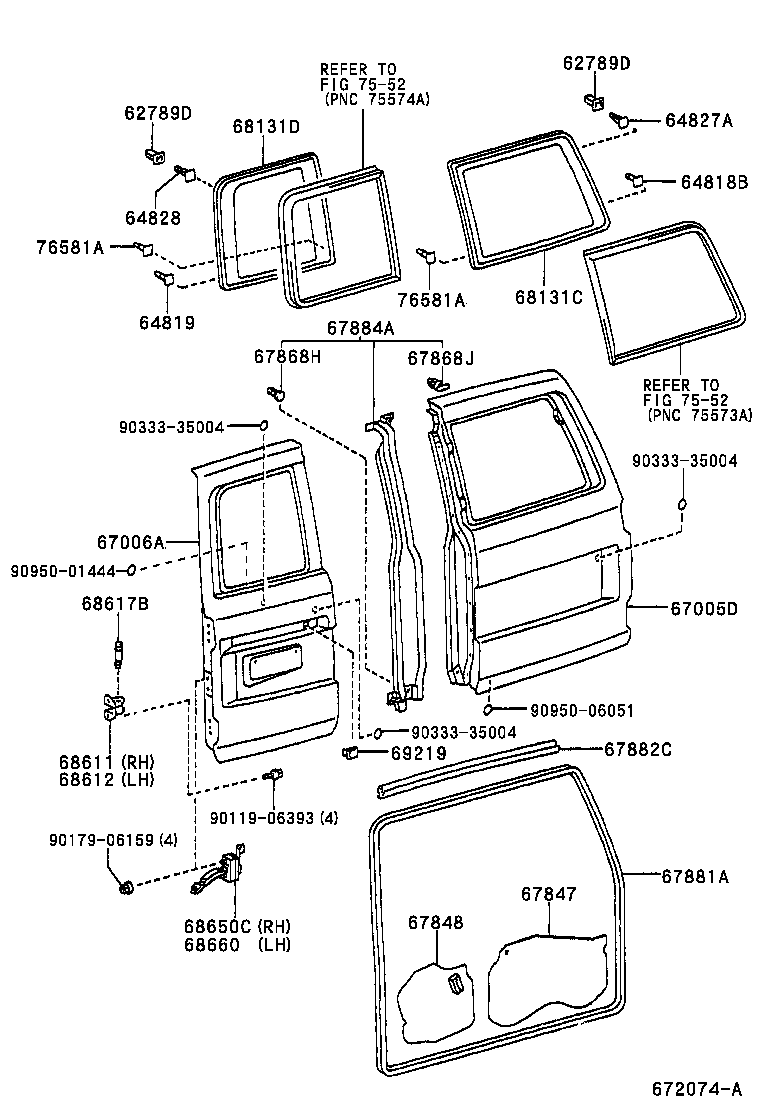

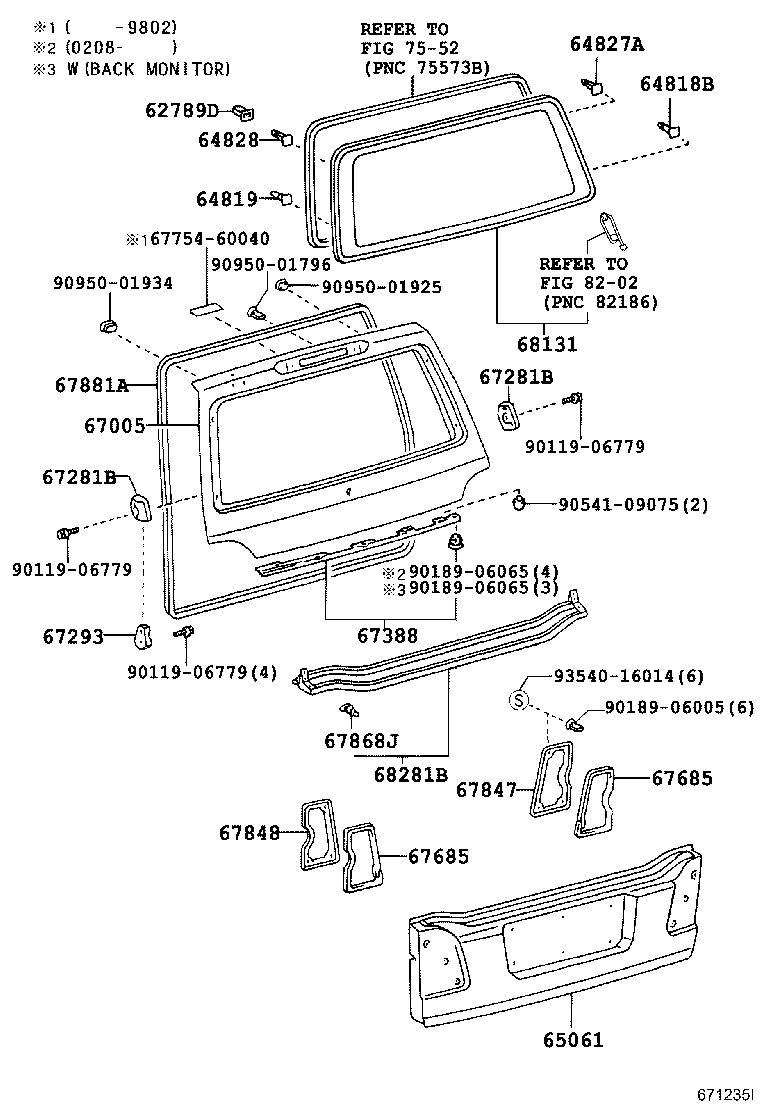

Back Door Panel & Glass
39 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62789D | Clip, Back Door Window Weatherstrip |
| 64780A | Panel Assy, Back Door Trim |
| 64780C | Panel Assy, Back Door Trim, RH |
| 64790C | Panel Assy, Back Door Trim, LH |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 65061 | Panel Sub-assy, Tail Gate |
| 67005 | Panel Sub-assy, Back Door |
| 67005D | Panel Sub-assy, Back Door, RH |
| 67006A | Panel Sub-assy, Back Door, LH |
| 67281B | Stopper, Back Door, Lower |
| 67293 | Cushion, Back Door Lower Stopper |
| 67388 | Protector, Back Door Edge |
| 67685 | Packing, Back Door Service Hole, NO.1 |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67847 | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67868H | Clip, Door Weatherstrip |
| 67868J | Retainer, Door Weatherstrip |
| 67881A | Weatherstrip, Back Door |
| 67882C | Weatherstrip, Back Door, NO.2 |
| 67884A | Weatherstrip, Back Door, Center |
| 67935B | Garnish, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 68131 | Glass, Back Door |
| 68131C | Glass, Back Door, RH |
| 68131D | Glass, Back Door, LH |
| 68281B | Weatherstrip, Lift Gate |
| 68611 | Base, Back Door Check, RH |
| 68612 | Base, Back Door Check, LH |
| 68617B | Pin, Back Door Check |
| 68650C | Check Assy, Back Door, RH |
| 68660 | Check Assy, Back Door, LH |
| 69219 | Seal, Back Door Outside Handle |
| 76581A | Retainer, Back Window Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
