Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

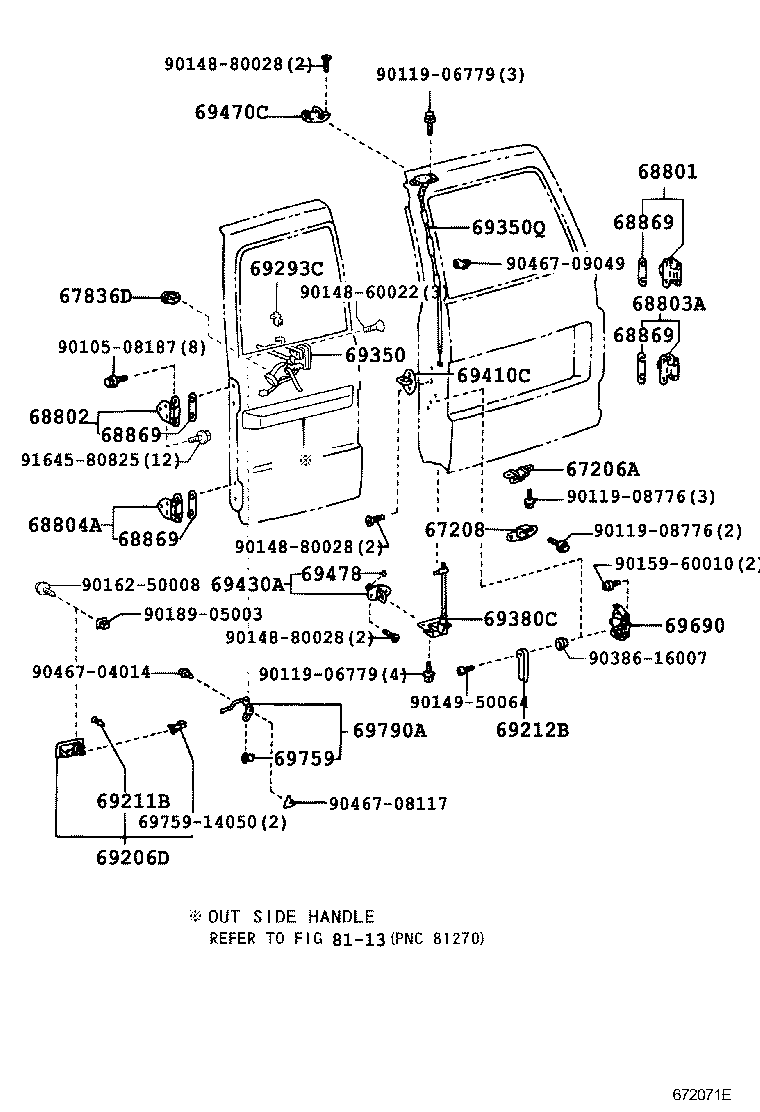

Back Door Lock & Hinge
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65706A | Stay Sub-assy, Tail Gate, RH |
| 65707A | Stay Sub-assy, Tail Gate, LH |
| 66110H | Hinge Assy, Tail Gate, RH |
| 66120G | Hinge Assy, Tail Gate, LH |
| 67206A | Bracket Sub-assy, Back Door Stopper |
| 67208 | Stopper Sub-assy, Back Door, NO.2 |
| 67392 | Protector, Back Door Lock |
| 67836D | Cover, Rear Door Lock Child Protection |
| 67836E | Cover, Rear Door Lock Child Protection |
| 68801 | Hinge Sub-assy, Back Door, Upper RH |
| 68802 | Hinge Sub-assy, Back Door, Upper LH |
| 68803A | Hinge Sub-assy, Back Door, Lower RH |
| 68804A | Hinge Sub-assy, Back Door, Lower LH |
| 68810D | Hinge Assy, Back Door, RH |
| 68820C | Hinge Assy, Back Door, LH |
| 68846B | Guide, Back Door Torsion Bar |
| 68869 | Plate, Back Door Hinge Seal |
| 68870 | Bar Assy, Back Door Lower Torsion |
| 68950C | Stay Assy, Back Door, RH |
| 68960 | Stay Assy, Back Door, LH |
| 69090 | Handle Assy, Back Door, Outside |
| 69206D | Handle Sub-assy, Back Door Inside, LH |
| 69209A | Handle Sub-assy, Back Door, Inside |
| 69211B | Cushion(FOR BACK DOOR OUTSIDE HANDLE) |
| 69212B | Handle, Back Door Inside |
| 69215 | Handle, Back Door Outside |
| 69277A | Bezel, Back Door Inside Handle |
| 69293C | Snap, Back Door Handle |
| 69350 | Lock Assy, Back Door |
| 69350Q | Lock Assy, Back Door, Upper |
| 69380A | Lock Assy, Tail Gate, Lower RH |
| 69380C | Lock Assy, Back Door, Lower |
| 69390A | Lock Assy, Tail Gate, Lower LH |
| 69410C | Plate Assy, Back Door Lock Striker |
| 69430A | Striker Assy, Back Door Lower Lock |
| 69430C | Striker Assy, Back Door Lock |
| 69450C | Striker Assy, Back Door Lock, RH |
| 69460B | Striker Assy, Back Door Lock, LH |
| 69470C | Striker Assy, Back Door Upper Lock |
| 69478 | Cushion, Back Door Lower Stopper |
| 69690 | Control Assy, Back Door Remote |
| 69759 | Snap, Door Lock Control Link, NO.1 |
| 69790 | Control Assy, Back Door Lock |
| 69790A | Link Assy, Back Door Lock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
