Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

8 part groups · 3 illustrations

Illustrations

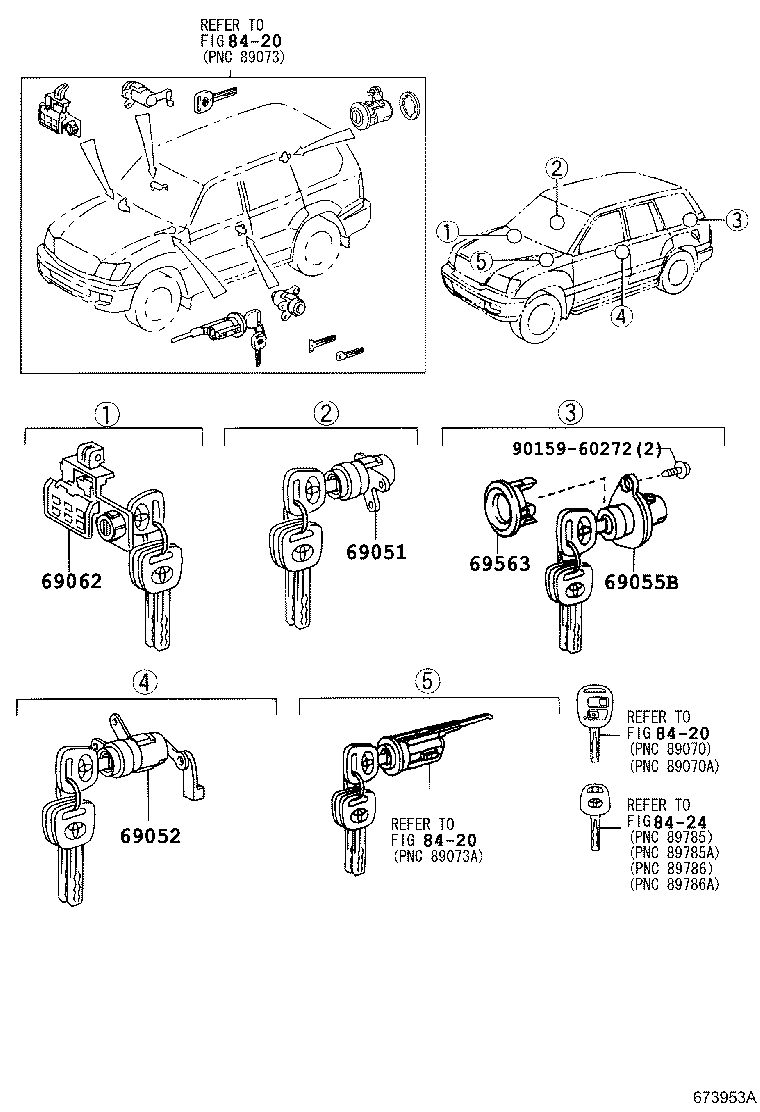

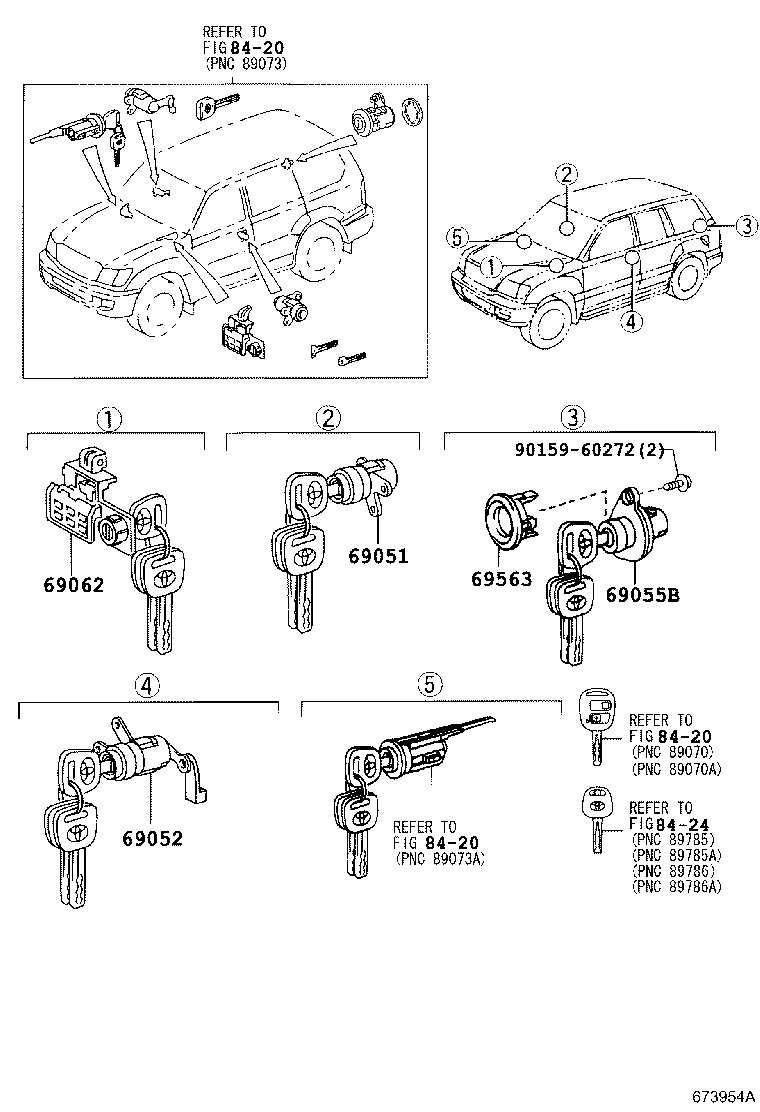

Figure 671268I 671268I 1998-01 → 2005-05 Figure 673953A 673953A 2005-05 → — Figure 673954A 673954A 2005-05 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69513A Pad, Door Cylinder
69561B Retainer, Back Door Lock Cylinder
69563 Pad, Back Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
