Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

30 part groups · 2 illustrations

Illustrations

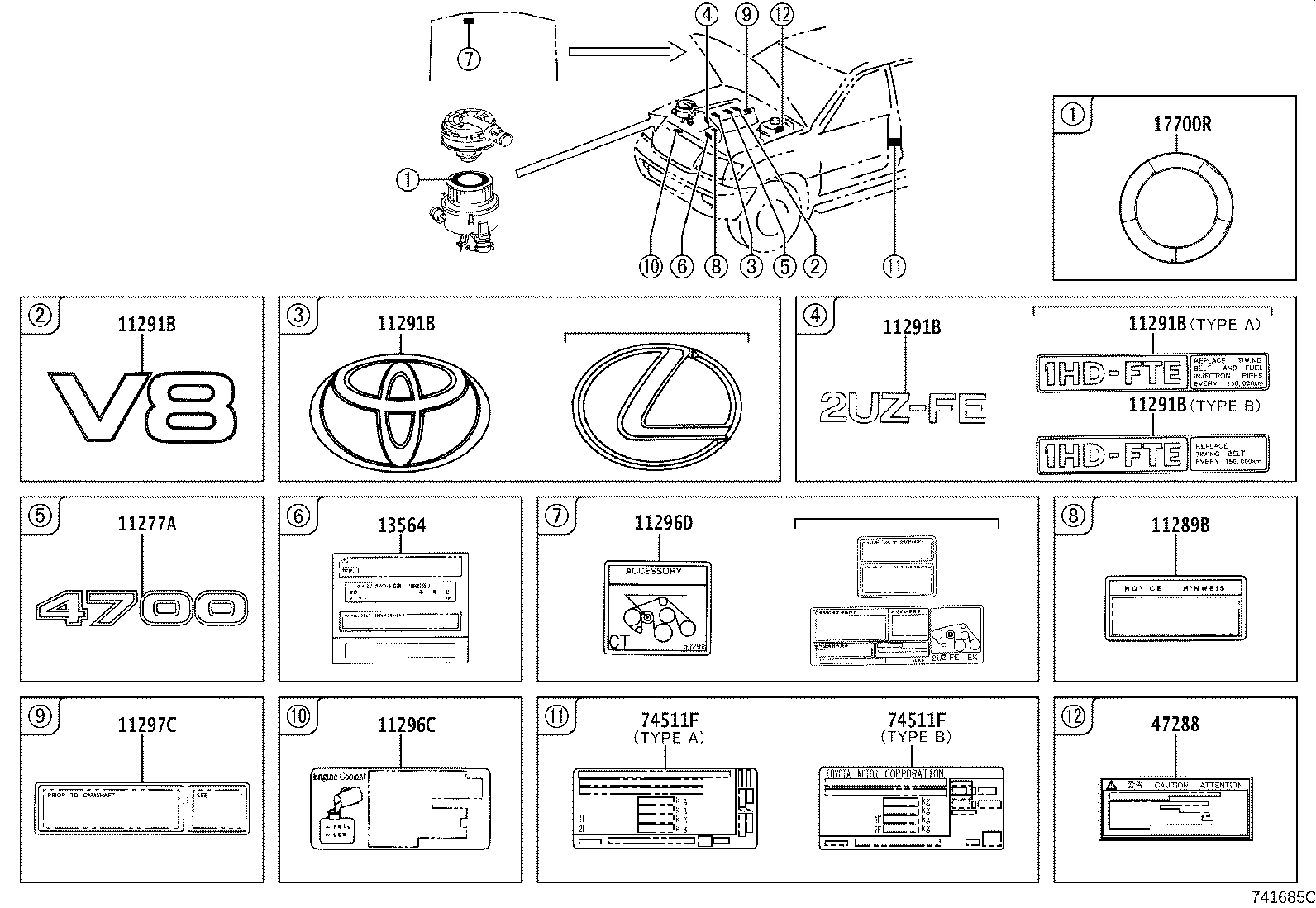

Figure 740461N 740461N 1998-01 → — Figure 741685C 741685C 1998-01 → —

Part groups

PNCDescription
11277A Plate, Engine Specification, NO.2
11289B Label, Spark Plug Notice
11291B Plate, Engine Name
11296C Label, Engine Service Information
11296D Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
13564 Label, Timing Belt Replacement Information
17700R Label, Air Cleaner Information
35519 Plate, Automatic Transmission Caution
36369 Label, Transfer Information
41991A Plate, Caution
45248A Label, Steering Actuator Caution
45249A Label, Steering Actuator Information
47288 Label, Brake Fluid Notice
48969 Label, Jack UP Caution
69339A Plate, Child Protector Lock Caution
69339B Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74536A Label, Fuel Tank Cap Information
74543C Label, Rear Seat Information
74544E Label, Rear NO.2 Seat Information
74552 Plate, Safety Caution
74559A Plate, Fuel Caution
74567A Plate, E.C.E Approved Number
74596A Label, Side Airbag Caution
74597 Label, Driver & Passenger Airbag Caution
84568 Label, Fuel Pump Reset Switch Caution
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
