Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

16 part groups · 2 illustrations

Illustrations

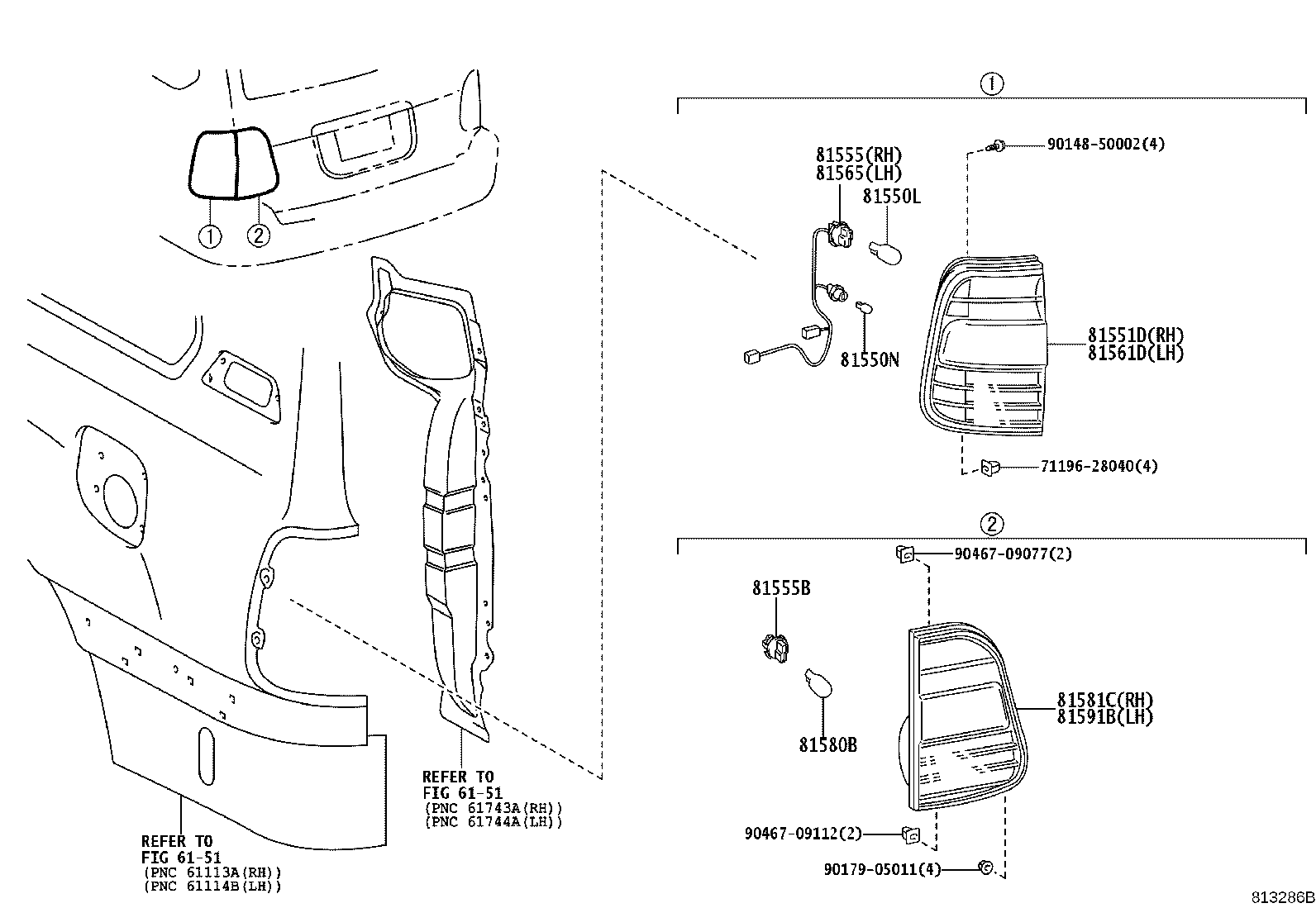

Figure 812245C 812245C 1998-01 → 2005-05 Figure 813286B 813286B 2005-05 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81550D Bulb(FOR REAR COMBINATION LAMP)
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555B Socket Plug, NO.1
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
