Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01

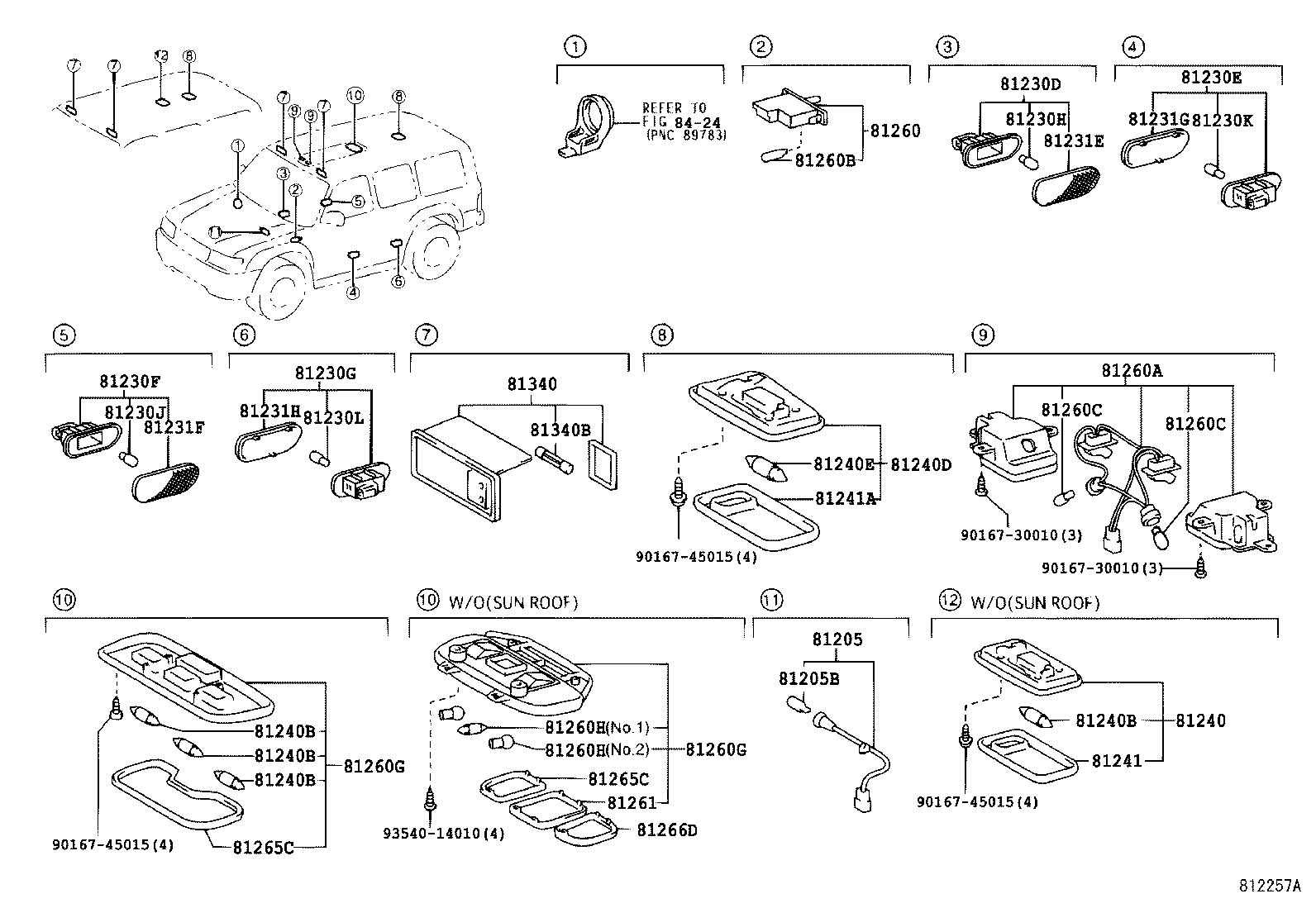

Interior Lamp
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205 | Lamp Sub-assy, Ash Receptacle |
| 81205B | Bulb, Ash Receptacle Lamp |
| 81230D | Lamp Assy, Front Door Courtesy, RH |
| 81230E | Lamp Assy, Front Door Courtesy, LH |
| 81230F | Lamp Assy, Rear Door Courtesy, RH |
| 81230G | Lamp Assy, Rear Door Courtesy, LH |
| 81230H | Bulb(FOR FRONT DOOR COURTESY LAMP RH) |
| 81230J | Bulb(FOR REAR DOOR COURTESY LAMP RH) |
| 81230K | Bulb(FOR REAR DOOR COURTESY LAMP LH) |
| 81230L | Bulb(FOR FRONT DOOR COURTESY LAMP LH) |
| 81231E | Lens (FOR FRONT DOOR COURTESY LAMP, RH) |
| 81231F | Lens (FOR REAR DOOR COURTESY LAMP, RH) |
| 81231G | Lens (FOR FRONT DOOR COURTESY LAMP, LH) |
| 81231H | Lens (FOR REAR DOOR COURTESY LAMP, LH) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240D | Lamp Assy, Room, NO.2 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81241A | Lens, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81260G | Lamp Assy, Map, NO.2 |
| 81260H | Bulb(FOR MAP LAMP), NO.2 |
| 81261 | Lens And Cover, Map Lamp |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
| 81870F | Cap, Key Cylinder Lamp Bulb |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
