Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

144 part groups · 30 illustrations

Illustrations

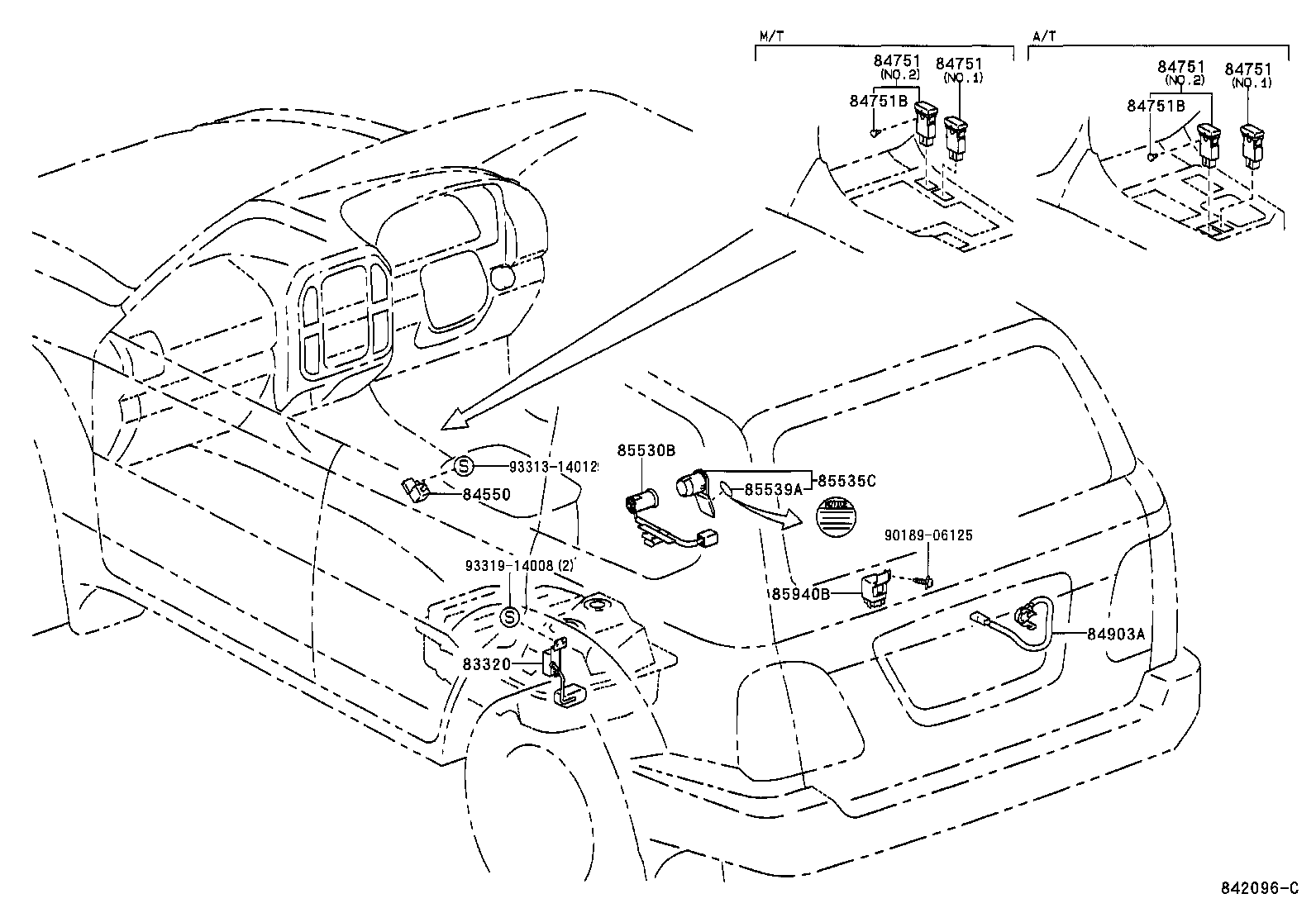

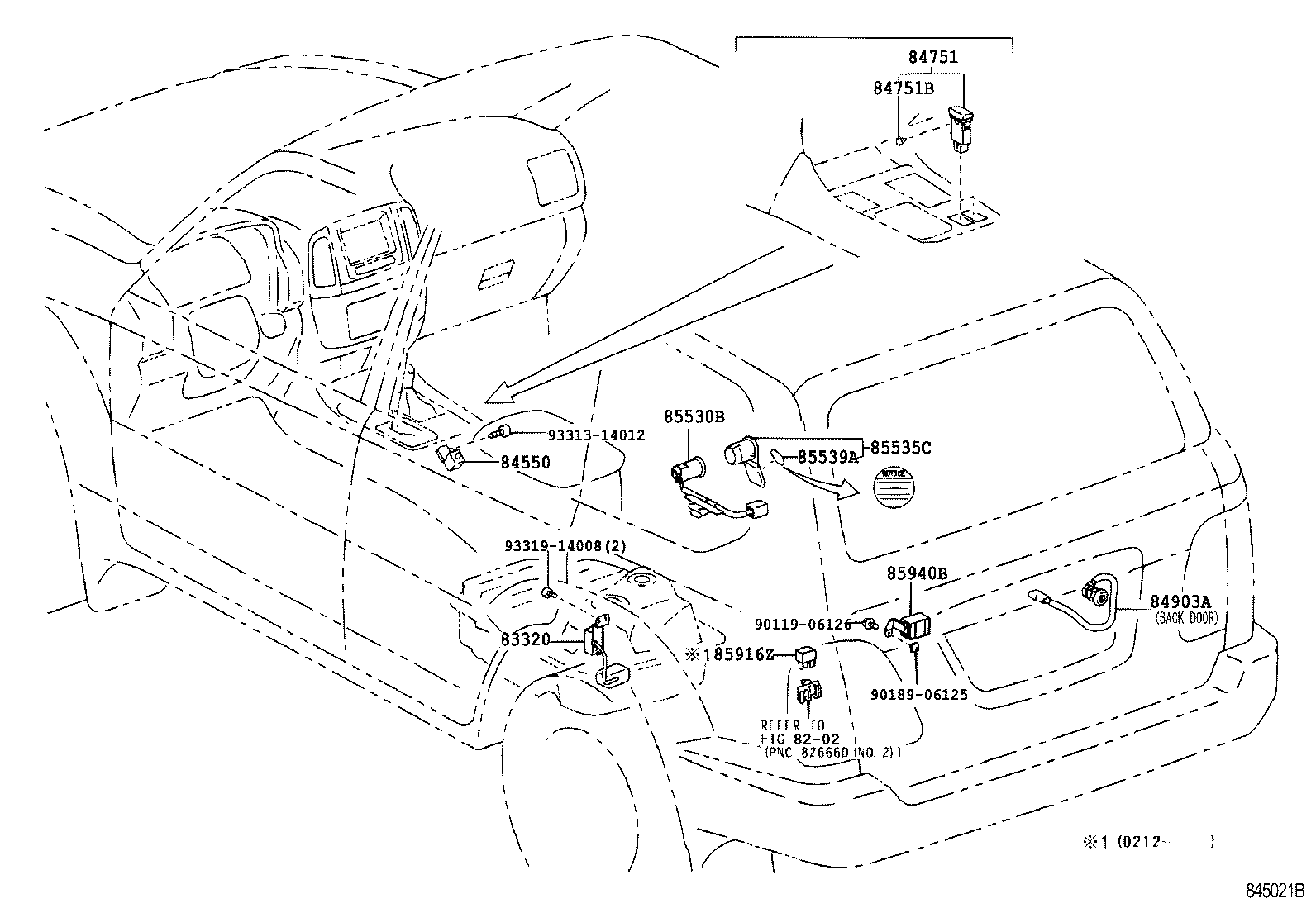

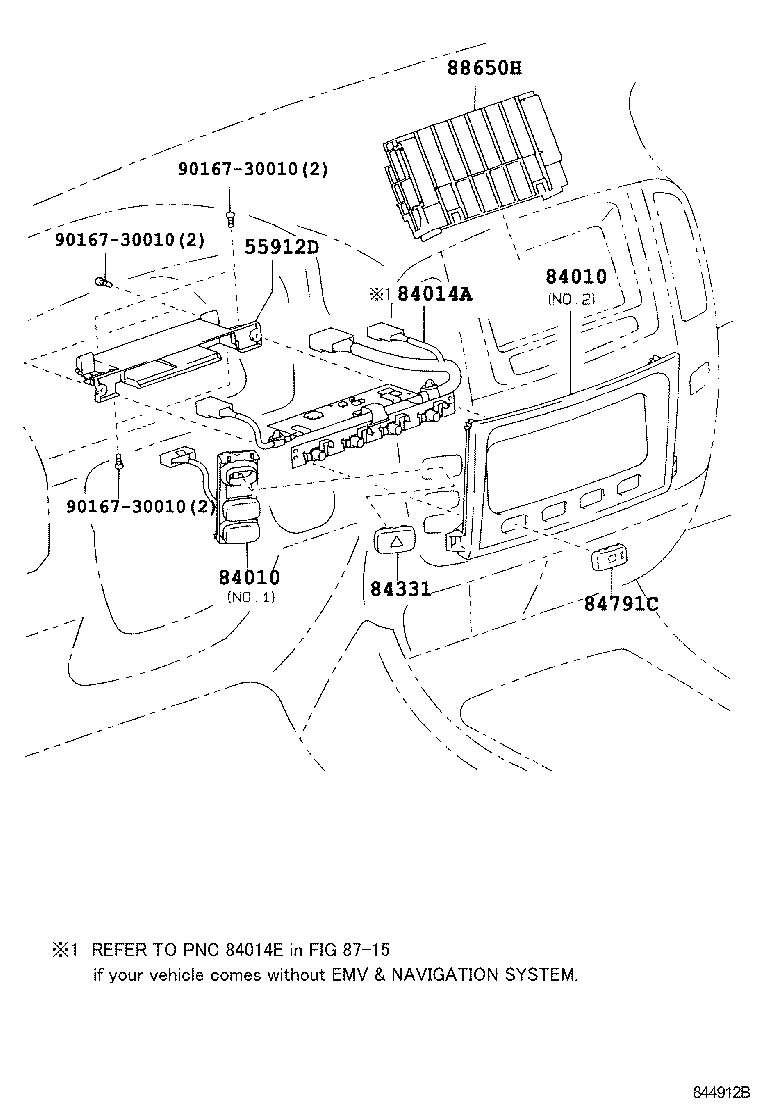

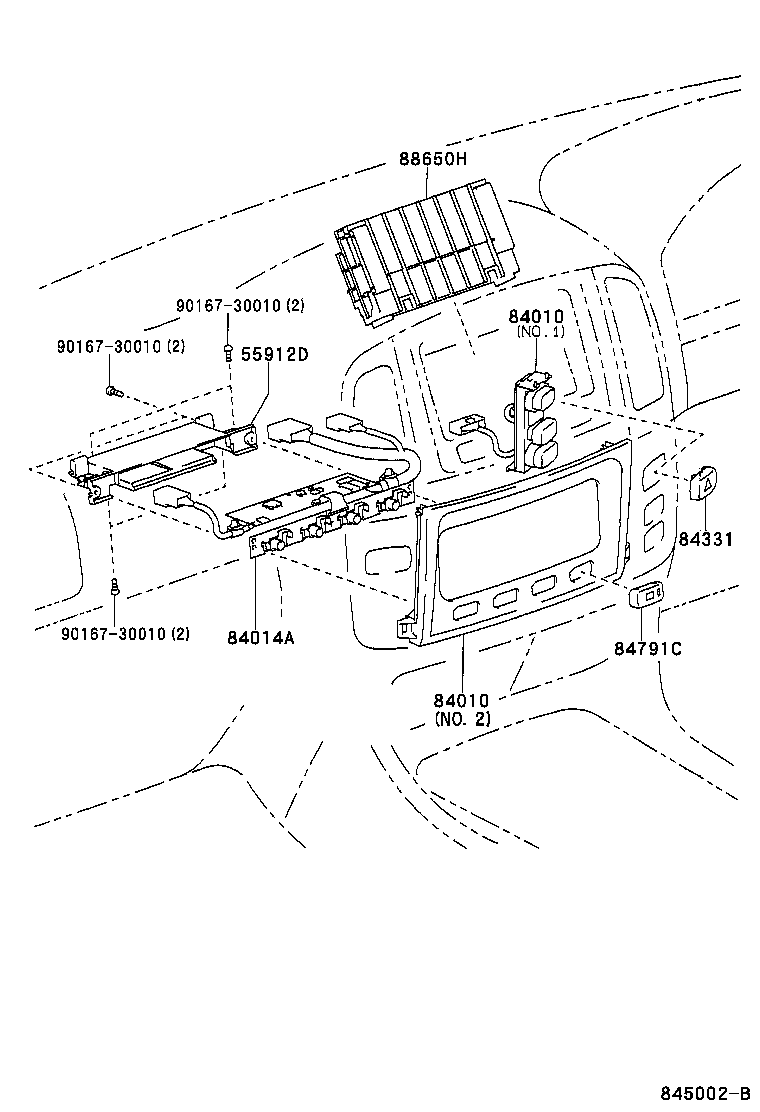

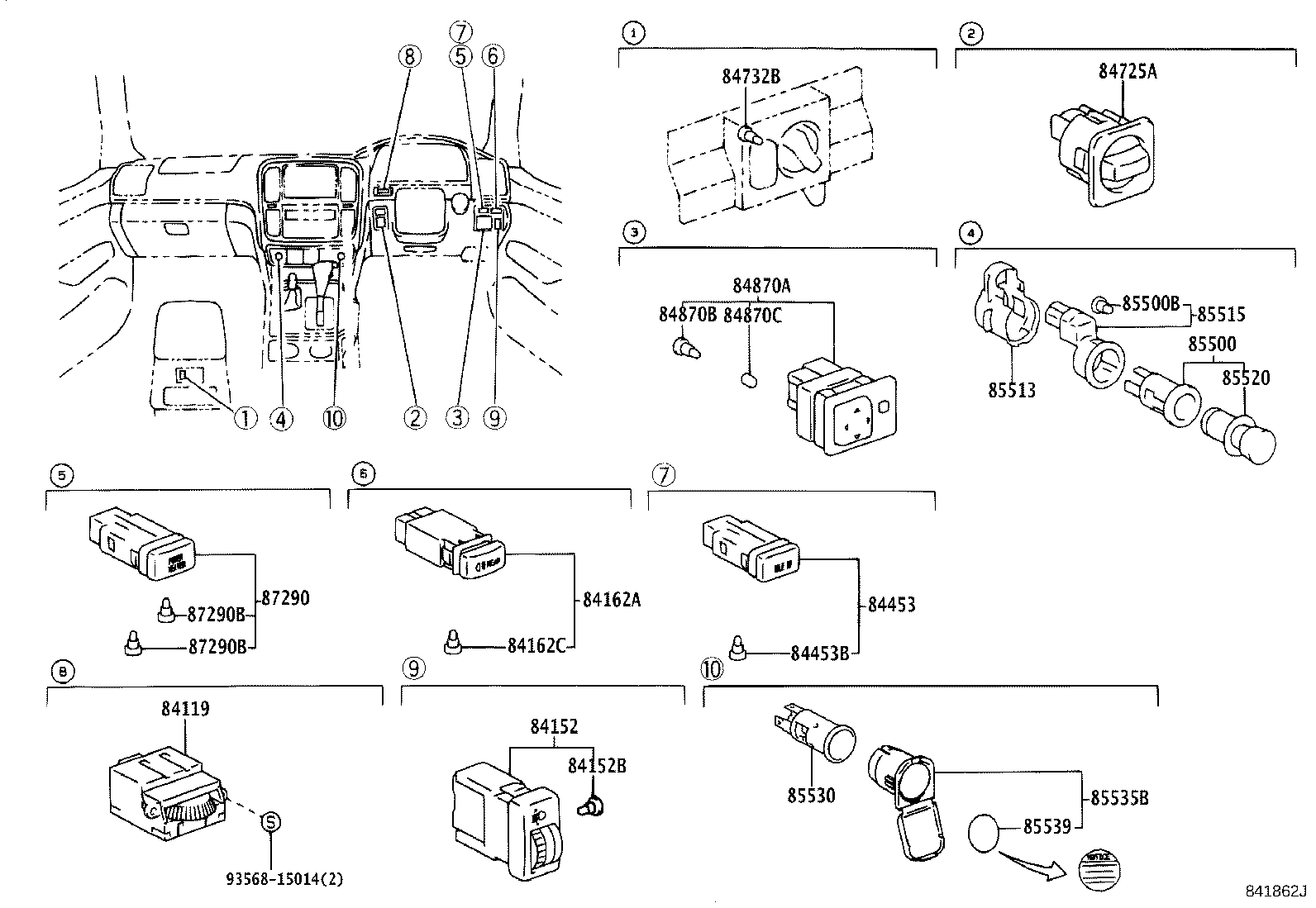

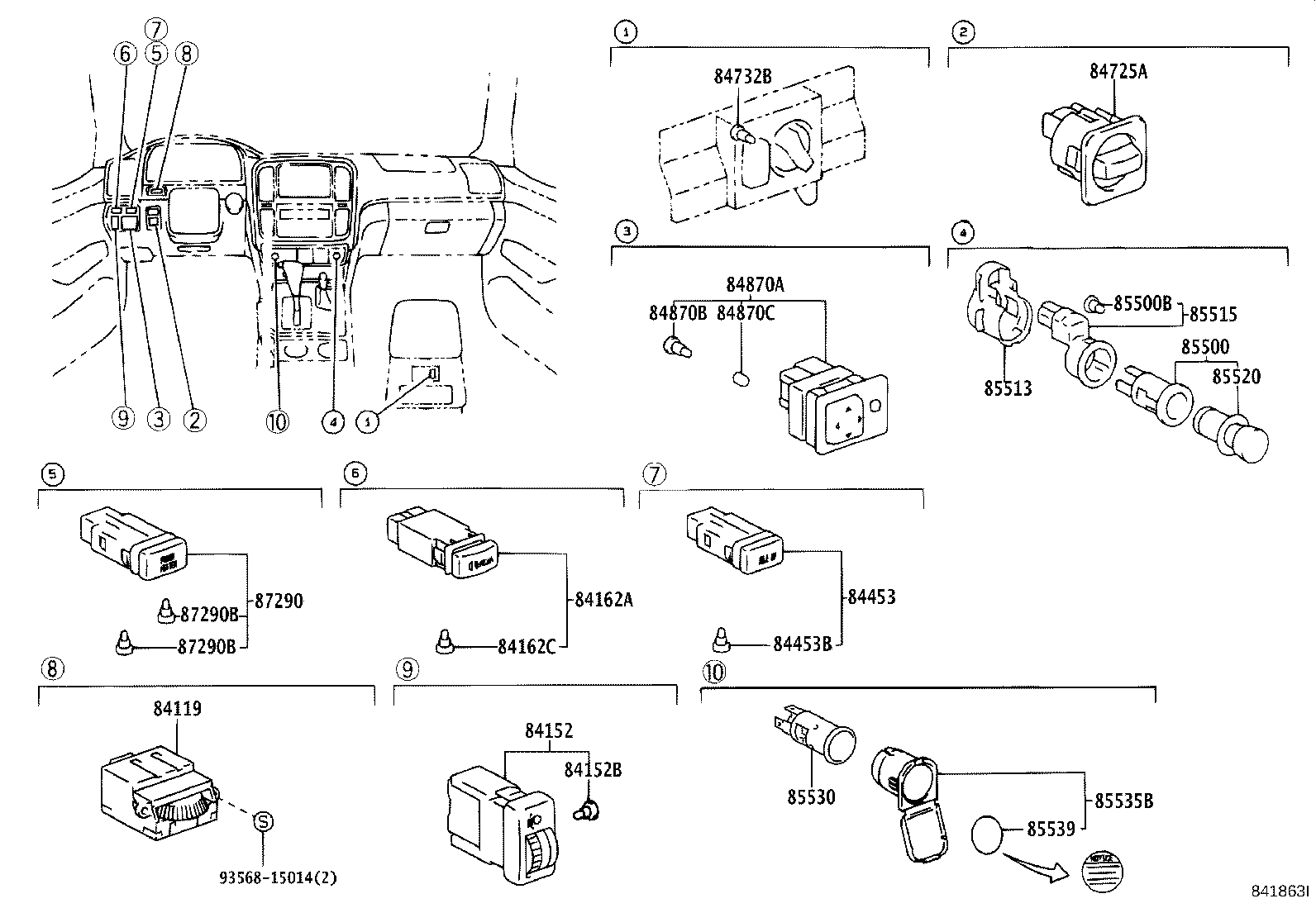

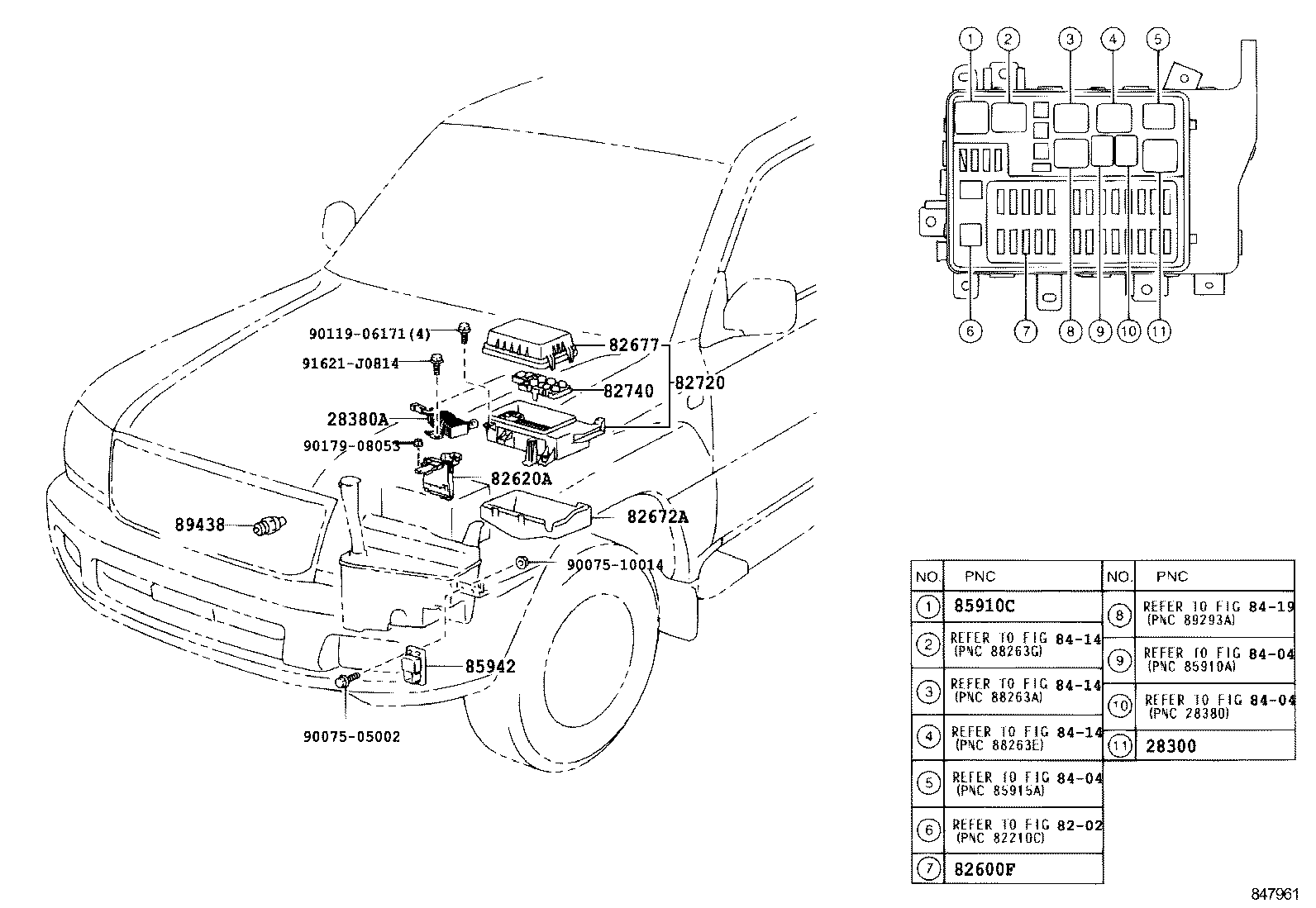

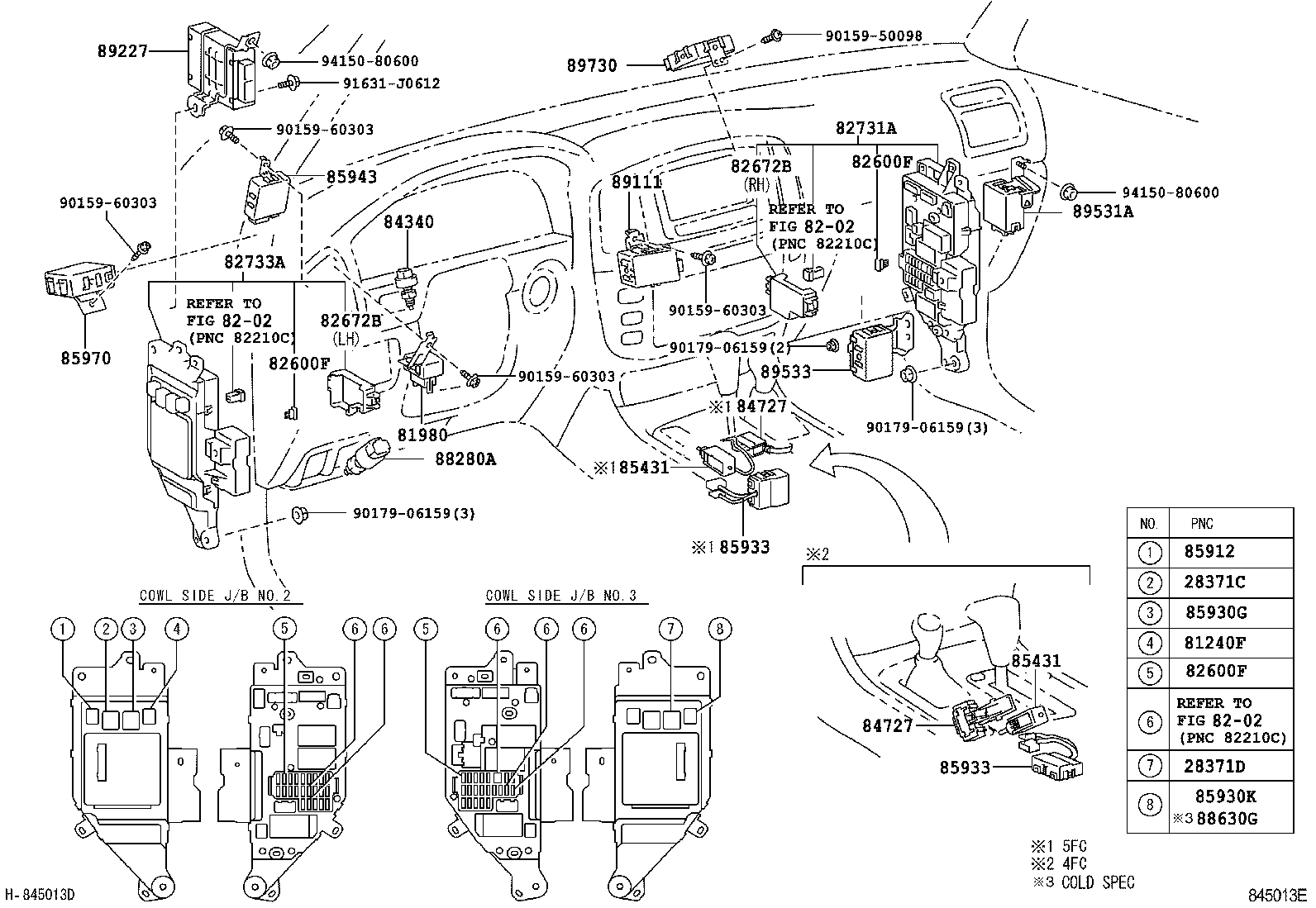

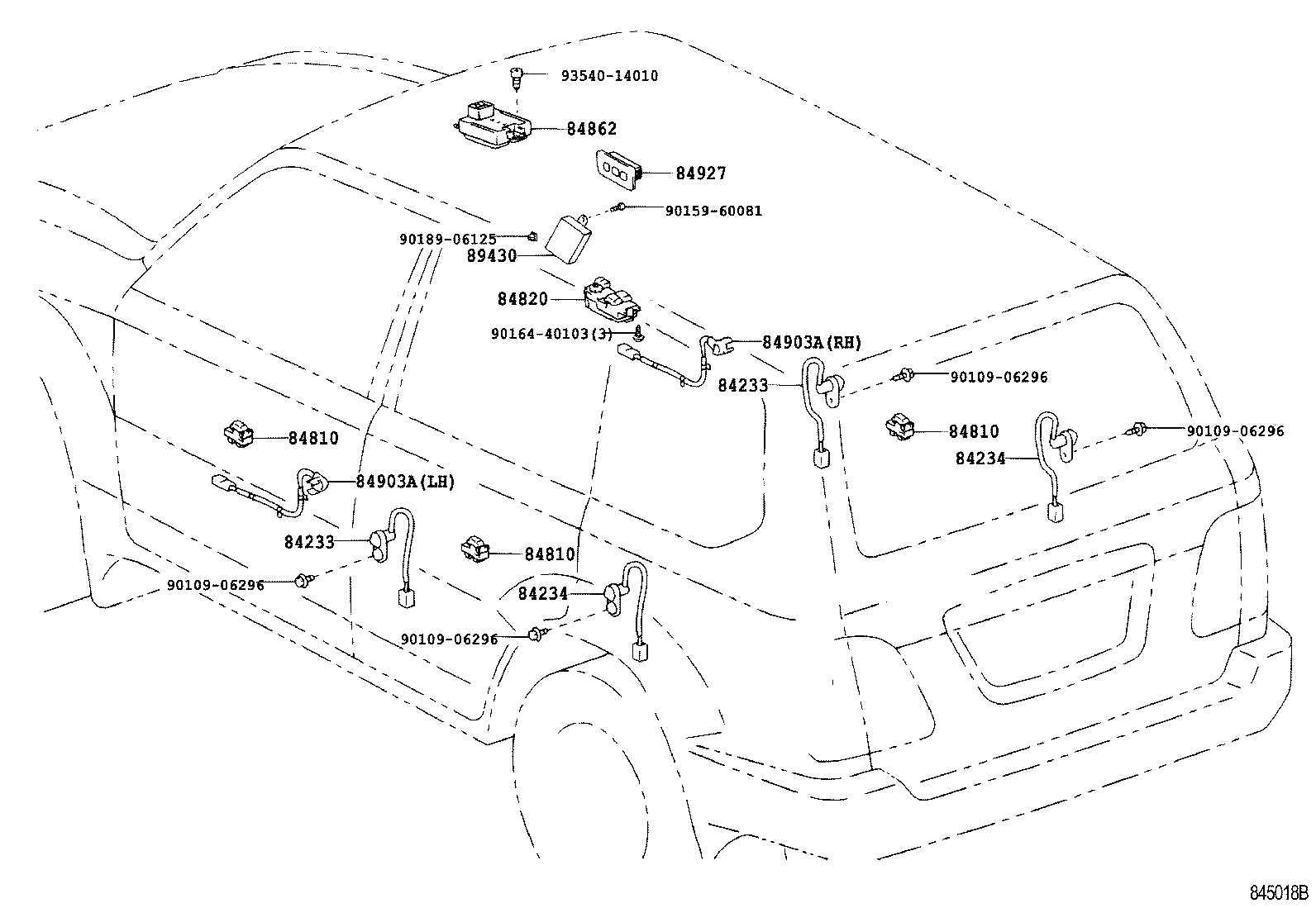

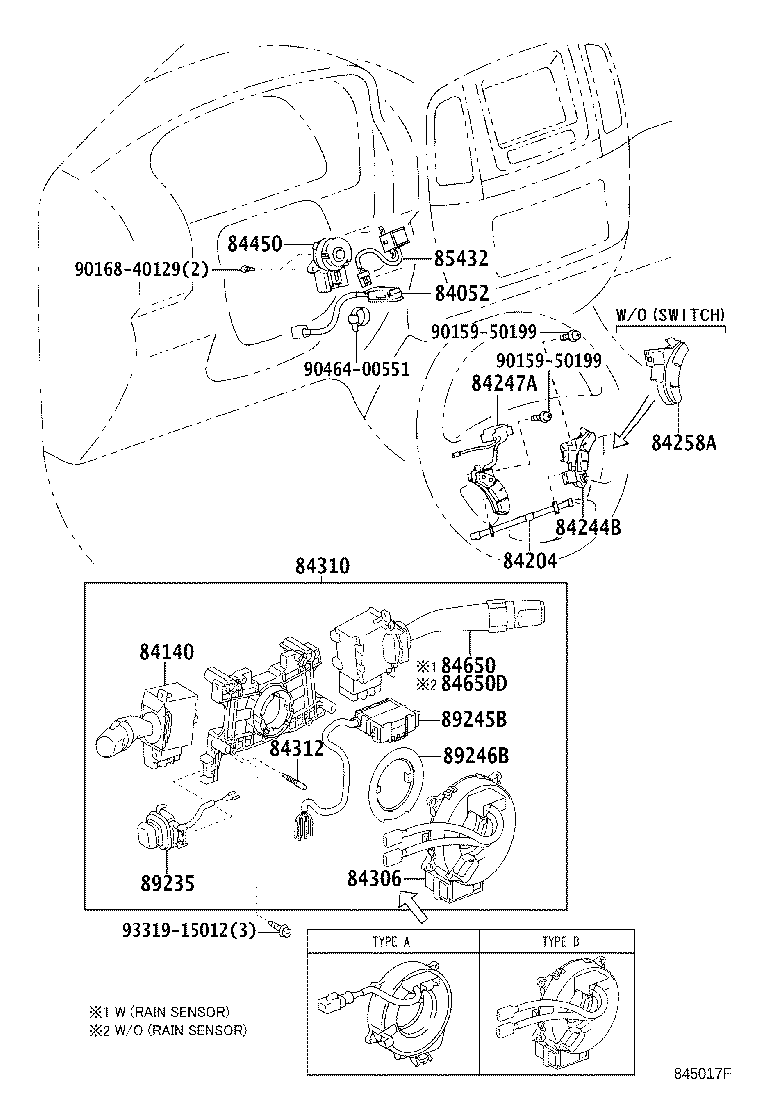

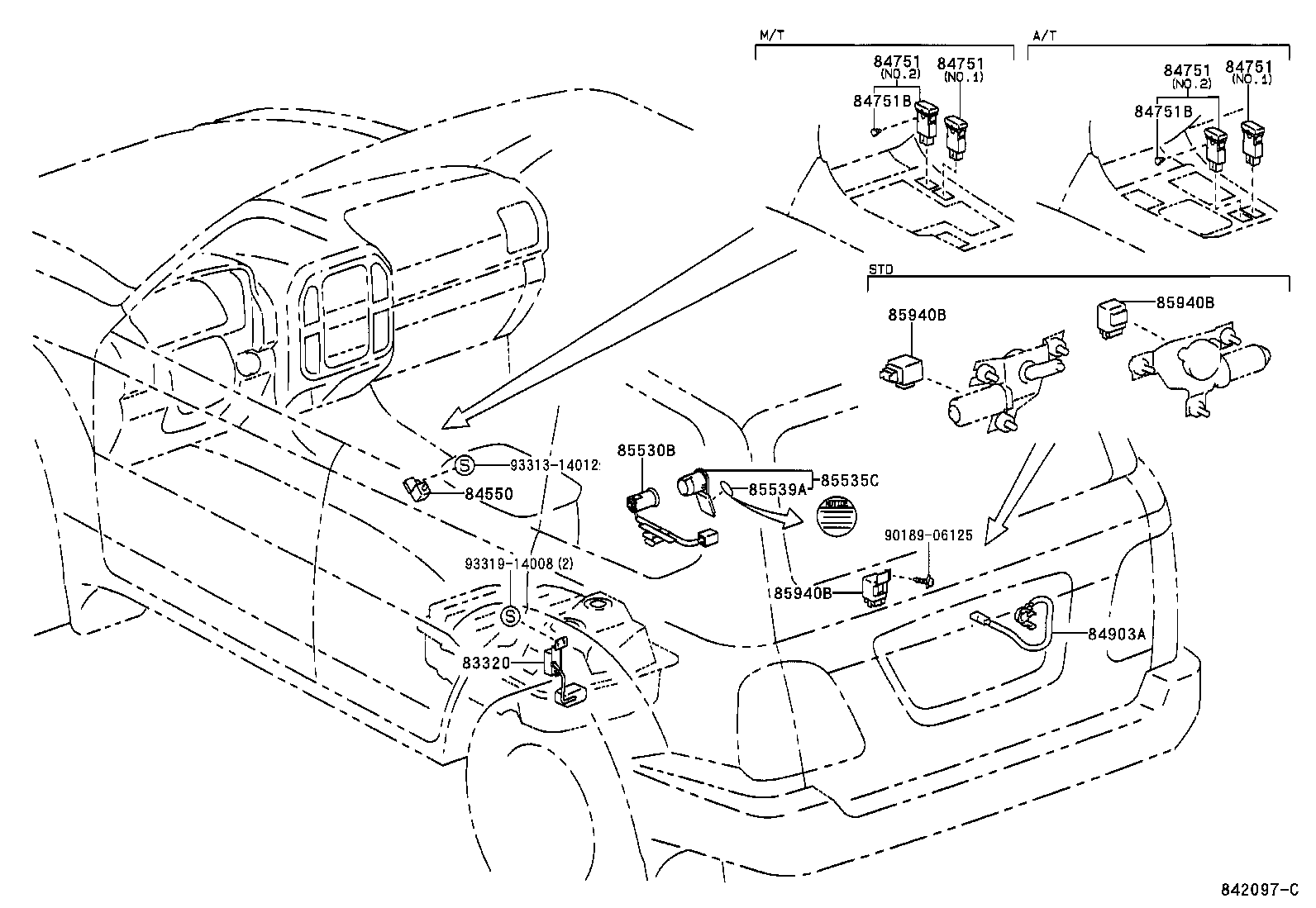

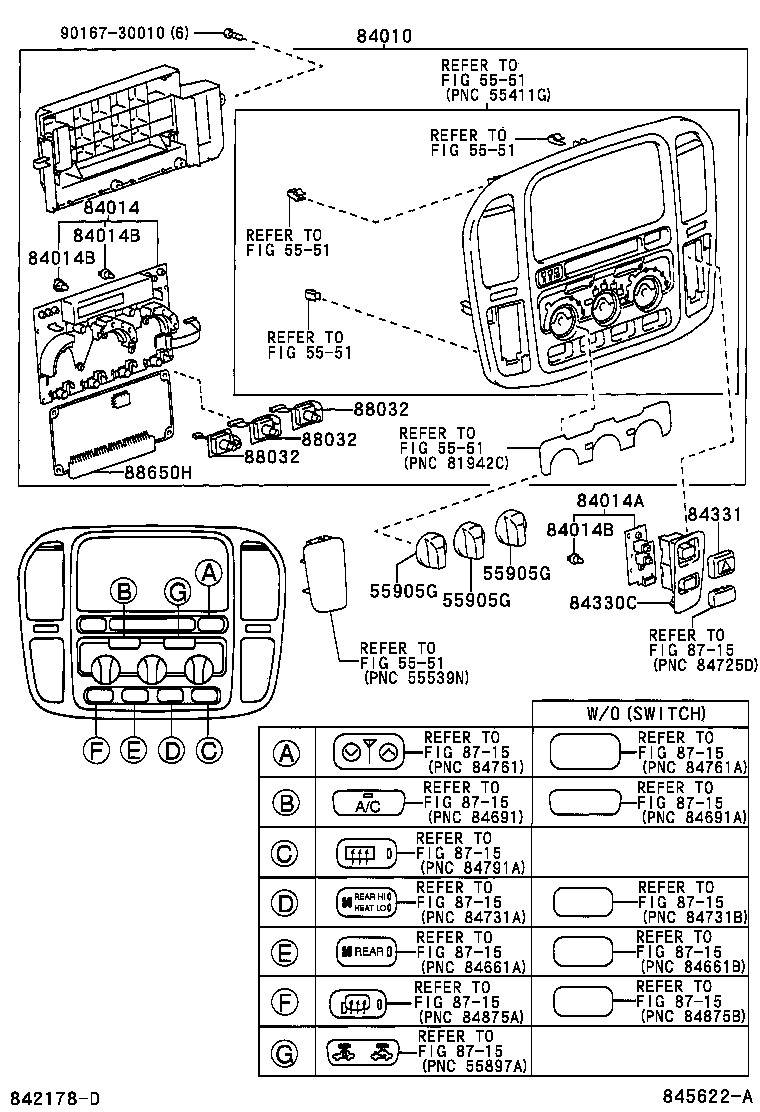

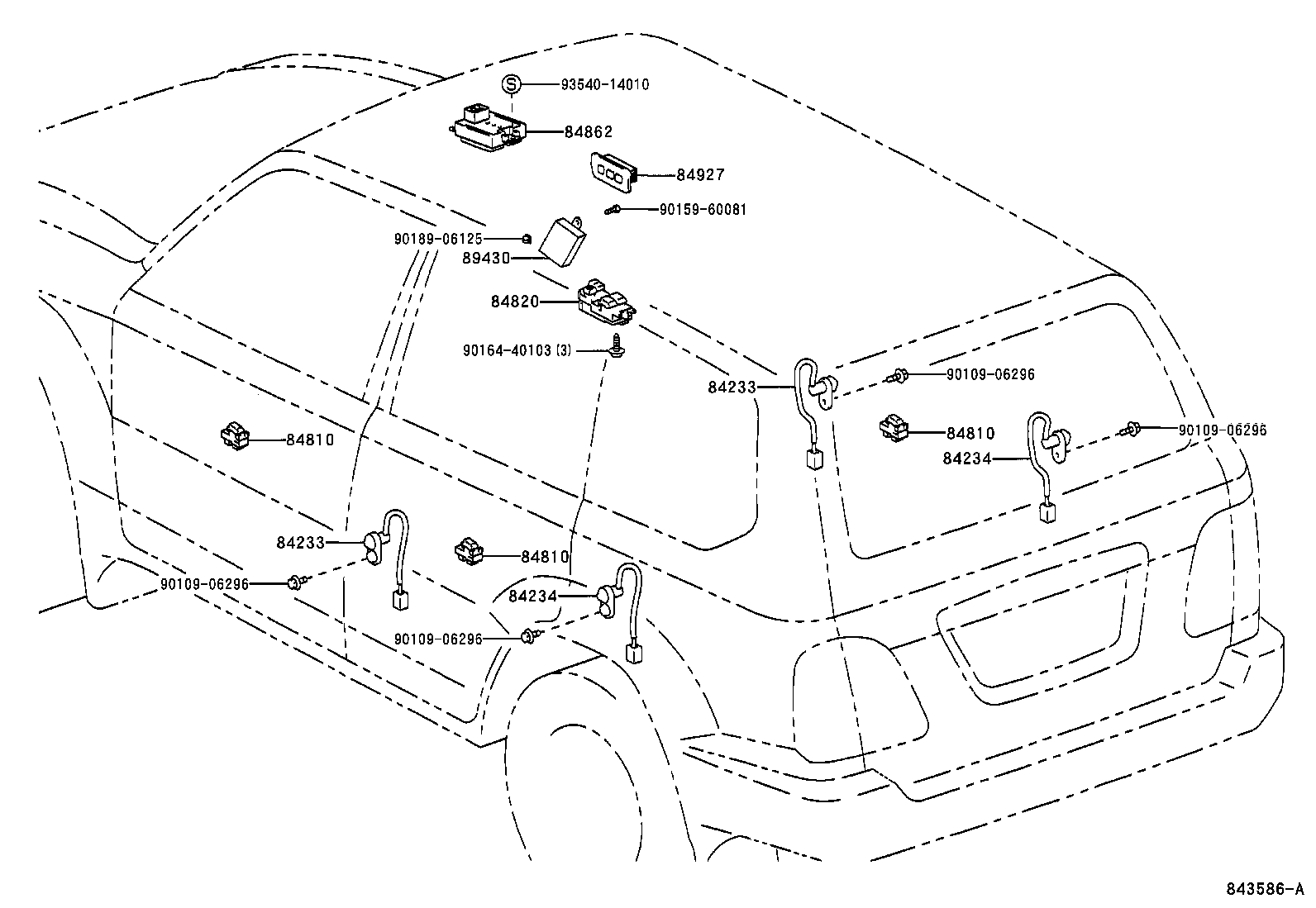

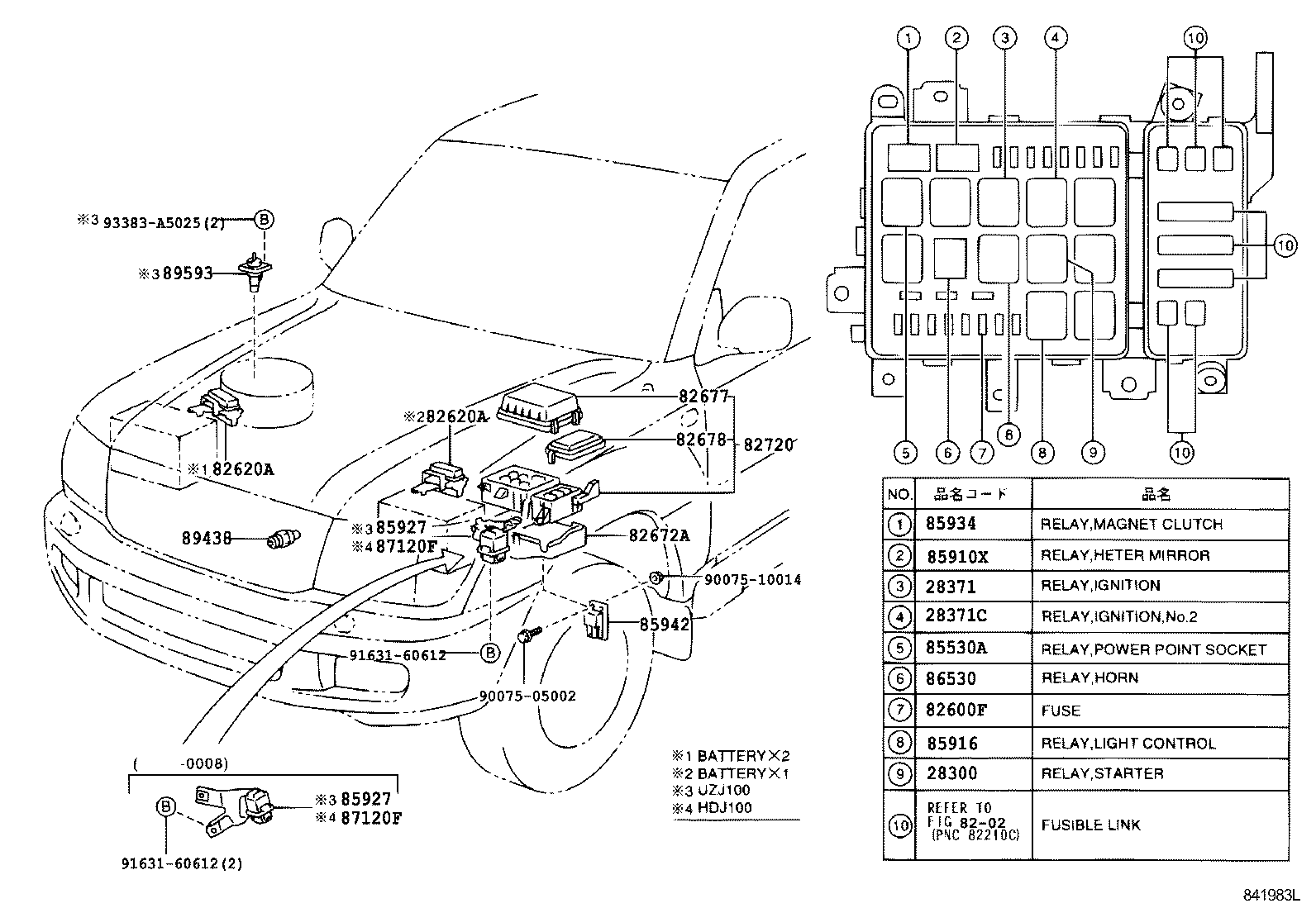

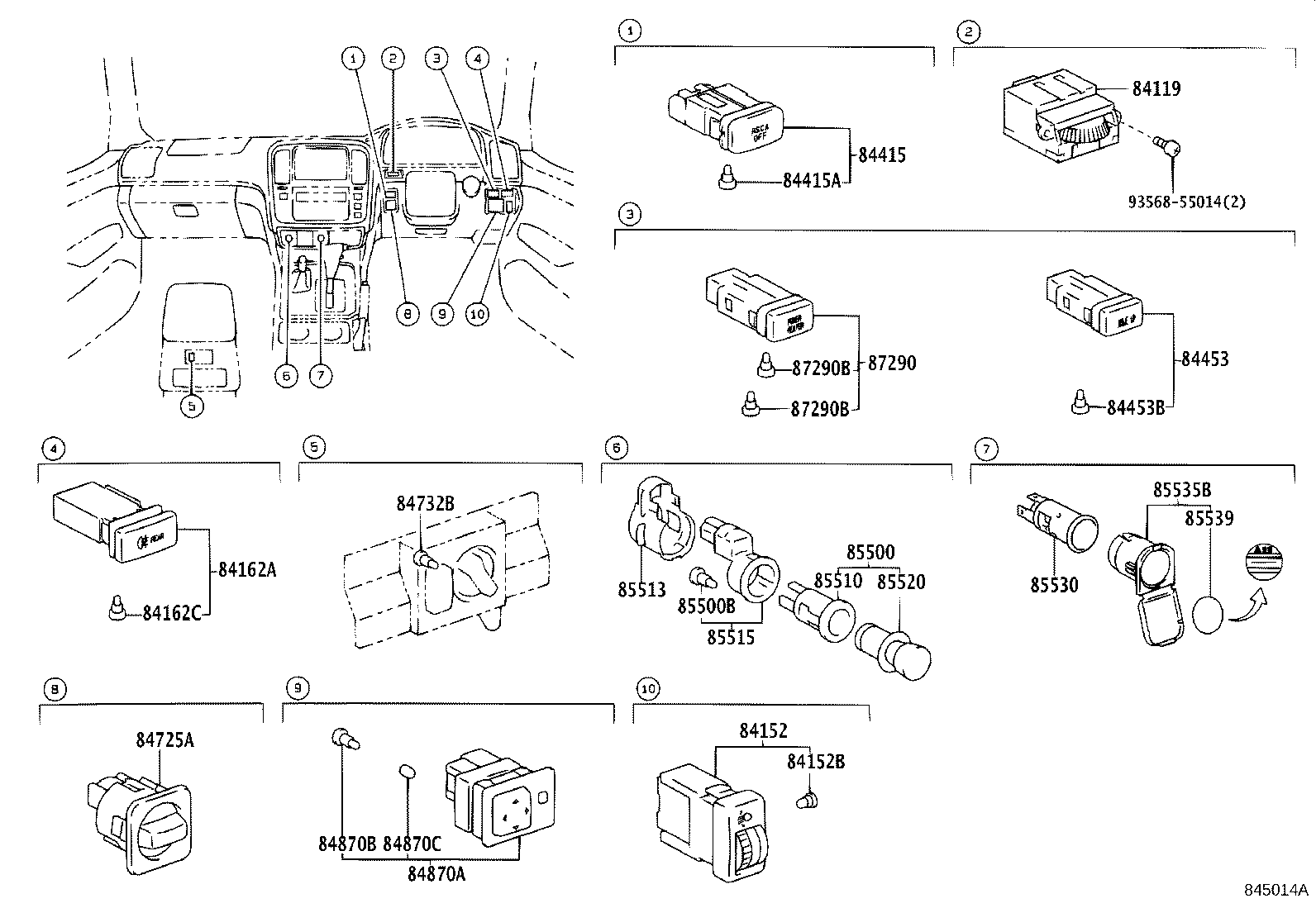

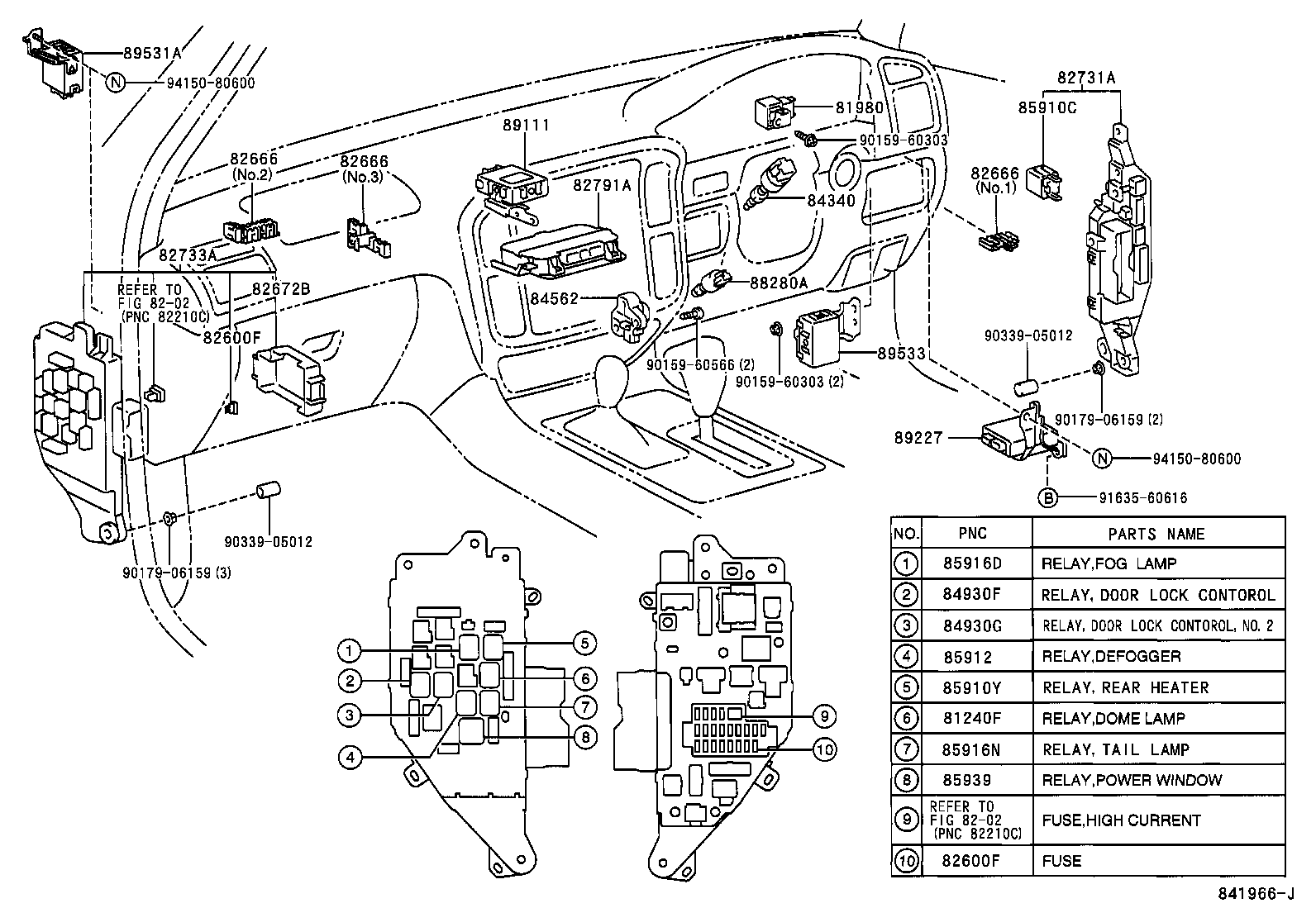

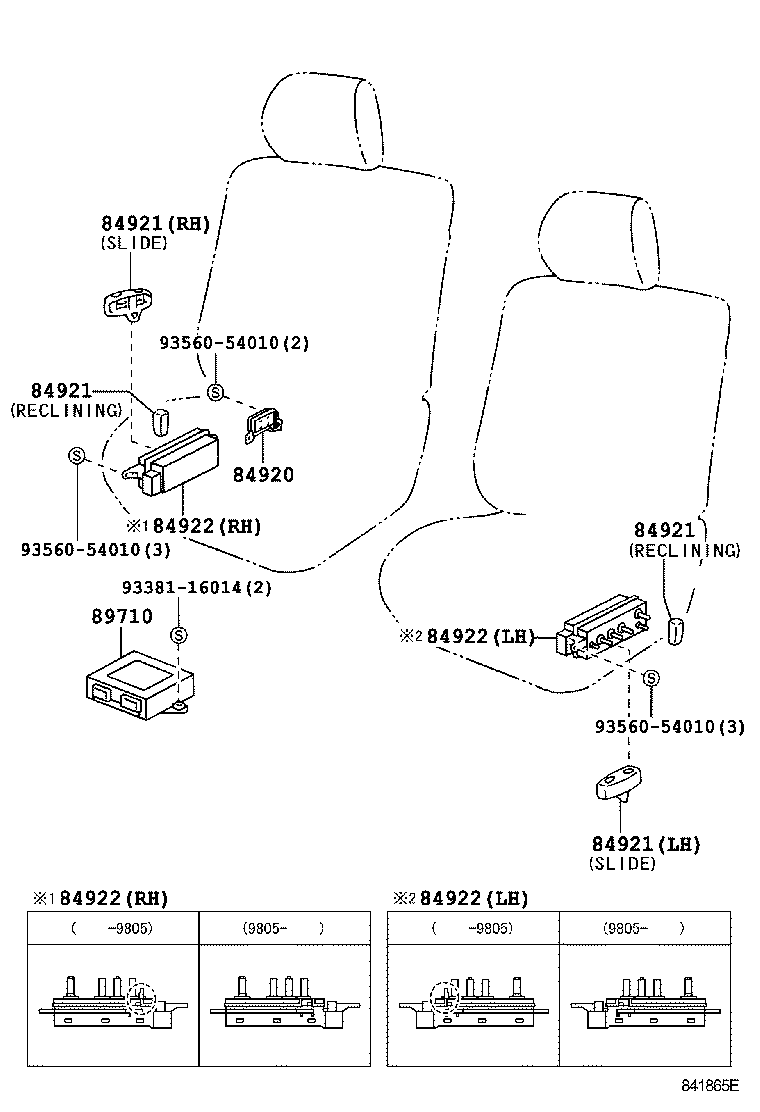

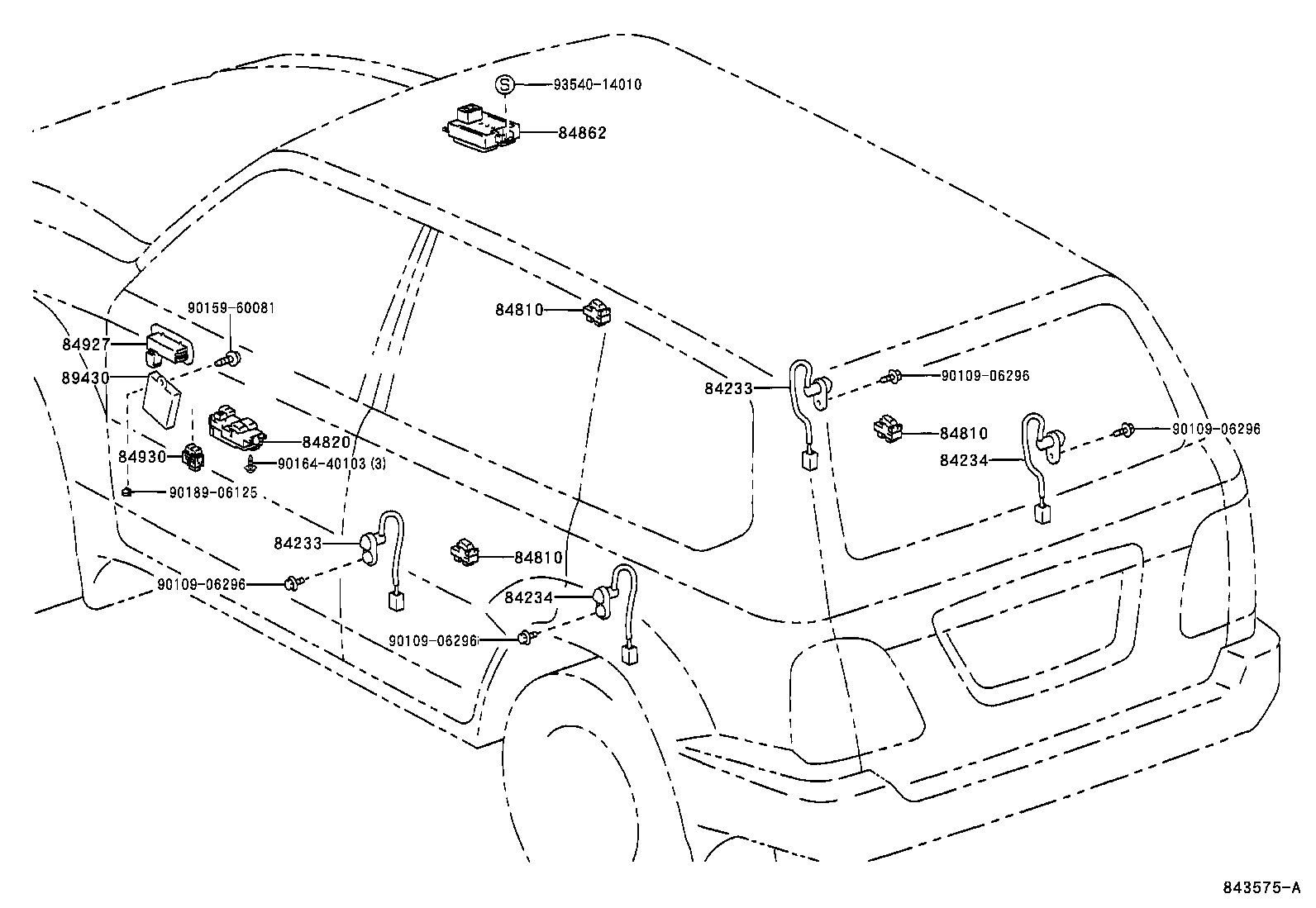

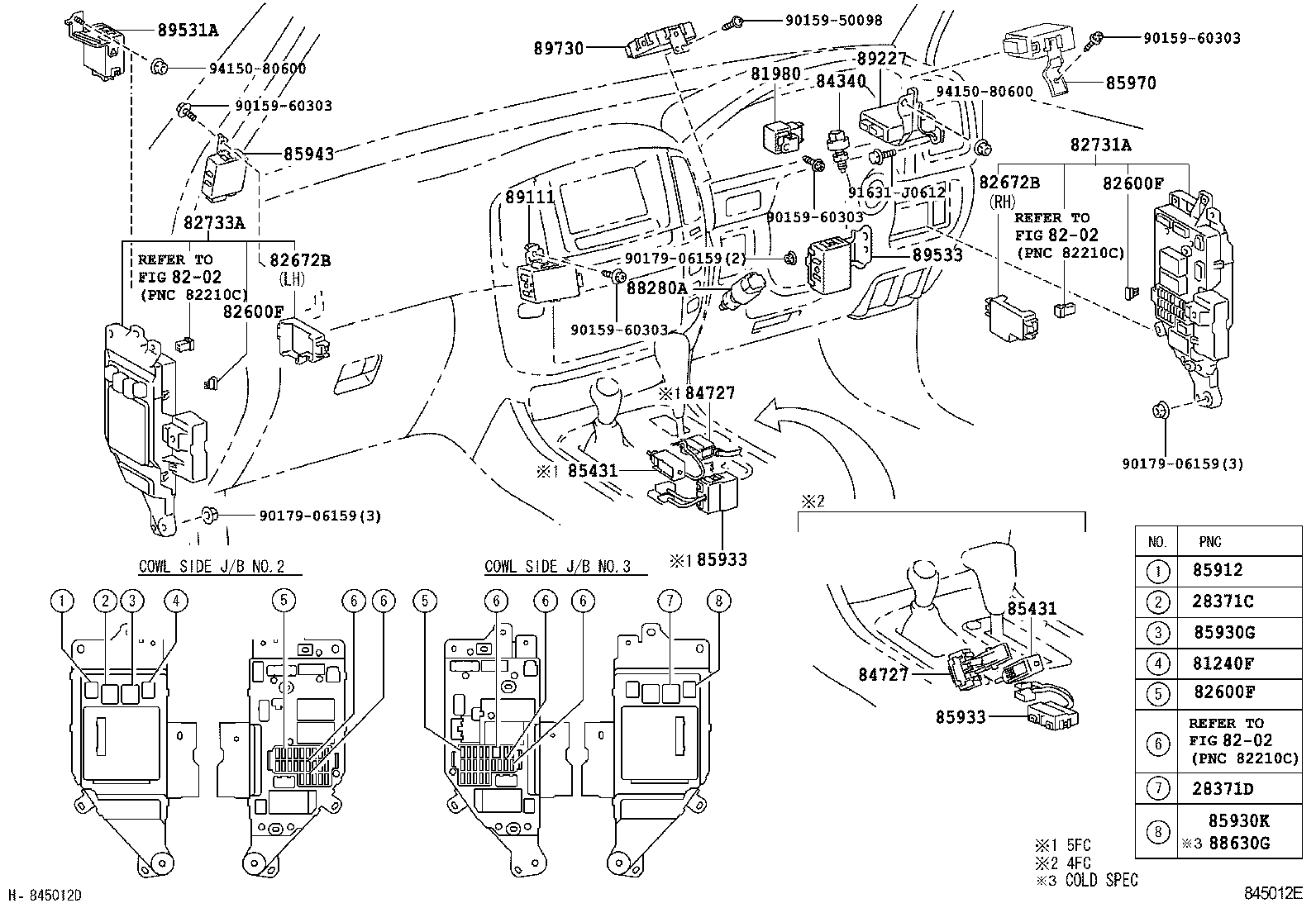

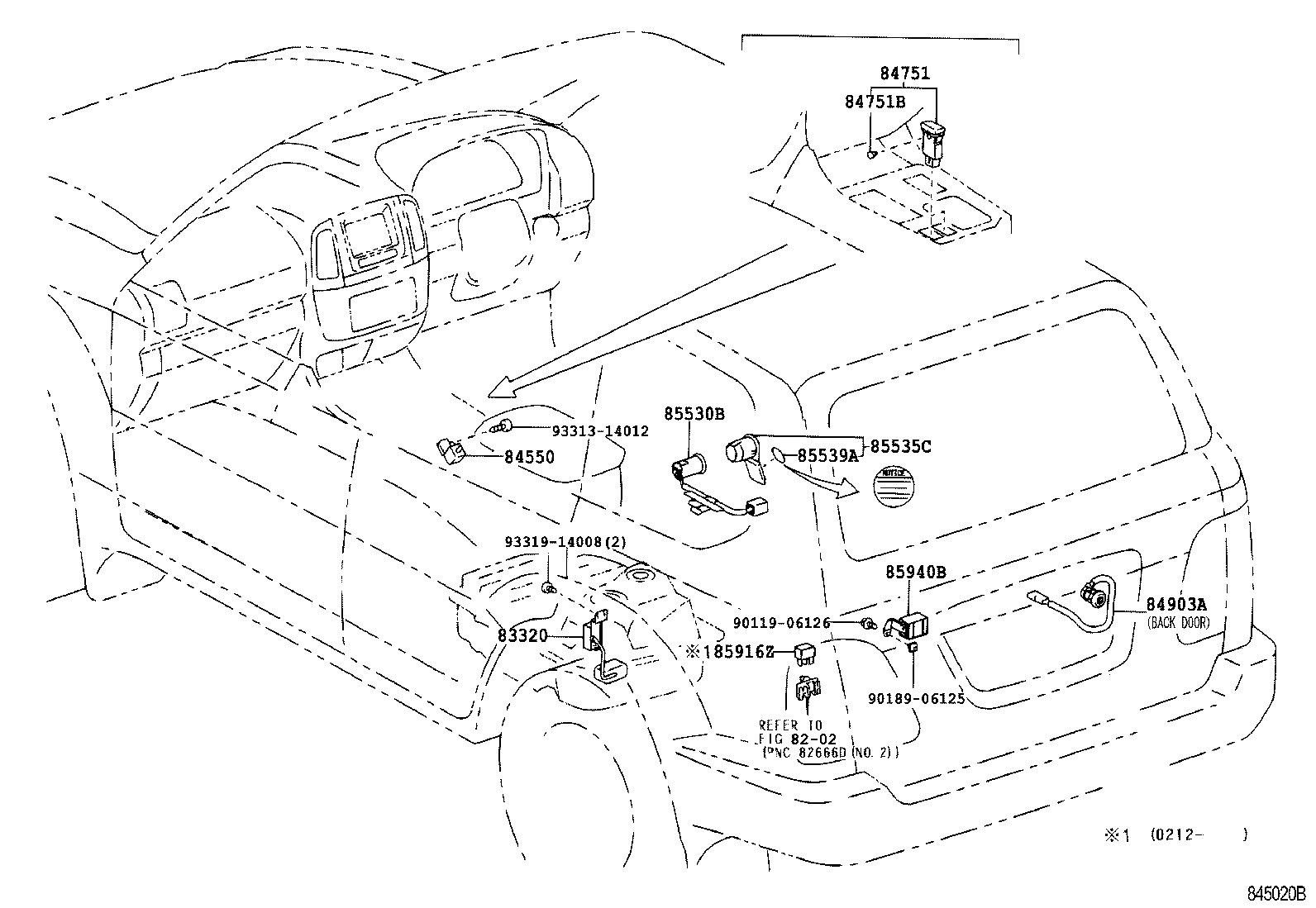

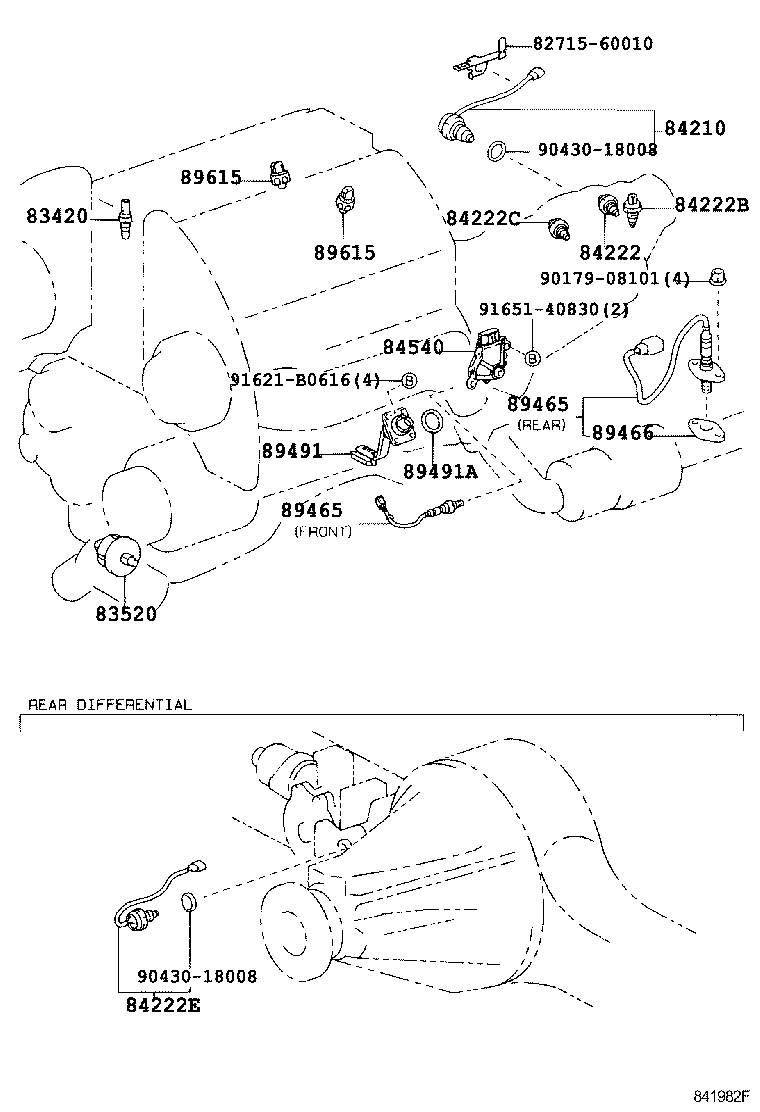

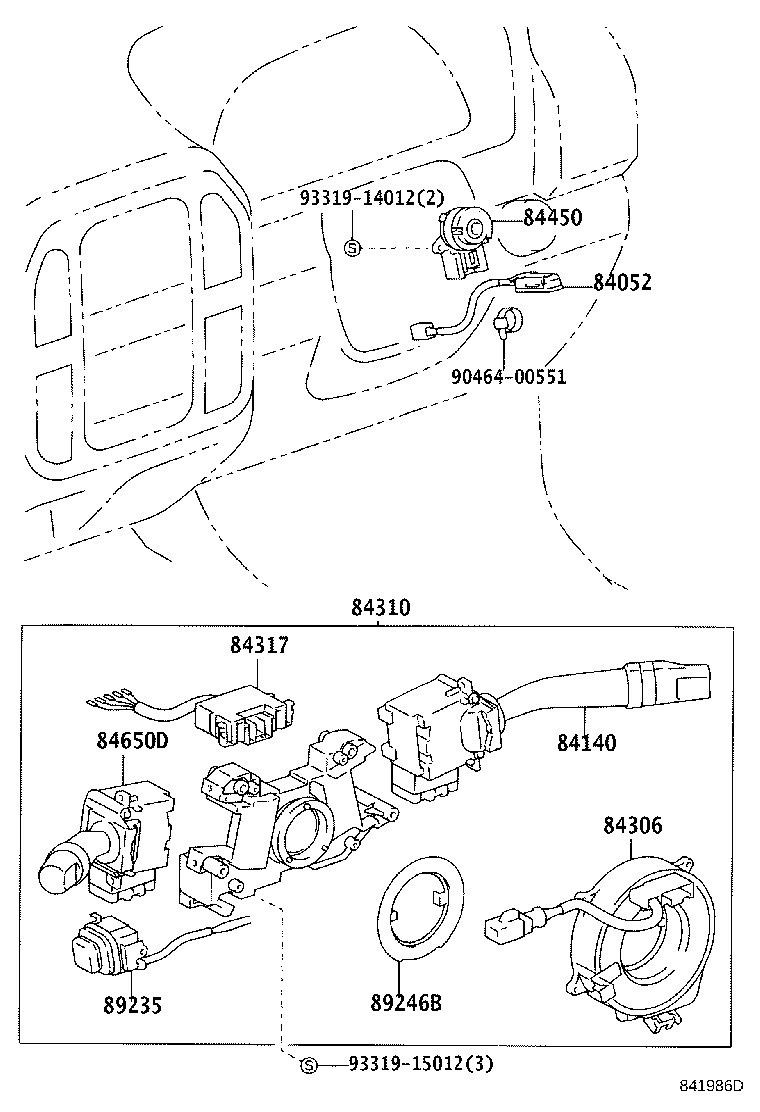

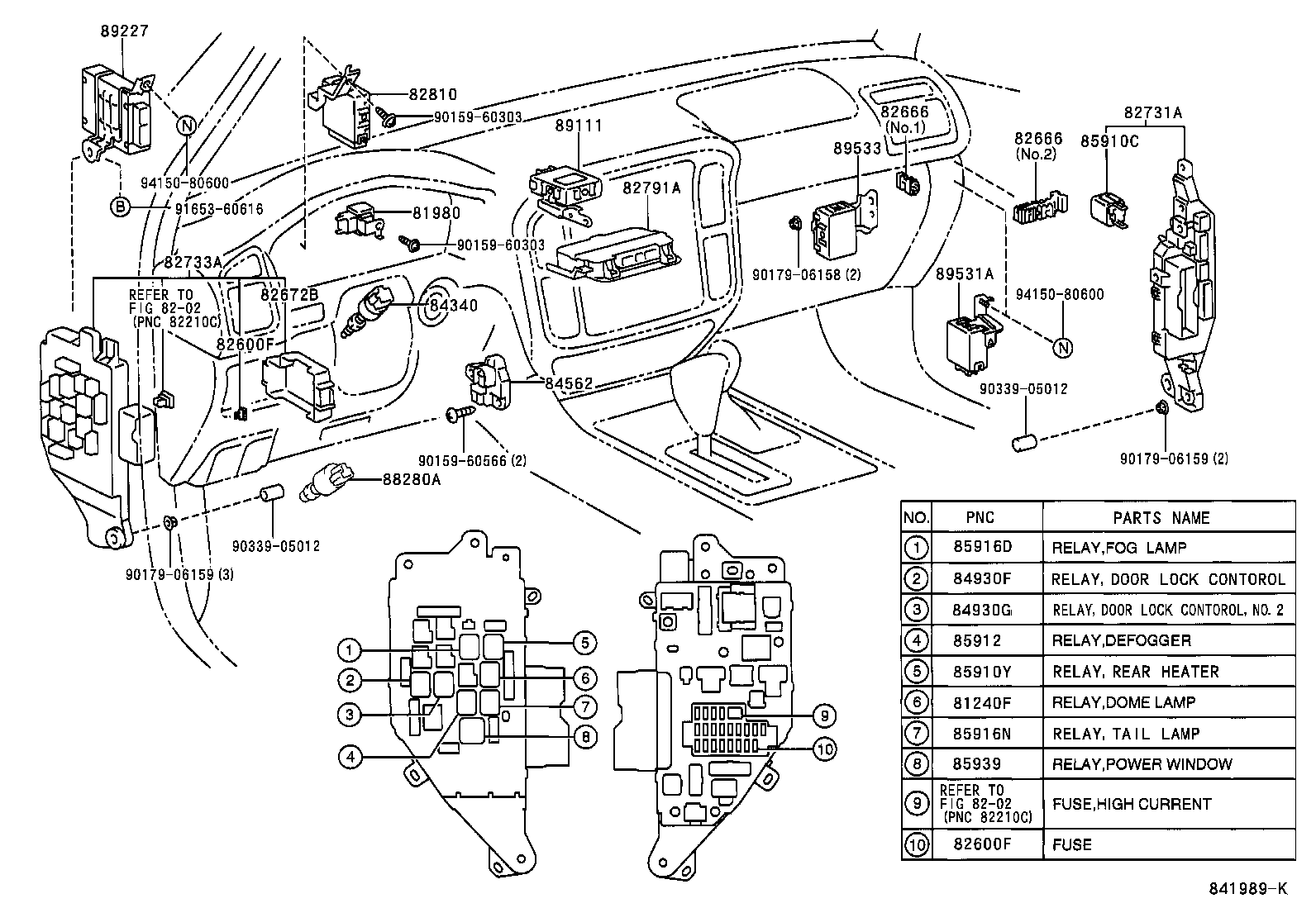

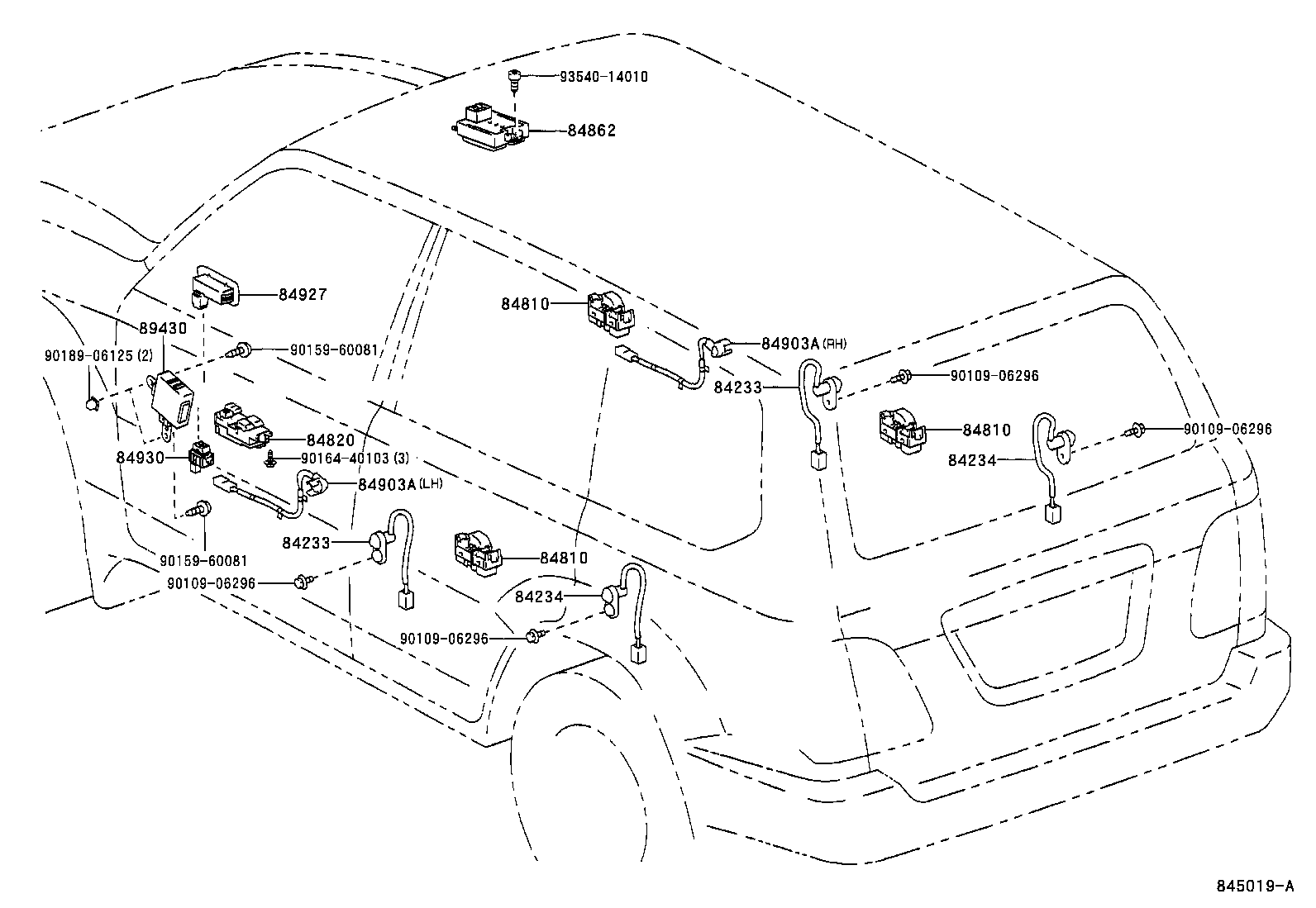

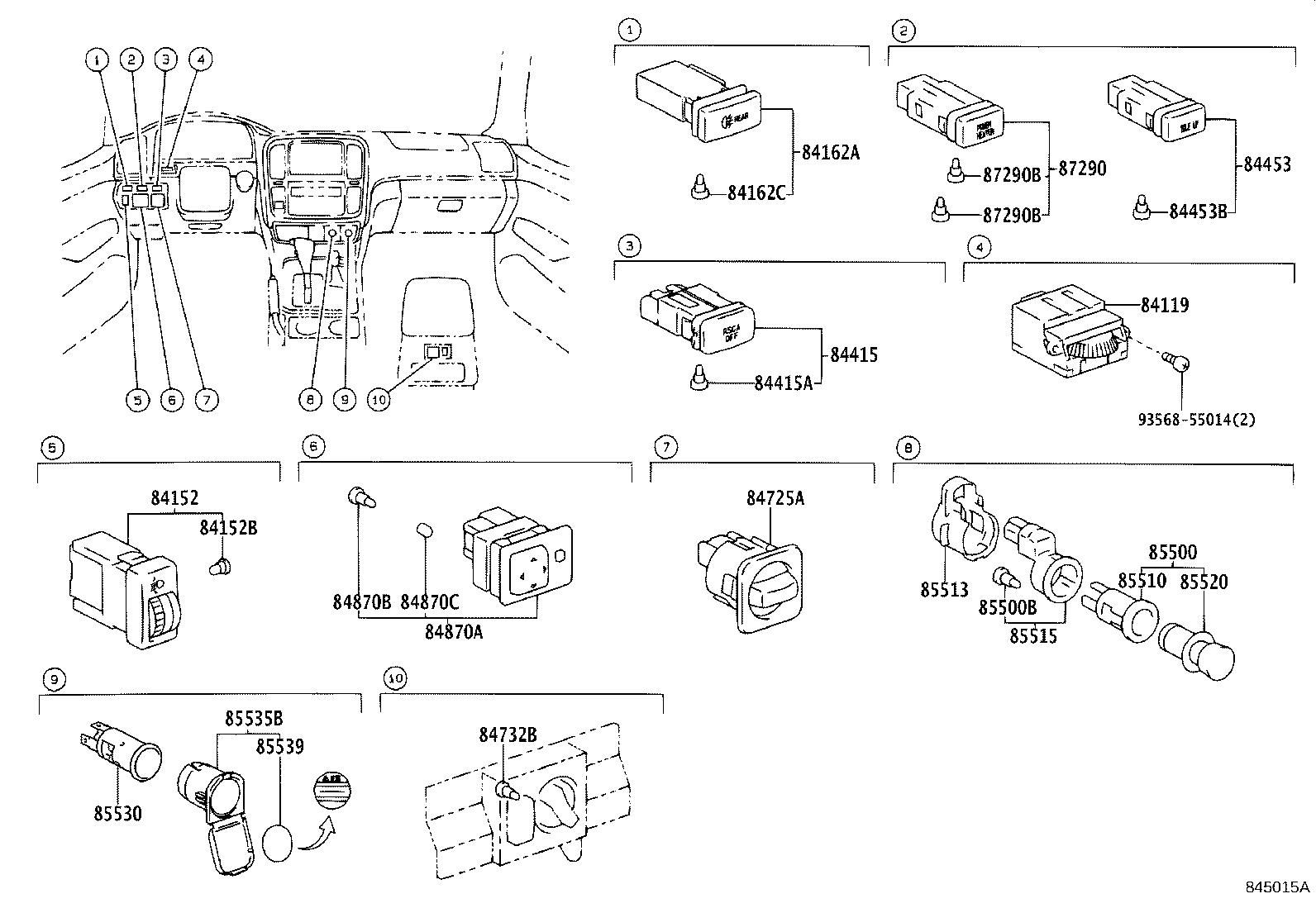

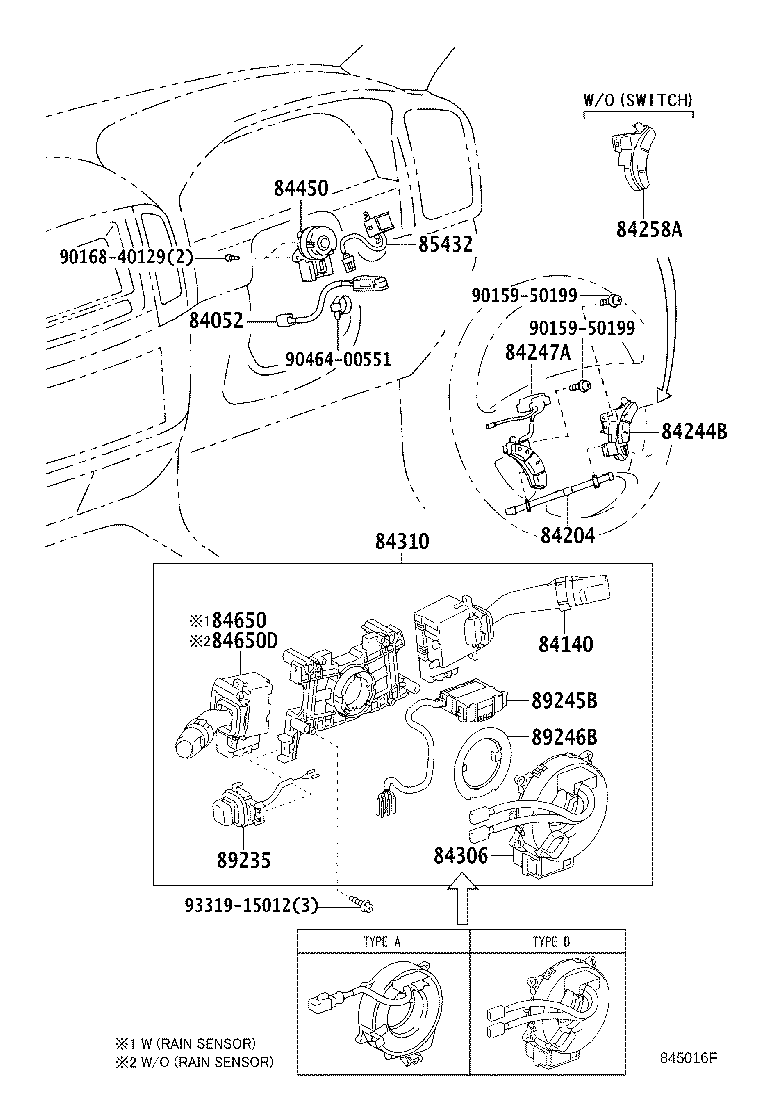

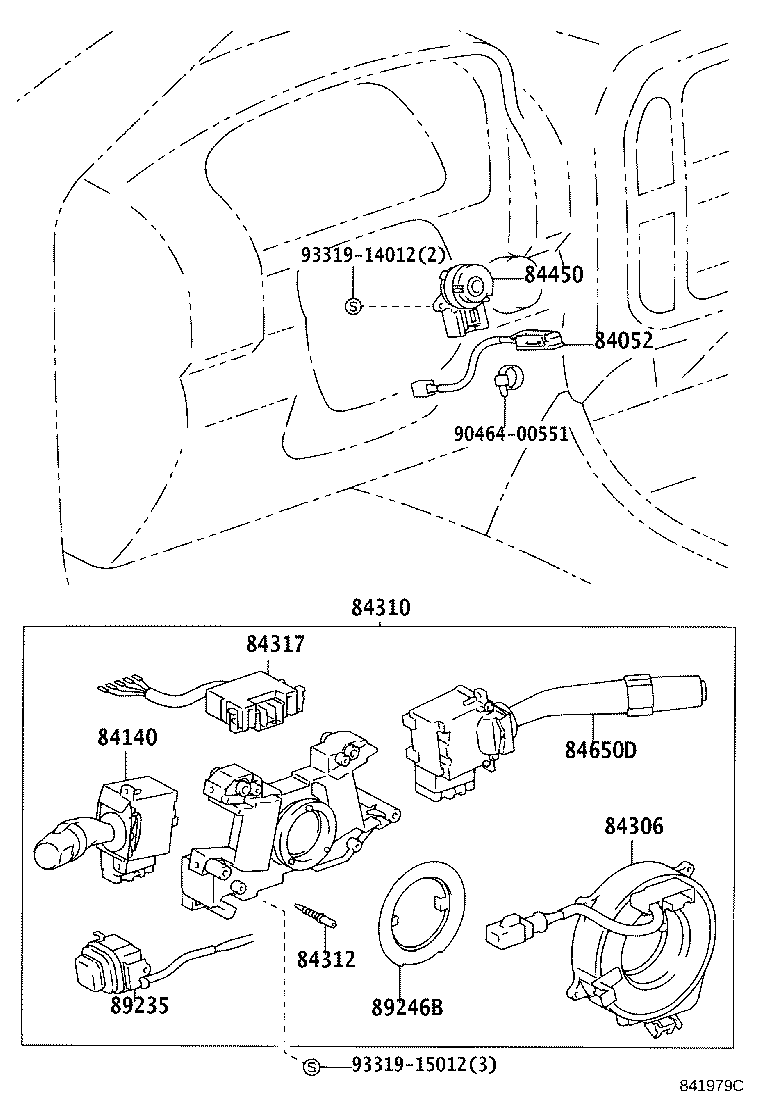

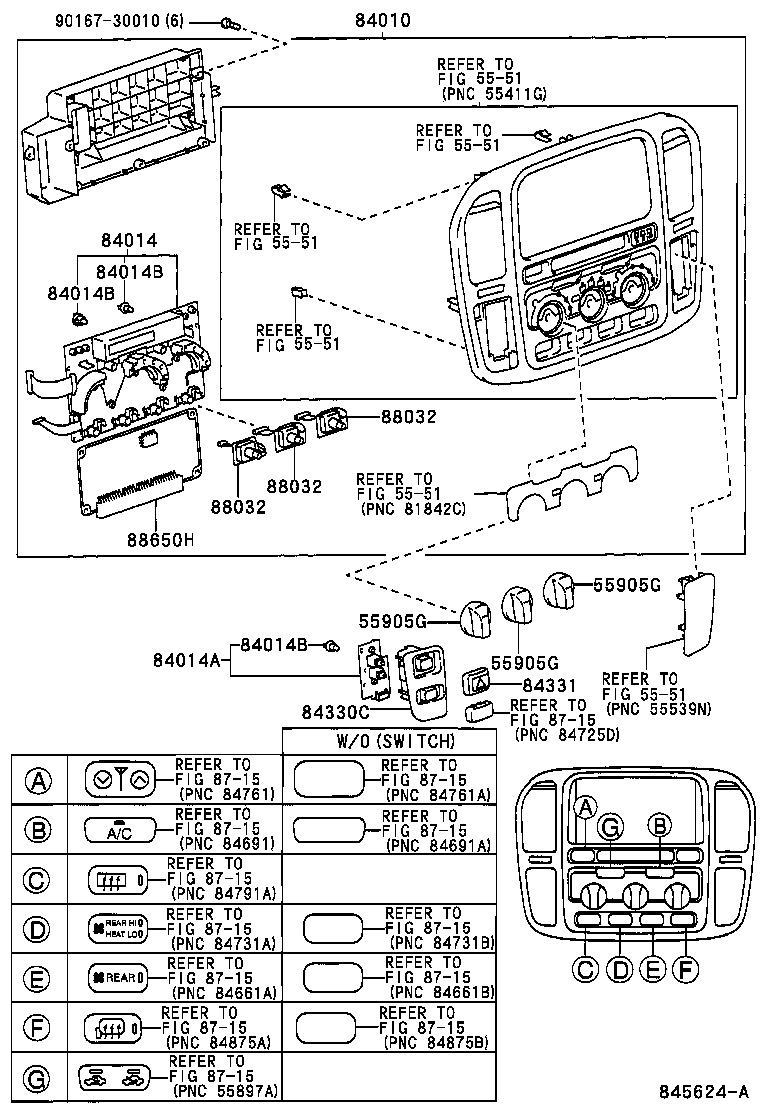

Figure 841990G 841990G 1998-01 → — Figure 841982F 841982F 1998-01 → — Figure 841983L 841983L 1998-01 → 2002-08 Figure 847961 847961 2002-08 → — Figure 841966J 841966J 1998-01 → 2002-08 Figure 845012E 845012E 2002-08 → — Figure 841989K 841989K 1998-01 → 2002-08 Figure 845013E 845013E 2002-08 → — Figure 841862J 841862J 1998-01 → 2002-08 Figure 845014A 845014A 2002-08 → — Figure 841863I 841863I 1998-01 → 2002-08 Figure 845015A 845015A 2002-08 → — Figure 845622A 845622A 1998-01 → 2002-08 Figure 845002B 845002B 2002-08 → — Figure 845624A 845624A 1998-01 → 2002-08 Figure 844912B 844912B 2002-08 → — Figure 841986D 841986D 1998-01 → 2002-08 Figure 845016F 845016F 2002-08 → — Figure 841979C 841979C 1998-01 → 2002-08 Figure 845017F 845017F 2002-08 → — Figure 843586A 843586A 1998-01 → 2002-08 Figure 845018B 845018B 2002-08 → — Figure 843575A 843575A 1998-01 → 2002-08 Figure 845019A 845019A 2002-08 → — Figure 842096C 842096C 1998-01 → 2002-08 Figure 845020B 845020B 2002-08 → — Figure 842097C 842097C 1998-01 → 2002-08 Figure 845021B 845021B 2002-08 → — Figure 841865E 841865E 1998-01 → 2002-08 Figure 844917B 844917B 2002-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28371D Relay, Ignition, NO.3
28380A Resister, Fuel Pump
55905G Knob Sub-assy, Control
55912D Housing, Heater Control
81240F Relay, Dome Lamp
81980 Flasher Assy, Turn Signal
82320A Computer & Wiring Assy, Position Control
82600F Fuse, Fuse Block
82620A Block Assy, Fusible Link
82666 Holder, Connector
82672A Cover, Junction Block
82672B Cover, Junction Block
82677 Cover, Junction Block, Upper NO.2
82678 Cover, Junction Block, Upper NO.3
82720 Block Assy, Engine Room Junction
82731A Block, Cowl Side Junction, RH
82733A Block, Cowl Side Junction, LH
82740 Block Assy, Engine Room Relay
82791A Controller & Junction, Instrument Panel
82810 Relay Assy, Running Light
83320 Gage Assy, Fuel Sender
83420 Gage Assy, Water Temperature Sender
83520 Gage Assy,Oil Pressure Sender
84010 Switch Assy, Center Cluster Integration
84014 Board Sub-assy, Printed Wire Integration
84014A Board Sub-assy, Printed Wire Integration, NO.2
84014B Bulb, Printed Wire Integration Board
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162A Switch, Rear Fog Lamp
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84204 Cable Sub-assy, Steering Pad Switch
84210 Switch Assy, Back-up Lamp
84222 Switch, Transfer Indicator, NO.1
84222B Switch, Transfer Indicator, NO.2
84222C Switch, Transfer Indicator, NO.3
84222E Switch, Differential Lock Indicator
84225A Switch, Shift Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84258A Cover, Steering Pad, RH
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84317 Sensor, Steering Position
84330C Cover, Hazard Warning Signal Switch
84331 Knob, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84415 Switch, Curtain Airbag Cutoff
84415A Bulb, Curtain Airbag Cutoff Switch
84450 Switch Assy, Ignition OR Starter
84453 Switch, Idle UP
84453B Lamp, Idle UP Switch
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84562 Switch, Fuel Control
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84725A Switch, Differential Lock
84727 Switch, Shift Lock Control
84732B Bulb, Rear Heater Blower Switch
84751 Switch, Seat Heater
84751B Bulb, Seat Heater Switch
84791C Knob, Defogger Time Switch
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84862 Switch, Slide Roof Motor
84870A Switch Assy, Outer Mirror
84870B Bulb, Outer Mirror Switch
84870C Cap, Outer Mirror Switch Bulb
84903A Switch Sub-assy, Door Unlock
84920 Switch Assy, Power Seat
84921 Knob, Power Seat Switch
84922 Switch, Front Power Seat
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84930F Relay, Door Lock Contorol
84930G Relay, Door Lock Control, NO.2
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85510 Socket & Retainer Assy, Cigarlighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85539 Label, Power Outlet Notice
85539A Label, Power Outlet Notice, Rear
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910X Relay, Heater Mirror
85910Y Relay, Rear Heater
85912 Relay, Defogger
85916 Relay, Light Control
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916Z Relay, Towing Hitch
85927 Relay, Cooling Fan
85930G Relay, Acc
85930K Relay, Acc, NO.2
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85939 Relay, Power Window
85940B Relay Assy, Rear Wiper
85942 Relay, Headlamp Cleaner Control
85943 Computer, Windshield Wiper
85970 Relay Assy, Door Opening
86530 Relay Assy, Horn
87120F Relay, Viscous Heater
87290 Switch Assy, Heater
87290B Bulb (FOR HEATER SWITCH)
88032 Switch, Heater Control Volume
88280A Switch Assy, Clutch
88630G Relay Assy, Cooler
88650H Amplifier Assy, Air Conditioner
89111 Computer, Network Gateway
89227 Computer, Multiplex Tilt & Telescopic
89235 Switch, Tilt Steering
89245B Sensor, Steering
89246B Disc, Sensor Steering
89430 Computer Assy, Outer Mirror Control
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89531A Relay, Transmission Control
89533 Computer, 4 Wheel Drive Control
89593 Sensor, Air Cleaner Warning
89615 Sensor, Knock Control
89710 Computer Assy, Position Control
89730 Computer Assy, Security Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
